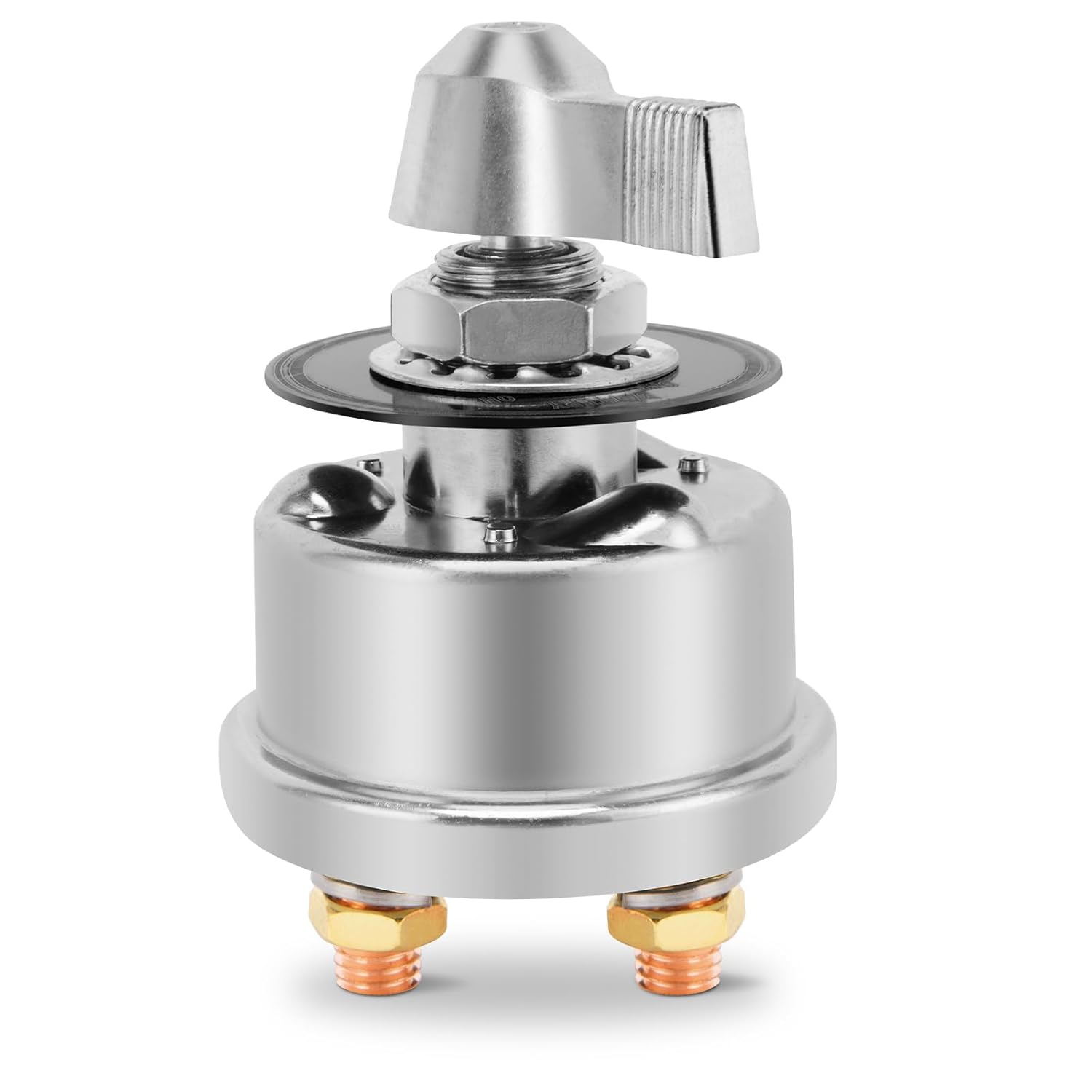

ASW-A802 200A 12-48V DC Battery Disconnect Switch Master Cutoff Panel Mount with Lever Handle
Part # ASW-A802
The on-off battery disconnect switch is rated for 200A continuous (1000A intermittent) in 12-48V DC systems, features a durable all-metal construction with a rugged aluminum housing and 3/8-inch copper studs.
Designed to fit a standard 3/4-inch hole, this master cutoff switch offers simple On/Off lever control, making it a reliable safety and security solution for cars, boats, and RVs.
Category :
Battery Switch
ASW-A802 200A 12-48V DC Battery Disconnect Switch Features
- Heavy-Duty Electrical Rating
This heavy-duty battery switch is engineered for high-power circuits, rated to handle 200A of continuous current and 1000A intermittent. The master disconnect switch is fully compatible with 12-48V DC systems. This high capacity makes the power cutoff switch ideal for isolating and protecting main electrical circuits.

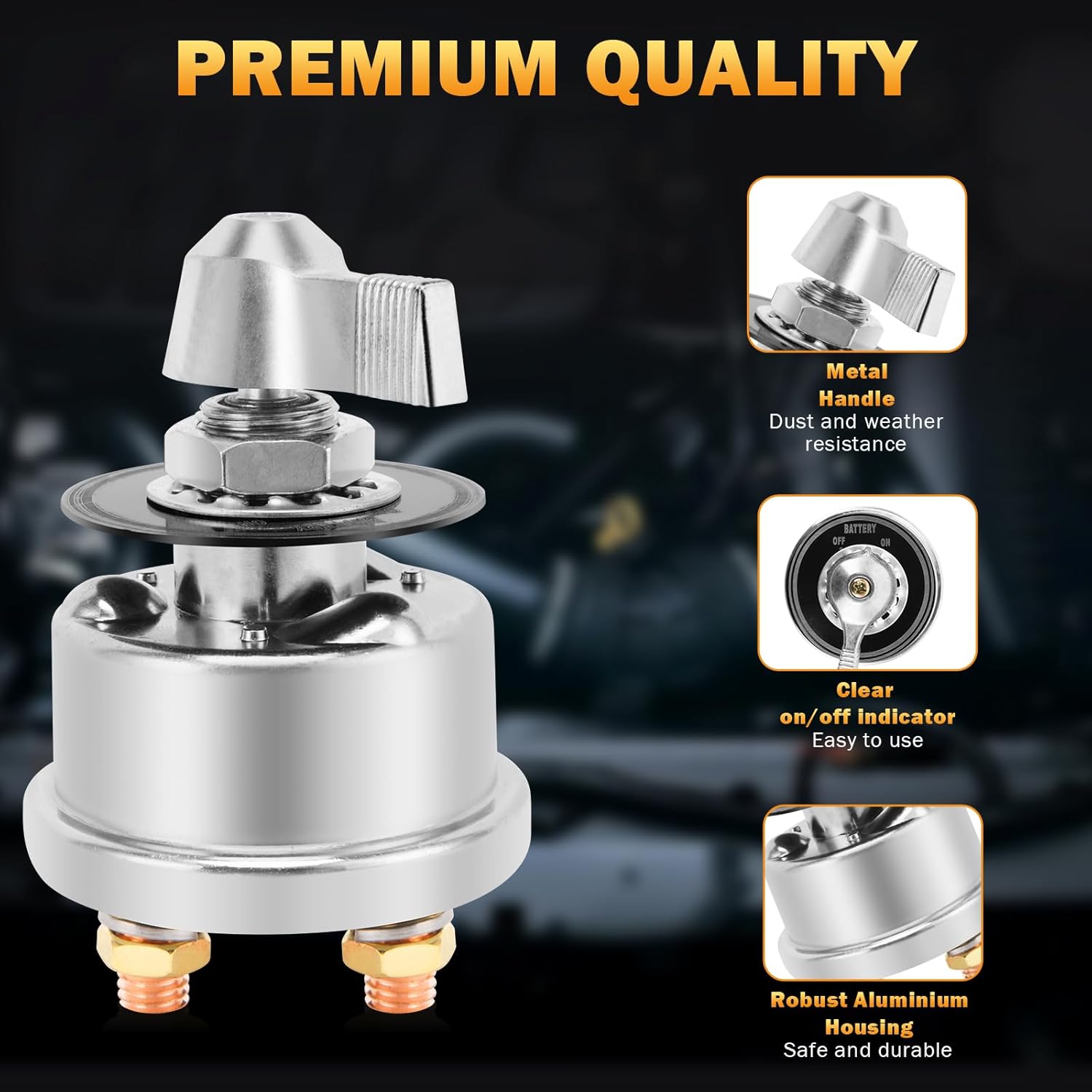

- Durable All-Metal Construction
This master power switch is constructed with a rugged aluminum housing for excellent durability and heat dissipation. The weather-resistant switch features a solid metal handle, designed to withstand dust and harsh conditions. Solid 3/8-inch copper terminal studs are used to ensure maximum conductivity and corrosion resistance.

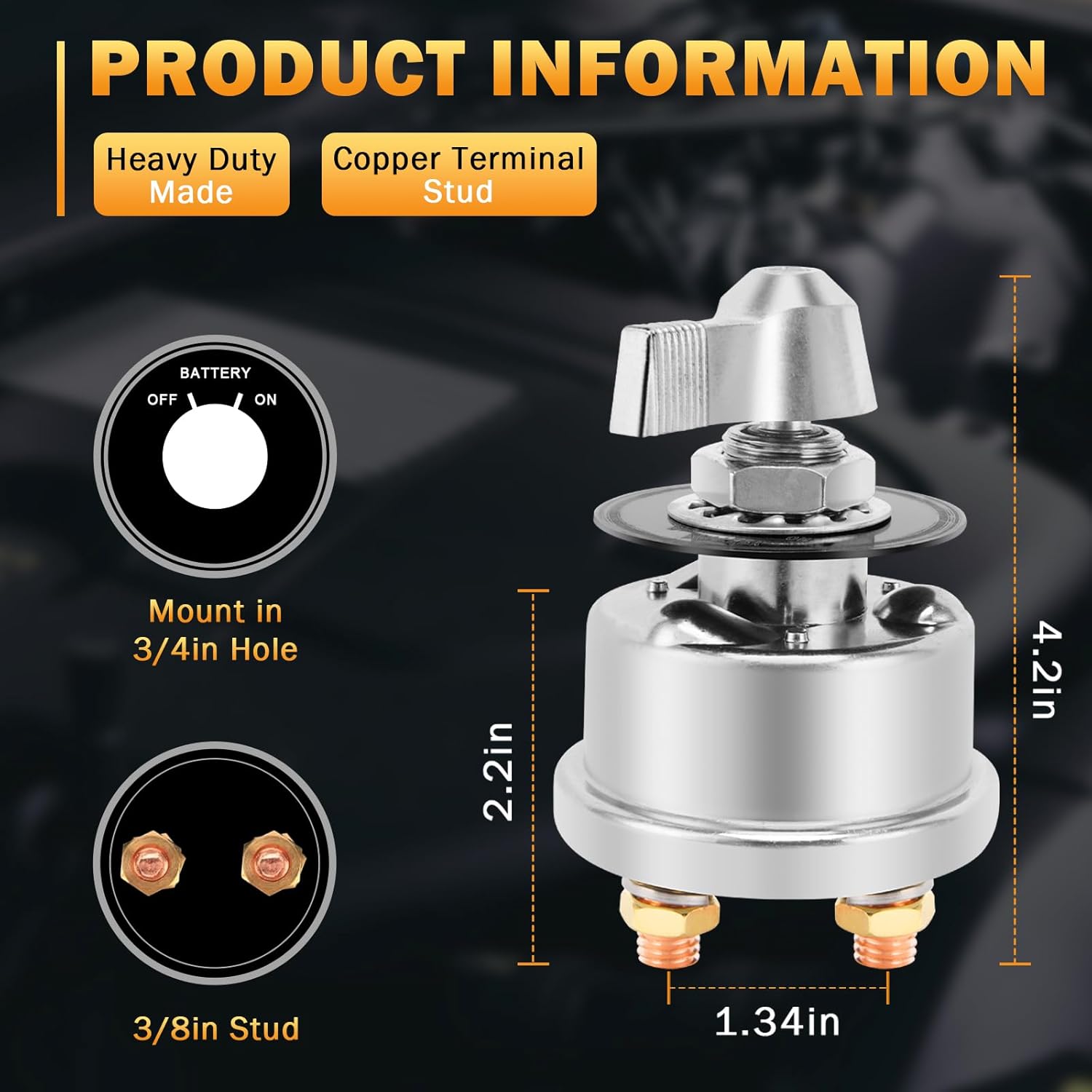

- Secure Panel Installation
This panel-mount battery switch is designed for a clean and secure installation and fits into a standard 3/4-inch diameter hole. The electrical isolator switch comes with a faceplate, a lock washer, and a mounting nut to ensure a tight and vibration-resistant fit. This design provides a professional, integrated look for any dashboard or control panel.

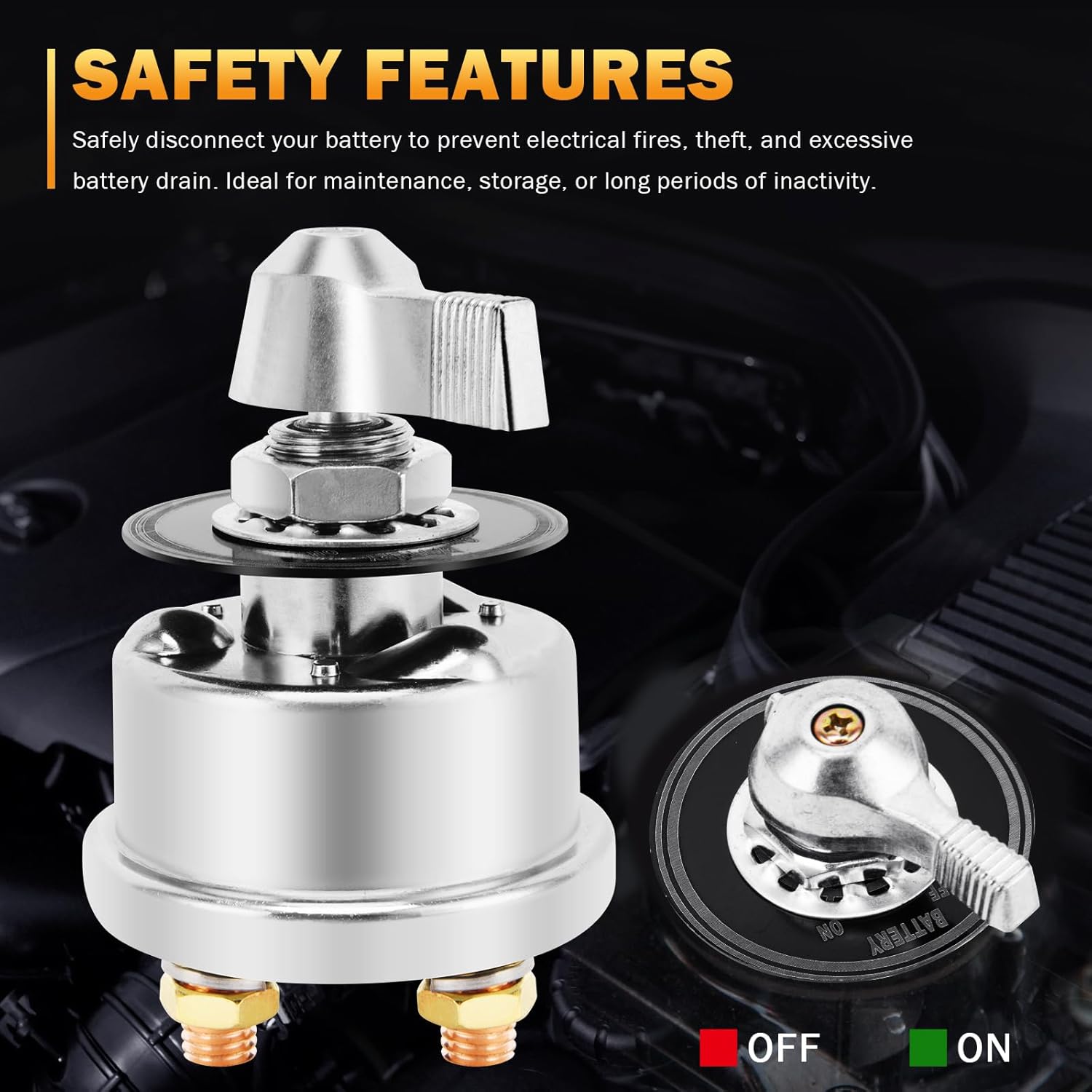

- Simple Rotary Operation
This manual disconnect switch provides clear and unambiguous On/Off 2-position control. The rotary lever handle offers a distinct tactile feel, making it easy to confirm the circuit’s status. The included faceplate has clear ON/OFF indicators, eliminating any guesswork during operation.

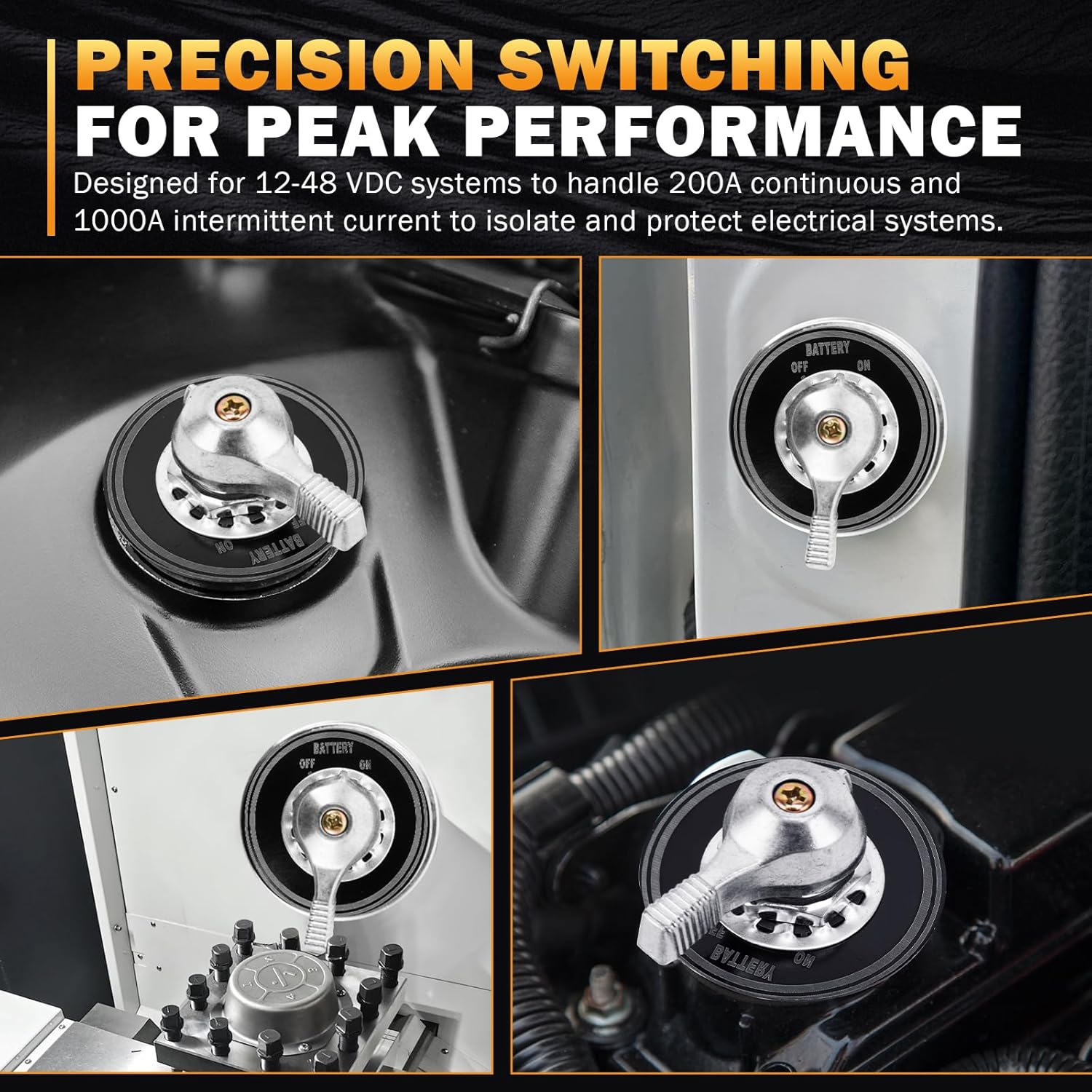

- Broad System Application
This universal kill switch is a versatile solution for preventing battery drain, electrical fires, and theft across a wide range of vehicles. The master power switch is perfect for use in cars, boats, RVs, trucks, and agricultural or industrial equipment. It serves as an essential safety device for maintenance, storage, or emergency power shutdown.
ASW-A802 200A 12-48V DC Battery Disconnect Switch Datasheet
| Model Number | ASW-A802 |
| Operating Voltage | 12V – 48V DC |
| Current Rating | Continuous: 200 Amps / Intermittent: 1000 Amps |
| Operation | 2-Position: ON / OFF |
| Actuator Type | Rotary Lever Handle |
| Housing Material | Aluminum |
| Handle Material | Metal (Likely Zinc Alloy or similar) |
| Terminal Studs | Size: 2 x 3/8 inch Material: Copper |
| Mounting Style | Panel Mount |
| Required Mounting Hole | 3/4 inch (Approx. 19 mm) Diameter |
