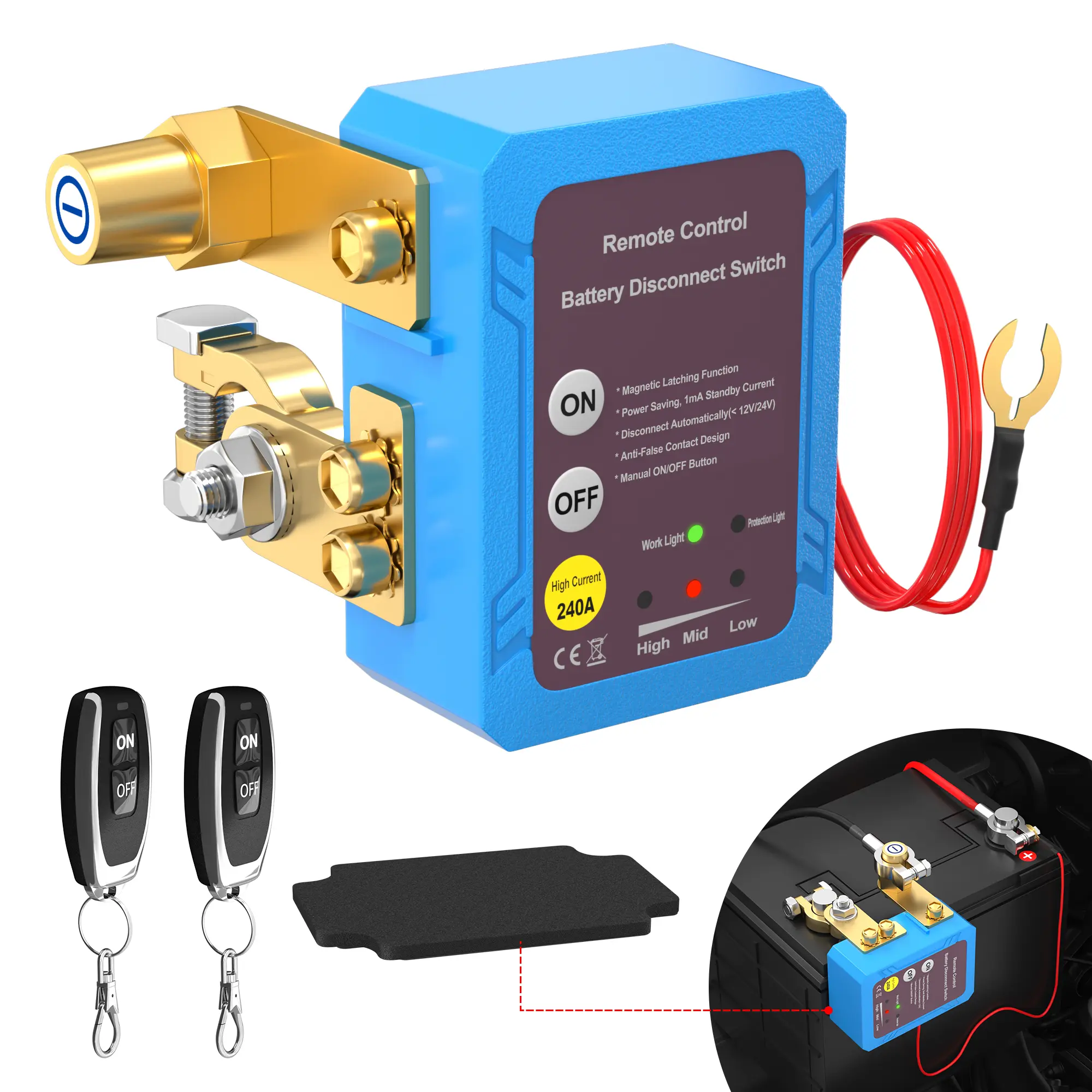

RL-240A-RCM4 240A 12V/24V Side Mount Remote Battery Disconnect Switch with 1000A CCA
Part#RL-240A-RCM4
This 12V/24V side mount remote battery disconnect switch delivers a robust 240A rated current and impressive 1000A Cold Cranking Amps capability, providing convenient wireless control for vehicle power systems.
It features intelligent low-voltage protection to prevent deep discharge and safeguard battery health, alongside a manual override button and efficient magnetic latching technology.
Category :
Battery Switch
Video & FAQs: Everything You Need to Know: The Ultimate Guide to the Remote Control Battery Disconnect Switch

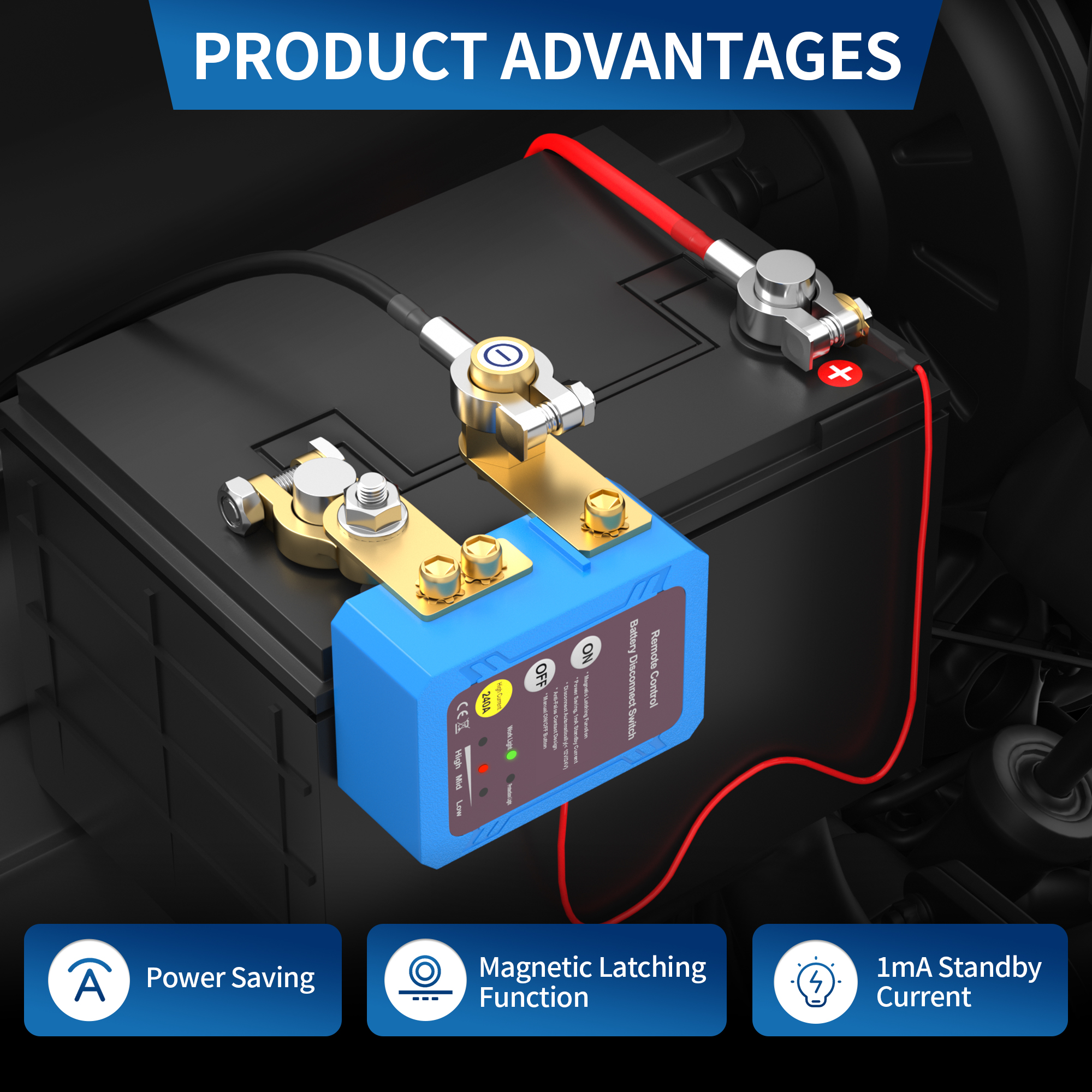

RL-240A-RCM4 240A 12V/24V Side Mount Remote Battery Disconnect Switch Features
- Advanced Electrical Performance
The 240A 12V/24V Remote Battery Disconnect Switch delivers exceptional electrical performance with a 240A current rating and 1000A cold cranking amps for 30 seconds. It operates efficiently at a 12V/24V voltage range, ensuring precise power management for vehicles, RVs, and boats with side post battery setups.

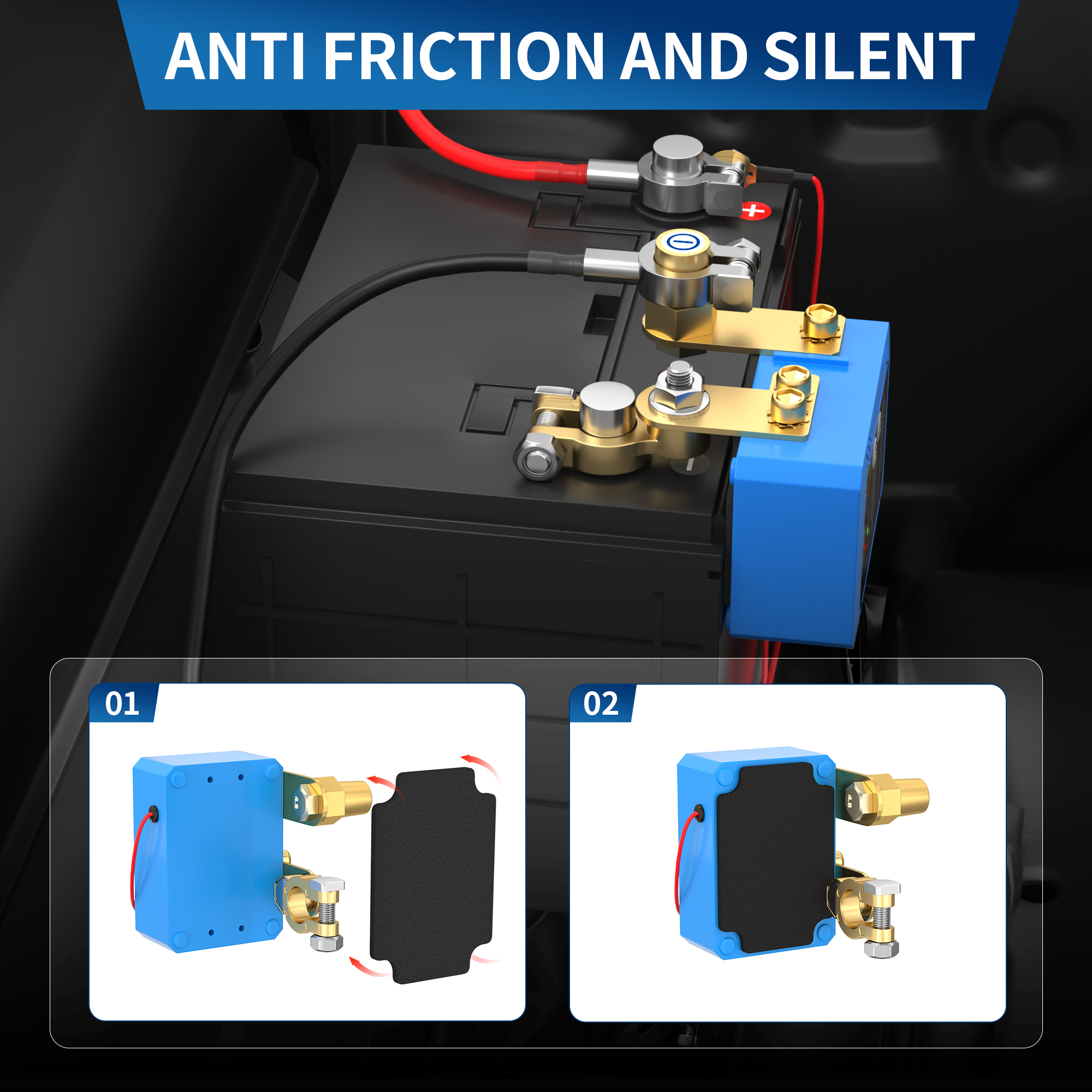

- Silent and Efficient Design
This car battery kill switch features an anti-friction and silent design, reducing component wear and eliminating noise during operation. Its magnetic latching relay technology ensures smooth, quiet switching, enhancing functionality for automotive and marine applications.
- Intelligent Low Voltage Protection
The remote control battery disconnect switch, when activated, automatically cuts off power if it detects low voltage (below 11.8V/23V) to protect the battery and ensure safety. It includes a 120-second delay before shutdown and temporarily disables remote control above 13.2V/25V, preventing accidental disruptions while the vehicle is in use.
- Comprehensive Battery Safeguards

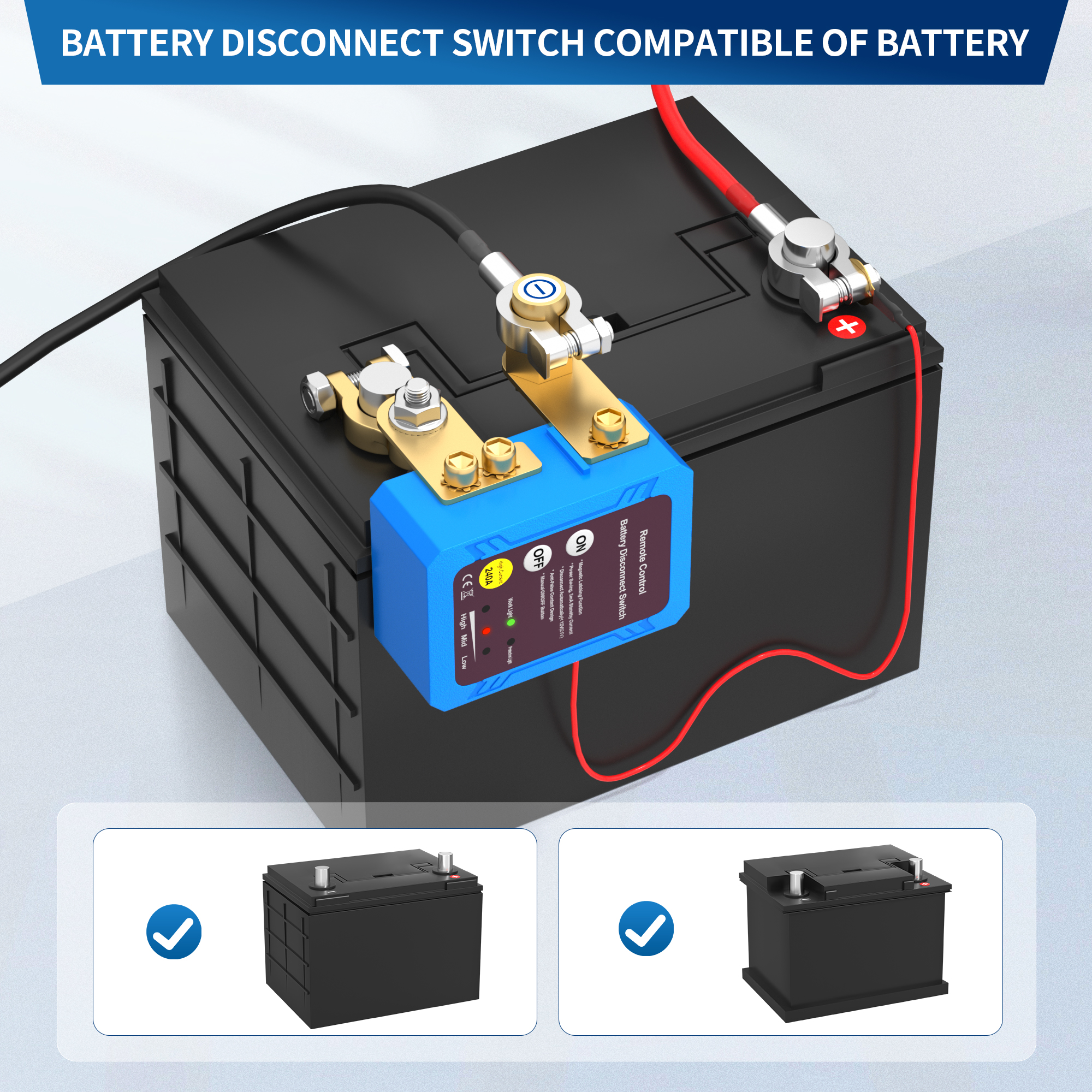

This power shut-off switch provides advanced battery protection by disconnecting power during long-term parking or low voltage conditions, preventing deep discharge and wiring degradation. It eliminates electronic equipment issues and accidental power drain, extending battery life for cars, RVs, and boats with side post installations.
- User-Friendly Remote Operation
The remote battery disconnect switch includes a 433MHz remote control, offering a reliable operation range of up to 100 meters for easy on/off switching. Its manual button and anti-false contact design ensure safe, precise use, making it ideal for vehicle owners seeking convenient battery management with side post compatibility.

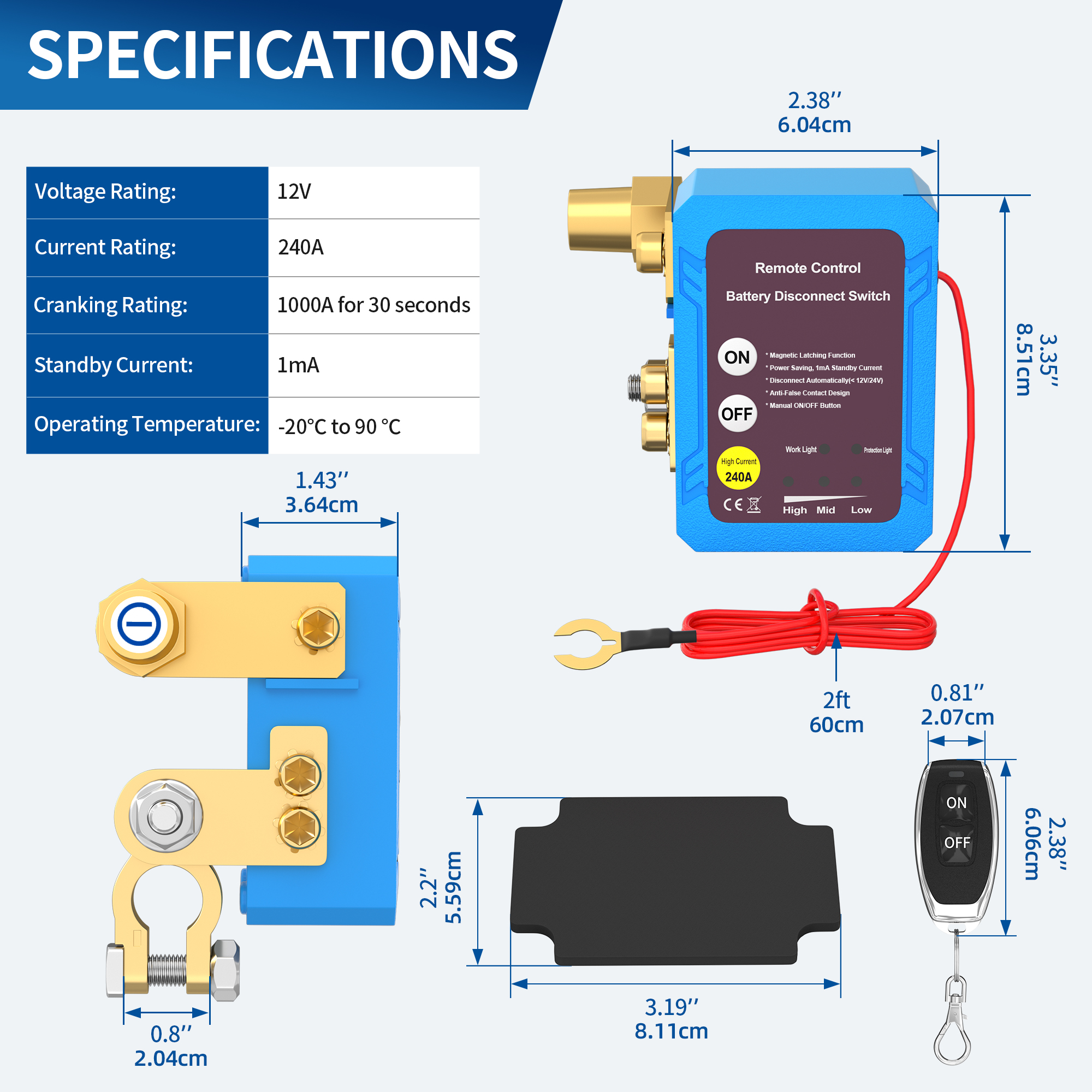

RL-240A-RCM4 240A 12V/24V Side Mount Remote Battery Disconnect Switch Datasheet
| Part NO | RL-240A-RCM4 |
| Type | Side Post Installation |
| Function | ON-OFF |
| Working Voltage | 12V/24V DC |
| Continuous Rating | 240A |
| Instantaneous Current | 1000A |
| Standby Current | 1mA |
| Operating Temperature | -20℃ – 90 ℃ |
| Control Type | Remote Control / Manual Control |
