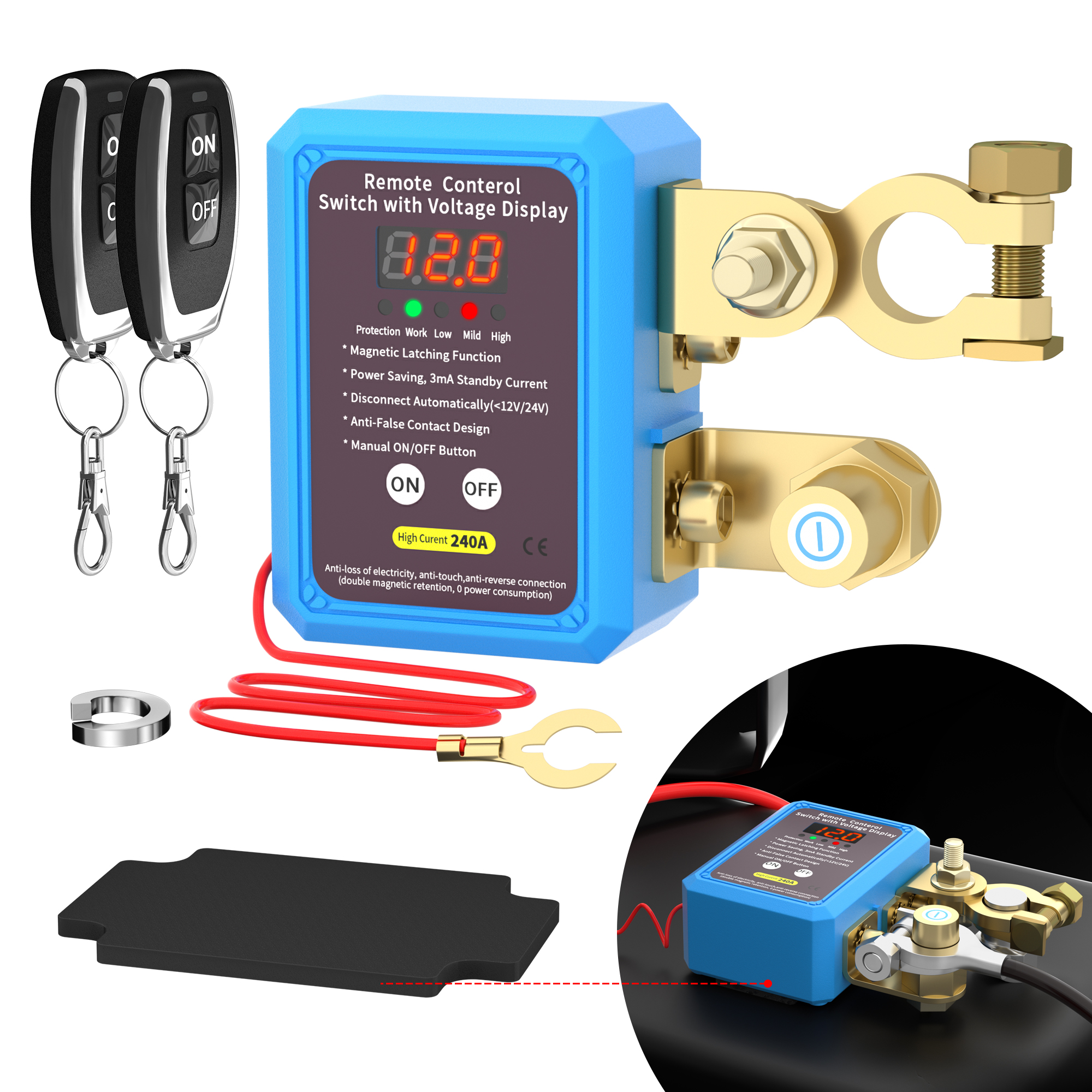

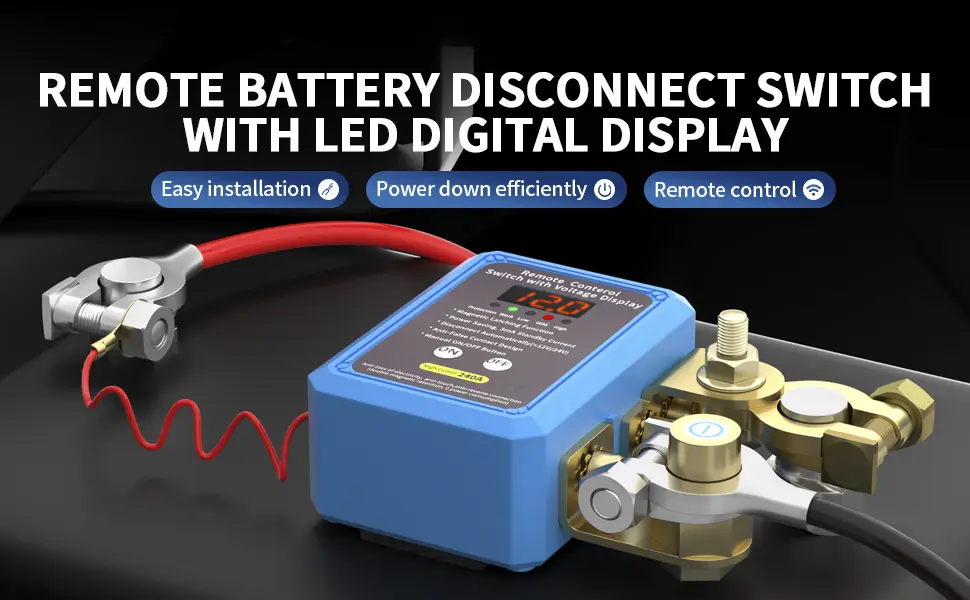

RL-240A-RCM3-VD 12V/24V 240A ON-OFF Remote Control Battery Switch with LED Voltage Display

RL-240A-RCM3-VD Remote Control Battery Switch with LED Voltage Display Features

• Impressive Specifications

This battery disconnect switch has a rated current of 240A and a rated voltage of 12V. It has a standby power consumption of only 3mA. The power-off thresholds are set at 11.8V±0.2V / 23±0.2V, ensuring reliable performance under different conditions. Additionally, it can handle instantaneous currents of up to 500A.

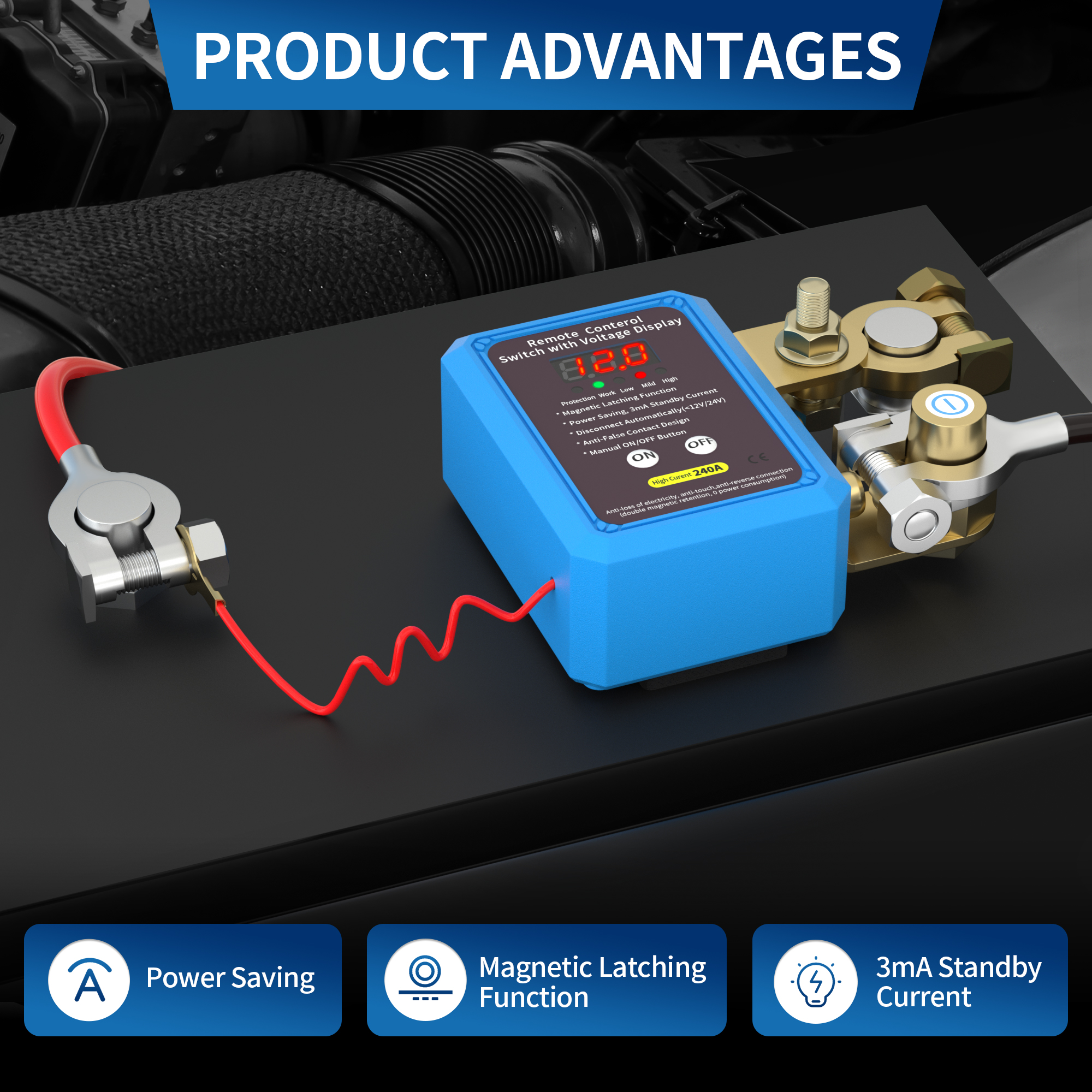

• Innovative Latching Technology

Unlike traditional methods, this automotive kill switch makes use of an innovative magnetic latching relay for circuit control, minimizing standby current to just 3mA while ensuring exceptional energy efficiency and performance.

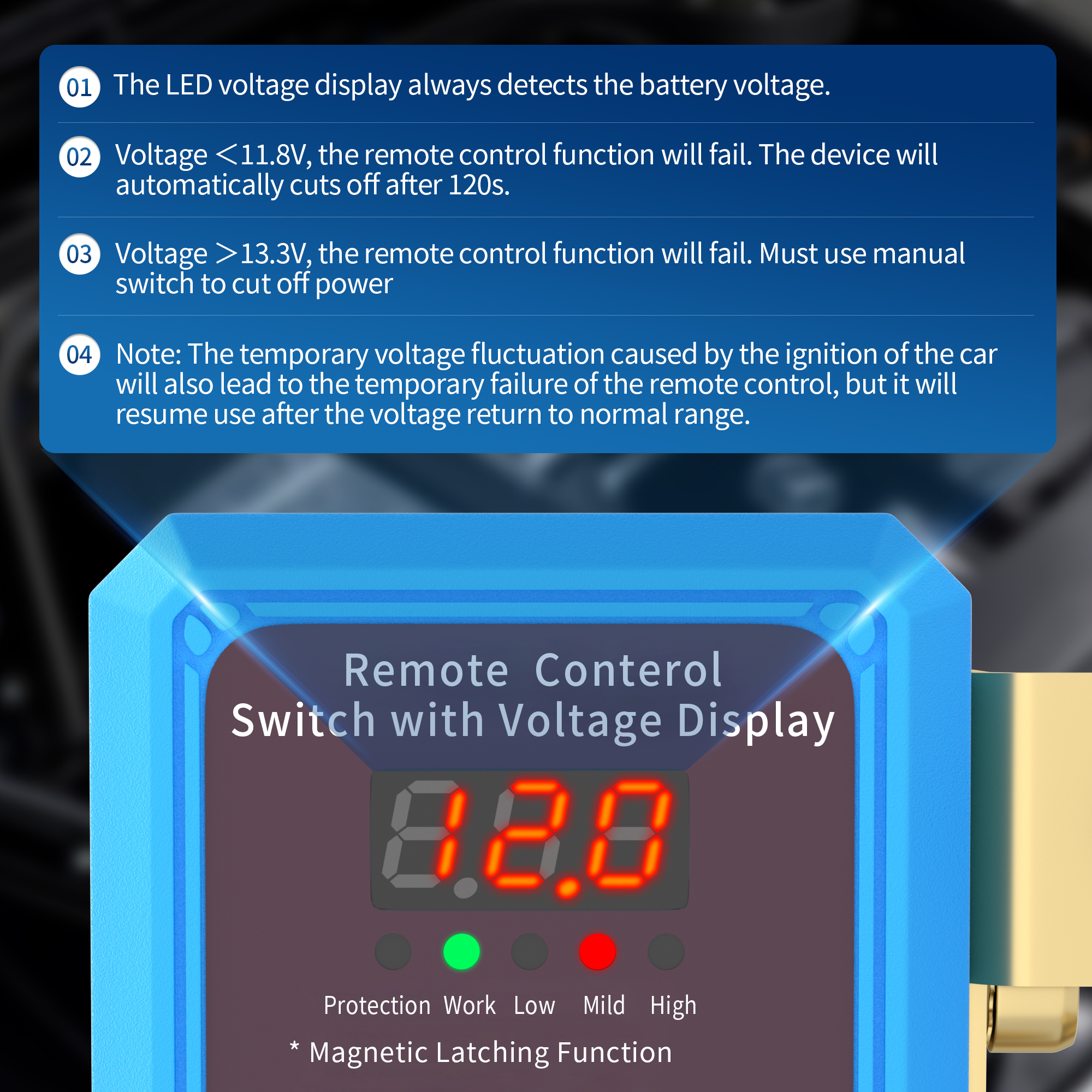

• Automatic Voltage Cut-Off & Display

 This remote control battery disconnect switch is equipped with a voltage display to ensure the safety of your battery. When the voltage drops below 11.8V, the switch automatically cuts off power. It also has a 120-second delay before power cut-off to conserve electricity. Furthermore, the system has a feature that temporarily disables remote control when voltage exceeds 13.2V. This prevents inadvertent power disruption while driving and provides reliable control via the switch’s button.

• Enhanced Battery Protection

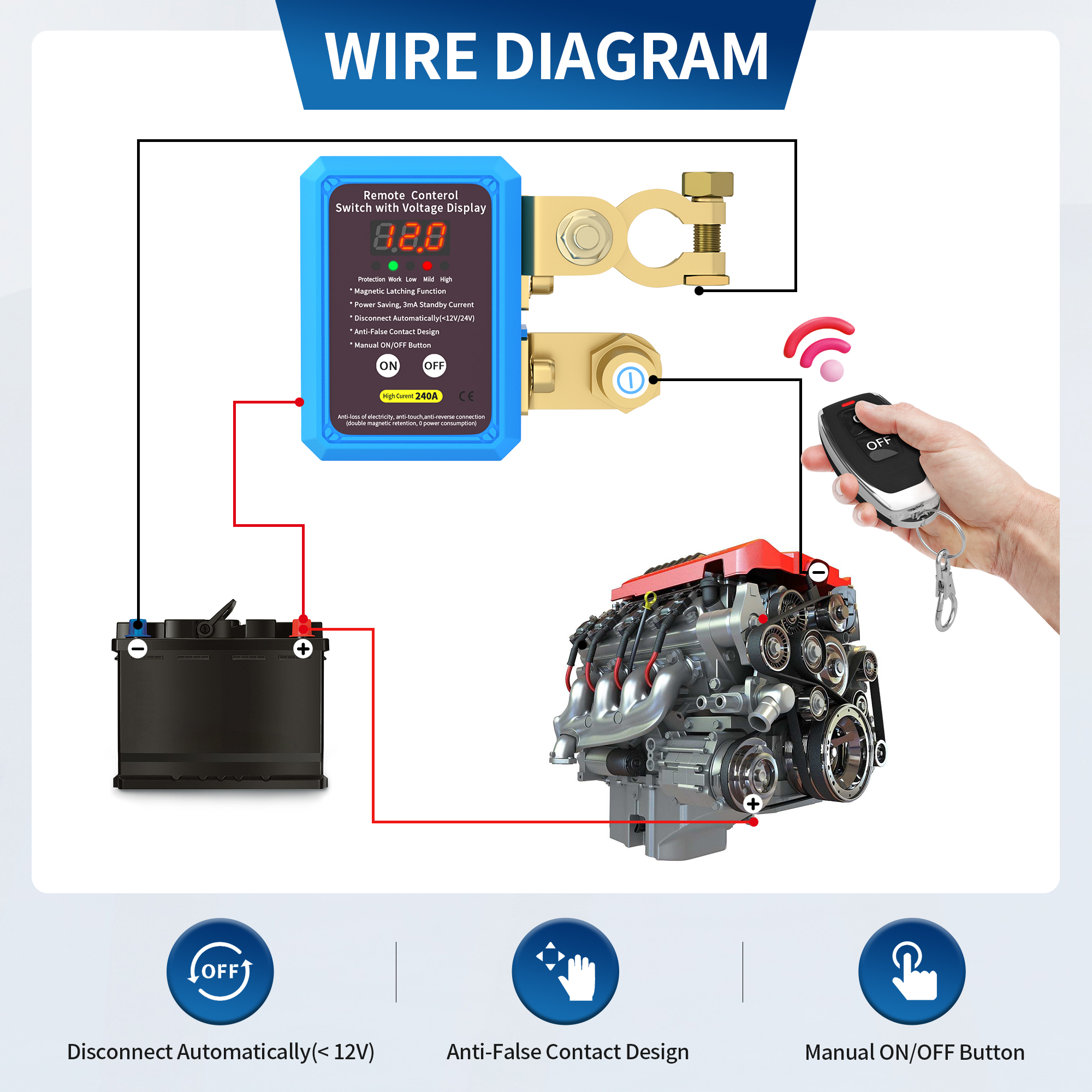

This power shut-off switch is designed to prioritize battery protection by utilizing a negative connection for added stability. In order to ensure safety during setup and operation, it is essential to deactivate the power before installation.

• Extended Battery Life

By implementing a car battery kill switch, you can effectively prevent power loss during prolonged parking, mitigate electronic equipment issues, combat wiring degradation, and prevent accidental light left-ons, which will result in robust battery protection and a prolonged battery lifespan.

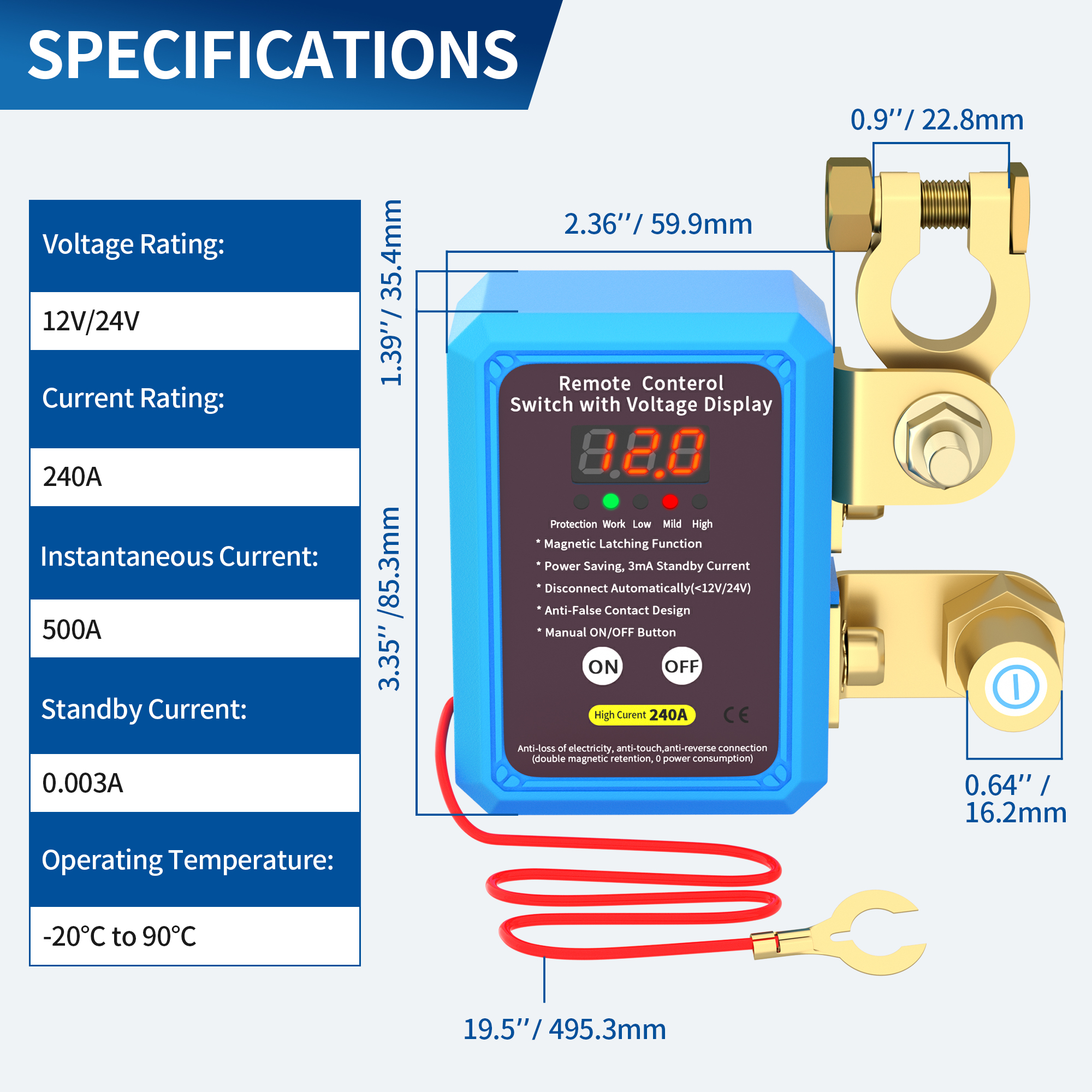

RL-240A-RCM3-VD Remote Control Battery Switch with LED Voltage Display Datasheet

If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
