RCR-1 Industrial RF Remote Control Switch 30A Relay for DC8-86V Motor & Equipment Control
P/N: RCR-1

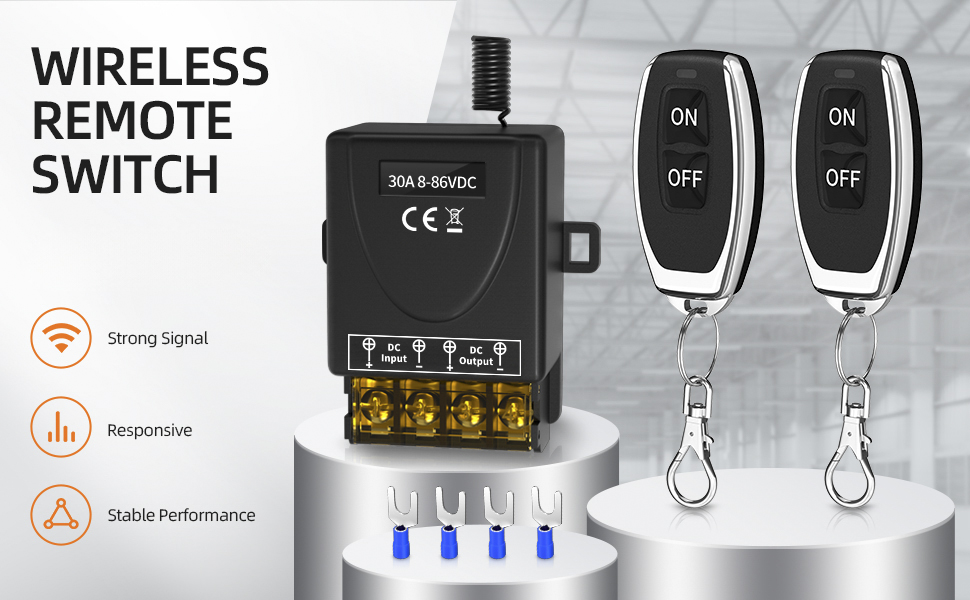

This 30A wireless remote control switch provides reliable, long-range RF control for high-current DC electrical loads from 8V to 86V.
It is engineered to simplify the remote operation of industrial machinery, agricultural equipment, and custom automation systems, eliminating the need for complex hardwired controls.
Category :
Relay & Relay Box
RCR-1 RF Remote Control Switch 30A Relay for DC8-86V Motor & Equipment Control Features
-
Long-Range Signal for Operational Flexibility

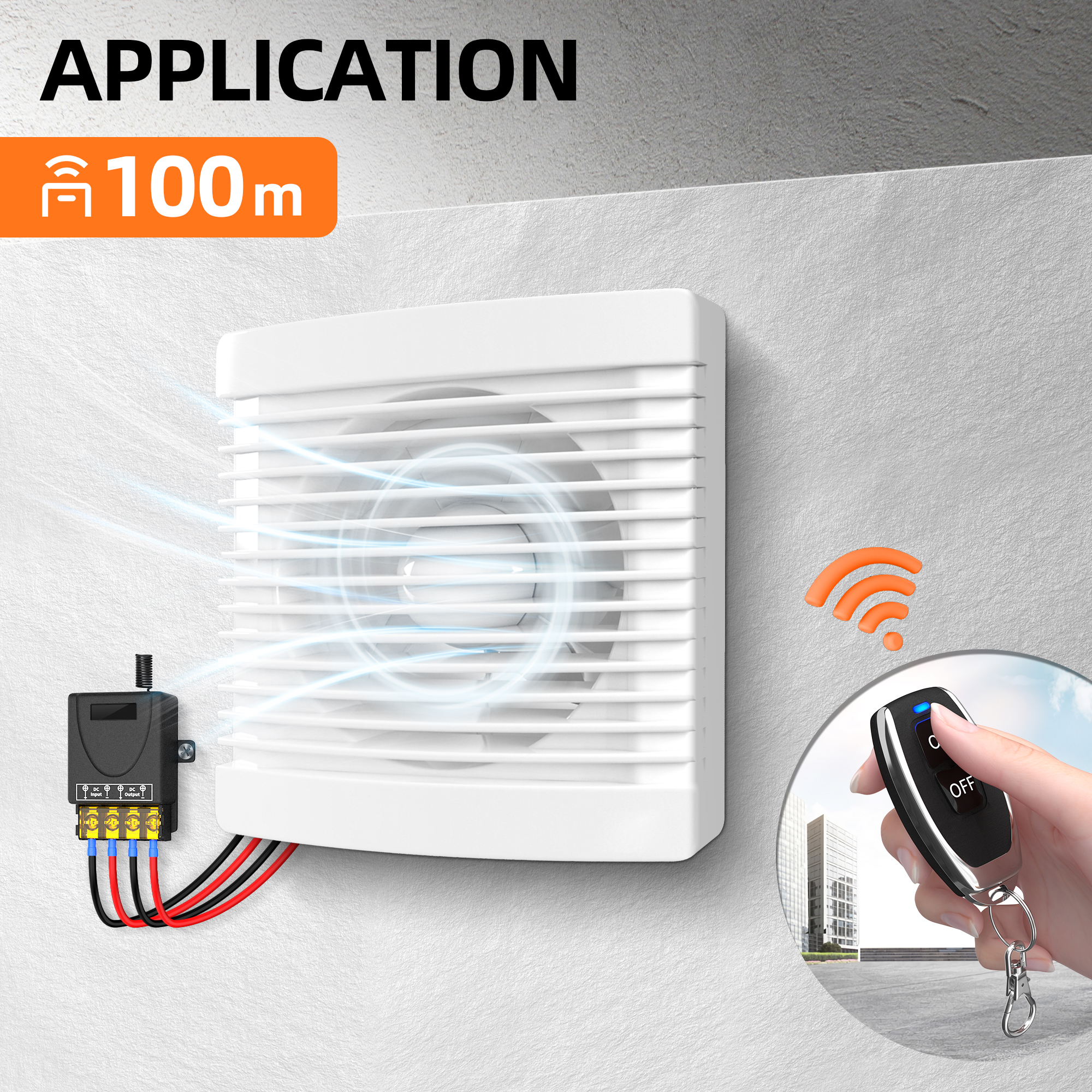

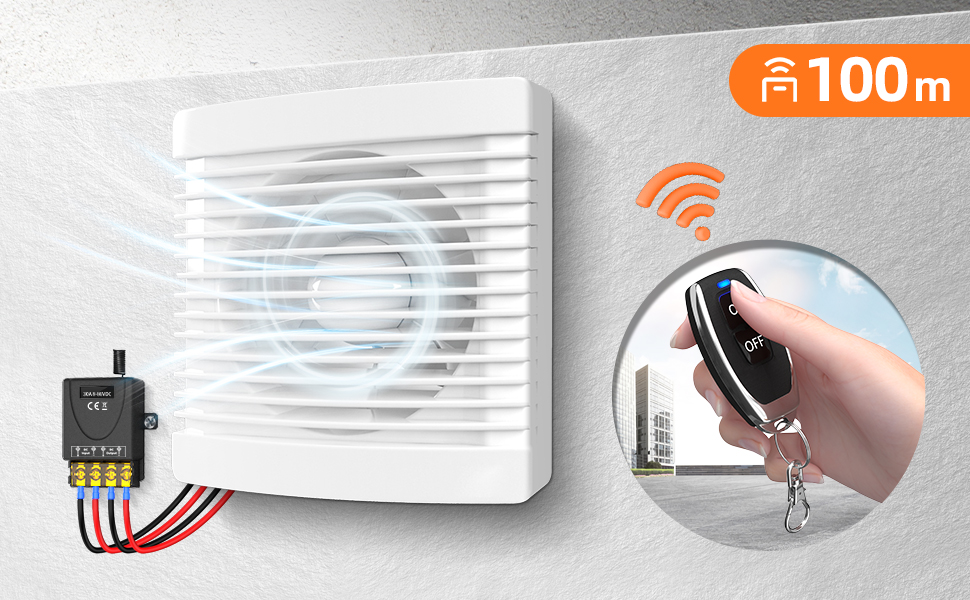

This 433MHz RF remote control switch features high-reception sensitivity (> -105dBm) for a stable signal range of up to 100m (328 ft) in open areas. For industrial or agricultural sites, this long-range capability allows operators to control equipment like irrigation pumps, conveyors, or access gates from a safe and convenient distance, improving both operational efficiency and personnel safety.
-
High-Current 30A Relay for Direct Equipment Control
The integrated 30A high-current relay is engineered to reliably manage powerful DC loads, making it ideal for the direct control of motors, pumps, high-intensity lighting, and other demanding equipment. This robust capacity can eliminate the need for an additional intermediary contactor in many applications, simplifying the overall circuit design, reducing component costs, and providing a single point of control.
-
Programmable Modes for Custom Automation

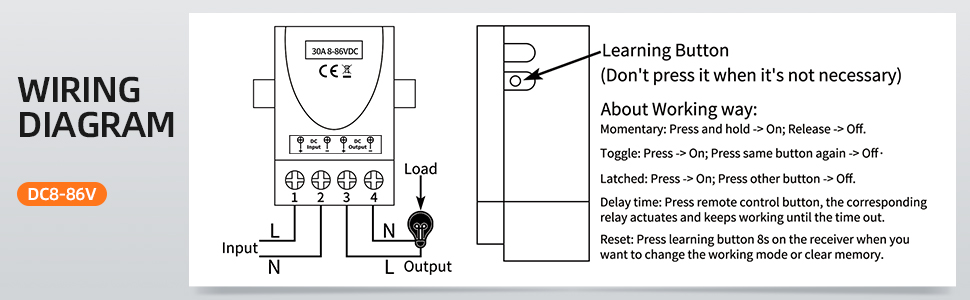

This wireless relay switch offers four programmable operating modes: Momentary, Toggle, Latched, and Delay Time. This built-in flexibility allows system integrators and technicians to tailor the control logic to specific operational requirements—such as jogging a motor (Momentary) or running a process for a set duration (Delay)—without requiring external timers or complex PLC programming.
-
Durable Design for High-Reliability Environments
Built with high-quality components, the relay is rated for a lifespan exceeding 100,000 cycles, ensuring dependable performance in commercial and industrial environments. The wide operating temperature range (-40°C to 80°C) and robust construction minimize the risk of field failures, reducing maintenance calls and ensuring the long-term reliability of the equipment it controls.
-
Wide Voltage Range for Broad System Integration
The receiver’s broad DC 8V to 86V operating voltage range makes this remote control kit a highly versatile solution for a vast array of DC-powered systems. This adaptability allows it to be standardized across different equipment types—from 12V automotive and marine systems to 24V/36V/48V industrial machinery and battery banks—simplifying inventory for maintenance departments and installers.

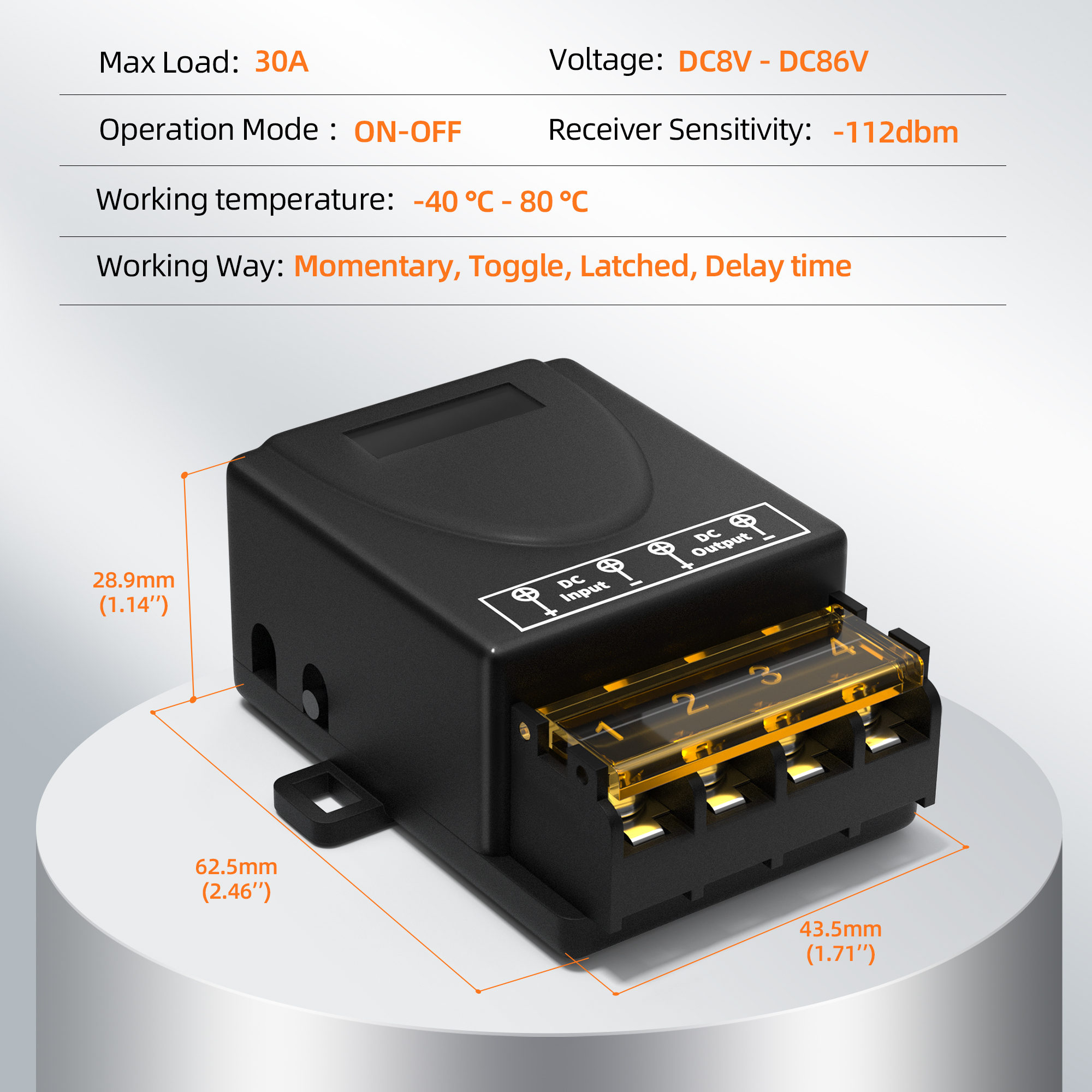

RCR-1 RF Remote Control Switch 30A Relay for DC8-86V Motor & Equipment Control Datasheet
| Part NO | RCR-1 |
| Operation Mode | ON OFF |
| Max Load | 30A |
| Voltage | DC8-86V |
| Receiver Sensitivity | -112dbm |
| Working Temp | -40℃~80℃ |
| Remote Control Distance | 100M |
| Size | 62.5mmx43.5mmx28.9mm |
| Working Way | Momentary, Toggle, Latched, Delay time |
