RB-R6F6-2-RF 6 Way 12V Relay Box Kit with 5-Pin Relays and ATC/ATO Fuses
P/N: RB-R6F6-2-RF
This comprehensive 12V fuse and relay box kit provides a centralized and protected power distribution solution, including all necessary components for a custom build.
It is engineered for professional installers who demand the flexibility to create clean, reliable, and easily serviceable wiring harnesses tailored to specific project requirements.
Category :
Relay & Relay Box
RB-R6F6-2-RF 6 Way 12V Relay Box Kit Details
-
Centralized Power for Multi-Circuit Systems

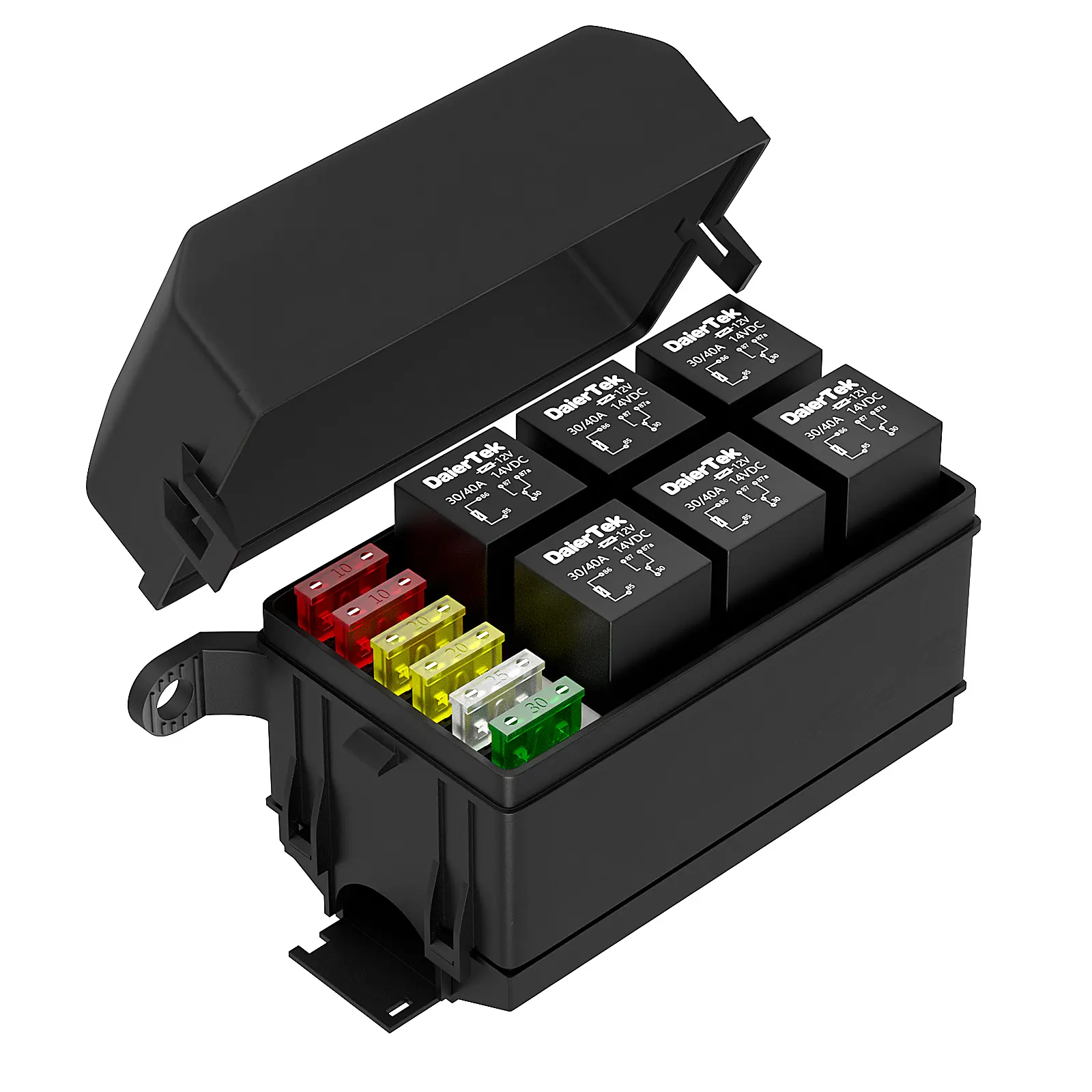

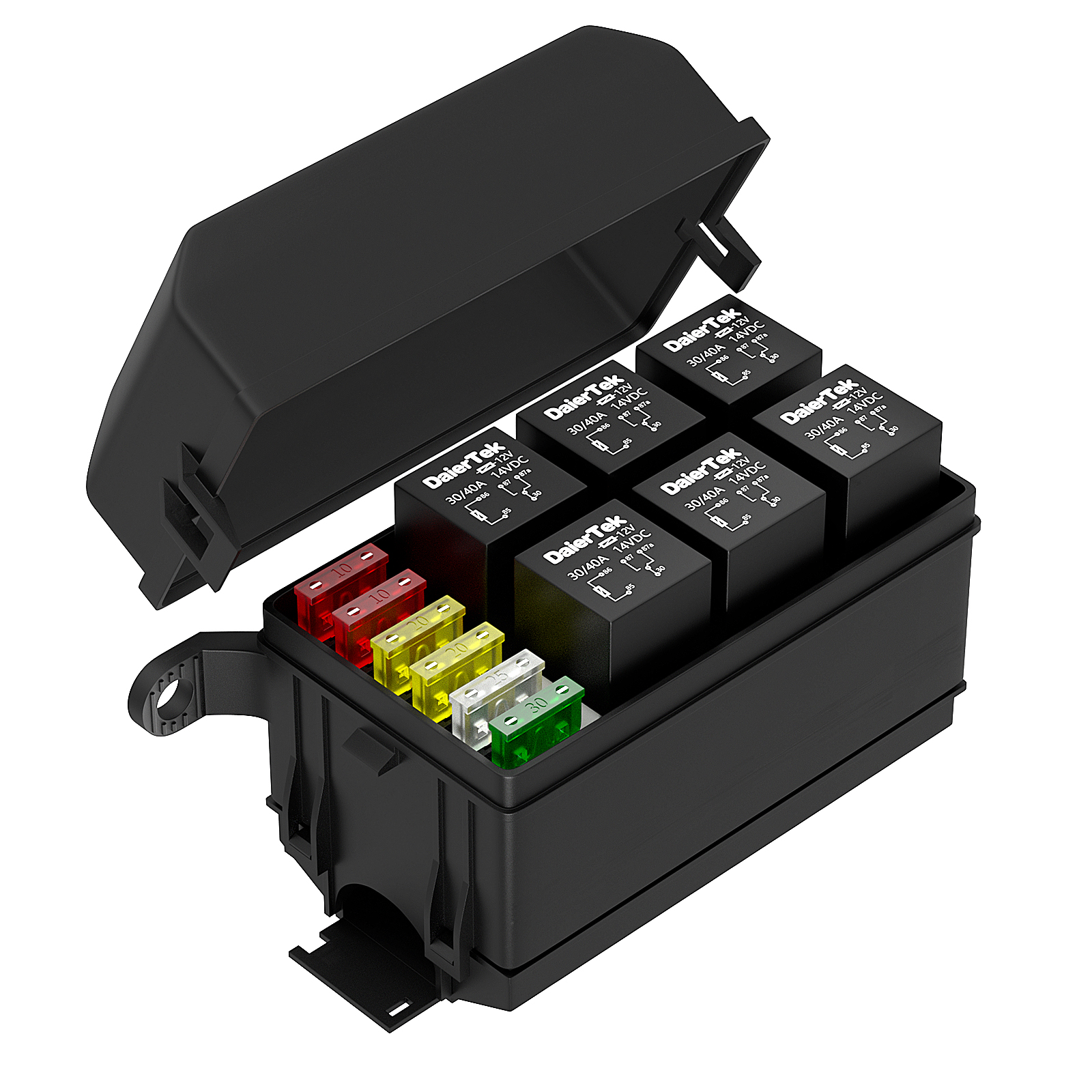

This automotive fuse and relay box integrates six 40A 5-pin relays and six ATC/ATO fuse slots into a single, compact module. This high-capacity design is ideal for consolidating controls for a full suite of accessories (lights, pumps, fans), simplifying the overall electrical architecture and providing a single point for diagnostics on any custom vehicle or vessel.
-
Streamlined Project Sourcing with a Complete Kit

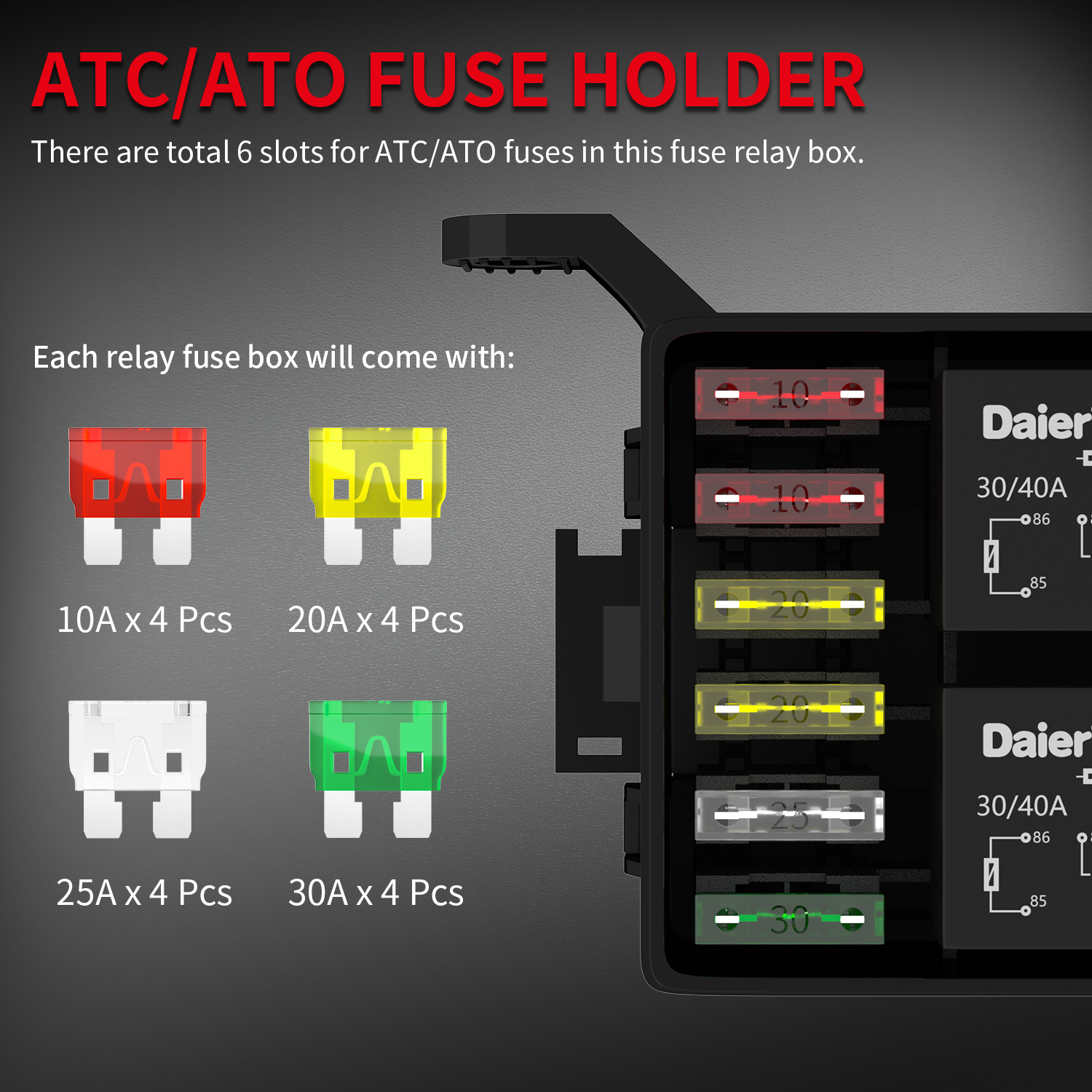

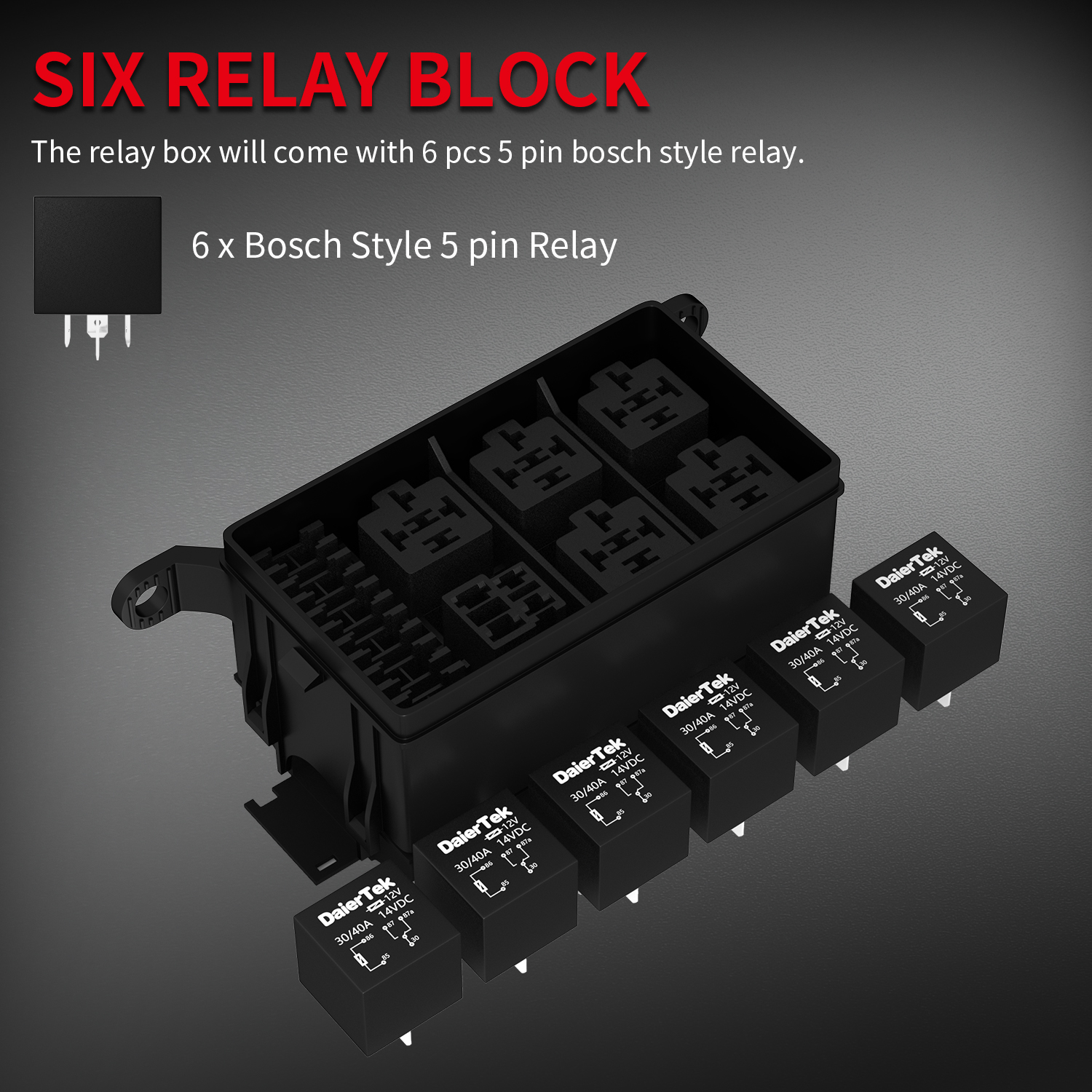

This 12V relay box kit comes complete with six 40A relays, 16 assorted ATC/ATO fuses (4x each of 10A, 20A, 25A, 30A), and all necessary relay and fuse terminals. For professional workshops, this all-in-one solution eliminates the need to source and verify individual components, preventing compatibility issues, reducing purchasing overhead, and saving valuable project time.
-
Engineered for Professional Harness Construction

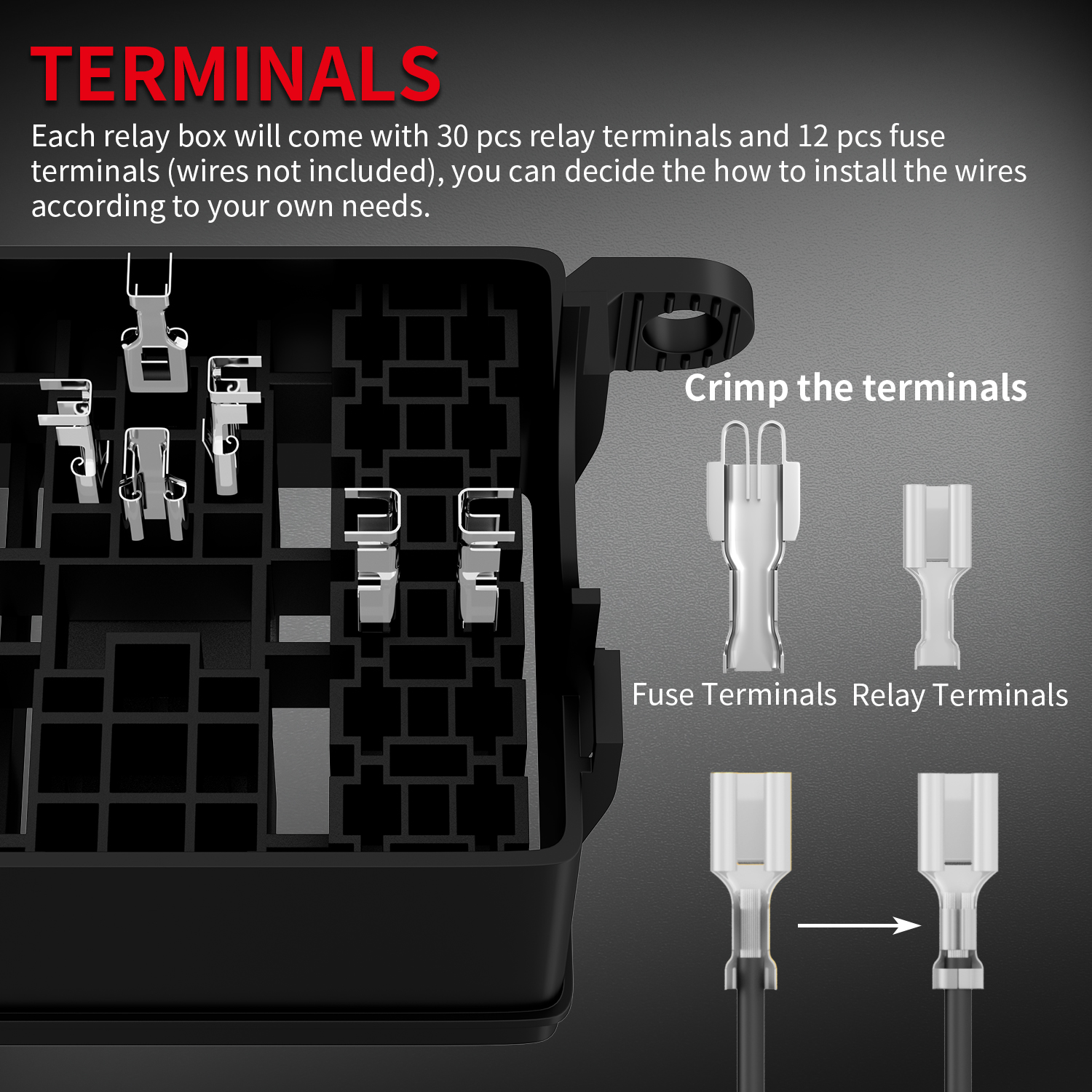

The included relay and fuse terminals are designed for secure crimping, allowing technicians to build durable and reliable custom wiring harnesses to exact specifications. This method ensures a high-integrity, vibration-resistant connection at every point, resulting in a finished product that is vastly superior in safety and serviceability compared to using scattered, unprotected inline components.
-
Protective Enclosure for Harsh Environments

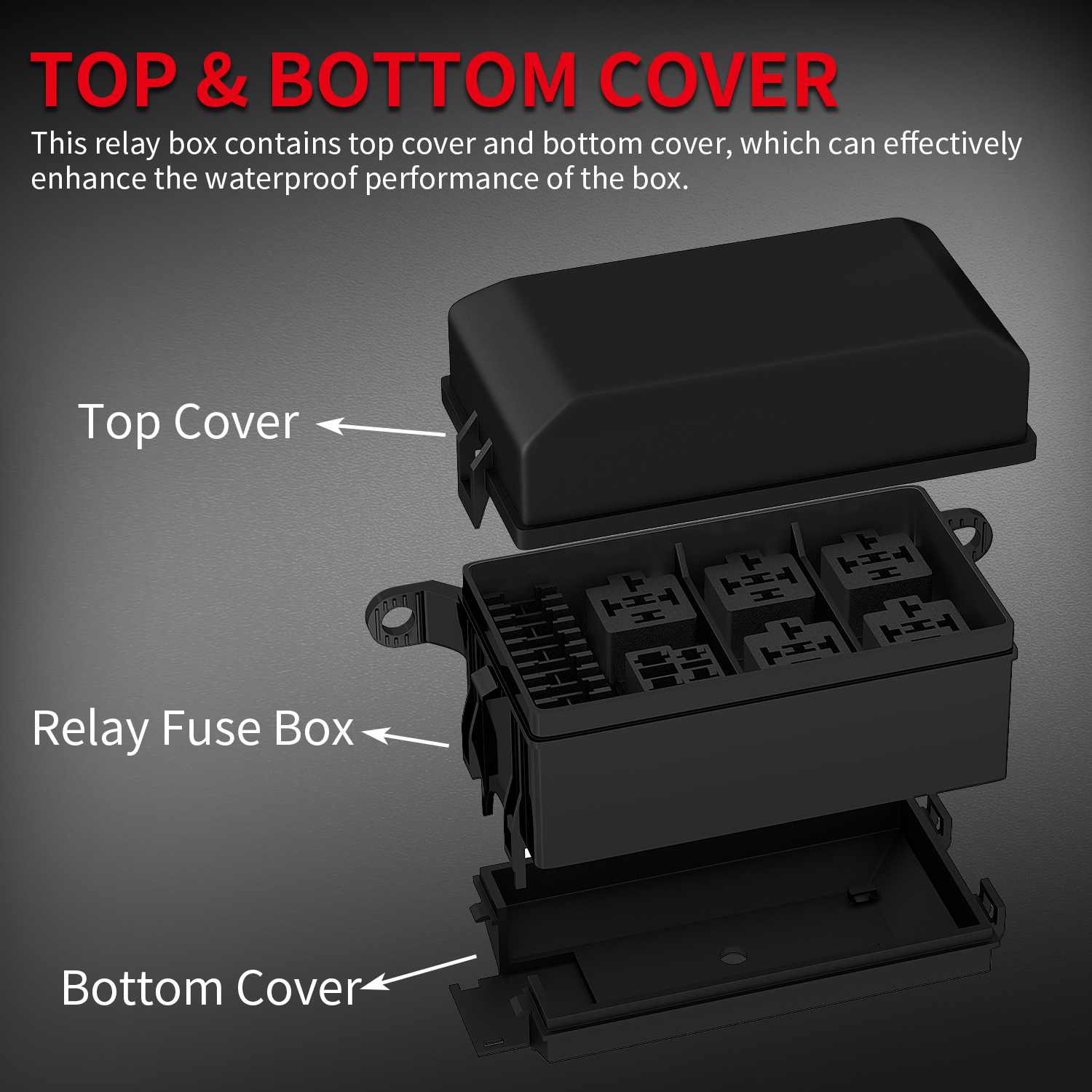

Featuring a robust housing with a secure top and bottom cover, this universal fuse box is engineered to protect the completed harness and internal components from water splashes, dust, and vibration. This level of protection is essential for ensuring the long-term reliability and safety of the electrical system in demanding automotive, off-road, and marine operating environments.
-
Universal Component for Custom Builds
The use of industry-standard 5-pin Bosch-style relays and ATC/ATO fuses makes this fuse block a versatile foundation for a wide range of custom 12V applications. Its flexible, build-it-yourself nature makes it the ideal core component for fleet vehicle upfitting, marine electrical refits, and specialized off-road vehicles where a standardized, professional wiring solution is required.
RB-R6F6-2-RF 6 Way 12V Relay Box Kit Datasheet
| Part NO | RB-R6F6-2-RF |
| Fuse Type | ATC & ATO Fuse |
| Relay Type | Bosch Relay |
| Number of Fuse Slots | 6 x ATC/ATO Fuses |
| Number of Relay Slots | 6 x Bosch Style |
| Applications | for Car Truck Marine, Automotive, Motorsport |
The same product with additional accessories: RB-R6F6-W1, RB-R6F6-W1-B.
Other products with different specifications: RB-R4F12-W1, RB-R6F11, RB-R4F15-W1, RB-R10F15.
If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
