RB-R10F15 12V 15 Way Fuse and Relay Box Enclosure Customizable Power Distribution Module
P/N: RB-R10F15
This 15 way fuse and relay box provides a configurable foundation for building custom 12V power distribution systems.
It is engineered for professional installers who require maximum flexibility and serviceability when creating clean, reliable, and centralized wiring harnesses.
Category :
Relay & Relay Box
RB-R10F15 12V 15 Way Fuse and Relay Box Enclosure Features
-
High-Density for Complex Electrical Systems

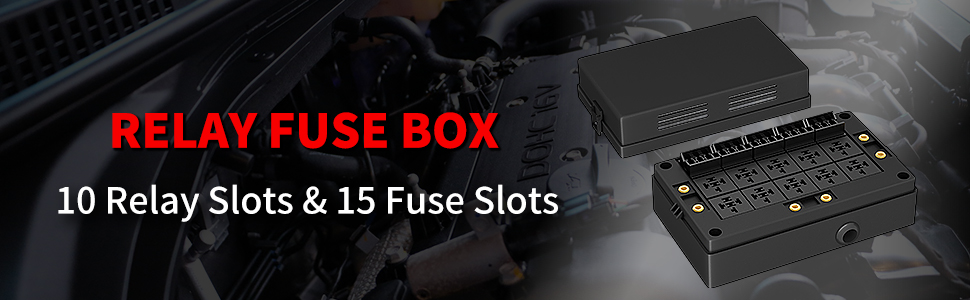

This automotive fuse and relay box features 10 slots for 4 or 5-pin Bosch-style relays and 15 slots for ATC/ATO fuses, offering extensive capacity for managing complex, multi-circuit systems. This high-density design is ideal for consolidating the electrical controls for fleet vehicles, modified off-roaders, or marine vessels, providing a scalable solution for current and future accessories.
-
Accelerated Assembly with Removable Slots
The innovative design of this relay fuse box includes removable relay and fuse slot modules. This feature significantly simplifies the process of installing terminals and building the harness, allowing technicians to work more efficiently from the back of the panel. By improving the workflow, this design directly reduces assembly time and labor costs on complex wiring projects.
-
Simplified Sourcing with a Complete Terminal Kit
This 12V relay box is supplied as a comprehensive kit that includes 50 relay terminals and 30 fuse terminals. This eliminates the time-consuming process of sourcing and verifying compatible terminals separately for a project. Providing the correct components ensures a perfect fit, improves the integrity of every crimp and connection, and streamlines the entire project from start to finish.
-
Robust Enclosure for Long-Term System Protection
Constructed from a durable, high-strength housing, this car fuse and relay box provides a secure enclosure for all internal components. Once assembled, it is designed to protect the custom-built wiring harness from physical impact, dust, and moisture ingress. This robust protection is essential for ensuring the long-term reliability and safety of the electrical system in demanding automotive or marine operating environments.
-
Designed for Maximum Wiring Flexibility
The relay slots in this power distribution module are compatible with both standard 4-pin (SPST) and 5-pin (SPDT) Bosch-style relays. This inherent versatility gives installers the freedom to design a wide range of circuit configurations—from simple on/off functions to more complex changeover or polarity-reversing setups—all within a single, organized housing. This makes it an adaptable core component for any custom electrical project.
RB-R10F15 12V 15 Way Fuse and Relay Box Enclosure Datasheet
| Part NO | RB-R10F15 |
| Fuse Type | ATC & ATO Fuse |
| Relay Type | Bosch Relay |
| Number of Fuse Slots | 15 |
| Number of Relay Slots | 10 x Bosch Style |
| Applications | for Car Truck Marine, Automotive, Motorsport |
Other products with different specifications: RB-R6F6, RB-R6F11, RB-R4F12-W1, RB-R4F15-W1.
Still, have a question about the RB-R10F15 that wasn’t answered on this page? Please contact us at sales1@chinadaier.com!
