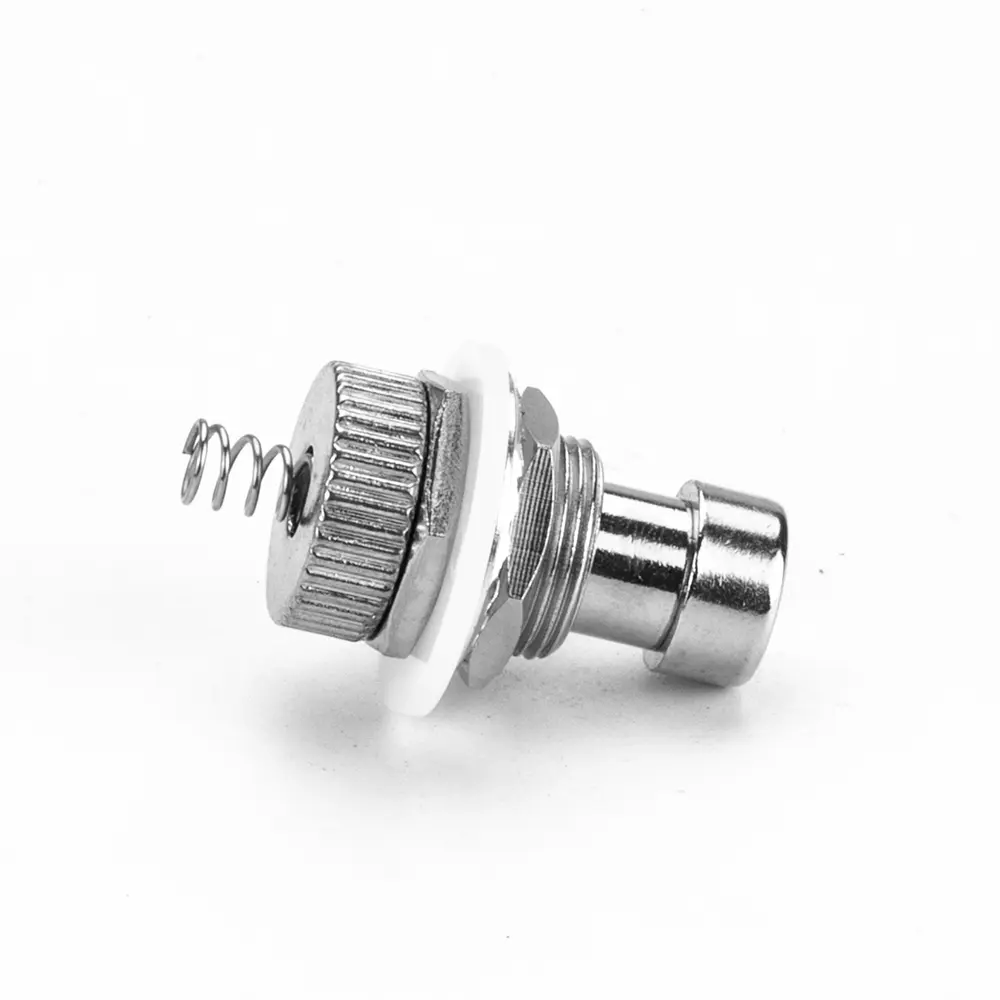

PBS-24-MP Momentary PCB Spring Switch


This has no internal switching mechanism, but a spring used to press a switch mounted on a PCB.

This is a replacement part for many commercial designs that use these types of switches.

Category :

Foot Switch

PBS-24-MP Momentary PCB Spring Switch Details

  • Easy Installation

This switch saves the trouble of welding and makes the button type instantaneous switch easy to install and use.

  • Automatic Mechanism

The automatic mechanism immediately returns the switch to the standard position, thereby restoring the original switch state.

  • Sturdy Construction

Soft Touch Switch (No Click Sound when press down), It’s silent operation, easy to press, and durable.

  • Wide Application

It is widely used in home improvement and controls the operation of many small power electronic projects.

PBS-24-MP Spring Switch Datasheet

Voltage 30V, 125V, 250V
Current AC 4A / DC 4A / AC 2A
Contact Resistance ≤ 5mΩ
Insulation Resistance ≥ 100MΩ, 500V DC
Withstand Voltage 1,000V AC / min
Action Force 2.5 ± 0.8 Kgf
Life ≥10,000 cycles

Still, have a question about the PBS-24-MP that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!
