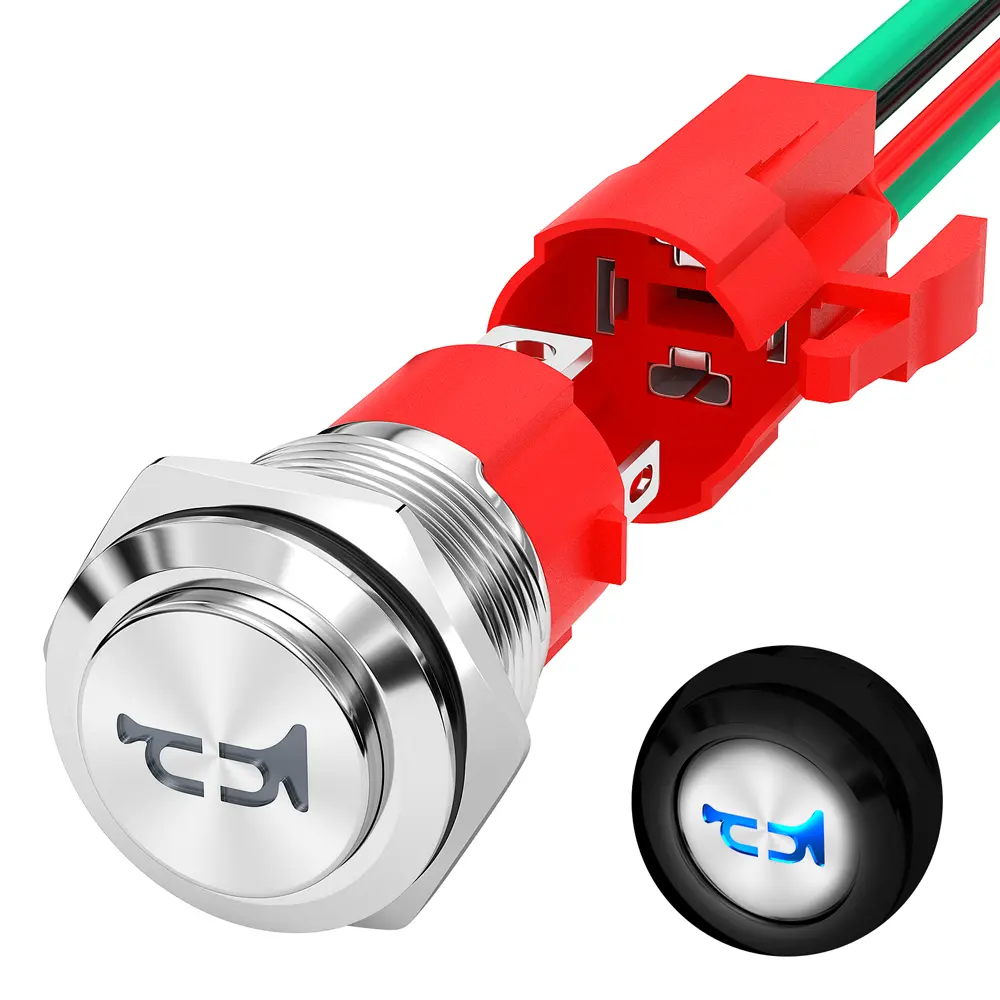

LAS3D-16H-10EM-N-HORN Push Button
Part#LAS3D-16H-10EM-N-HORN
The horn push button is a 16mm ON-OFF high button with blue LED illuminated, Function: SPST, Momentary; Rating: 20A 12V.
This air horn button is waterproof push button switch design, which makes it both auto horn button and marine horn button.
LAS3D-16H-10EM-N-HORN Push Button Details
- Easy Installation
The momentary switch 12V with solder clamp-type terminals makes the switch installation simple and convenient.
- Visual Feedback
The illuminated metal switch works when the circuit is turned on and illuminates to provide visual feedback of circuit operation.
- Strong Durability
Anti-vandal switches located on outdoor devices must withstand extreme temperatures, dust, rain, snow, and ice.
- Sturdy Construction
Vandal-resistant switches are usually protected by robust materials, such as thick stainless steel and heavy-duty plastics.
- Wide Application
It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.
LAS3D-16H-10EM-N-HORN Datasheet
| Contact Voltage | 12V DC |
| Contact Current | 20A |
| LED Voltage | 3V-250VAC/DC |
| LED Current | 3mA~20mA |
| LED Illumination | Blue |
| Function | Momentary |
| Operating Temperature | -30℃~+80℃ |
| Torque For Threaded Body | 5~14N.m |
| Operating Force | About 2.5~3N |
| Contact Arrangement | 1NO |
| Terminal Type | Solder Terminal |
| Bushing Material | H59 nickel plating/SUS304/aluminum alloy anodizing |
| Mechanism Material | Base – PA6 / Pin – silver plated brass / Base attached – PC |
| Contact Material | Silver alloy |
| Mounting Size | 16mm |
| Protection Grade | IP67, IK10 |
| LED Life | 40,000 Hours |
| Electrical Life | 0.2A/250VAC: 200,000 times, 15A/250VAC: 50,000 times |
| Mechanical Life | Latching: 250,000/times, Momentary 500,000/times |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000mΩ |
| Dielectric Strength | 1900VAC min |
| Certification | CE, RoHS |
