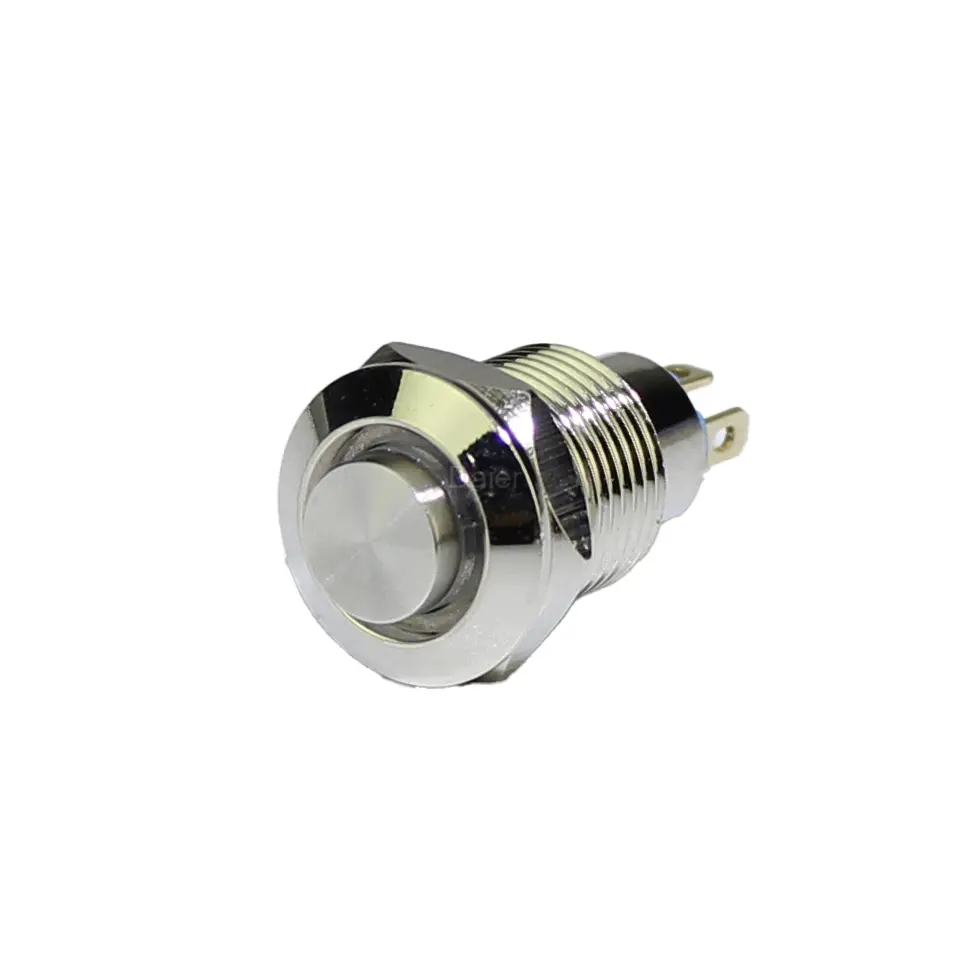

GQ-10HS-10E 10mm High Head Ring LED Push Button

Part#GQ-10HS-10E

The 10mm high head ring LED push button, Function: IP65, SPST, 1NO, latching/momentary; Material: stainless steel with RoHS standard.

The LED push button is applied in mining equipment, access control systems, medical devices, emergency call systems, and elevator controls.

GQ-10HS-10E Series LED Push Button Detail

  • Easy Installation

Anti-vandal switches with screw clamp-type terminals make the installation of switches simple and convenient.

  • Visual Feedback

The switch and LED are separated, the LED can be on all the time or only on when the switch is on, depending on how you wire it.

  • Strong Durability

Anti-vandal switches located on devices that are outdoors must be able to withstand extreme temperatures, dust, rain, snow, and ice.

  • Sturdy Construction

Vandal-resistant switches are usually protected by the use of robust materials, such as thick stainless steel and heavy-duty plastics.

  • Wide Application

It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.

GQ-10HS-10E Series Datasheet

Function SPST, 1NO, Momentary/Latching with LED
Mounting Type Threaded front panel mount
Contact Rating 1A 250VAC; 3A 125VAC; 2A 24VDC; 5A 12VDC
Contact Resistance 50mΩ Max
Insulation Resistance 500V DC, 1,000MΩ min
Dielectric Strength 2,000V RMS 50~60Hz
Operating Temperature -25℃ to +55℃
Electrical Life ≥20,000 Cycles
Mechanical Life ≥200,000 Cycles
IP Class IP65
Torque 5~14Nm.Max. applied to nut
Operating Force 2.5 ± 1N

GQ-10HS-10E Series Switches

GQ-10HS-10L SPST, 1NO, with LED, Latching
GQ-10HS-10M SPST, 1NO, with LED, Momentary

Still, have a question about the GQ-10HS-10E series that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com or submit form!

GQ-10HS-10EL

GQ-10HS-10EL Dimensioned Drawing

GQ-10HS-10EM

GQ-10HS-10EM Dimensioned Drawing
