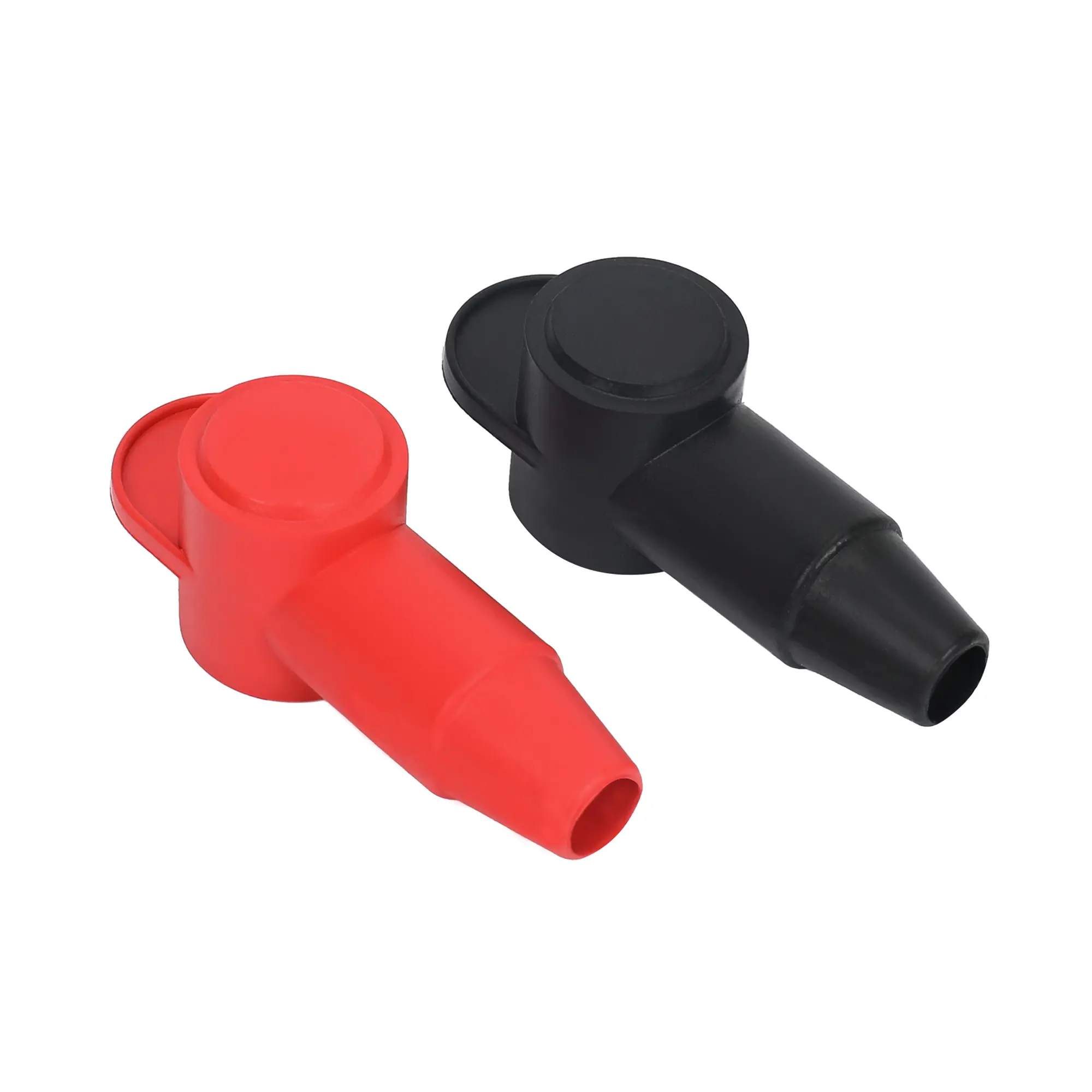

L7.5 Series 8 AWG – 4 AWG Silicone Battery Terminal Covers Fits M8 & M10 Studs
P/N: L7.5 Series
The L7.5 Series battery terminal cover fits wire diameters up to 7.5mm (8 AWG – 4 AWG) and accommodates M8 (5/16″) to M10 (3/8″) studs.
Flame-retardant, high-temperature resistant, and engineered to prevent electrical shorts and accidental contact for automotive battery banks, inverters, and marine power distribution.
Model Selection Specifications
| Model No. | Wire Entry | Cap Inner Dia. | Total Length | Stud Fit | Features |

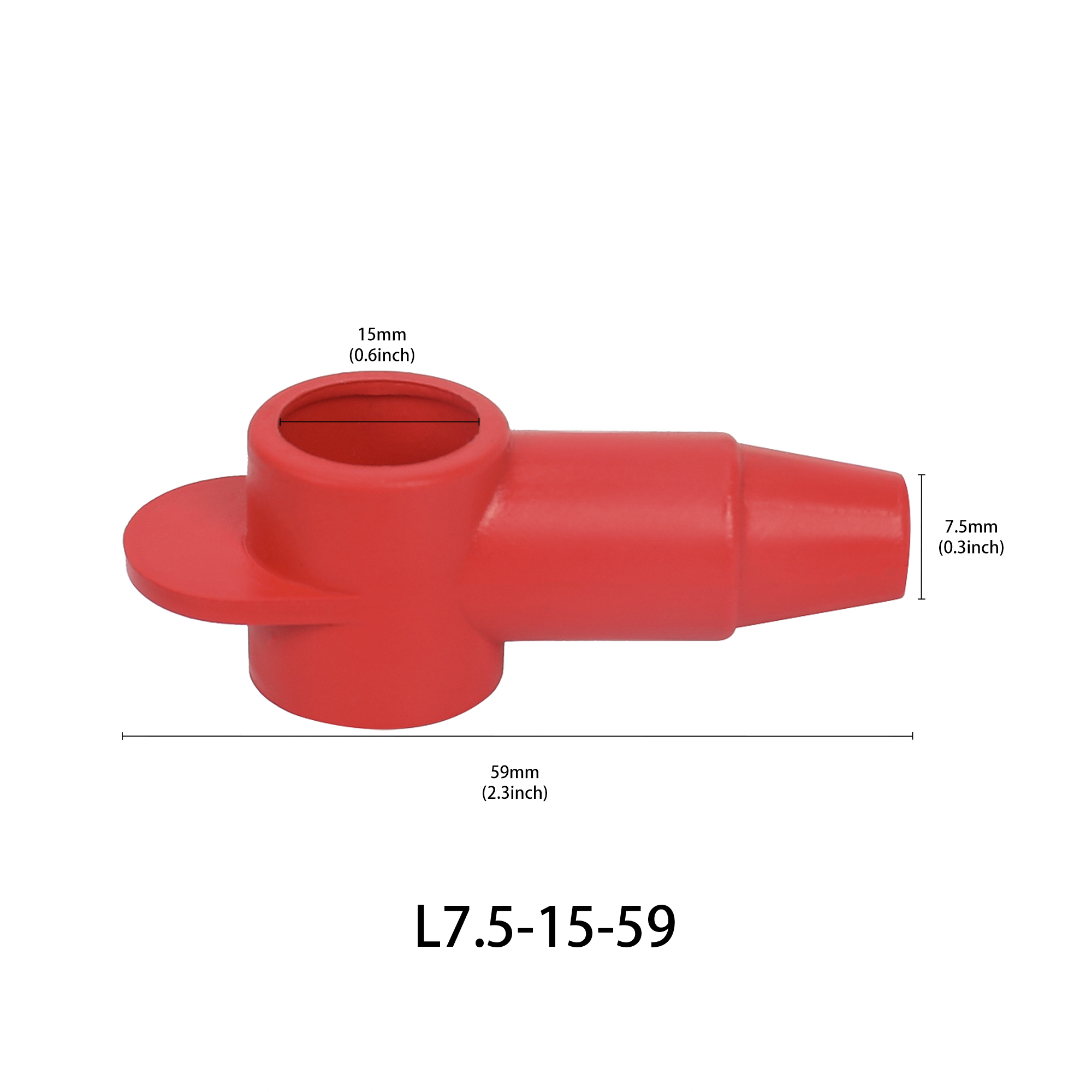

| L7.5-15-59 | 7.5mm (8-4 AWG) | 15 mm | 59 mm | M8 (5/16″) | With Pull-Tab |

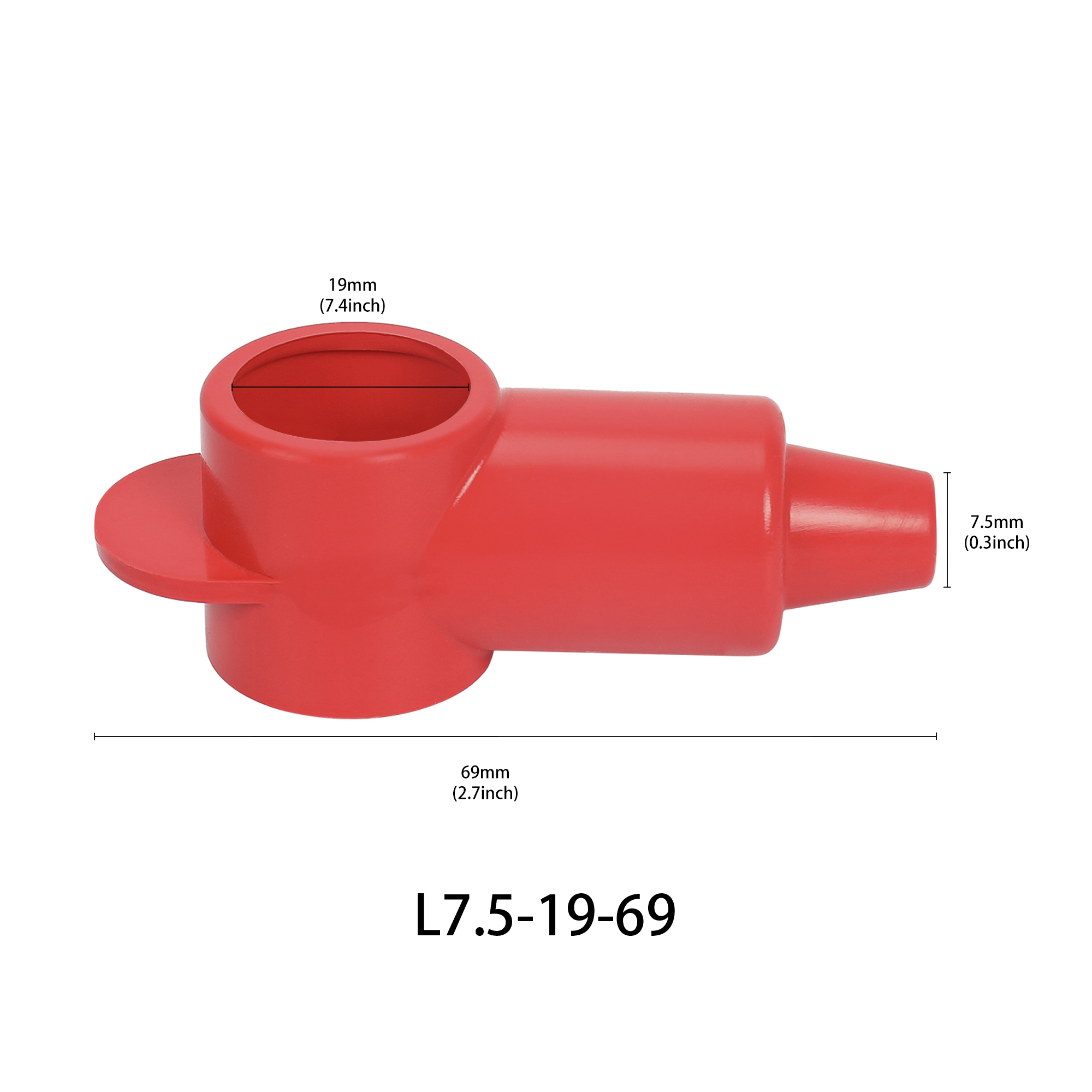

| L7.5-19-69 | 7.5mm (8-4 AWG) | 19 mm | 69 mm | M10 (3/8″) | Large Cap / Pull-Tab |
Key Features & Benefits
- Secure Fit for 8 AWG – 4 AWG Cabling
The 7.5mm wire entry is designed to create a tight, moisture-proof seal around medium-gauge cables ranging from 8 AWG to 4 AWG. The cap options (15mm and 19mm ID) fit securely over standard M8 (5/16″) and M10 (3/8″) battery studs and copper lugs, ensuring a stable connection without slipping.
- High-Temp Flame Retardant Silicone Material
The flame-retardant silicone construction provides excellent thermal stability with a working temperature range of -40°C to +230°C. This durable material resists melting or cracking in high-heat engine bays and meets strict safety standards for electrical insulation, unlike standard PVC or rubber covers.
- Total Corrosion & Short Circuit Prevention
The fully enclosed design acts as a robust barrier against dust, oil, moisture, and accidental contact. These insulating boots effectively prevent arc-over and corrosion buildup on battery terminals and inverter connections, significantly extending the lifespan of electrical systems.

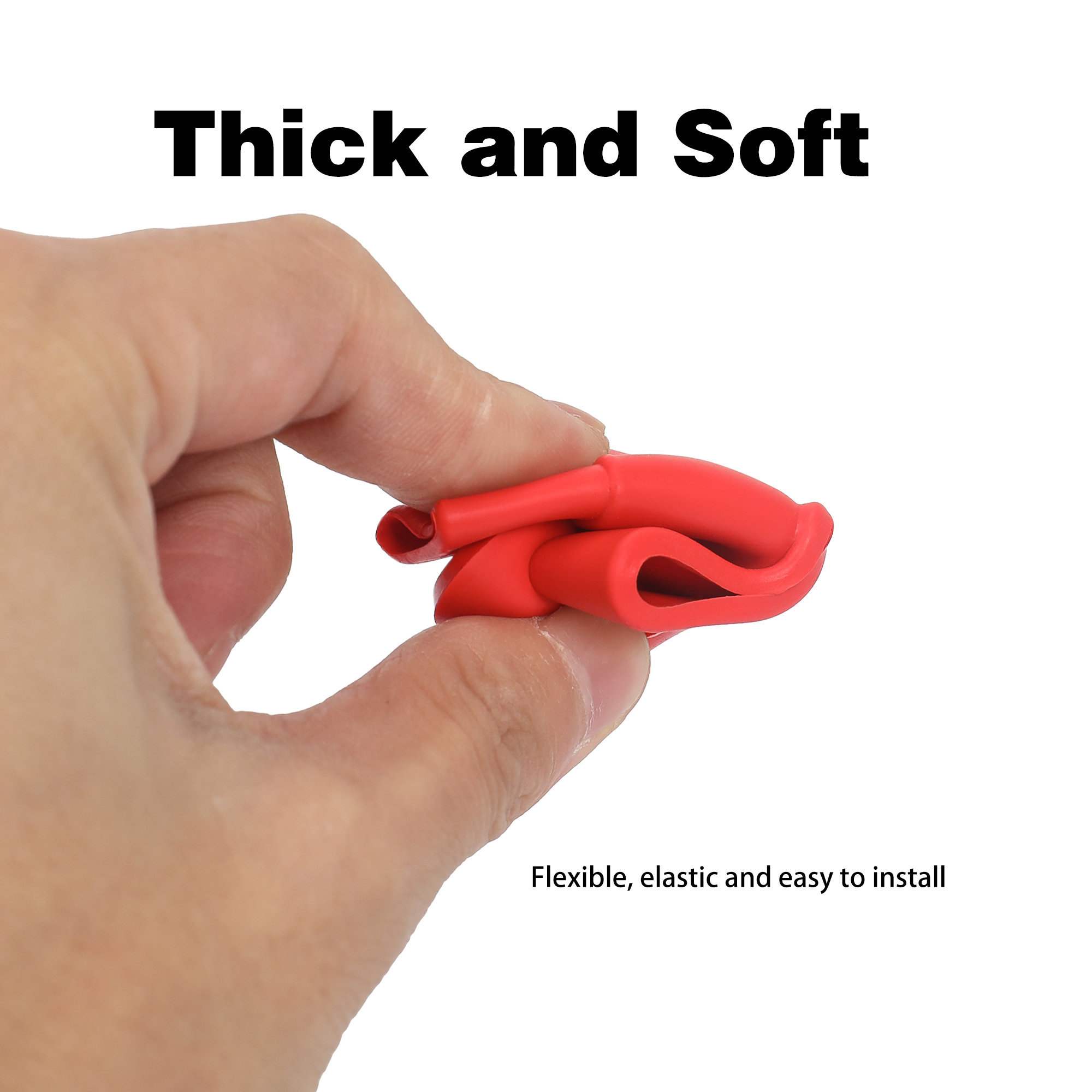

- Enhanced Elasticity & Pull-Tab Design
The soft silicone body offers superior elasticity compared to rigid plastic caps, allowing for easy installation over crimped lugs. Both L7.5 models feature an integrated pull-tab (grip), making removal for maintenance quick and effortless, even in tight battery boxes.
- Color-Coded for Safety & Identification
The industry-standard Red and Black color options allow for immediate visual identification of Positive (+) and Negative (-) polarity. This color coding is essential for preventing reverse polarity mistakes during installation and maintenance in automotive and marine applications.
Application Gallery
Typical installation on industrial machinery and marine battery banks.
