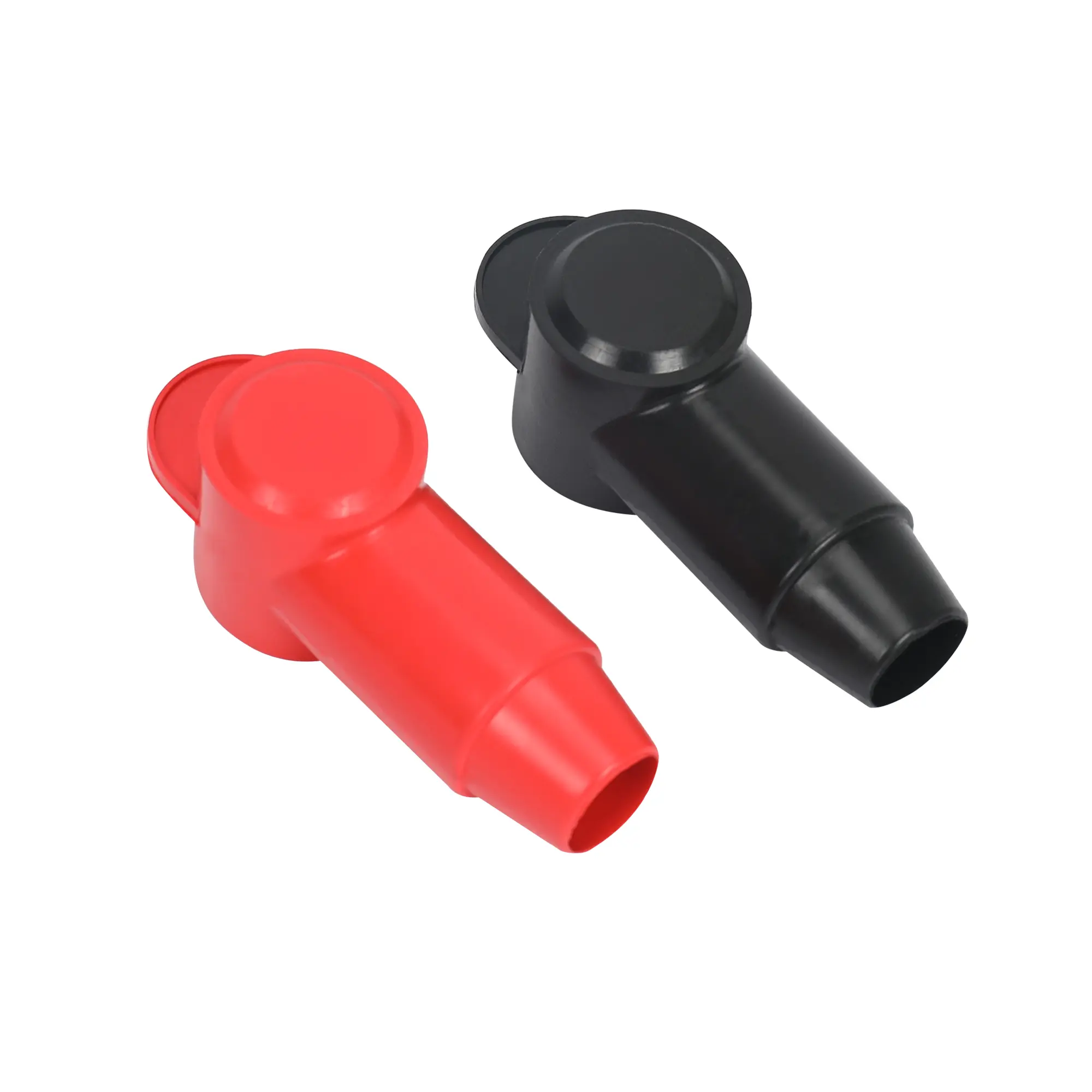

L13 Series 2 AWG – 2/0 AWG Silicone Terminal Boots Fits M10 & M12 Studs
P/N: L13 Series
The L13 Series fits large wire diameters up to 13mm (approx. 2 AWG – 2/0 AWG) and accommodates large battery lugs and M10 (3/8″) to M12 (1/2″) studs.
Available in Standard L-Shape and Flexible V-Type (Fishtail) designs. Ideal for high-amperage automotive, marine battery banks, and solar inverter connections.
Model Selection Specifications
| Model No. | Shape | Wire Entry | Cap Inner Dia. | Total Length | Features |

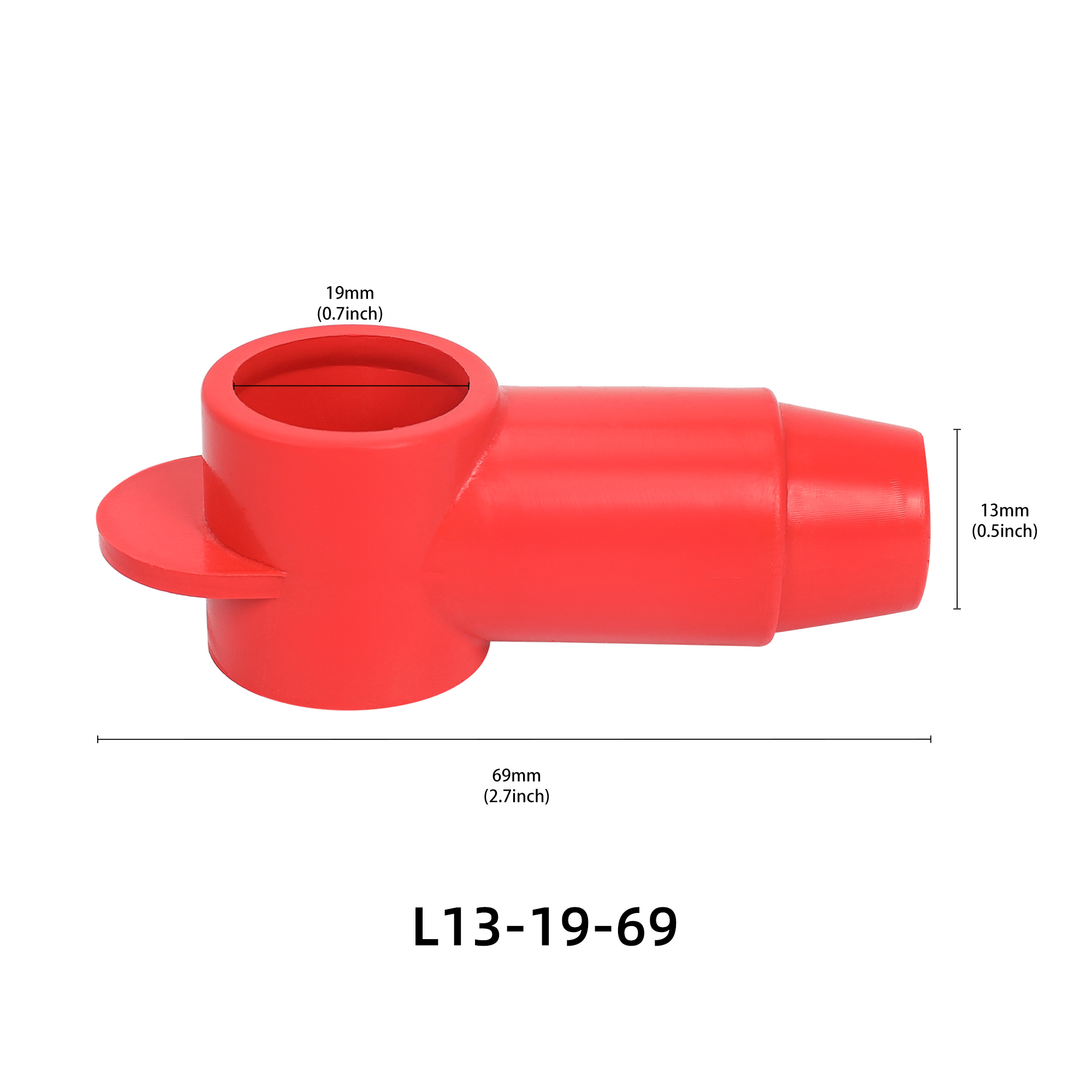

| L13-19-69 | Standard L-Shape | 13mm (2-2/0 AWG) | 19 mm | 69 mm | Standard Fit for M10 |

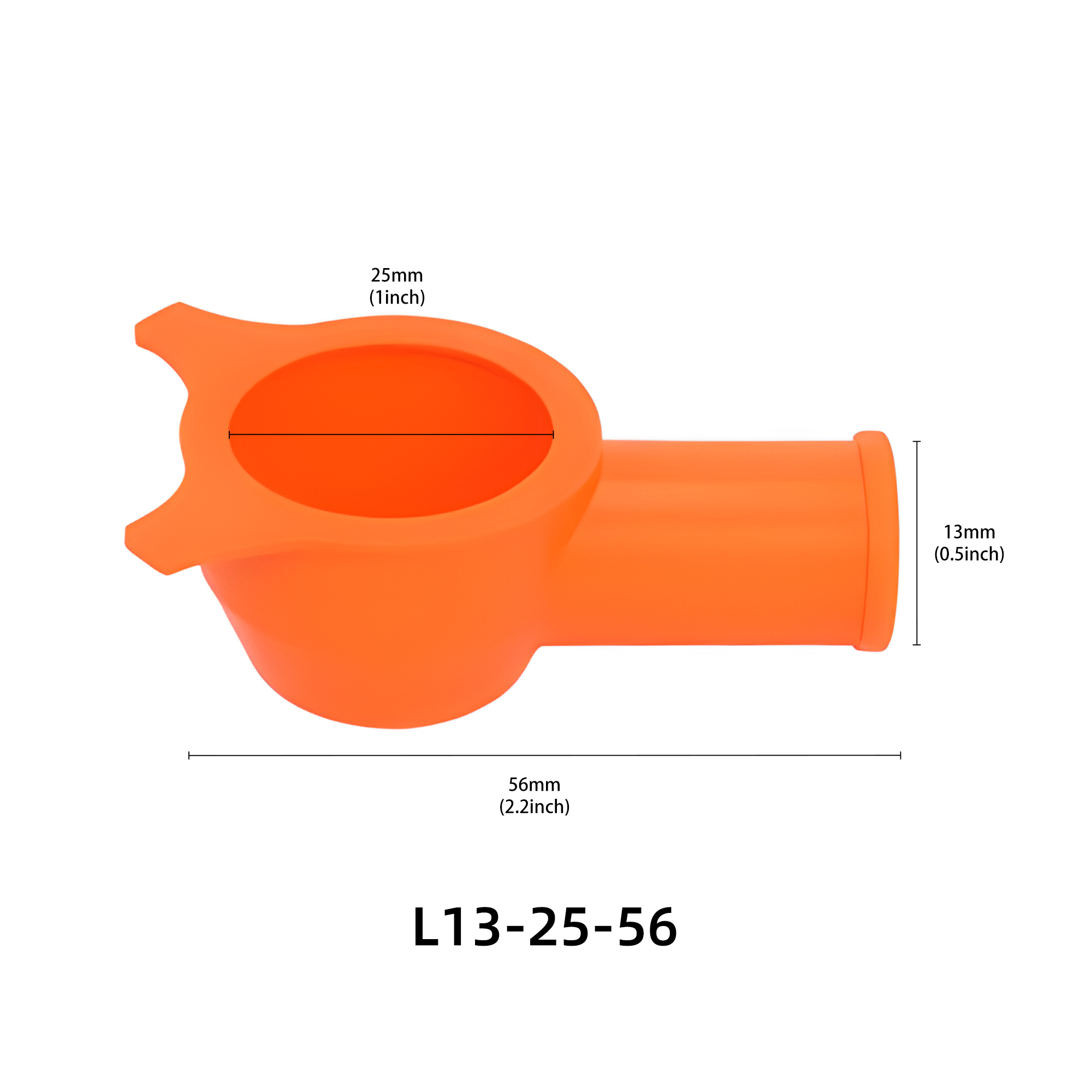

| L13-25-56 | V-Type (Fishtail) | 13mm (2-2/0 AWG) | 25 mm | 56 mm | Wide Opening / Flexible |

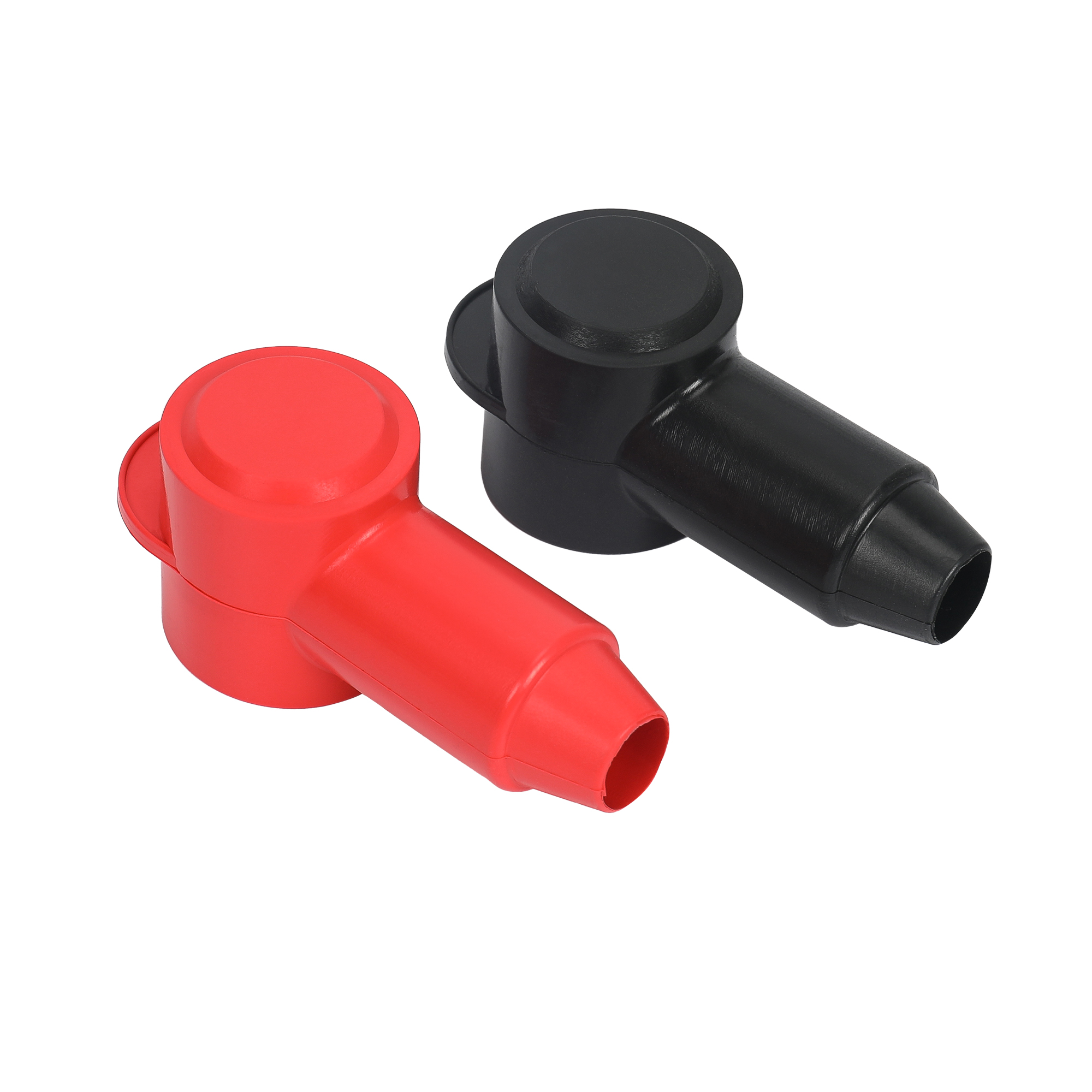

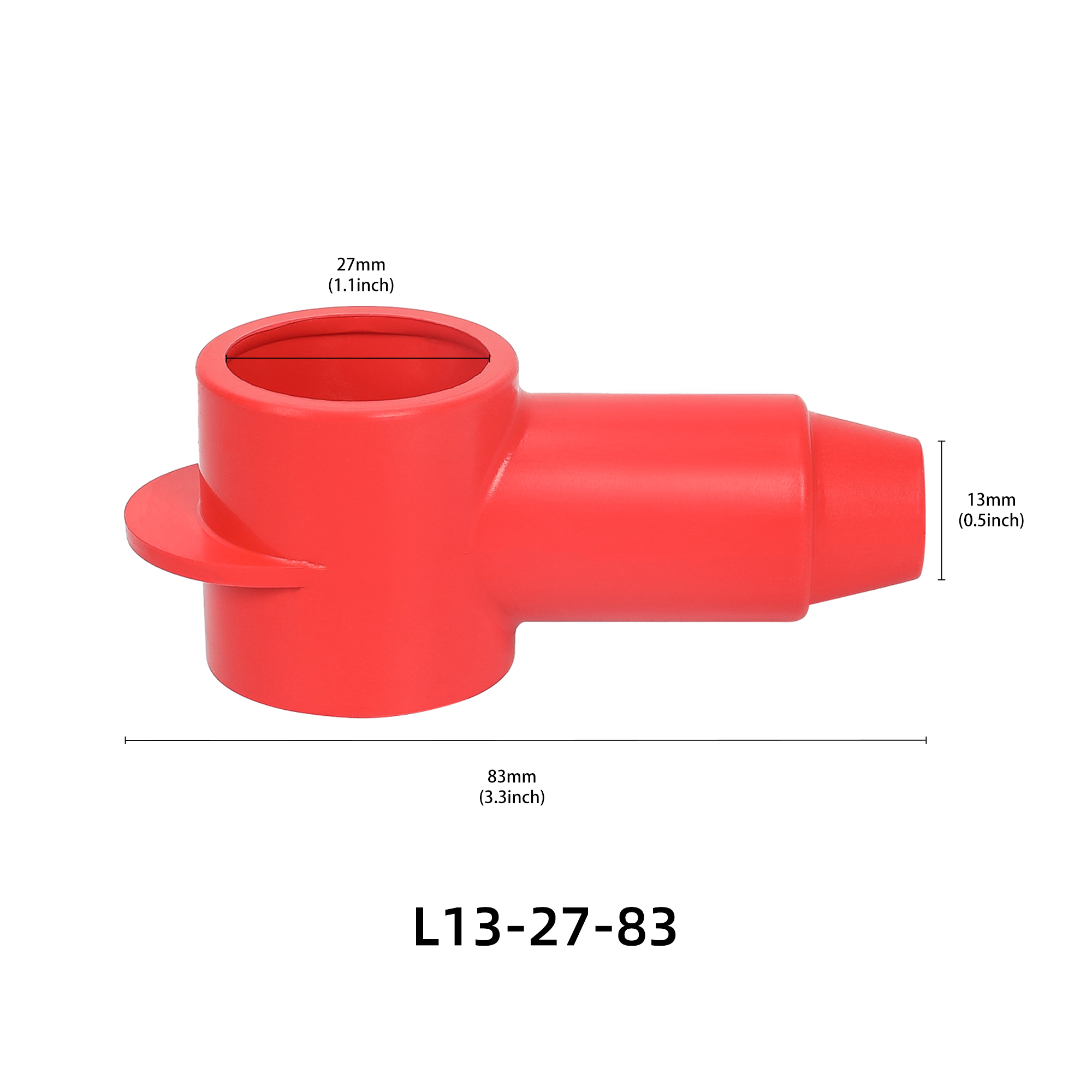

| L13-27-83 | Large L-Shape | 13mm (2-2/0 AWG) | 27 mm | 83 mm | Large Cap for M12 |
Key Features & Benefits
- Secure Fit for 2 AWG – 2/0 AWG Large Cables
The 13mm wire entry is designed to create a robust, moisture-proof seal around large gauge cables ranging from 2 AWG to 2/0 AWG. This tight fit prevents short circuits and corrosion on main power feeds and high-current battery bank connections.
- Specialized V-Type & L-Shape Designs

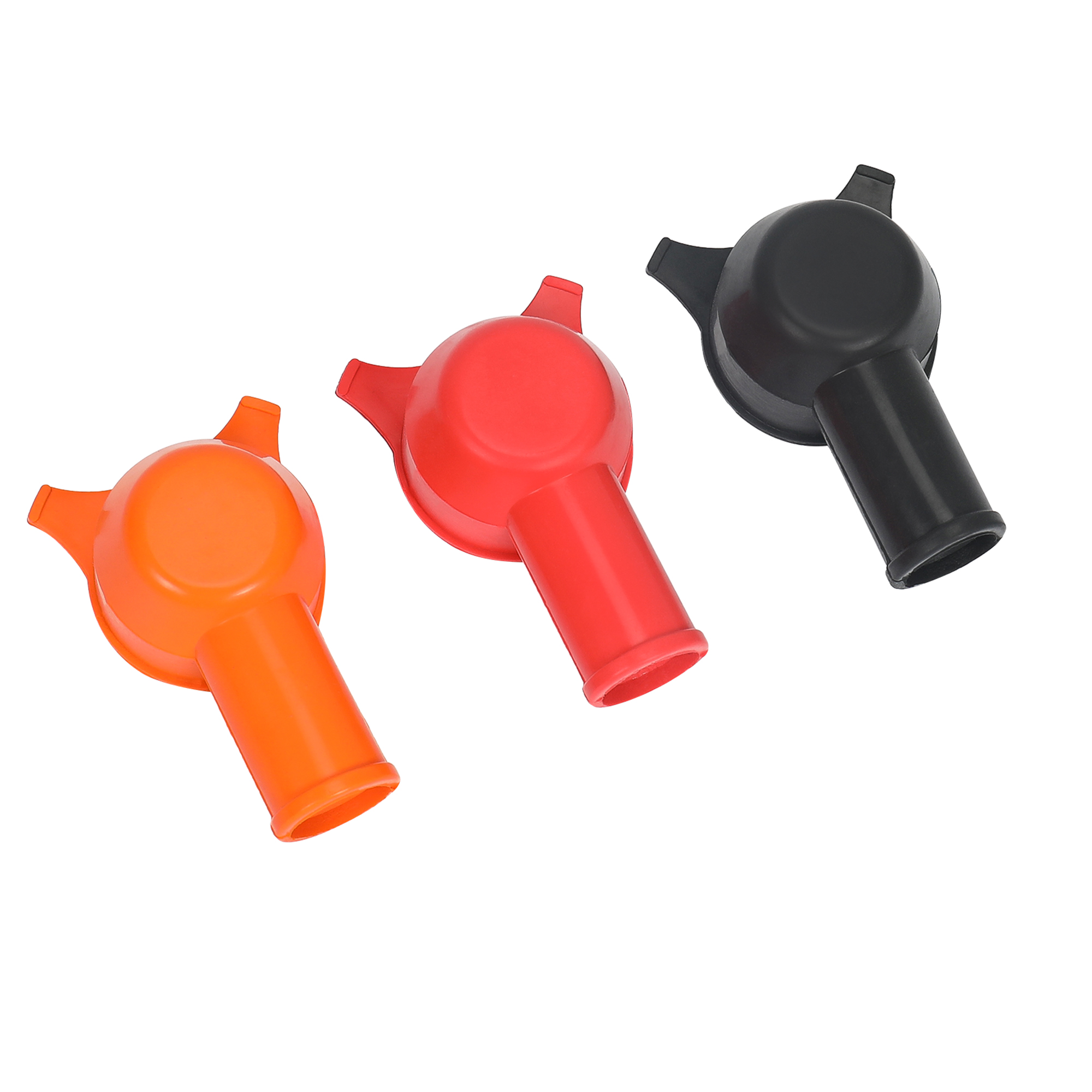

The unique “V-Type” (Fishtail) design of Model L13-25-56 features a wide, flexible opening for easy installation over irregular-shaped lugs or crowded busbars. The standard L-Shape models (L13-19-69 and L13-27-83) provide classic protection for standard 90-degree terminal connections.

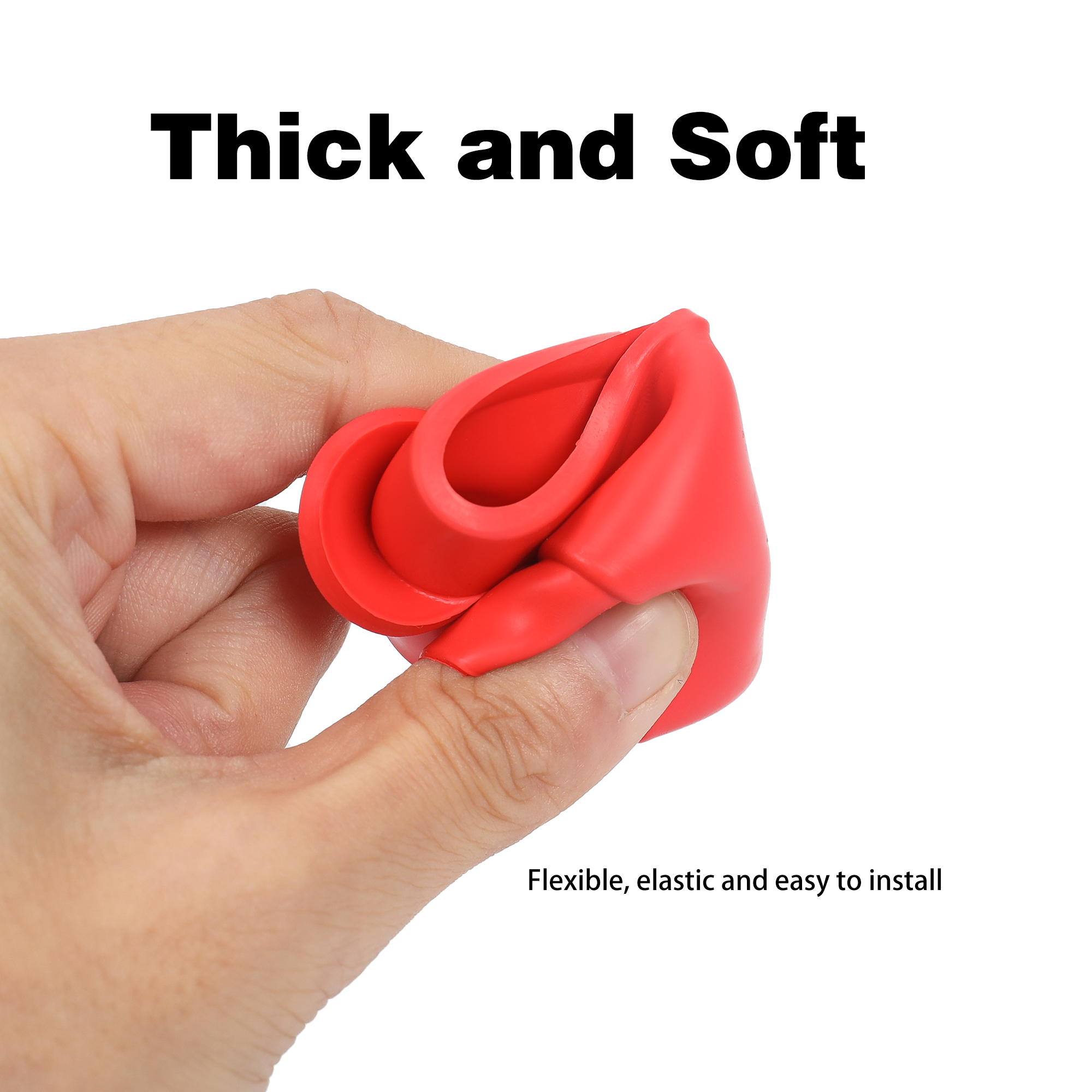

- High-Temp Flame Retardant Silicone Material
The flame-retardant silicone construction provides excellent thermal stability with a working temperature range of -40°C to +230°C. This durable material resists melting or cracking in high-heat engine bays and meets strict safety standards, unlike standard PVC or rubber covers.
- Large Cap Capacity for M10 & M12 Studs
The large cap inner diameters (19mm to 27mm) easily accommodate bulky mounting hardware, including M10 (3/8″) and M12 (1/2″) studs. This spacious design fits over heavy-duty crimp lugs used in marine, automotive, and solar setups.
- Color-Coded for Safety & Identification
The Red and Black color options allow for clear visual identification of Positive (+) and Negative (-) polarity. The optional Orange color (L13-25-56 only) provides high-visibility warning, making it ideal for EV (Electric Vehicle) and high-voltage solar systems.
Application Gallery
Typical installation on industrial machinery and marine battery banks.
