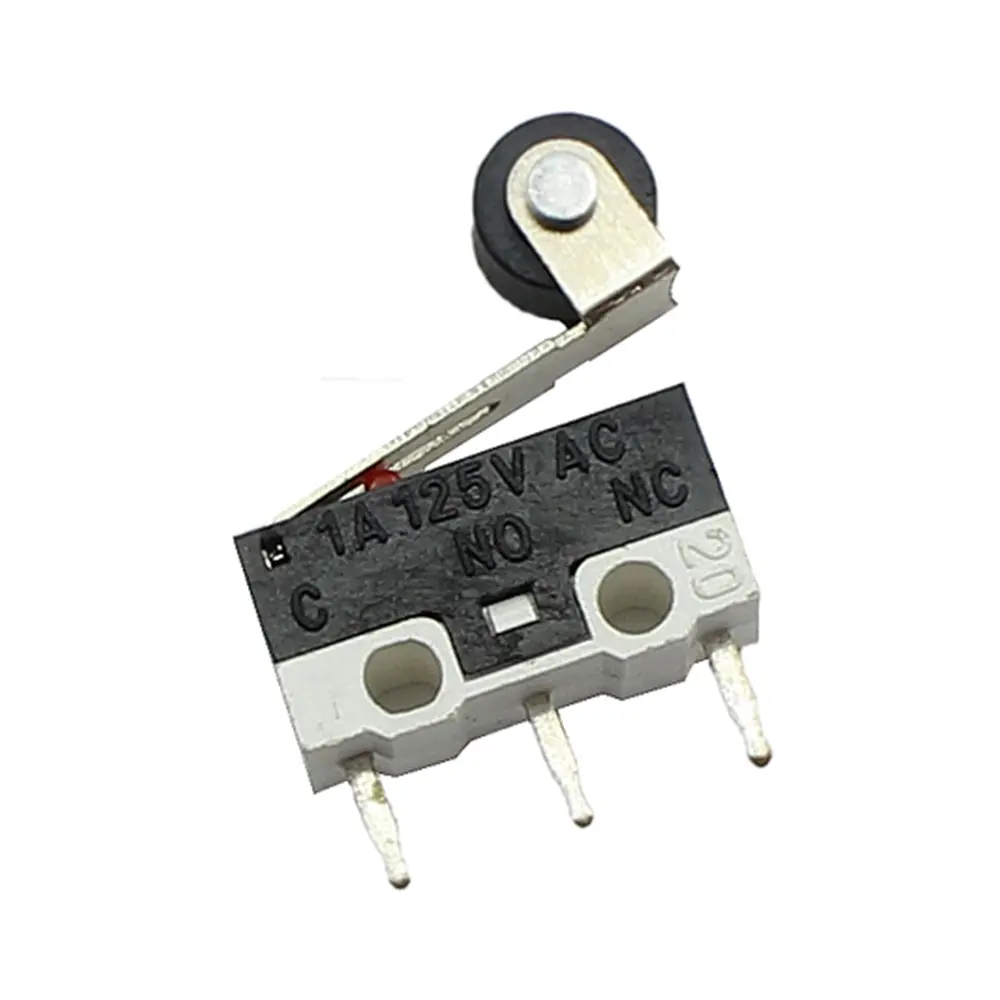

KW10-Z4P roller micro switch:
KW10-Z4P roller micro switch is rated for controlling electrical loads ranging from logic-level/computer-based circuits to limited power-duty switching (up to 3 A/125 Vac). KW10-Z7P mouse micro switch package is available with either solder terminals or a variety of different styles of printed circuit board (PCB) terminals to fulfill the requirements for electrical connectivity.
Pls check the datasheet below:
| Housing: | Nylon 66 | Lever length: | 14.9mm |
| Terminal | Brass with sliver plated | Switch Operation: | OFF – momentary ON |
| Contact Configuration: | SPDT | Operating Temperature: | -25℃~+75℃ |
| Rating: | 1A 250VAC/3A 125VAC | Ambient Temperature Used: | 〈85% RH |
| Contact Resistance: | ≤30mΩ | Electrical Life: | ≥ 10,000 Cycles |
| Insulation Resistance: | ≥100mΩ (500VDC) | Mechanical Life: | ≥ 100,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | OEM or ODM: | Available |
