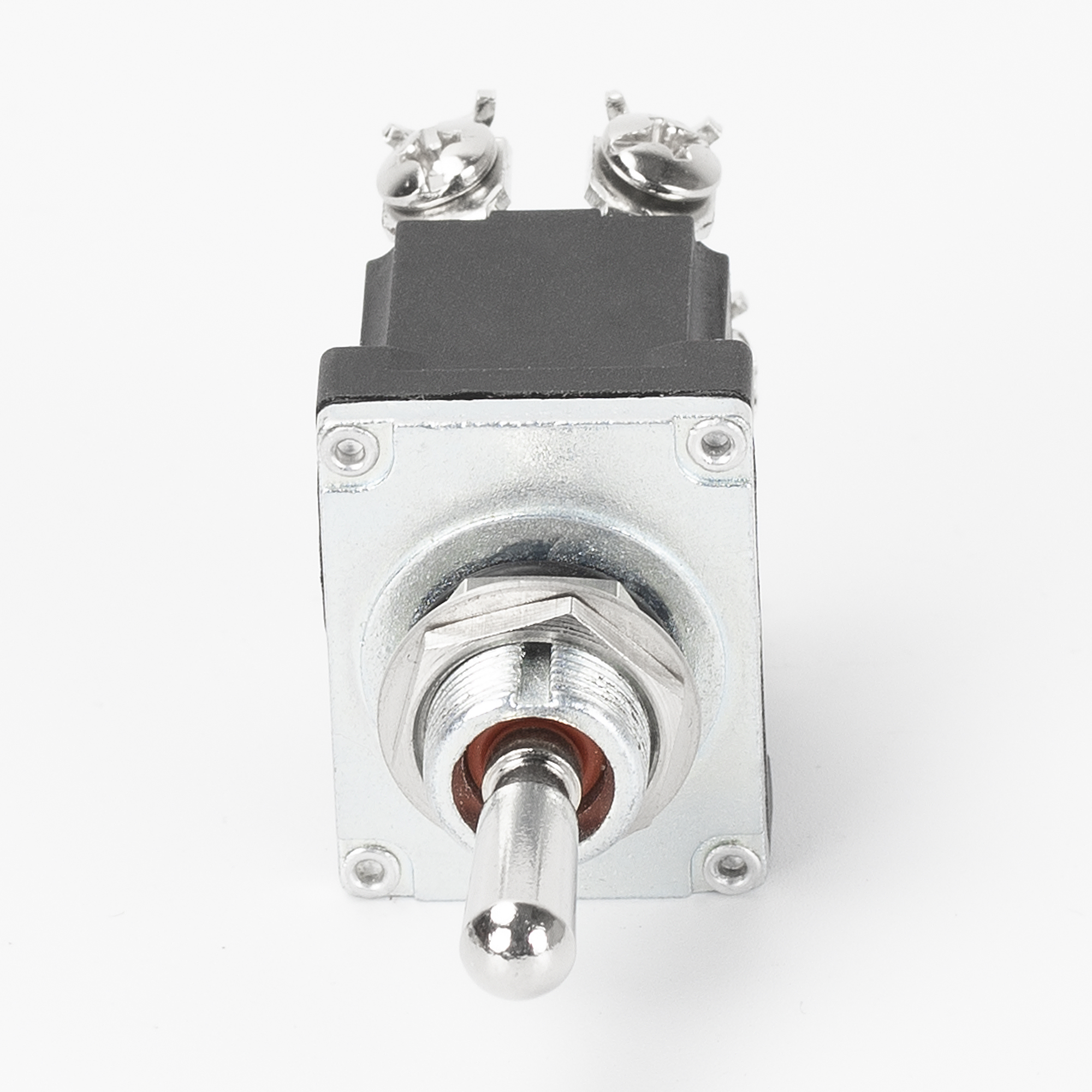

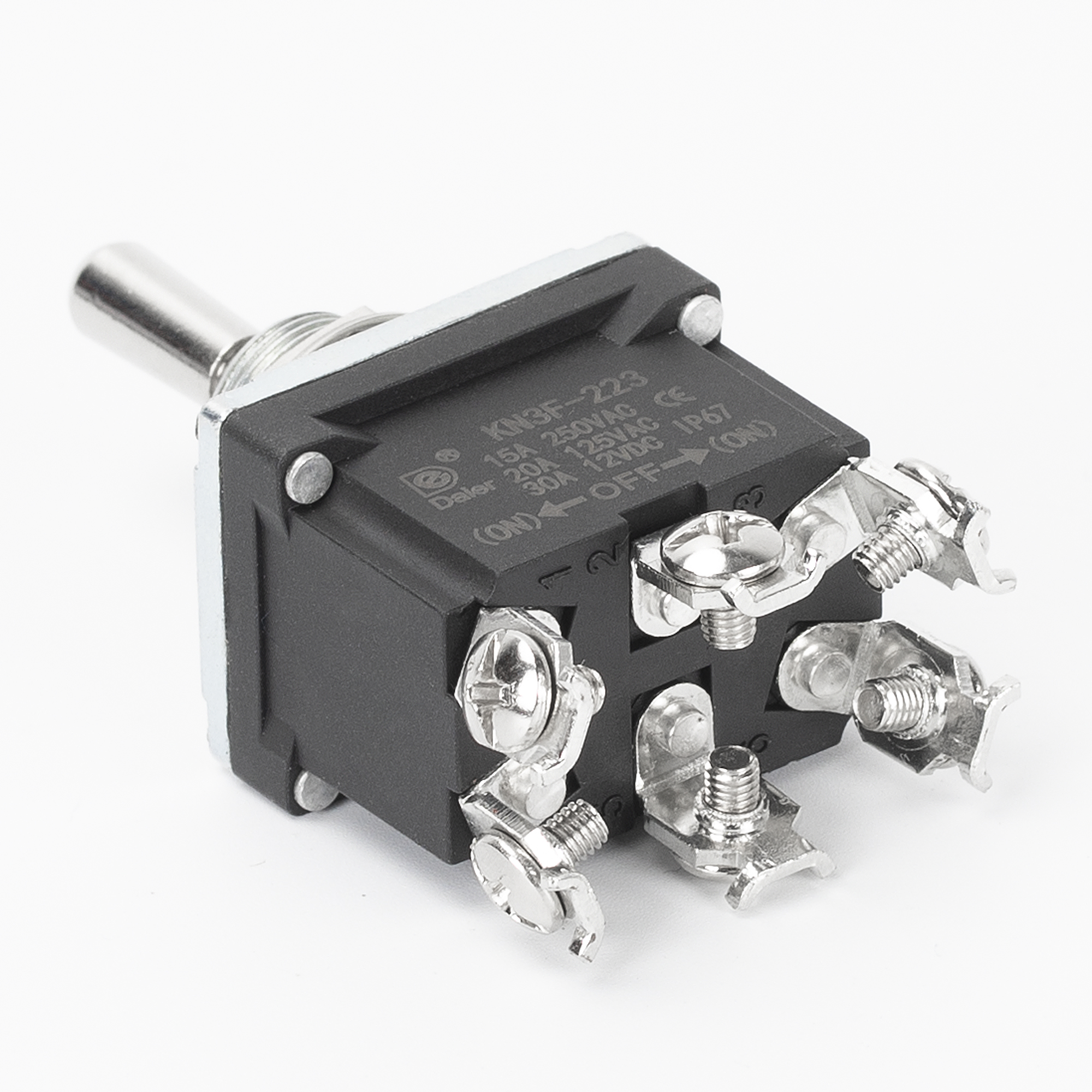

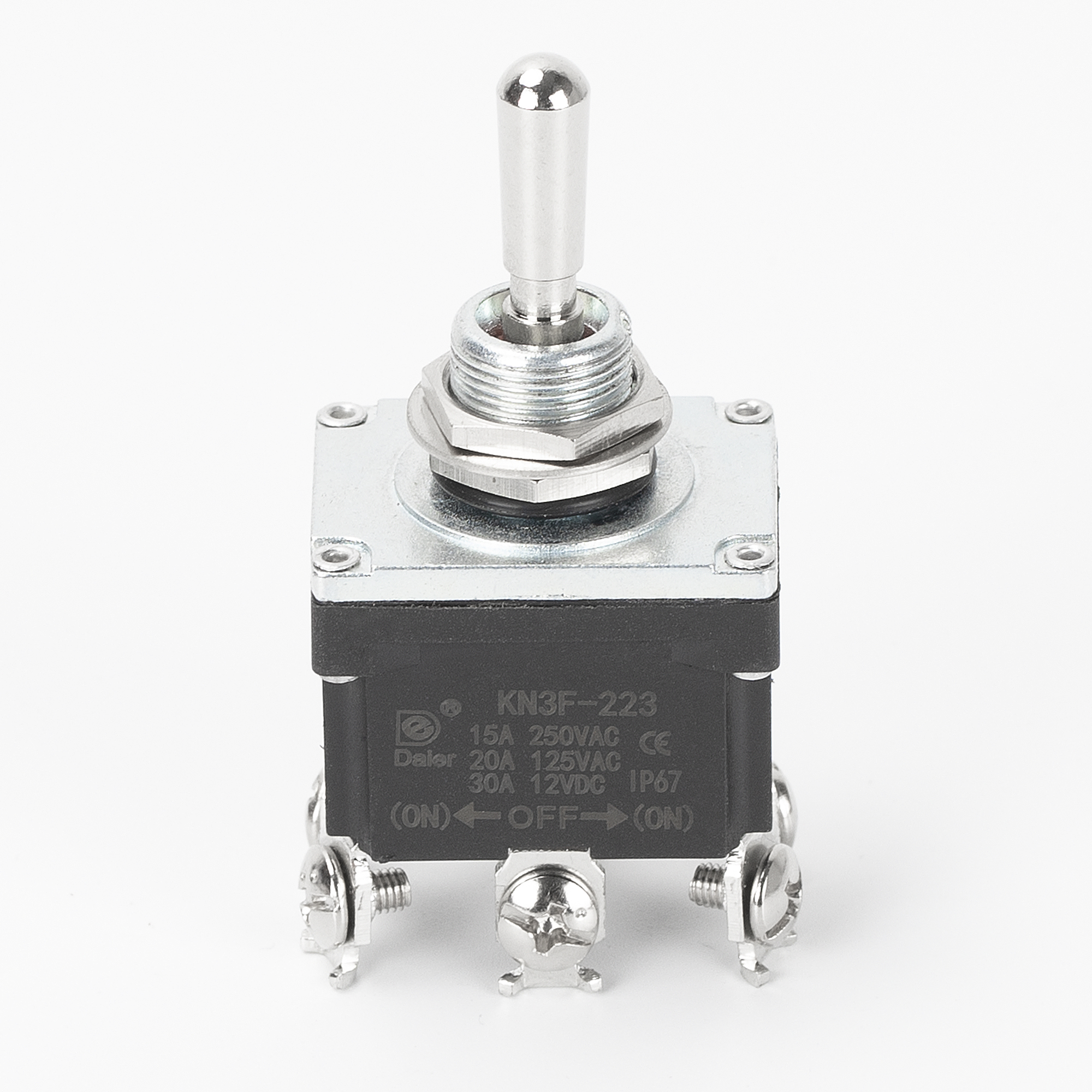

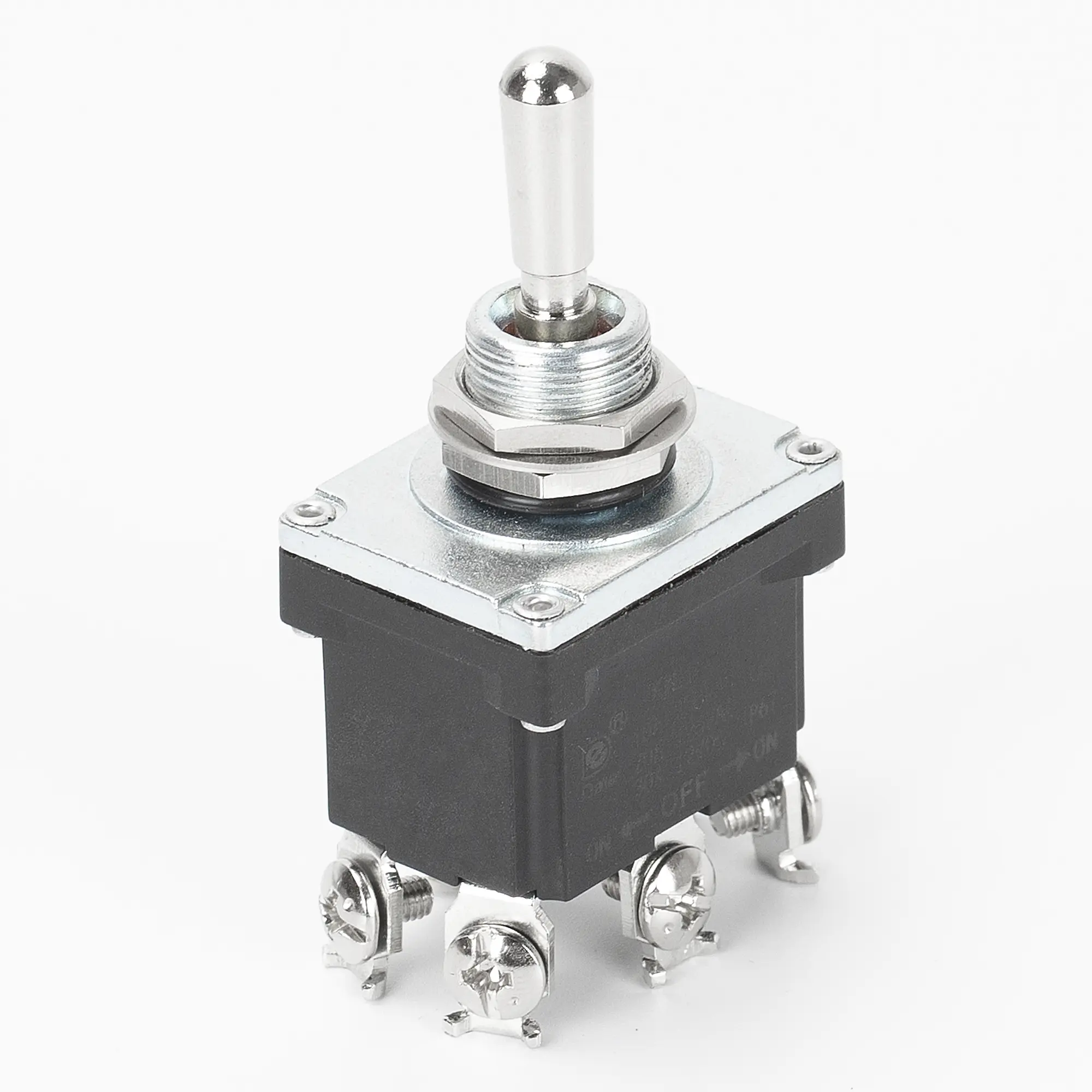

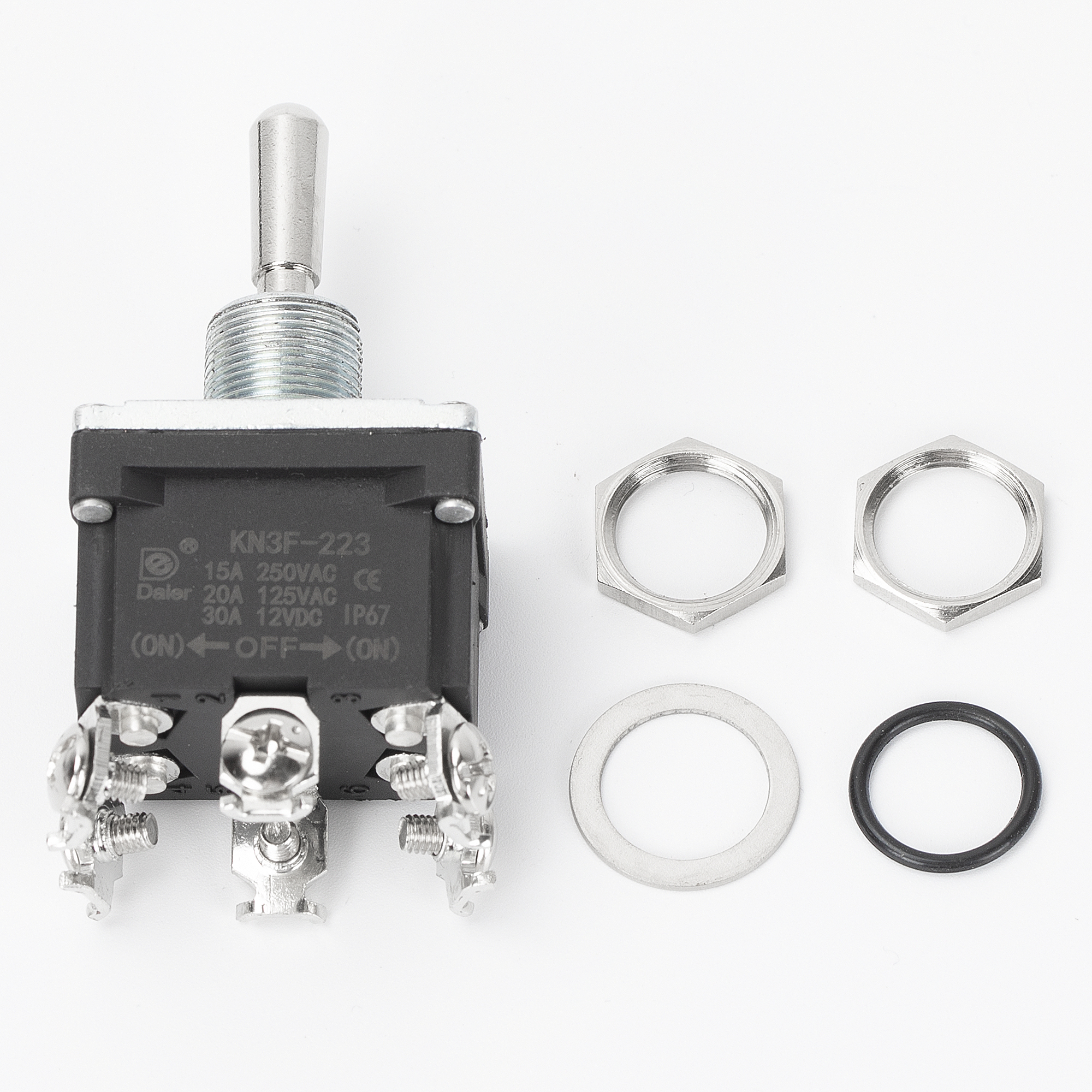

KN3F-203/KN3F-223 30A 12VDC IP67 Latching/Momentary DPDT 6 Pin Toggle Switch
Part#KN3F-203, KN3F-223
Th IP67 30A 12VDC DPDT 6 Pin toggle switch are ideal for demanding applications requiring multiple switching points or a high degree of control.
If you are working with a complex system that requires multiple input and output signals, these 6-pin toggle switches provide the ultimate solution for reliable and efficient control.
Category :
Medium Toggle Switch
KN3F-203/KN3F-223 30A 12VDC IP67 DPDT 6 Pin Toggle Switch Features
- Robust and Durable
These DPDT 6 pin toggle switches are built to withstand harsh environments. The IP67 rating signifies that they are fully protected against dust ingress and can be submerged in water for a limited time. This makes them ideal for use in outdoor applications, industrial settings, or anywhere exposed to moisture or dirt.
- Multiple Configurations
Daier offer a variety of switch configurations to meet your specific needs, including ON-OFF, ON-OFF-ON, and (ON)-OFF-(ON) options, with different pin counts. This allows you to find the perfect switch for your application, whether you need simple control or more complex switching patterns.
- Easy Installation
These DPDT 6 pin toggle switches are designed for simple and reliable installation. Their compact size and straightforward mounting points make them easy to integrate into your existing projects or designs.
- Reliable Performance
Daier weatherproof toggle switches are built to deliver consistent and reliable performance over time. They are constructed with high-quality materials and undergo rigorous testing to ensure they meet the demands of your application.
- Versatile Applications
The IP67 toggle switch series’ waterproof nature and range of configurations make them suitable for a wide array of applications, including: Industrial machinery and equipment, Outdoor lighting and control systems, Marine and boating applications, Automotive and transportation systems, and Home automation and smart devices.
KN3F Series IP67 Toggle Switch Details
| KN3F-101 | 2-Pin, ON-OFF, with Screw Terminal |
| KN3F-103 | 3-Pin, ON-OFF-ON, with Screw Terminal |
| KN3F-123 | 3-Pin, (ON)-OFF-(ON), with Screw Terminal |
| KN3F-201 | 4-Pin, ON-OFF, with Screw Terminal |
| KN3F-203 | 6-Pin, ON-OFF-ON, with Screw Terminal |
| KN3F-223 | 6-Pin, (ON)-OFF-(ON), with Screw Terminal |
KN3F-203/KN3F-223 30A 12VDC IP67 DPDT 6 Pin Toggle Switch Datasheet
| Rating: | 15A 250VAC / 20A 125VAC / 30A 12VDC | Rated Frequency: | 50/60Hz |
| Contact Resistance: | 25 mΩ max. | Insulation Resistance: | 100 mΩ min.at 500VDC |
| Dielectrics Strength:
(Between terminals) |
AC 1000V/min 50/60Hz for 1 min | Dielectrics Strength:
(Terminals and Groud) |
AC2000V/min 50/60Hz for 1 min |
| Ambient Air Temperature: | 25T85 (-25℃ to 85℃) | Ambient Humidity: | 85%(5 to 35) |
| Electrical Life: | 5E4 50,000 times min. | Mechanical Life: | 1E5 100,000 times min. |
| Protection Degree: | IP67 | Operating Force max.: | 24N |
| Contact & Operation: | ON-OFF-ON / (ON)-OFF-(ON) | OEM or ODM: | Available |
