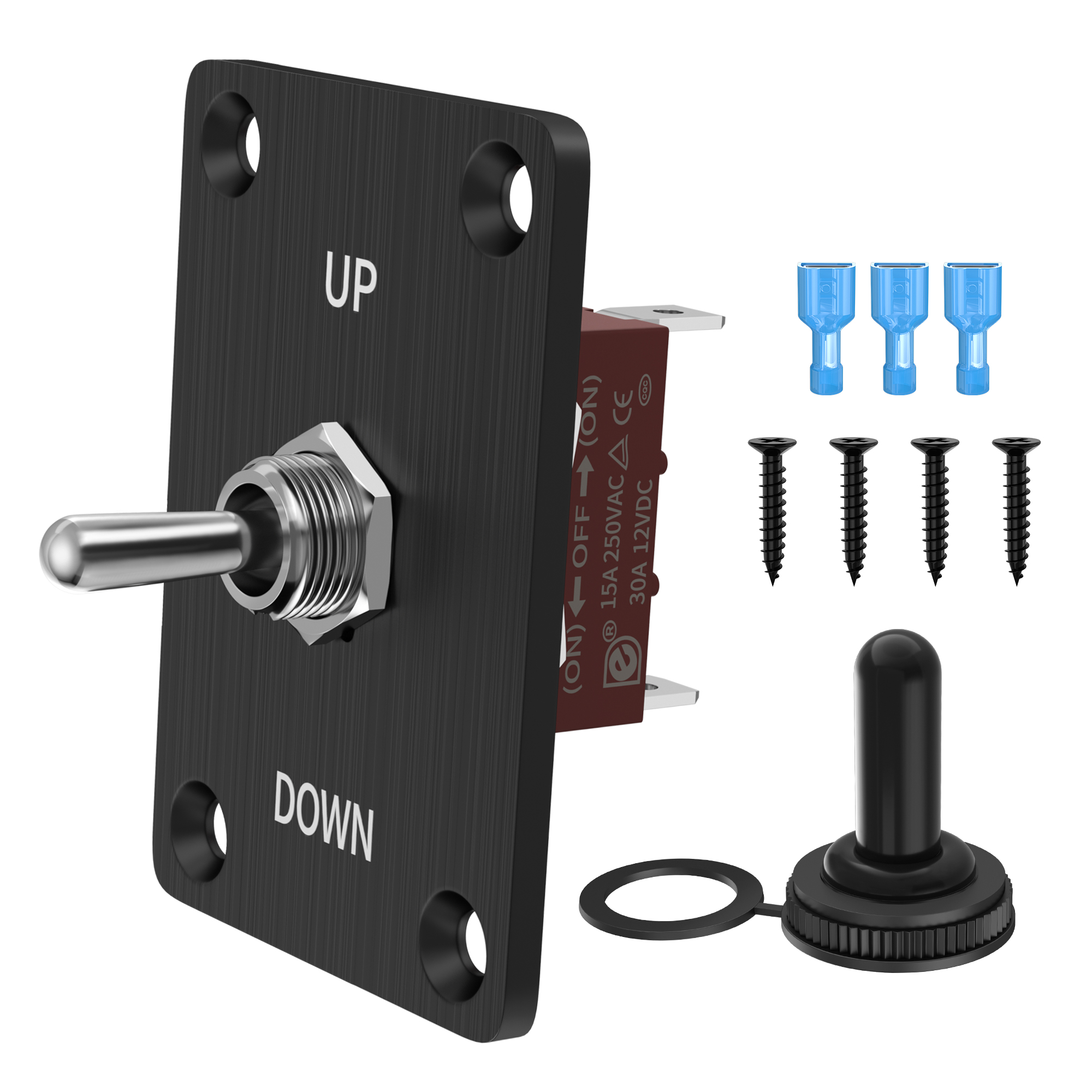

KN3C-123AP+UPDOWN 30A 12V DC 3-Pin Momentary Toggle Switch with UP/Down Mounting Plate
Part#KN3C-123AP+UPDOWN
The 30A 12V DC 3-pin momentary toggle switch with up/down mounting plate is a (ON)-OFF-(ON) SPDT switch with a waterproof design, offering a 3-way function.
Ideal for various applications, it features effortless installation, ensuring reliable performance in marine, automotive, and other motorized vehicles.
KN3C-123AP+UPDOWN 30A 12V DC 3-Pin Momentary Toggle Switch with UP/Down Mounting Plate Features
- Versatile Functionality
Designed as a waterproof momentary toggle switch, this 3-pin SPDT 3-way toggle switch offers the function of (ON)/OFF/(ON), providing versatility in applications where momentary activation is crucial.
- High Rating
With a robust rating of 20A at 12V DC, 20A at 125V AC, and 15A at 250V AC, this heavy-duty toggle switch is built to handle substantial electrical loads, ensuring reliable performance in various environments.

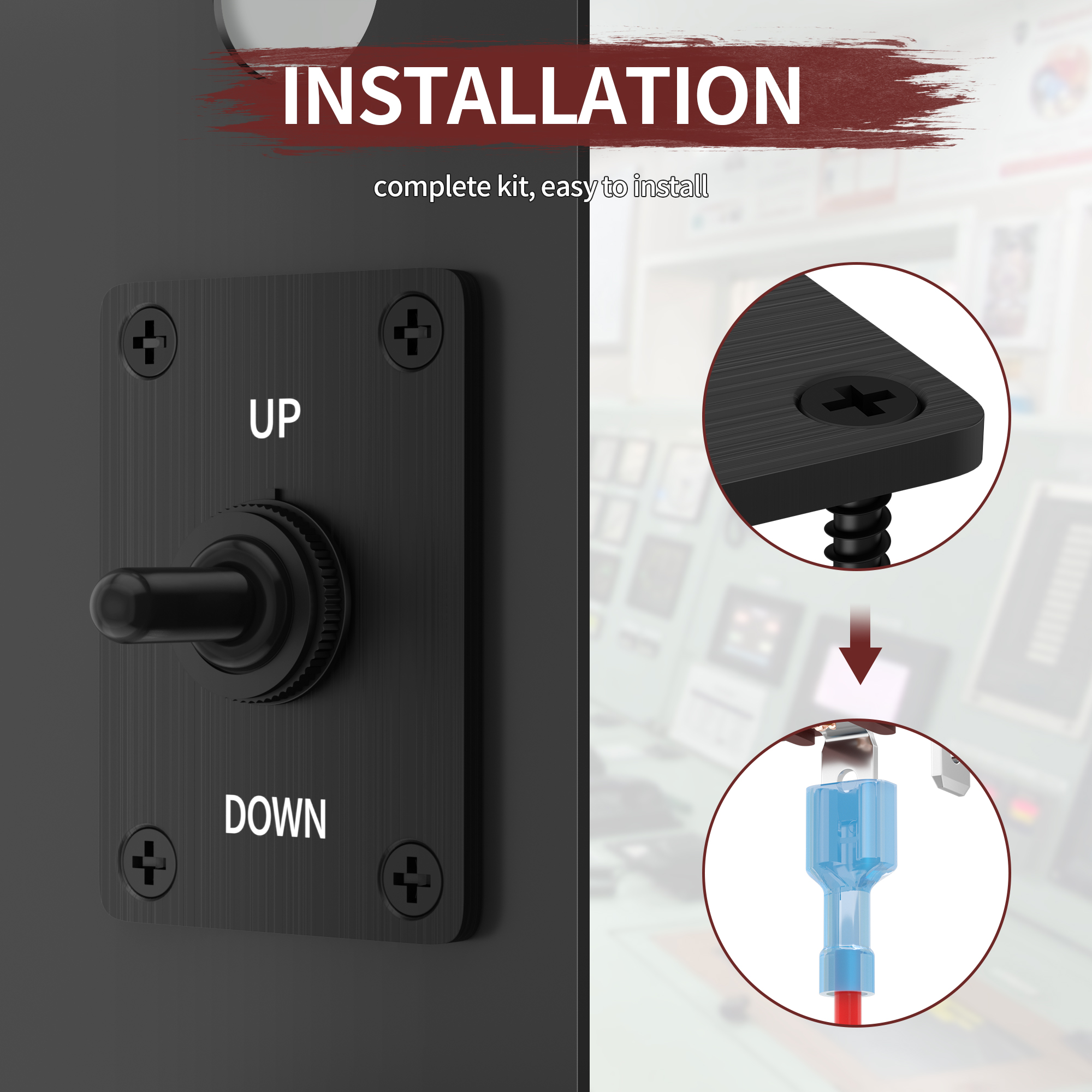

- Effortless Installation

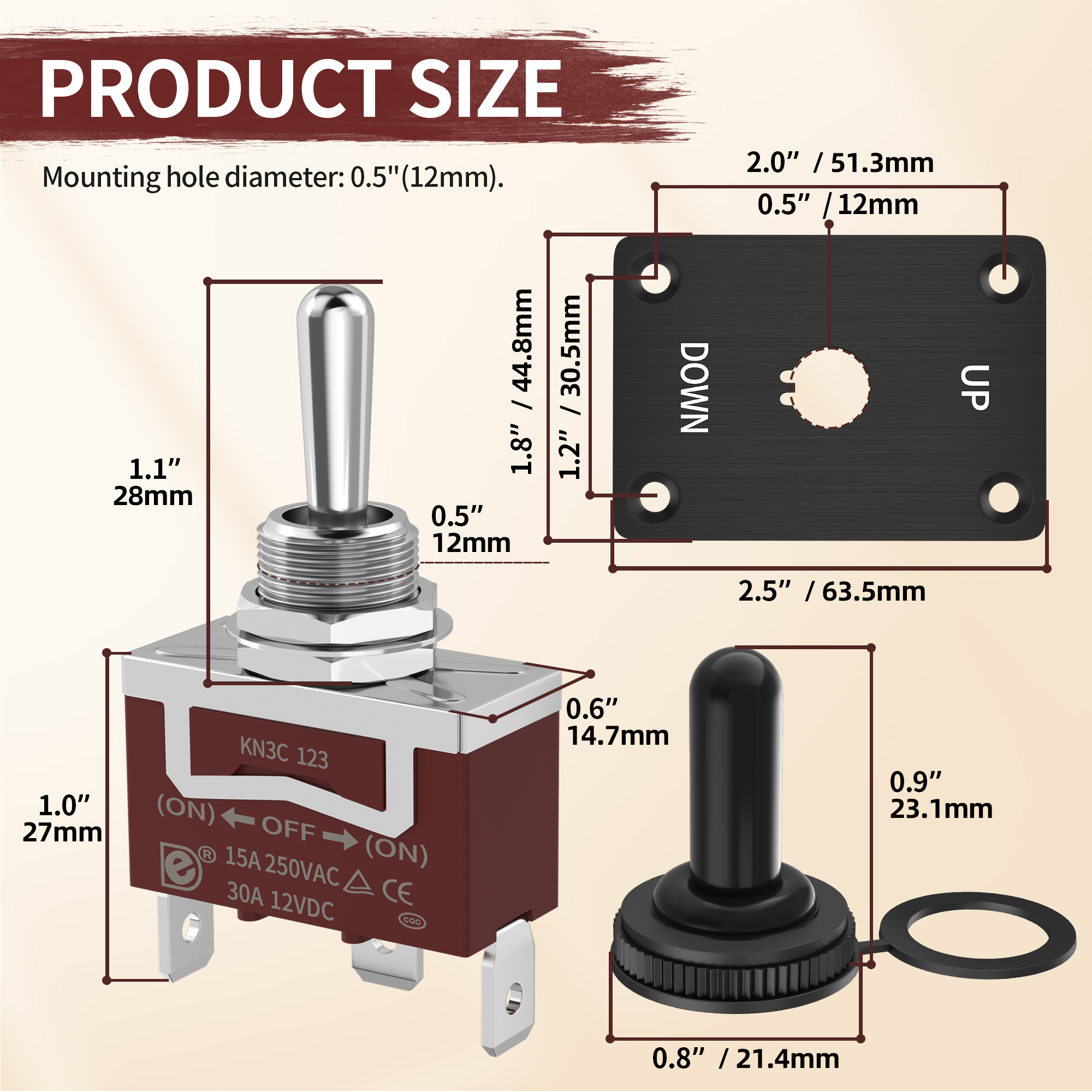

The 12mm (0.47 inch) mounting hole size of this 12V toggle switch simplifies installation. Each terminal features a machine screw, facilitating quick and secure connections for efficient setup.

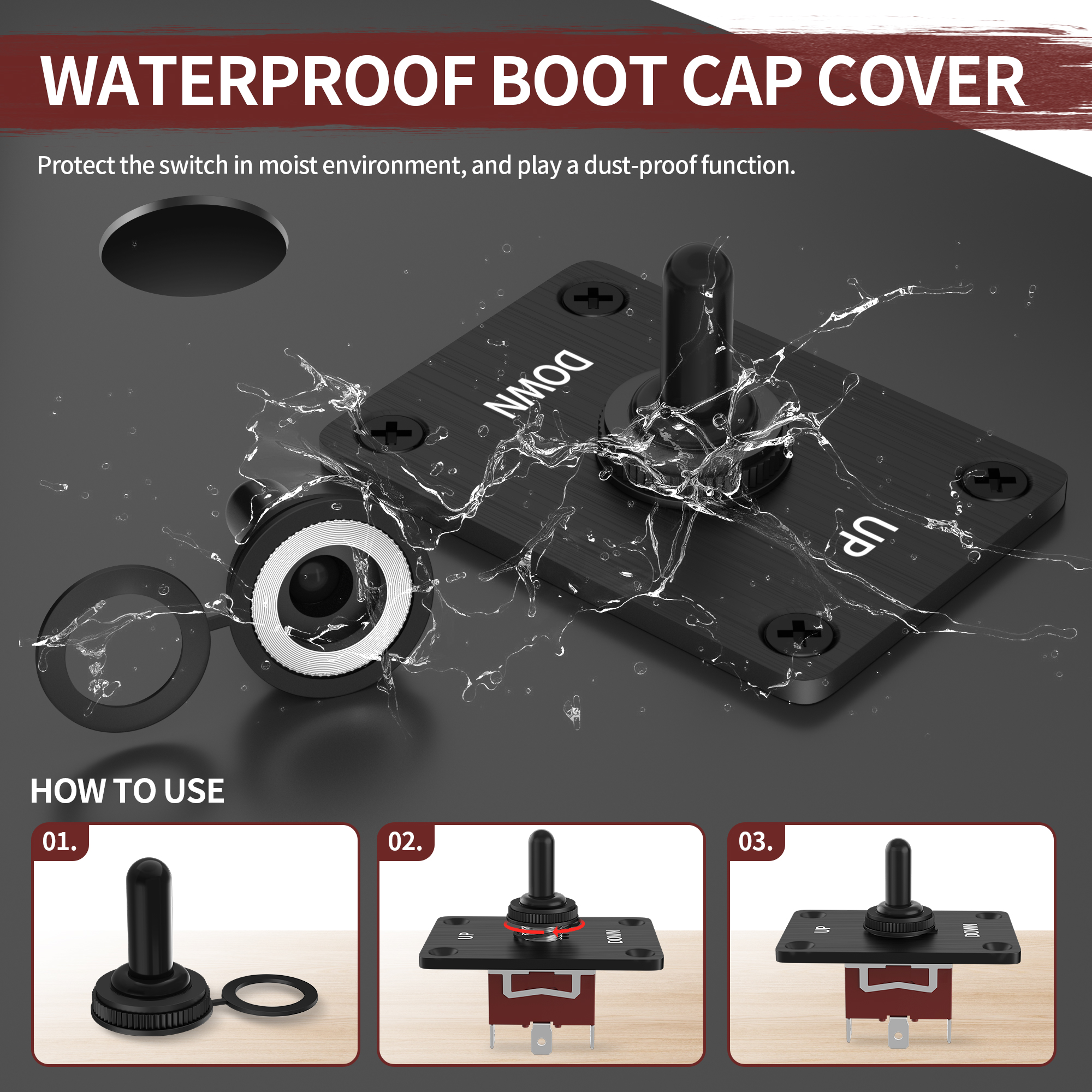

- Waterproof Design
Complete with a waterproof cap, this 3-position toggle switch ensures water resistance. After installing the boot cap, the toggle rocker switch achieves an IP65 waterproof rating, enhancing its durability in challenging conditions.
- Wide Application Range

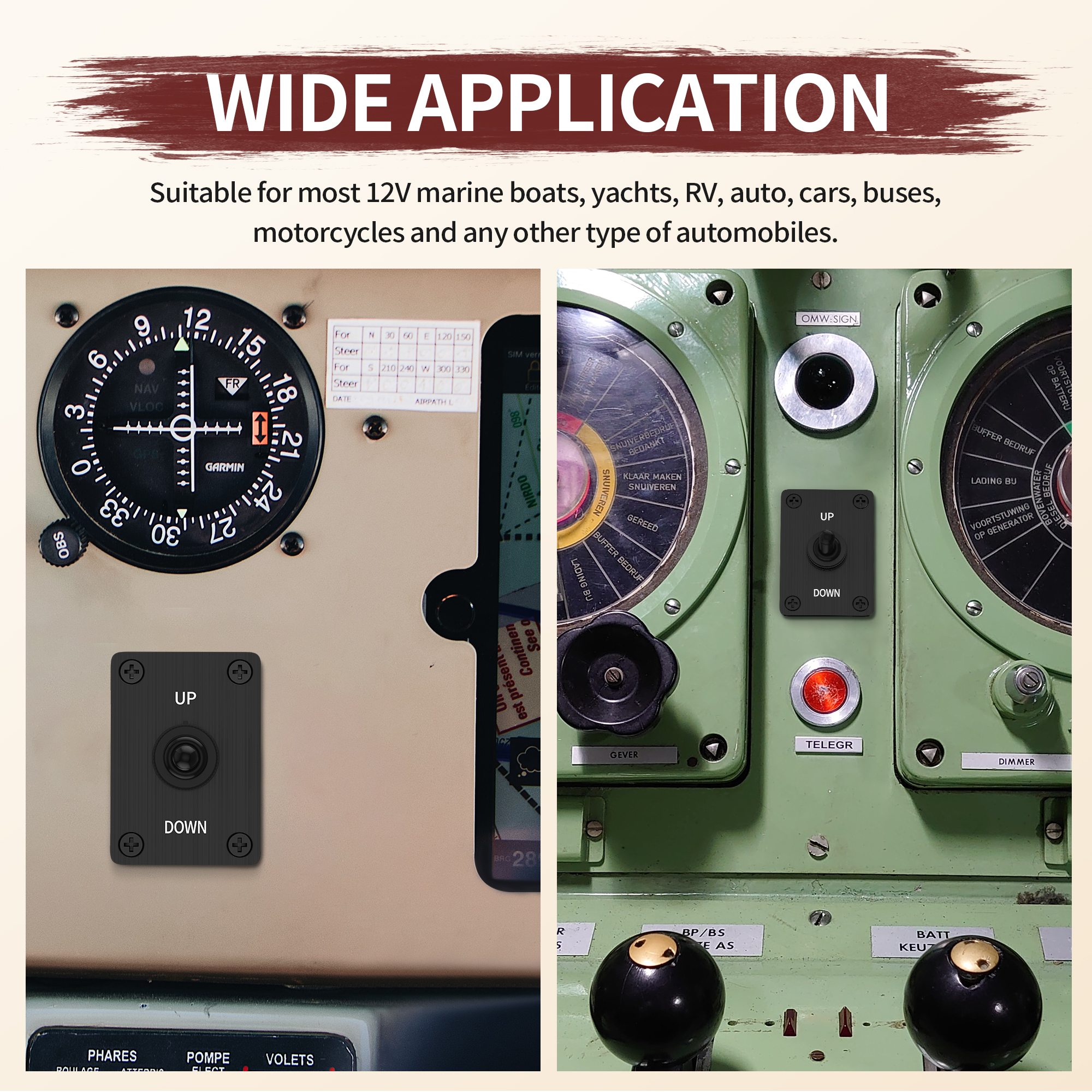

This non-locking toggle switch is perfect for use in marine environments, boats, motorcycles, race cars, automobiles, RV’s, ATV’s, UTV’s, trucks, golf carts, airplanes, and many more applications.
KN3C-123AP+UPDOWN 30A 12V DC 3-Pin Momentary Toggle Switch Datasheet
| Rating: | 30A 12V DC ; 20A 125VAC ; 15A 250VAC |
| Material: | Bakelite, Metal |
| Contact Material: | Silver |
| Panel Cut-Out Size: | 12mm |
| Function: | (ON)-OFF-(ON) SPDT |
| Terminal: | 3 Pins |
| Connector Type: | Screw Terminal |
| Cover Thread: | M12X0.75mm |
| Cover Color: | Black |
| Contact Resistance: | ≤50mΩ |
| Insulated Resistance: | ≥100MΩ |
| Dielectric Strength: | 1 Minute 1500V AC |
| Operating Temperature: | -25℃~+85℃ |
| Electrical Life: | ≥10,000 Cycles |
