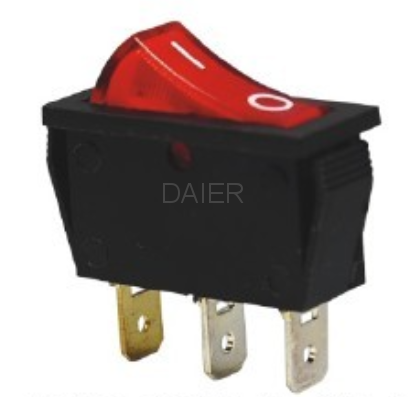

KCD3-5-101N ON-OFF Rocker Switch 12V

KCD3-5-101N ON-OFF Rocker Switch 12V with LED

KCD3-5-101N ON-OFF Rocker Switch 12V

Daier KCD3-5-101N medium-sized rocker switches provide high switching currents in a compact design.
It is a snap-in type rocker switch with high mechanical life in a sturdy nylon 66 housing.
They are of high quality and can achieve long life under heavy loads and industry standard installation dimensions.
This kind of rocker switch can be used in various applications, such as water dispensers and extension sockets.
At Daier, we are proud to provide a comprehensive series of switches for various applications at an affordable price. With competitive prices, modern design and durability, our switches are your ideal choice.
For more information about the full range of switches and other types of rocker switches, please contact us.

KCD3-5-101N ON-OFF Rocker Switch 12V datasheet below


Housing: Nylon 66 Button: Nylon 66
Terminal: Brass with sliver plated Button color: Standard red
Rating: 20A 125VAC/15A 250VAC Housing color: Standard black
Contact & Function: SPST,ON-OFF Lamp Voltage: 220V
Contact Resistance: 35mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, SGS OEM or ODM: Available

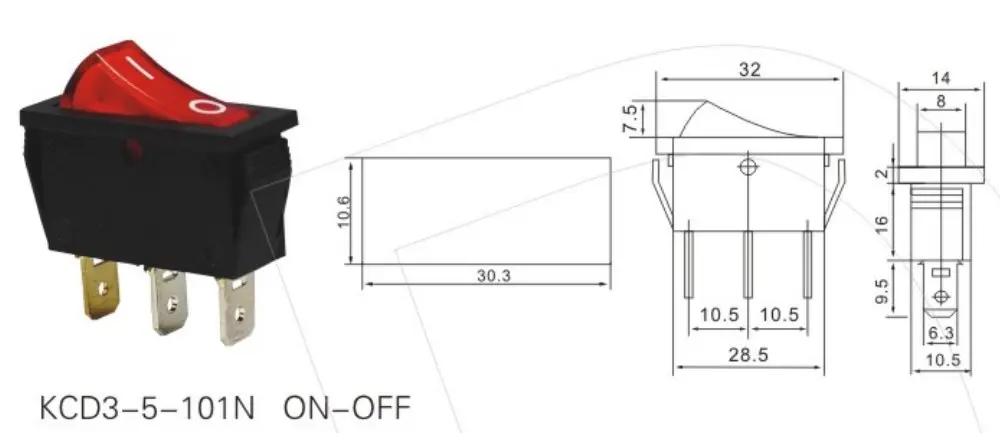

KCD3-5-101N ON-OFF Rocker Switch 12V datasheet
