KCD2-3-223 Momentary Rocker Switch

KCD2-3-223 Momentary Rocker Switch

Category :

Double Pole Switch

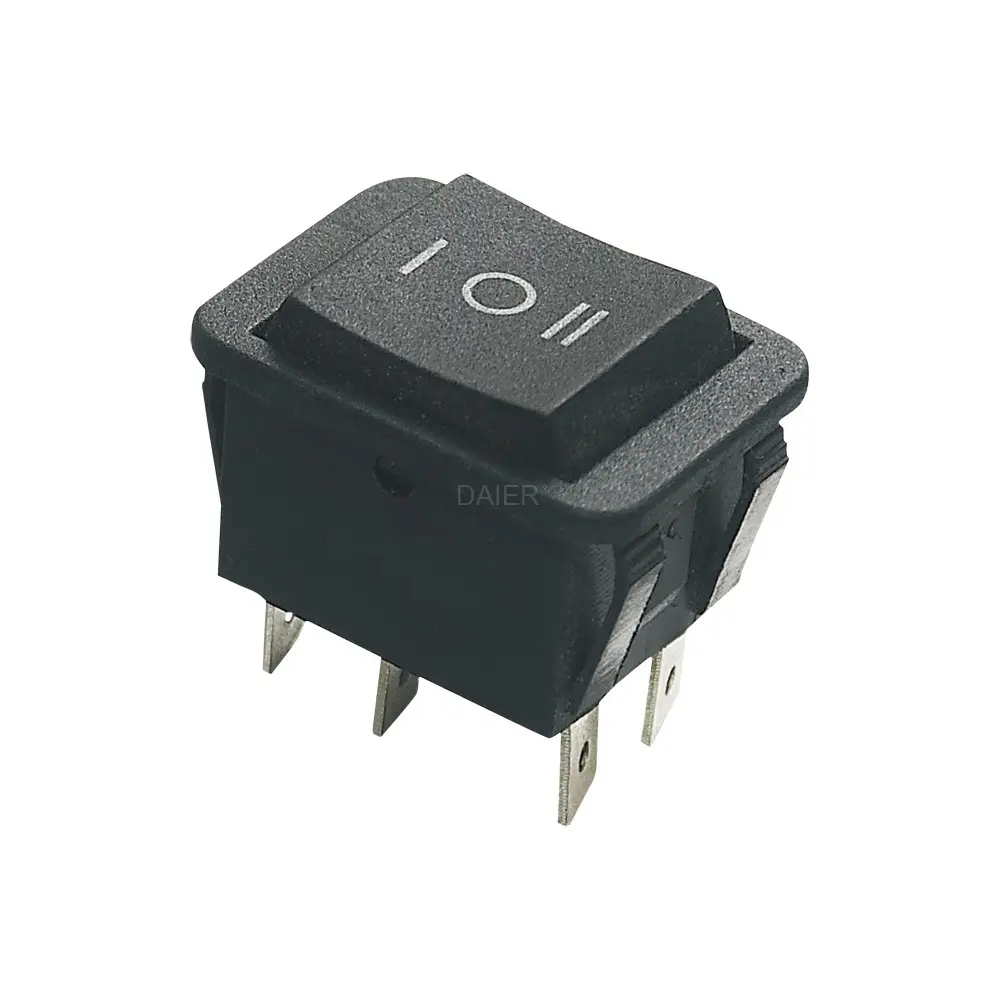

KCD2-3-223 Momentary Rocker Switch

Daier KCD2-3-223 KCD4 rocker switches provide high switching current in a compact design.
It is a snap-in type rocker switch with high mechanical life in a sturdy nylon 66 housing.
They are of high quality and can achieve long life under heavy loads and industry standard installation dimensions.
This kind of rocker switch can be used in various applications, such as water dispensers and extension sockets.
At Daier, we are proud to provide a comprehensive series of switches for various applications at an affordable price. With competitive prices, modern design and durability, our switches are your ideal choice.
For more information about the full range of switches and other types of rocker switches, please contact us.

KCD2-3-223 Momentary Rocker Switch related products,pls check the detailed information as below

KCD2-3-201 It is 4P,ON-OFF rocker switch without lamp
KCD2-3-211 It is 4P,OFF-momentary ON rocker switch without lamp
KCD2-3-212 It is 6P,ON-momentary ON rocker switch without lamp
KCD2-3-202 It is 6P,ON-ON rocker switch without lamp
KCD2-3-203 It is 6P,ON-OFF-ON rocker switch without lamp
KCD2-3-223 It is 6P,Momentary ON-OFF-Momentary ON rocker switch without lamp

Pls check the datasheet below


Housing: Nylon 66 Button: Nylon 66
Terminal: Brass with sliver plated Button color: Standard Black
Rating: 20A 125VAC/15A 250VAC Housing color: Standard black
Contact Configuration: DPDT Switch Operation: Momentary ON-OFF-Momentary ON
Contact Resistance: 35mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, TUV, SGS OEM or ODM: Available
