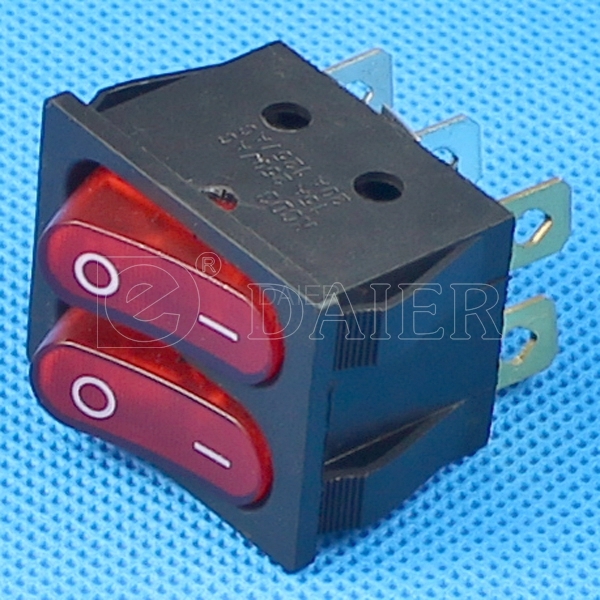

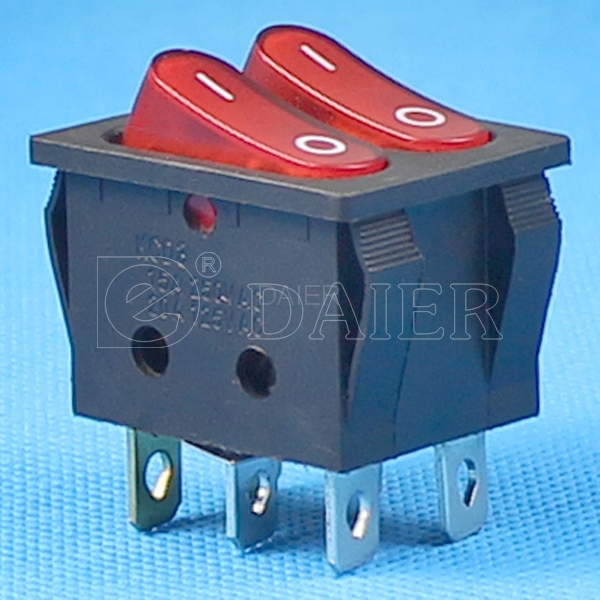

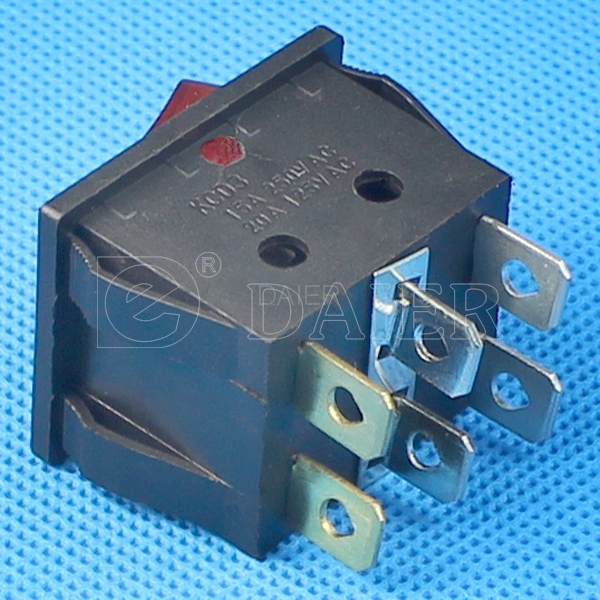

KCD2-5-2101N 20 Amp Rocker Switch
Daier KCD2-5-2101N on off rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
If you want to know more information , please contact us, I will check and reply to you.
KCD2-5-2101N 20 Amp Rocker Switch related product,pls check the detailed information as below

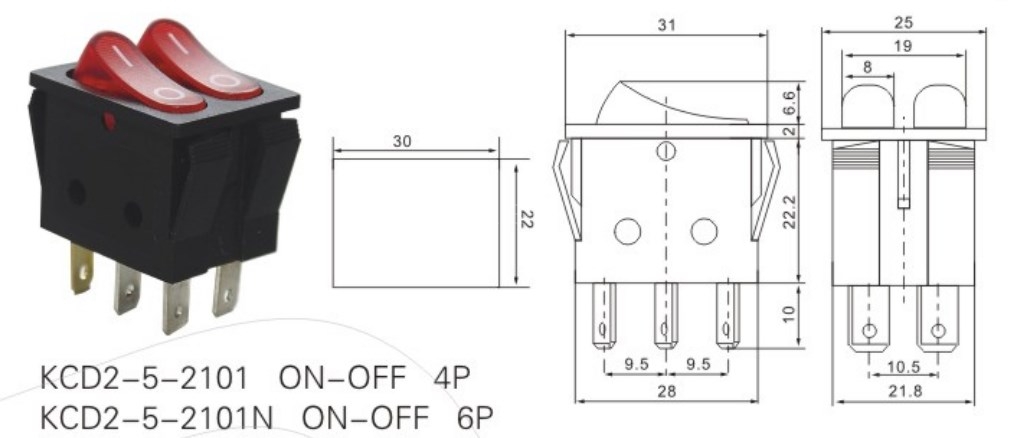

KCD2-5-2101 | It is 4P,ON-OFF rocker switch without lamp |
KCD2-5-2101N | It is 6P,ON-OFF rocker switch with lamp |
KCD2-5-2101N 20 Amp Rocker Switch datasheet below
Housing: | Nylon 66 | Button: | Nylon 66 |
Terminal: | Brass with sliver plated | Button color: | Standard red |
Rating: | 20A 125VAC/15A 250VAC | Housing color: | Standard black |
Contact & Operation: | DPST,ON-OFF | Lamp voltage: | 220V |
Contact Resistance: | 35mΩ max | Operating Temperature: | -25℃~+85℃ |
Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
Certification: | CE, CQC, TUV, SGS | OEM or ODM: | Available |
