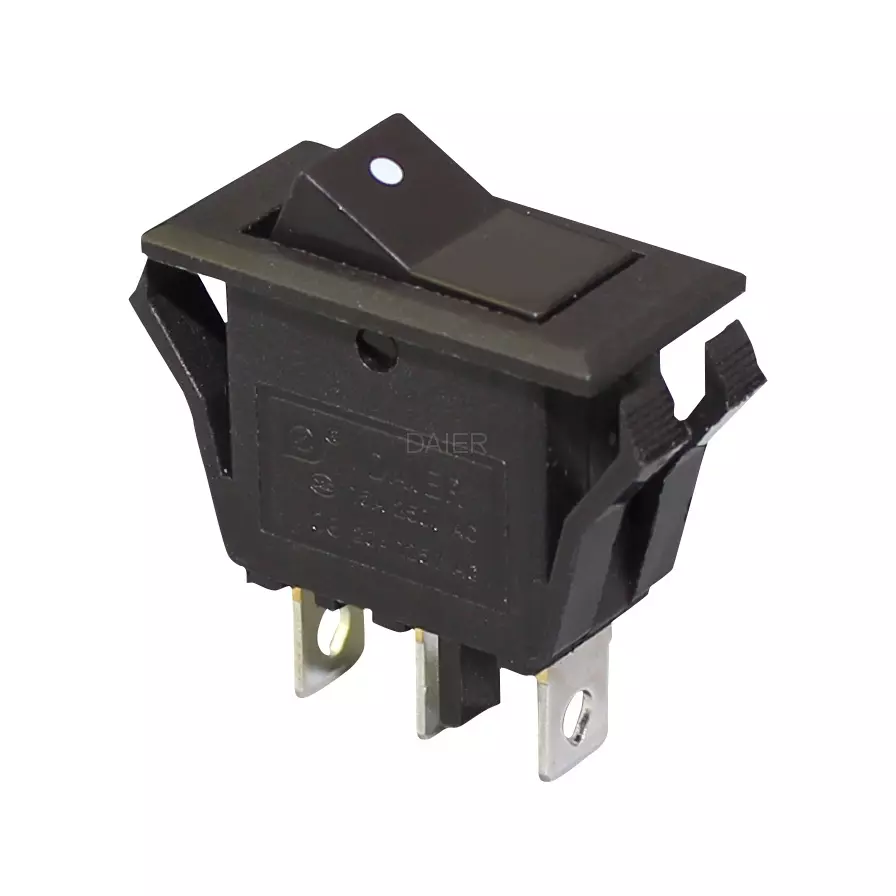

KCD3-2-102V T125 Electrical Rocker Switch

KCD3-2-102V T125 Electrical Rocker Switch

KCD3-2-102V T125 Electrical Rocker Switch

The Daier KCD3-2-102V on the medium rocker switch provides high switching current in a compact design.
It is a snap-in rocker switch with high mechanical life in a sturdy nylon 66 housing.
They are of high quality and can achieve long life under heavy loads and industry standard installation dimensions.
This rocker switch can be used in a variety of applications, such as water dispensers and extension sockets.
At Daier, we are proud to provide a comprehensive series of switches for various applications at an affordable price. With competitive prices, modern design and durability, our switches are your ideal choice.
For more information about the full range of switches and other types of rocker switches, please contact us.

KCD3-2-102V T125 Electrical Rocker Switch datasheet below



Housing: Nylon 66 Button: Nylon 66
Terminal: Brass with sliver plated Button color: Standard black
Rating: 20A 125VAC/15A 250VAC Housing color: Standard black
Contact Configuration: SPDT Switch Operation: ON-ON
Contact Resistance: 35mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, SGS OEM or ODM: Available
KCD3-2-102V T125 Electrical Rocker Switch datasheet
