KCD2-7-223B DaierTek Reverse Rocker Switch

KCD2-7-223B DaierTek Reverse Rocker Switch

Category :

Double Pole Switch
KCD2-7-223B DaierTek Reverse Rocker Switch

KCD2-7-223B DaierTek Reverse Rocker Switch

KCD2-7-223B DaierTek Reverse Rocker Switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.

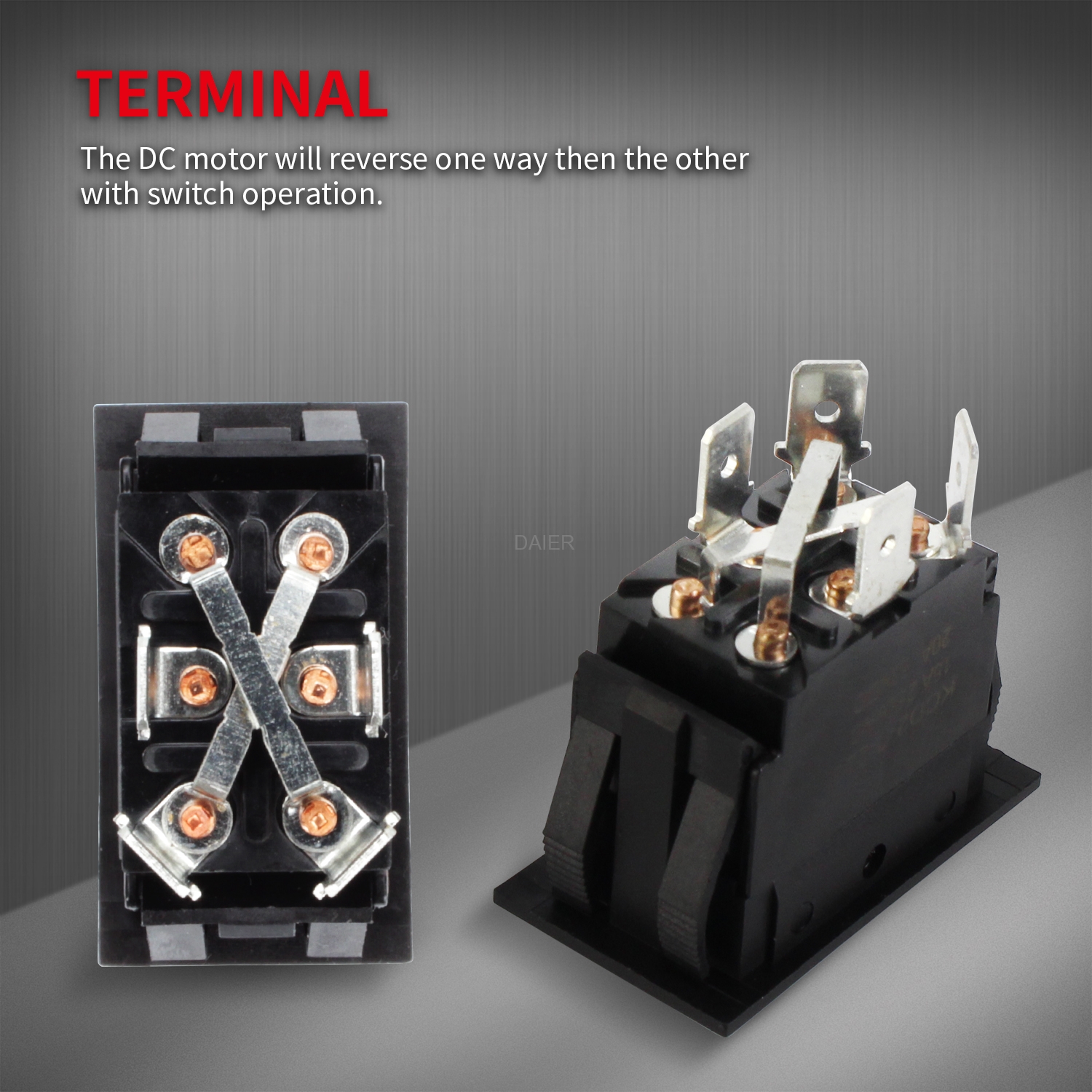

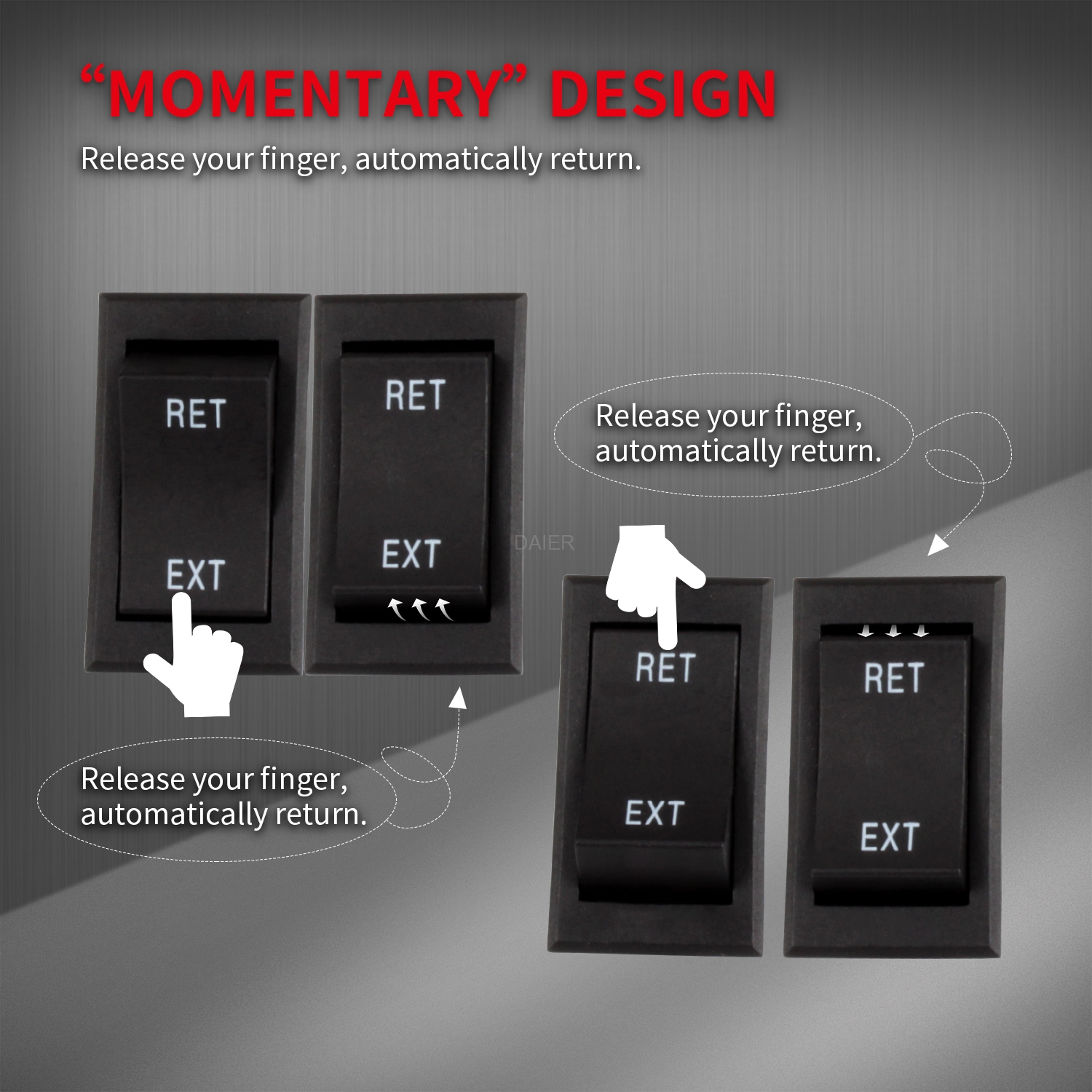

RV Jack Switch Specification: DPDT( Double Pole Double Throw ) Momentary ON – OFF – Momentary ON with Jumper Bars, 4 Pin.

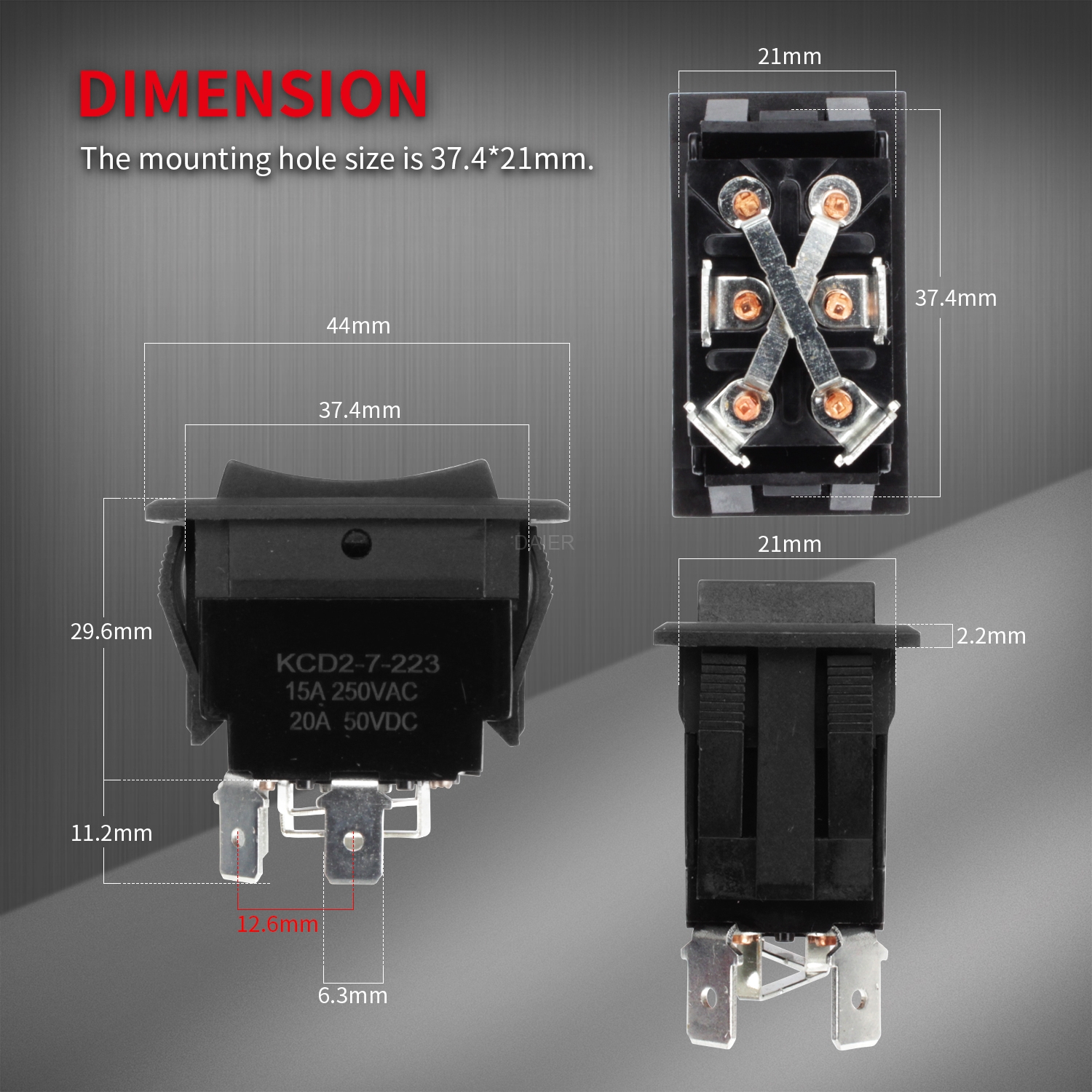

Size: This Reverse Polarity Switch with 1.47”X0.83”(37.4X21mm) Cut-out Size and 1.736”X0.95”(44.1X24.13mm) Housing Size. Wires information: 14 AWG, 20cm
Toggle Rocker Switch Rating: 30A 12V DC; 15A 24V DC.
If you want to know more information , please contact us, I will check and reply to you.

KCD2-7-223B DaierTek Reverse Rocker Switch related product,pls check the detailed information as below:

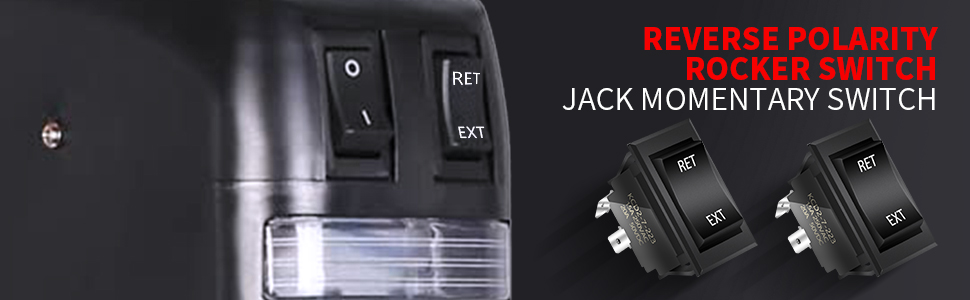

With print “I O II” and “RET EXT” for your choice
