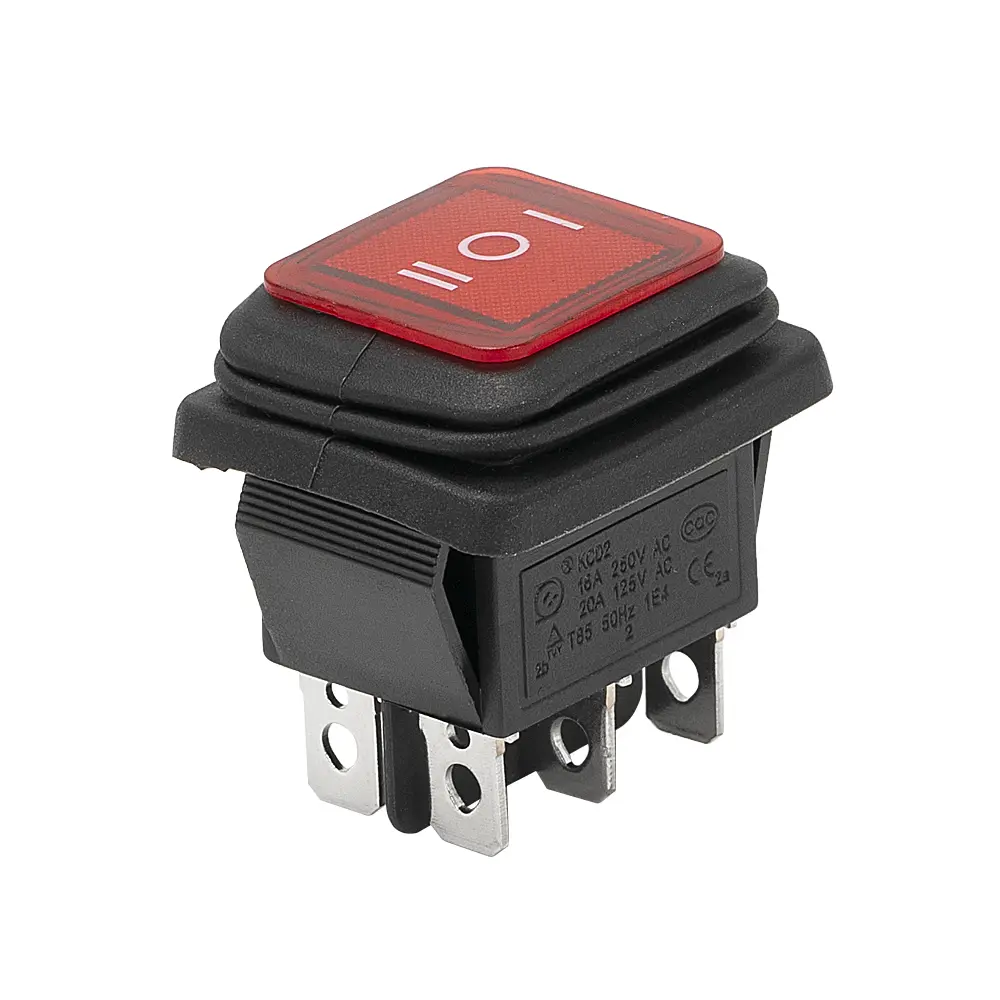

KCD2-203NW Waterproof Red Lighted Rocker Switch
KCD2-203NW Red Lighted Rocker Switch
Category :
Medium Double Pole Rocker Switch
KCD2-203NW Red Lighted Rocker Switch
Daier KCD2-203NW waterproof rocker switch provides high switching current in a compact design.
It is a snap-in type rocker switch with high mechanical life in a sturdy nylon 66 housing.
They are of high quality and can achieve long life under heavy loads and industry standard installation dimensions.
This kind of rocker switch can be used in various applications, such as water dispensers and extension sockets.
At Daier, we are proud to provide a comprehensive series of switches for various applications at an affordable price. With competitive prices, modern design and durability, our switches are your ideal choice.
For more information about the full range of switches and rocker switches for other colors, please contact us.
KCD2-203NW Red Lighted Rocker Switch Related Products
| KCD2-202W | It is 6P, ON-ON waterproof rocker switch without a lamp |
| KCD2-202NW | It is 6P, ON-ON waterproof rocker switch with a lamp |
| KCD2-203W | It is 6P, ON-OFF-ON waterproof rocker switch without a lamp |
| KCD2-203NW | It is 6P, ON-OFF-ON waterproof rocker switch with a lamp |
KCD2-203NW Red Lighted Rocker Switch datasheet below
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal: | Brass with sliver plated | Button Color: | Black /red/green |
| Rating: | 20A 125VAC/15A 250VAC | Housing color: | Standard black |
| Contact&Operation: | DPDT,ON-ON | IP Level: | IP54 |
| Contact Resistance: | 35mΩ max | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, TUV, SGS | OEM or ODM: | Available |
