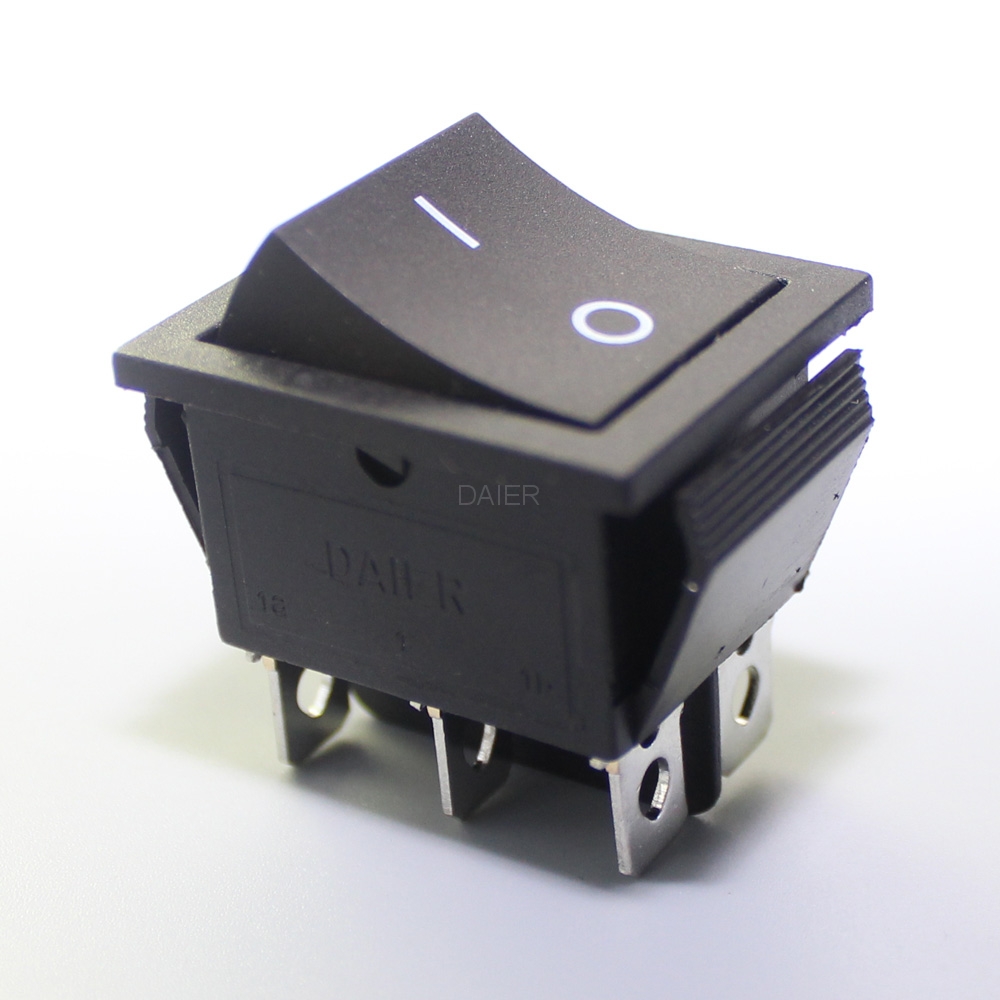

KCD2-202 Double Pole Double Throw Rocker Switch
Daier KCD2-202 Rocker Switch T120 55 offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
We can’t talk out their advantage in a few words, but they are more and more popular in the world. We provide our product at Factory Price. Contact Directly & Get Live Quotes Now!
KCD2-202 Double Pole Double Throw Rocker Switch related product,pls check the detailed information as below
| KCD2-202 | 6P, ON-ON rocker switch without lamp |
| KCD2-212 | 6P, ON-momentary ON rocker switch without lamp |
KCD2-202 Double Pole Double Throw Rocker Switch datasheet below
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal: | Brass with sliver plated | Button color: | Standard Black,red is avaliable |
| Rating: | 20A 125VAC/15A 250VAC | Housing color: | Standard black |
| Contact Configuration: | DPDT | Switch Operation: | ON-ON |
| Contact Resistance: | 35mΩ max | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, TUV, SGS | OEM or ODM: | Available |
