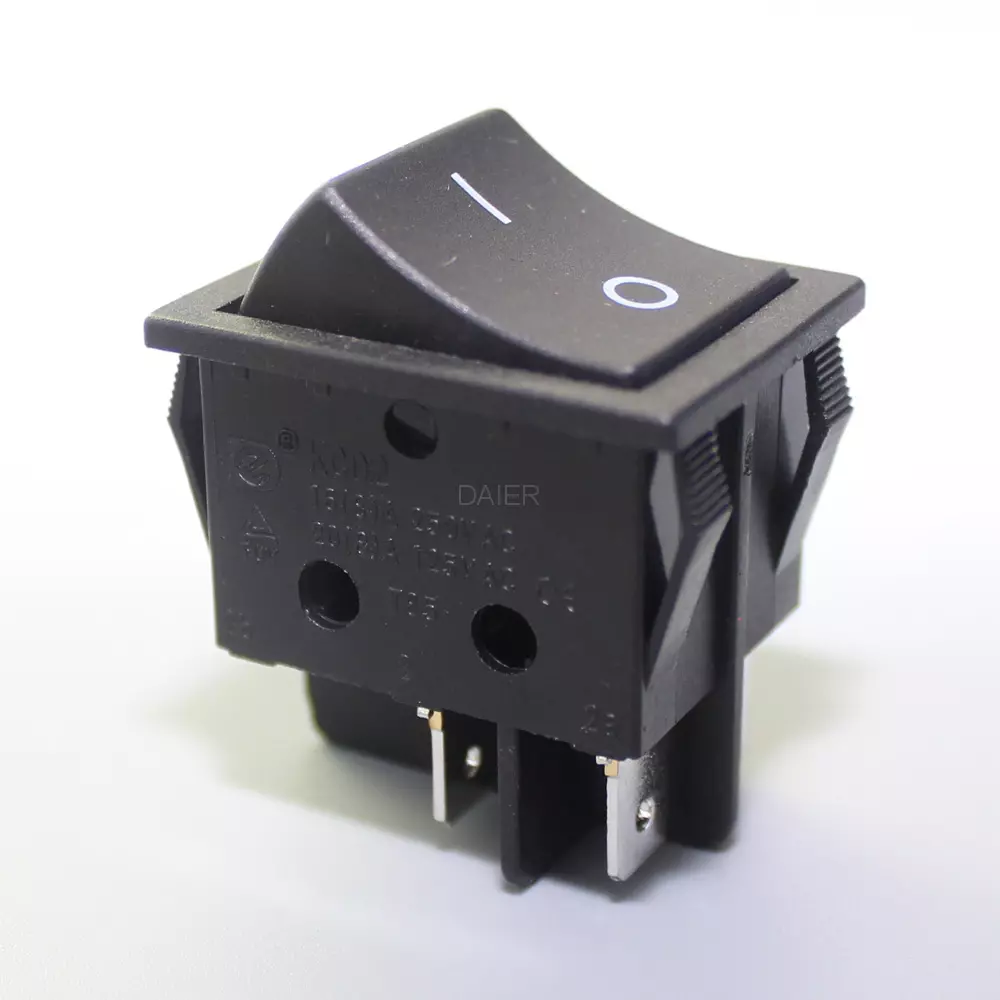

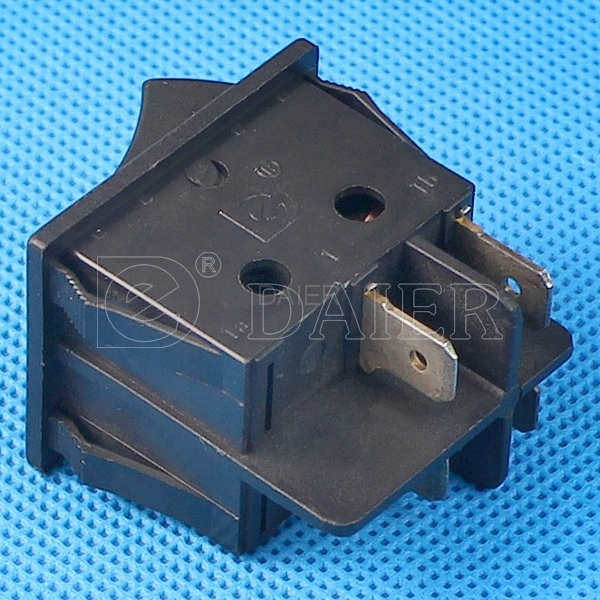

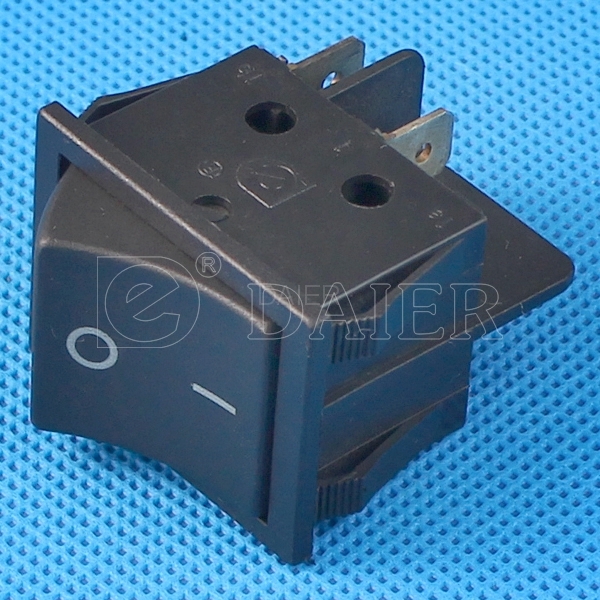

KCD2-2-201 Carling Rocker Switch:

Daier KCD2-2-201 on off rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.

The KCD2-201 ON OFF rocker switch have one related product,pls check the detailed information as below:

KCD2-2-201It is 4P,ON-OFF rocker switch without lamp
KCD2-2-211It is 4P,OFF-momentary ON rocker switch without lamp

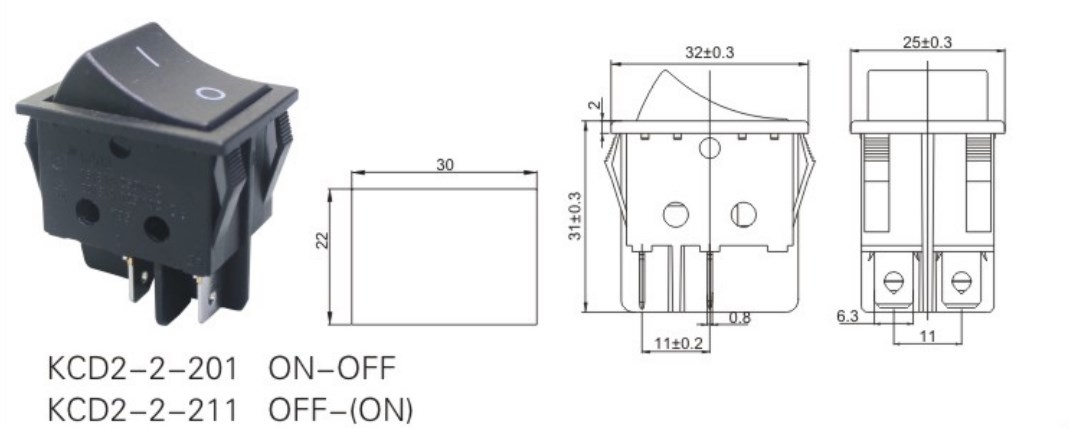

Pls check the datasheet below:


Housing:Nylon 66Button:Nylon 66
Terminal:Brass with sliver platedButton color:Standard black and red,transparent color is avaliable
Rating:20A 125VAC/15A 250VACHousing color:Standard black,white is avaliable
Contact Configuration:DPSTSwitch Operation:ON-OFF
Contact Resistance:35mΩ maxOperating Temperature:-25℃~+85℃
Insulation Resistance:100mΩ min (500VDC)Electrical Life:≥ 10,000 Cycles
Dielectric strength:1500VAC 1 minuteMechanical Life:≥ 100,000 Cycles
Certification:CE, CQC, TUV, SGSOEM or ODM:Available
