KCD2-3101N

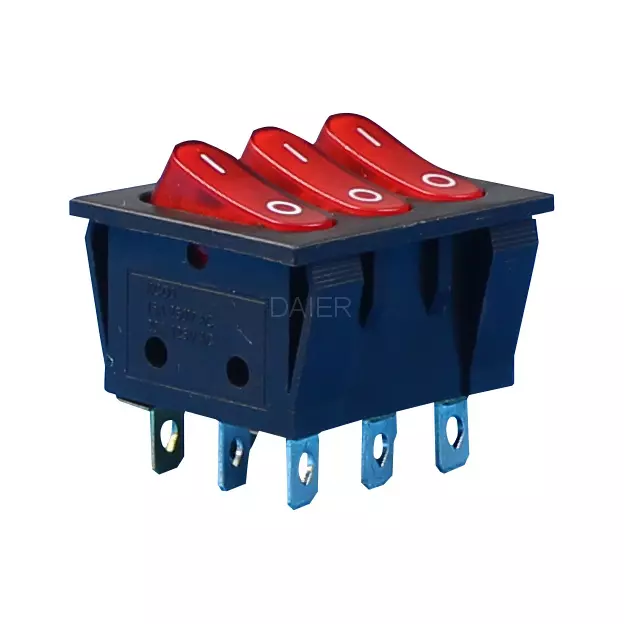

KCD2-3101N 3 Pole Rocker Switch:

Daier KCD2-3101N on off rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.

The KCD2-3101N ON OFF rocker switch have 2 related products,pls check the detailed information as below:

KCD2-3101 It is 4P,ON-OFF rocker switch without lamp,red button black body
KCD2-3101N It is 6P,ON-OFF rocker switch with lamp
KCD2-2-3101N It is 8P,ON-OFF rocker switch with lamp,red lamp,white body

Pls check the datasheet below:



Housing: Nylon 66 Button: Nylon 66
Terminal: Brass with sliver plated Button color: Standard red
Rating: 20A 125VAC/15A 250VAC Housing color: Standard black
Contact & Operation: 3PST,ON-OFF Lamp voltage: 220V
Contact Resistance: 35mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, TUV, SGS OEM or ODM: Available
