KCD2-201 Car Rocker Switch

KCD2-201 Car Rocker Switch

Category :

Double Pole Switch

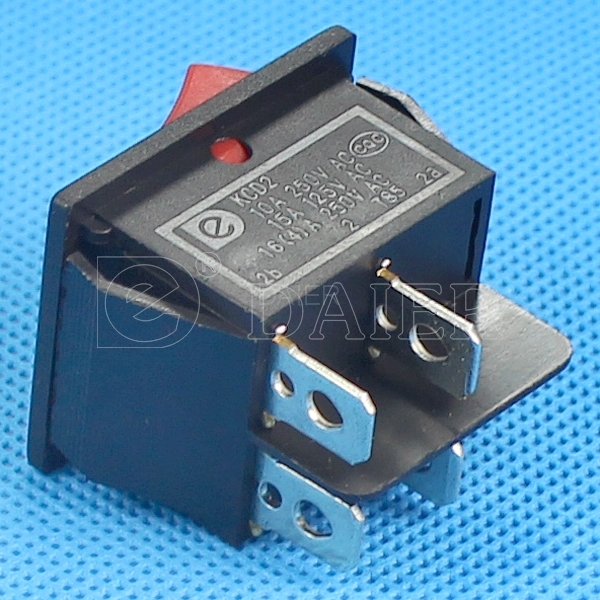

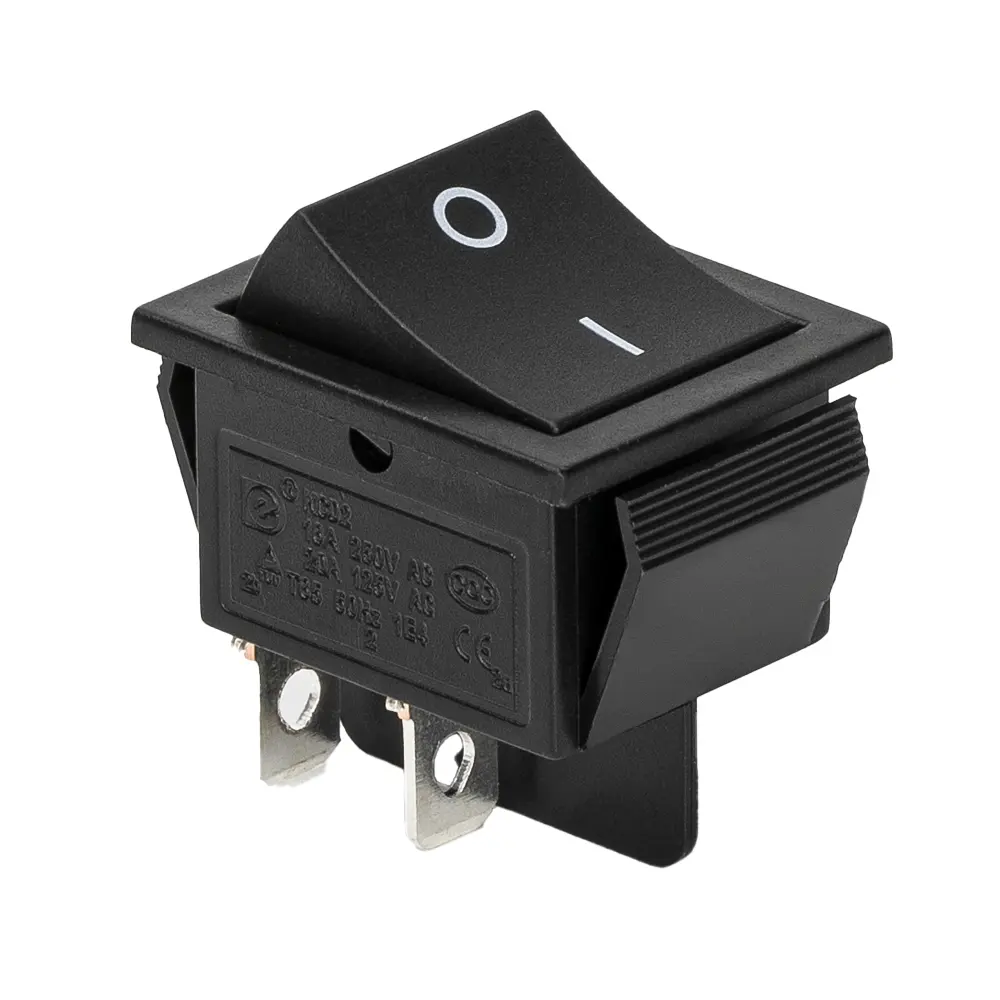

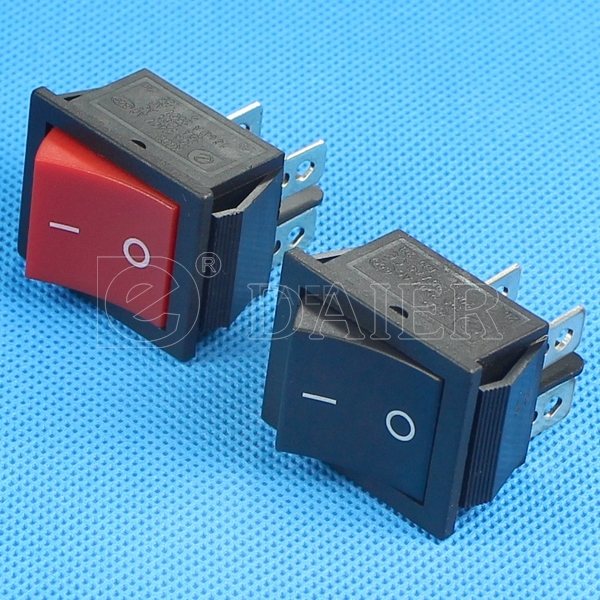

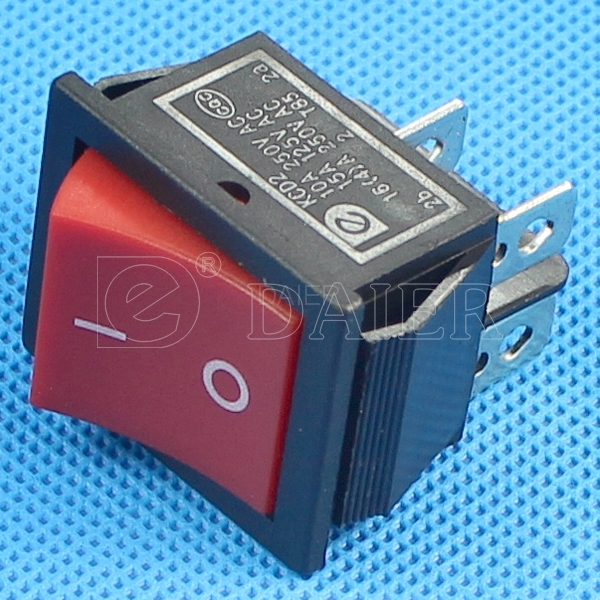

KCD2-201 Car Rocker Switch

Daier KCD2-201 car rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.

We can’t talk out their advantage in a few words, but they are more and more popular in the world. We provide our product at Factory Price. Contact Directly & Get Live Quotes Now!

KCD2-201 Car Rocker Switch related product,pls check the detailed information as below

KCD2-201  4P,ON-OFF rocker switch without lamp
KCD2-211  4P,OFF-momentary ON rocker switch without lamp

KCD2-201 Car Rocker Switch datasheet below


Housing: Nylon 66 Button: Nylon 66
Terminal: Brass with sliver plated Button color: Black and red and white color
Rating: 20A 125VAC/15A 250VAC Housing color: Standard black,white is avaliable
Contact Configuration: DPST Switch Operation: ON-OFF
Contact Resistance: 35mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, TUV, SGS OEM or ODM: Available

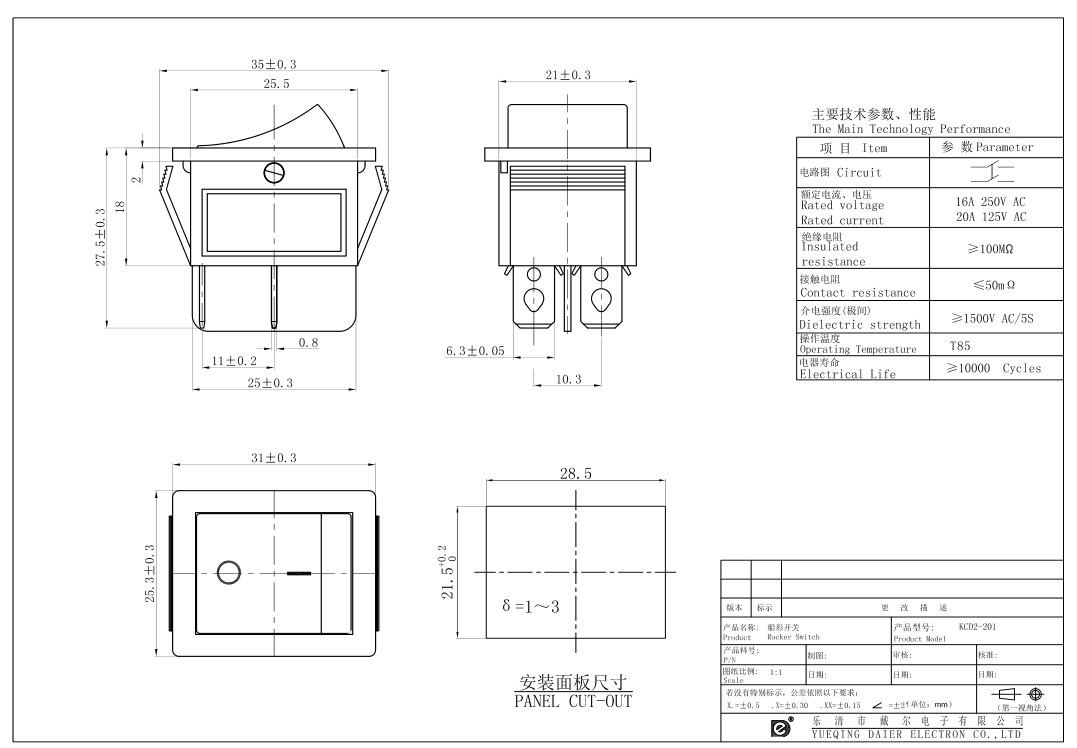

KCD2-201 Car Rocker Switch datasheet
