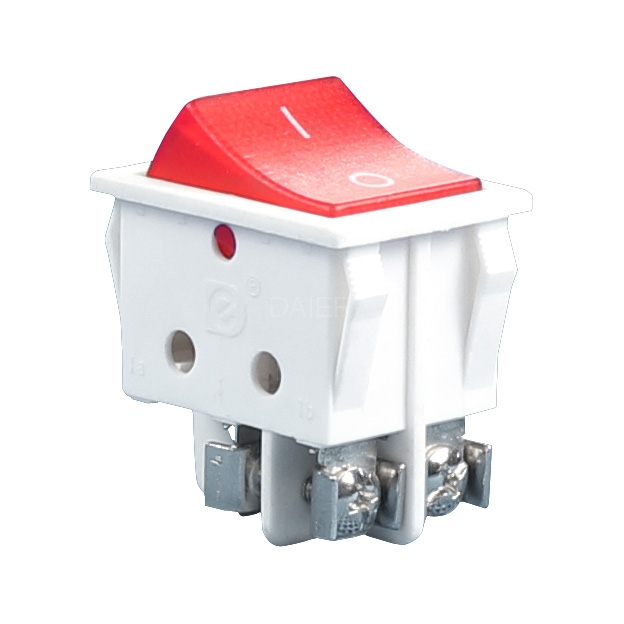

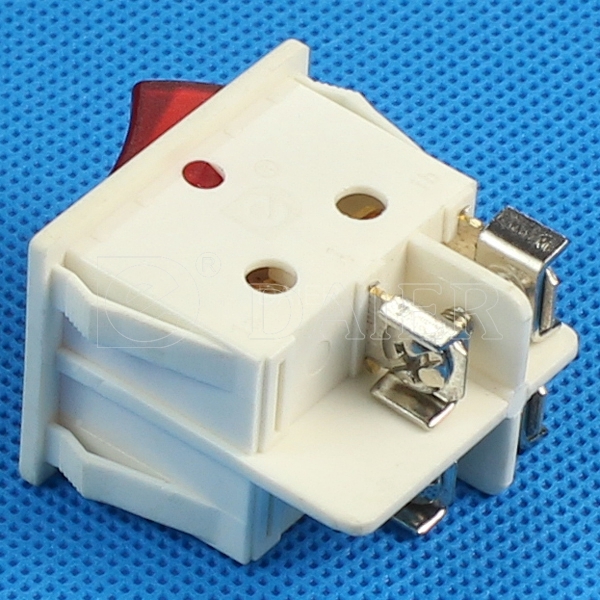

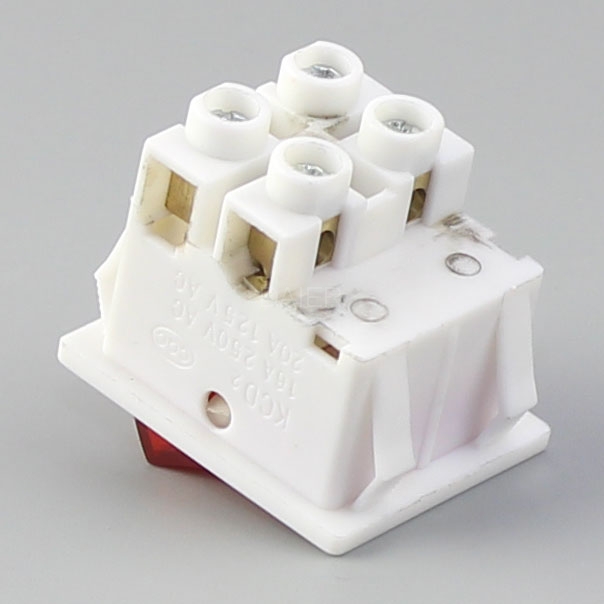

KCD2-2-201NS Rocker Switch T125 T85

Daier KCD2-2-201NS switch rocker switch provides high switching current in a compact design.
It is a snap-in type rocker switch with high mechanical life in a sturdy nylon 66 housing.
They are of high quality and can achieve long life under heavy loads and industry standard installation dimensions.
This kind of rocker switch can be used in various applications, such as water dispensers and extension sockets.
At Daier, we are proud to provide a comprehensive series of switches for various applications at an affordable price. With competitive prices, modern design and durability, our switches are your ideal choice.
For more information about the full range of switches and other types of rocker switches, please contact us.

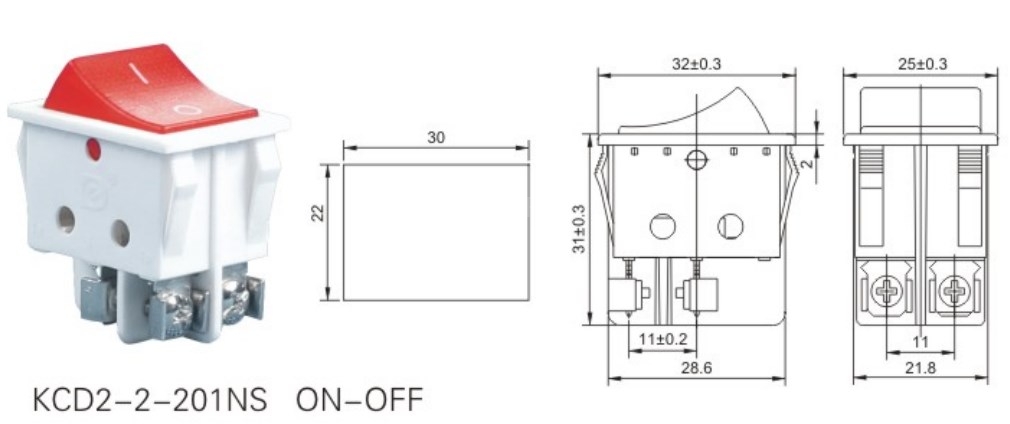

KCD2-2-201NS Rocker Switch T125 T85 datasheet below



Housing: Nylon 66 Button: Nylon 66
Terminal: Brass with sliver plated Button color: Standard red,green,yellow and blue is avaliable
Rating: 20A 125VAC/15A 250VAC Housing color: Standard black,white is avaliable
Contact & Operation: DPST,ON-OFF Lamp Voltage: 220V/120V/12V/24V
Contact Resistance: 35mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, TUV, SGS OEM or ODM: Available
