KCD2-10-201 Square Lighted Rocker Switch
KCD2-10-201 Square Lighted Rocker Switch
Category :
Double Pole Switch

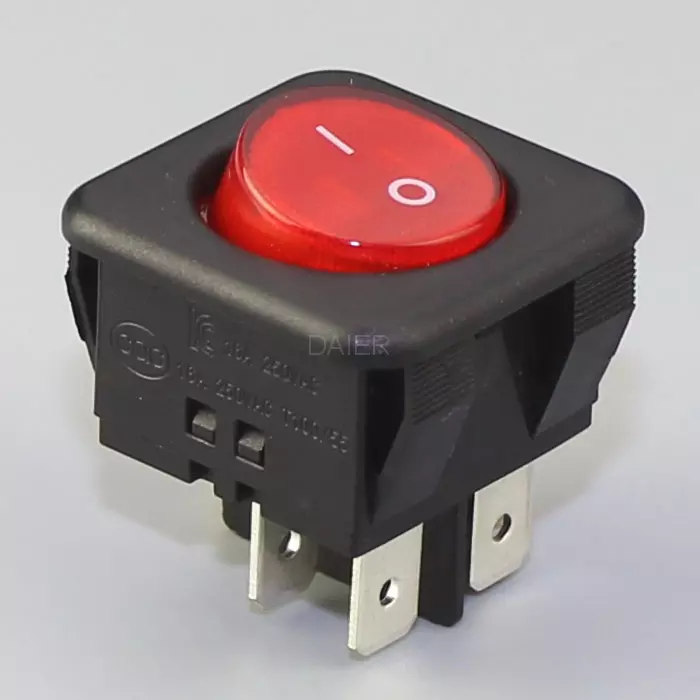

KCD2-10-201 Square Lighted Rocker Switch
Daier KCD2-10-201 switch rocker switch provides high switching current in a compact design.
It is a snap-in type rocker switch with high mechanical life in a sturdy nylon 66 housing.
They are of high quality and can achieve long life under heavy loads and industry standard installation dimensions.
This kind of rocker switch can be used in various applications, such as water dispensers and extension sockets.
At Daier, we are proud to provide a comprehensive series of switches for various applications at an affordable price. With competitive prices, modern design and durability, our switches are your ideal choice.
For more information about the full range of switches and other shapes of rocker switches, please contact us.
KCD2-10-201 Square Lighted Rocker Switch related product,pls check the detailed information as below
| KCD2-10-201 | It is 4P,ON-OFF rocker switch without lamp |
| KCD2-10-201N | It is 4P,ON-OFF rocker switch with lamp |
KCD2-10-201 Square Lighted Rocker Switch datasheet below
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal: | Brass with sliver plated | Button color: | Standard transparent red,yellow |
| Rating: | 20A 125VAC/15A 250VAC | Housing color: | Standard black,grey is avaliable |
| Contact Configuration: | DPST | Switch Operation: | ON-OFF |
| Contact Resistance: | 35mΩ max | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, TUV, SGS | OEM or ODM: | Available |
