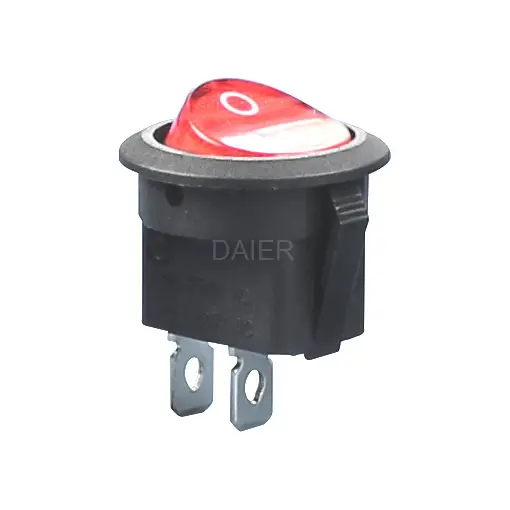

KCD1-8-101 10A 125VAC/6A 250VAC 2-Pin SPST ON-OFF Rocker Switch T85
Part#KCD1-8-101
The SPST ON-OFF rocker switch is a compact, snap-in mounted rocker switch offering 10A 125VAC/6A 250VAC ratings and a variety of button and housing color options.
With a durable nylon 66 housing and CE, CQC and SGS approvals, it offers a range of cost-effective solutions for a variety of applications.
Category :
Miniature Rocker Switch
KCD1-8-101 10A 125VAC/6A 250VAC 2-Pin SPST ON-OFF Rocker Switch T85 Features
- Compact Design and High Switching Capacity
The 2-Pin SPST ON-OFF rocker switch is a compact, high-performance solution, delivering significant switching current capacity while maintaining a space-saving design. Ideal for applications with limited space, this snap-in mounted rocker switch is designed for seamless integration.
- Durability and Reliability for Demanding Applications
Constructed with durable nylon 66 housing, this rocker switch boasts exceptional mechanical life, ensuring reliable performance even under heavy loads. Engineered with high-quality materials, it is built to withstand demanding environments and deliver long-lasting functionality.
- Versatile Applications for Diverse Needs
The 10A 125VAC/6A 250VAC rocker switch is suitable for a wide range of applications across various industries, including water dispensers, extension sockets, automotive, industrial machinery, power tools, toys, communication devices, and more.
- Customization Options for Unique Designs
Choose from a variety of button colors (black, white, grey, red, and transparent) and housing colors (standard black, white, and grey) to match your specific design requirements. This customization option allows you to seamlessly integrate the switch into your products and branding.
- Quality and Safety Assurance with Customizable Solutions
The niniature rocker switch meets CE, CQC, and SGS certifications, ensuring quality and safety standards. We offer OEM and ODM services to meet your unique design and branding requirements, providing a cost-effective solution for your specific needs.
KCD1-8-101 2-Pin SPST ON-OFF Rocker Switch Datasheet Below
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal | Brass with sliver plated | Button color: | Black, white, grey, red and transparent |
| Rating: | 10A 125VAC/6A 250VAC | Housing color: | Standard black ,white and grey |
| Contact Configuration: | SPST | Switch Operation: | ON-OFF |
| Contact Resistance: | 35mΩ max | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, SGS | OEM or ODM: | Available |
If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
