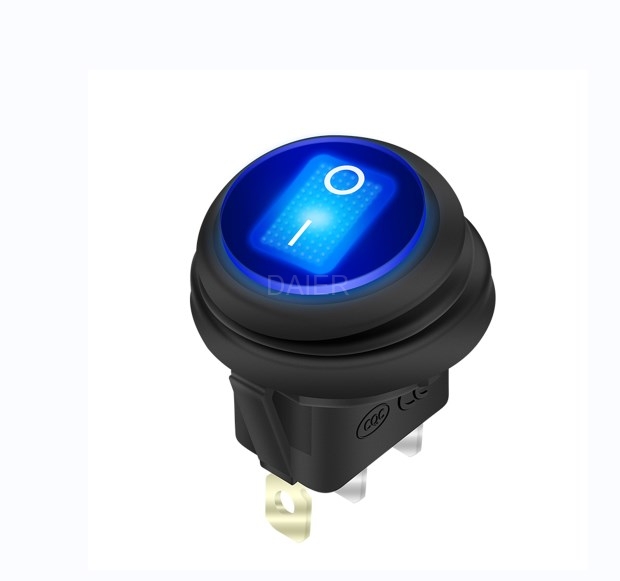

Daier KCD1-8-101NW miniature waterproof lighted rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.

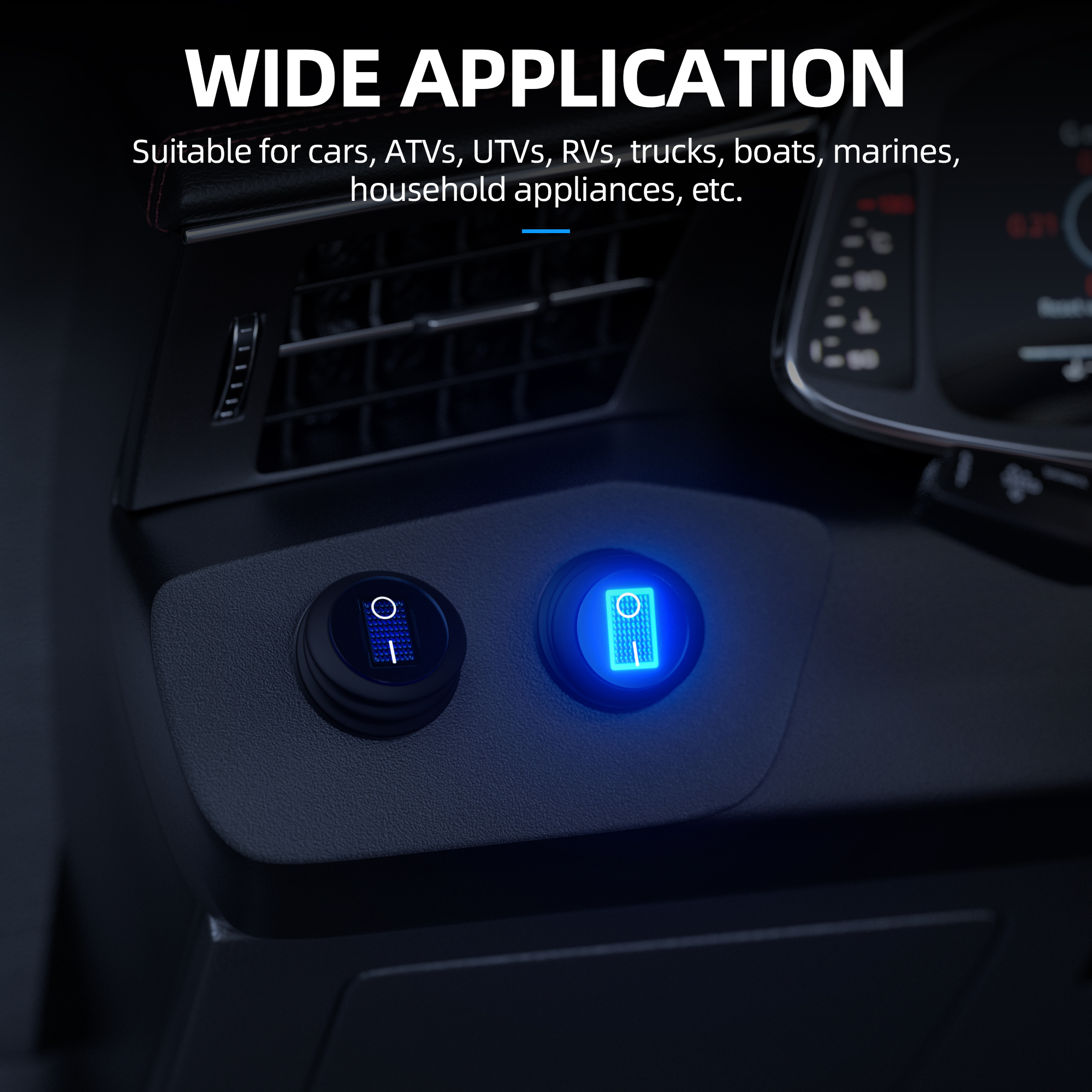

This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
Daier 12 volt waterproof panel mount switch, our most waterproof switch can be immersed in water briefly, LED lighting and non-lighting switches.
if you want to know more 12V Waterproof Rocker Switch, please contact us, I will check and reply to you.

KCD1-8-101NW 12V Waterproof Rocker Switch datasheet below



Housing: Nylon 66 Button: Nylon 66
Terminal Brass with sliver plated Button color: Red ,green,yellow and blue
Rating: 10A 125VAC/6A 250VAC Housing color: Standard black
Lamp: 220VAC/12V/24V Switch Operation: SPST,ON-OFF
Waterproof Grade: IP65 Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, SGS OEM or ODM: Available

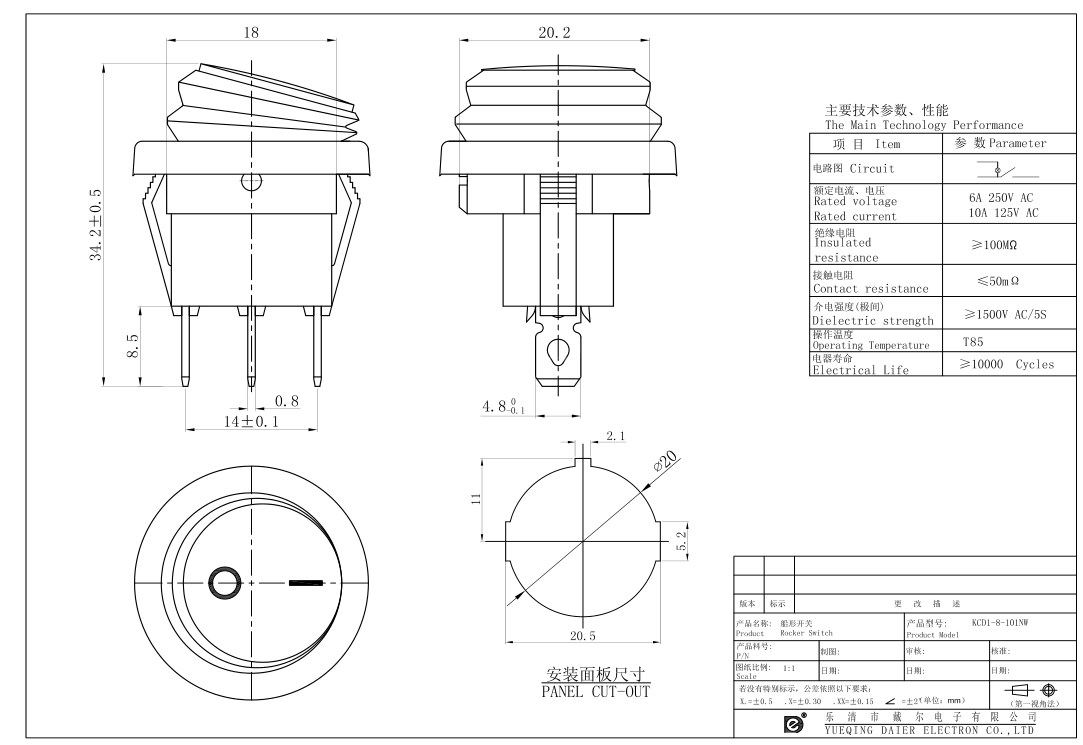

KCD1-8-101NW 12V Waterproof Rocker Switch datasheet
