KCD1-4-201W Waterproof Rocker Switch 12V
KCD1-4-201W Waterproof Rocker Switch 12V

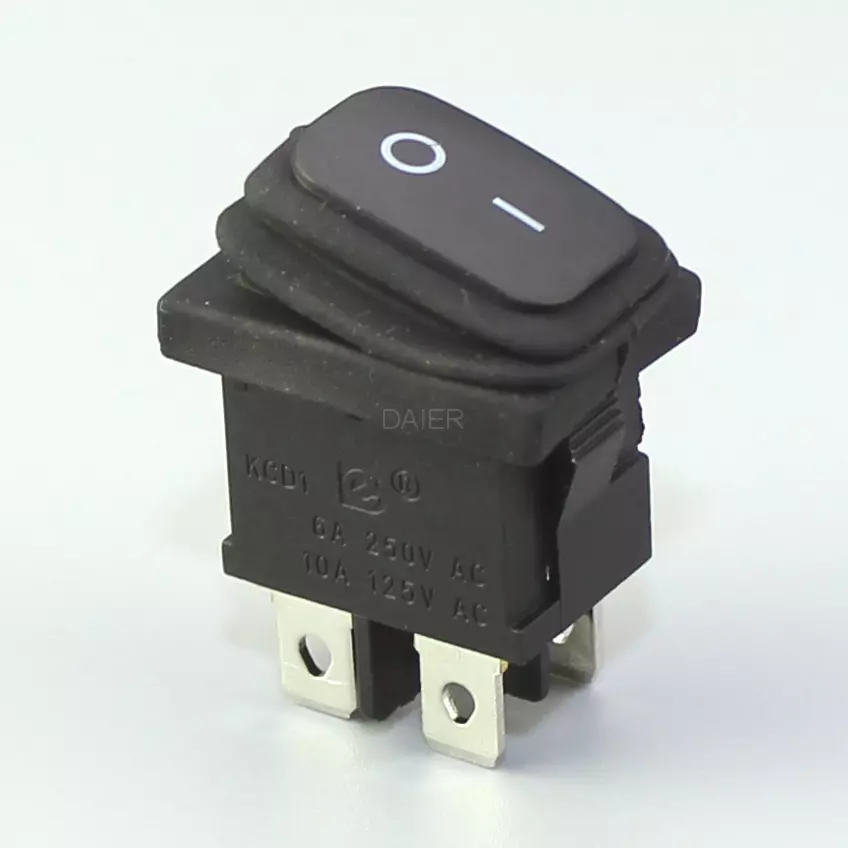

Daier KCD1-4-201W on off waterproof miniature rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
Waterproof ON/OFF rectangular rocker switch rated 20A@12V.
This switch features a concertina rubber gaiter to protect against misture and dust and has an ingress protection rating of IP65, making it suitable for marine and external applications where it is exposed to the elements.
Press fits into a 22mm x 30mm panel cut-out and retained via sprung ‘arms’.
High quality switch manufactured by Daier
This switch has 2 independently switched circuits (double pole) so you can use it to switch both the +ve and -ve sides of a circuit if required. If you are only switching the +ve side of the circuit then terminal 5 is not used.
Wiring instructions:
+12V IN (supply) – Terminal 1
+12V OUT (load) – Terminal 2
-ve/ground (battery side) – terminal 4
-ve/ground (load side) – terminal 5
If you need other quantity , please contact us and I will check and reply to you.
KCD1-4-201W Waterproof Rocker Switch 12V related product,pls check the detailed information as below
KCD1-4-201W | It is 4P,ON-Off black color waterproof rocker switch without lamp |
KCD1-4-201NW | It is 4P,ON-OFF illuminated waterproof rocker switch with lamp |
KCD1-4-201W Waterproof Rocker Switch 12V datasheet below
Housing: | Nylon 66 | Button: | Nylon 66 |
Terminal: | Brass with sliver plated | Button color: | Black |
Rating: | 10A 125VAC/6A 250VAC | Housing color: | Standard black |
Waterproof Grade: | IP65 | Switch Operation: | DPST,ON-OFF |
Contact Resistance: | 35mΩ max | Operating Temperature: | -25℃~+85℃ |
Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
Certification: | CE, CQC, SGS | OEM or ODM: | Available |
