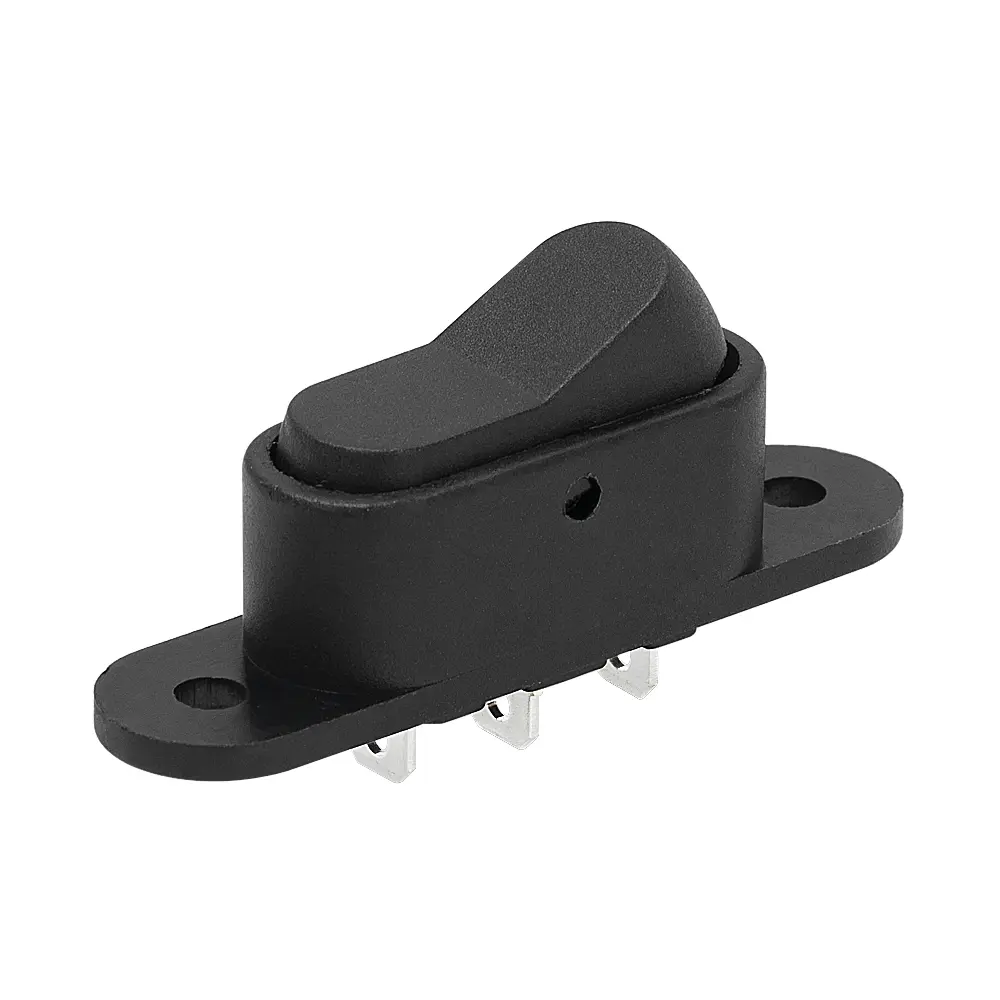

KCD1-13-102 Black Rocker Switch

KCD1-13-102 Black Rocker Switch

KCD1-13-102 Black Rocker Switch

The miniature rocker switch on Daier KCD1-13-102 provides high switching current in a compact design.
It is a snap-in type rocker switch with high mechanical life in a sturdy nylon 66 housing.
They are of high quality and can achieve long life under heavy loads and industry standard installation dimensions.
This kind of rocker switch can be used in various applications, such as water dispensers and extension sockets.
At Daier, we are proud to provide a comprehensive series of switches for various applications at an affordable price. With competitive prices, modern design and durability, our switches are your ideal choice.
For more information about the full range of switches and other color switches, please contact us.

KCD1-13-102 Black Rocker Switch datasheet below



Housing: Nylon 66 Button: Nylon 66
Terminal Brass with sliver plated Button color: Black color
Rating: 10A 125VAC/6A 250VAC Housing color: Standard black
Contact Configuration: SPDT Switch Operation: ON-ON
Contact Resistance: 35mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, SGS OEM or ODM: Available
KCD1-13-102 Black Rocker Switch datasheet
