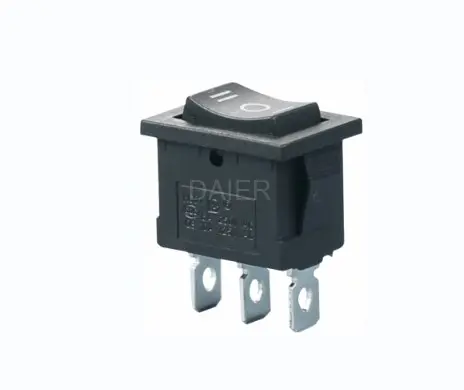

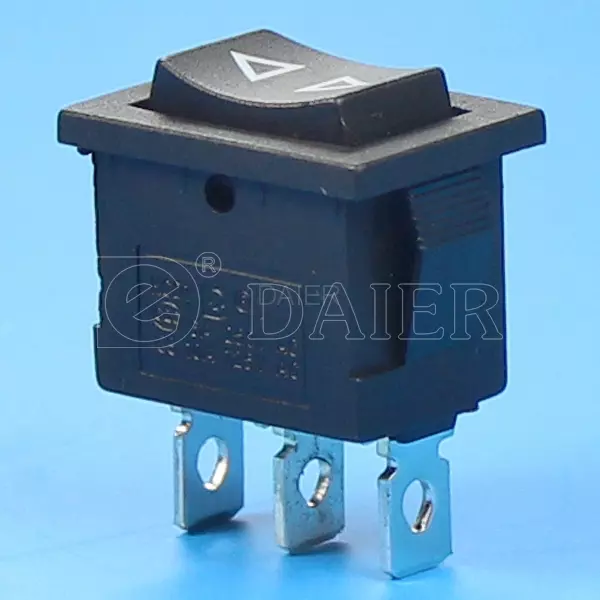

KCD1-2-103 SPDT Rocker Switch

KCD1-2-103 SPDT Rocker Switch

KCD1-2-103 SPDT Rocker Switch Rocker Switch

Daier KCD1-2-101N on off 220vac or 12V lamp miniature rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
If you need other quantity , please contact us and I will check and reply to you.

KCD1-2-103 SPDT Rocker Switch related product,pls check the detailed information as below

KCD1-2-103 It is 3P,ON-OFF-ON
KCD1-2-113 It is 3P,ON-OFF-Momentary ON
KCD1-2-123 iT IS 3p,Momentary ON-OFF-Momentary ON

Pls check the datasheet below


Housing: Nylon 66 Button: Nylon 66
Terminal Brass with sliver plated Button color: Black color
Rating: 10A 125VAC/6A 250VAC Housing color: Standard black
Contact Configuration: SPDT Switch Operation: ON-OFF-ON
Contact Resistance: 35mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, SGS OEM or ODM: Available
KCD1-2-103 SPDT Rocker Switch detailed information as below
