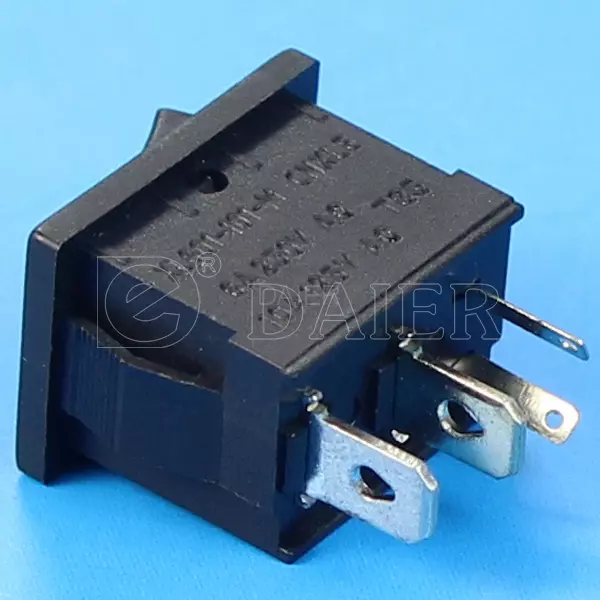

KCD1-3-101EN Led Rocker Switch

KCD1-3-101EN Led Rocker Switch

KCD1-3-101EN Led Rocker Switch

Daier KCD1-3-101EN miniature led rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
Daier LED Rocker Switche is designed to be quick and easy to install. The use of durable materials protect from breakage and corrosive elements, making them ideal for Heavy-Duty Truck, Off-Road, Automotive, Marine, and even Recreational Vehicles.
If you need other quantity , please contact us and I will check and reply to you.

KCD1-3-101EN Led Rocker Switch datasheet below


Housing: Nylon 66 Button: Nylon 66
Terminal Brass with sliver plated Button color: Black
Rating: 10A 125VAC/6A 250VAC Housing color: Standard black
Lamp: 3V LED,red/green/yellow/white Switch Operation: SPST,ON-OFF
Contact Resistance: 35mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, SGS OEM or ODM: Available
KCD1-3-101EN Led Rocker Switch datasheet
