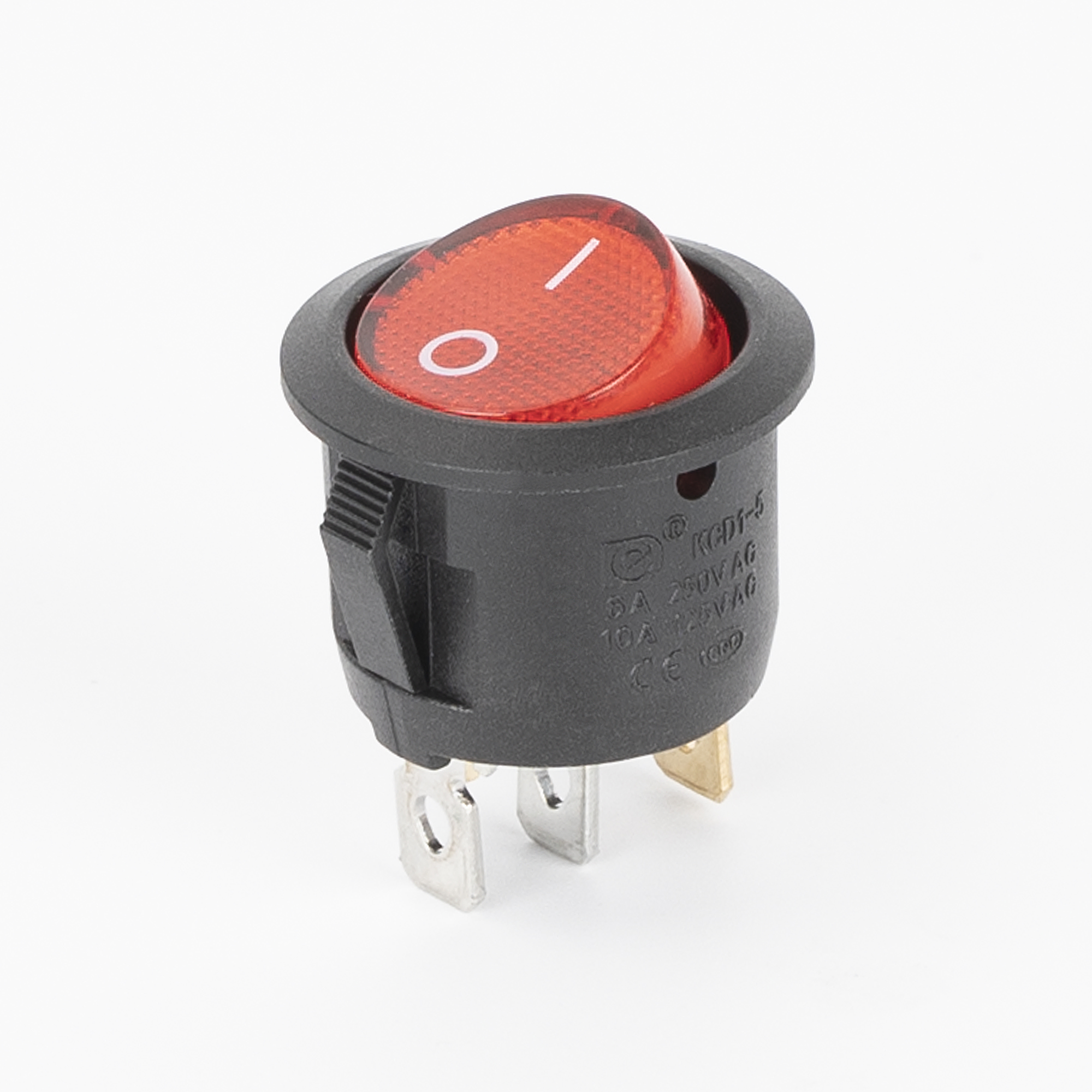

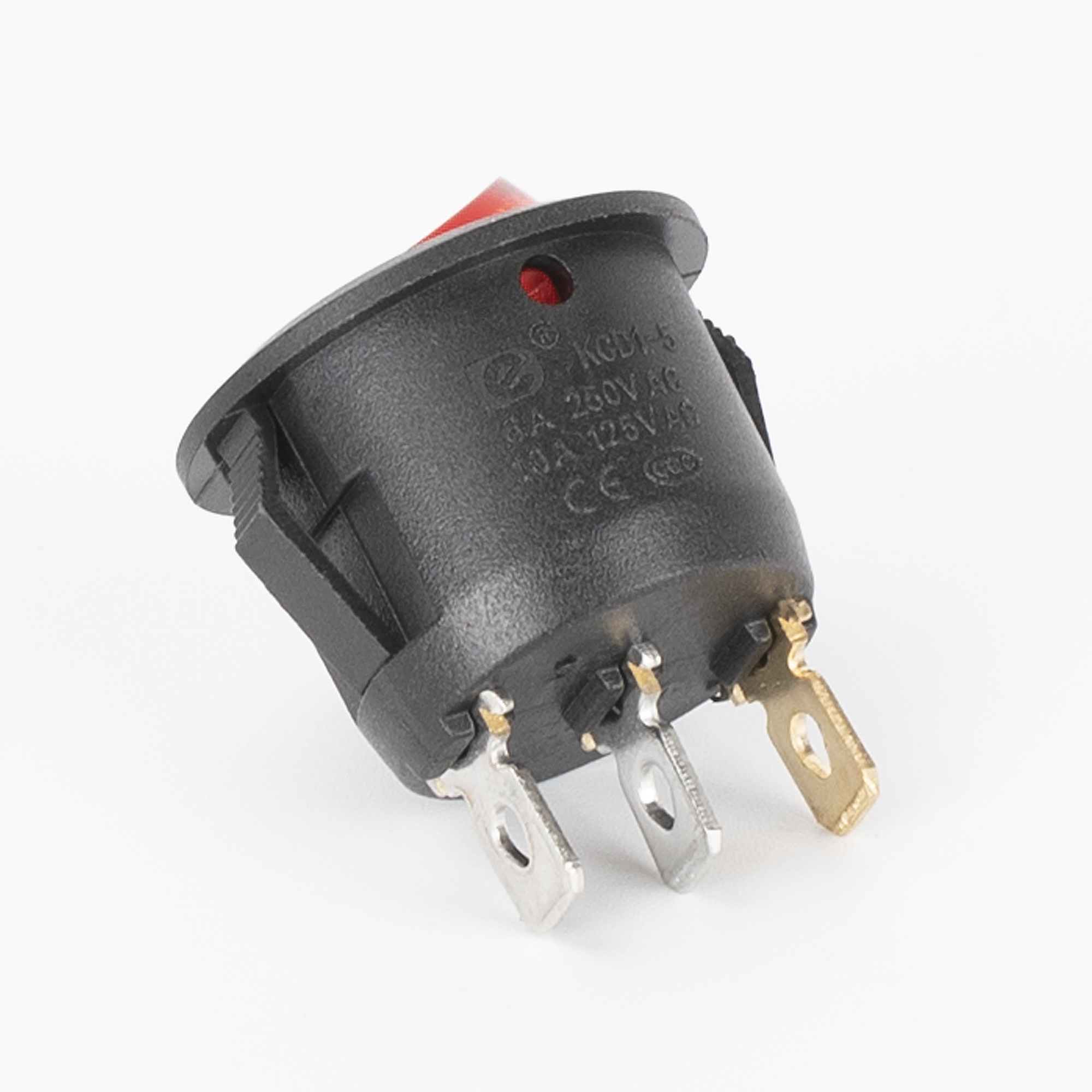

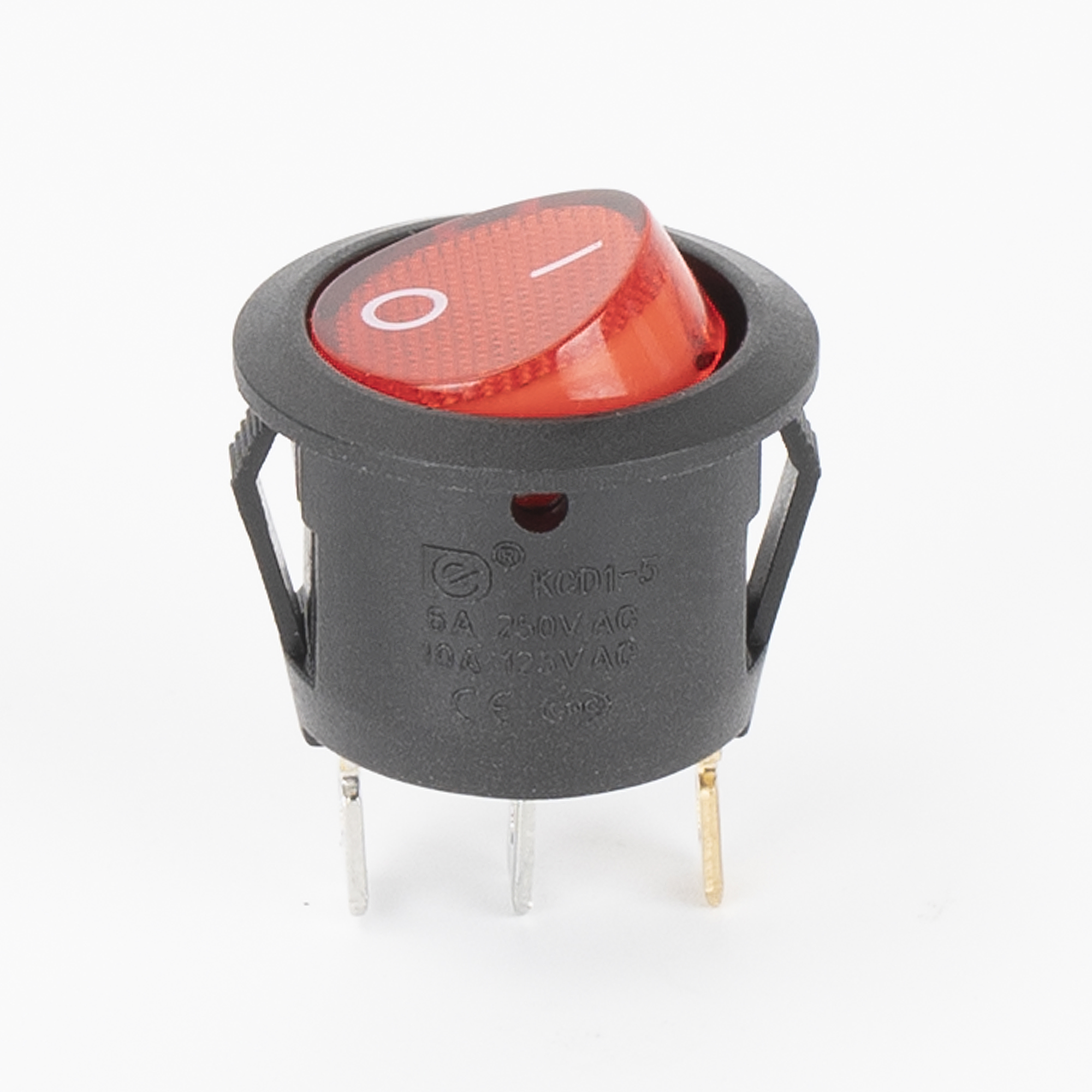

KCD1-5-101N 6A/250VAC 10A/125VAC 2 Position 3 Pin ON-OFF Illuminated Round Rocker Switch

KCD1-5-101N 2 Position 3 Pin ON-OFF Illuminated Round Rocker Switch Features

•  Compact Design, Powerful Performance

This miniature 12V round rocker switch offers a high switching current in a space-saving design. Its compact size makes it ideal for applications where space is limited, while still providing reliable performance for various devices.

• Durable and Long-Lasting

Built with a rugged nylon 66 housing, this snap-in rocker switch boasts a long mechanical life. It can withstand frequent use and heavy loads, ensuring reliable operation over an extended period, exceeding 100,000 mechanical cycles.

• High-Quality Construction

This rocker switch is crafted with high-quality materials to ensure long-lasting performance even under demanding conditions. The brass terminals with silver plating provide excellent conductivity and resistance to corrosion, contributing to its reliable operation and 10,000+ electrical cycles.

• Versatile Applications

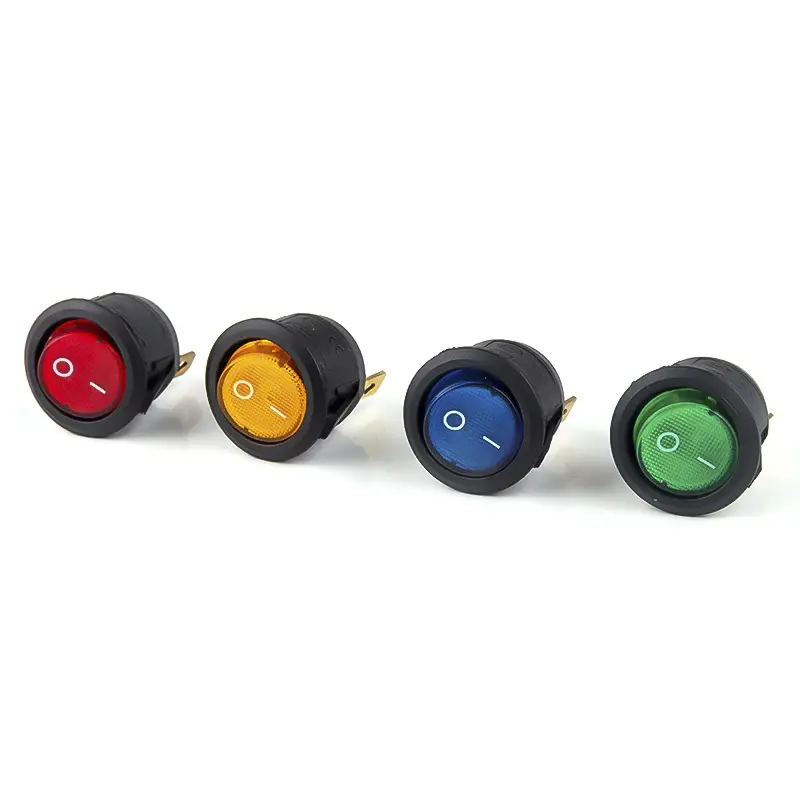

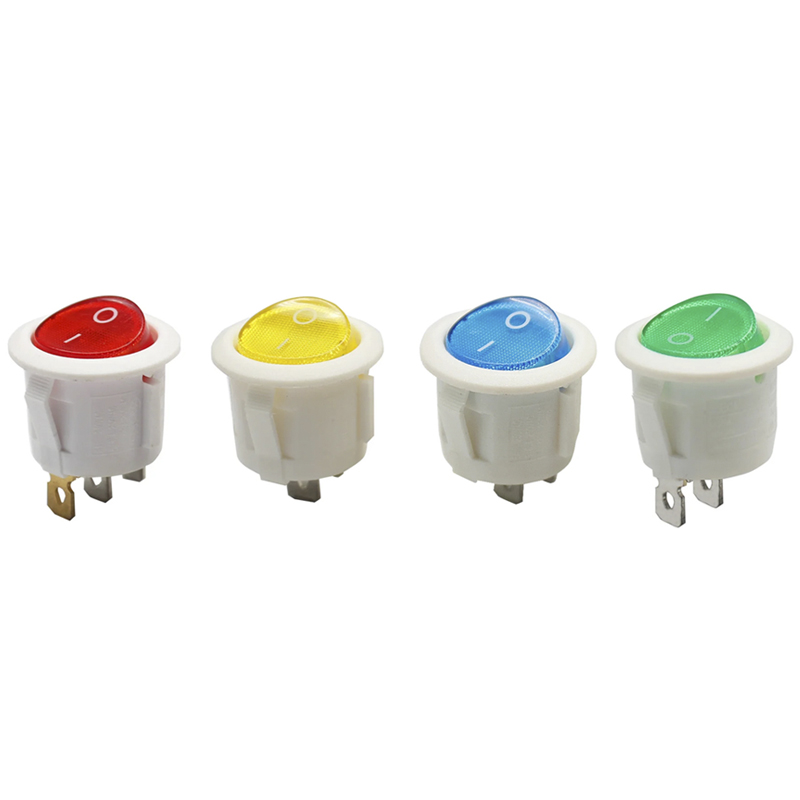

This rocker switch is suitable for a wide range of applications, including water dispensers, extension sockets, automotive accessories, and more. Its compact size, reliable operation, and range of available colors make it a versatile solution for various projects.

• Enhanced Aesthetics and Functionality

The combination of a simple ON-OFF function, compact design, and vibrant color options makes this rocker switch both practical and visually appealing. The optional LED indicator adds a modern touch and enhances visibility in low-light conditions, providing a clear indication of the switch’s status.

If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.

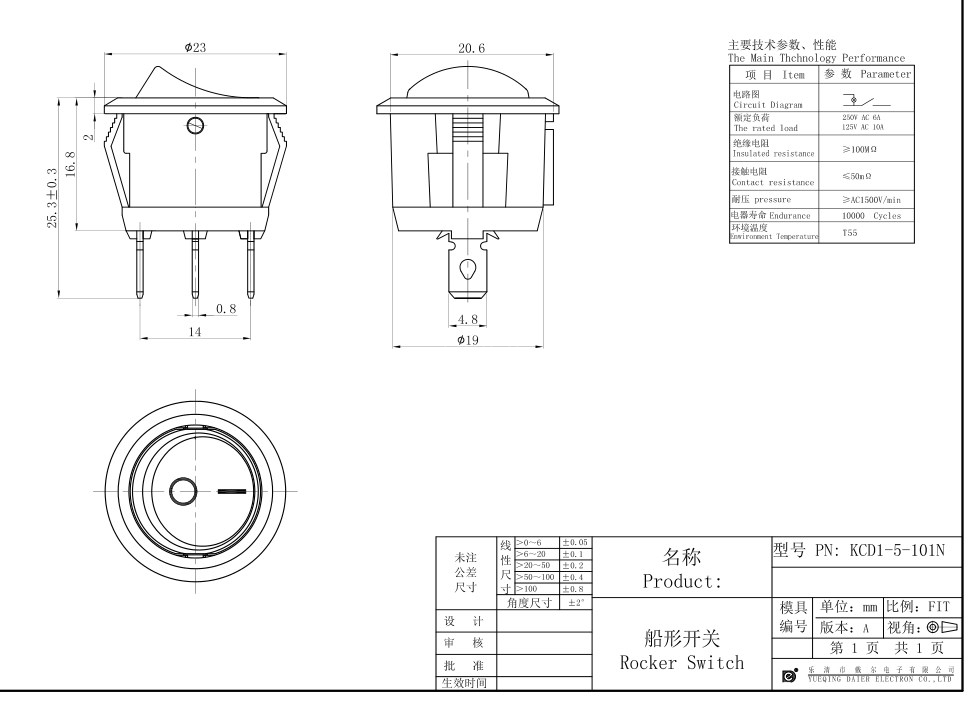

KCD1-5-101N LED Indicated Rocker Switch Datasheet
