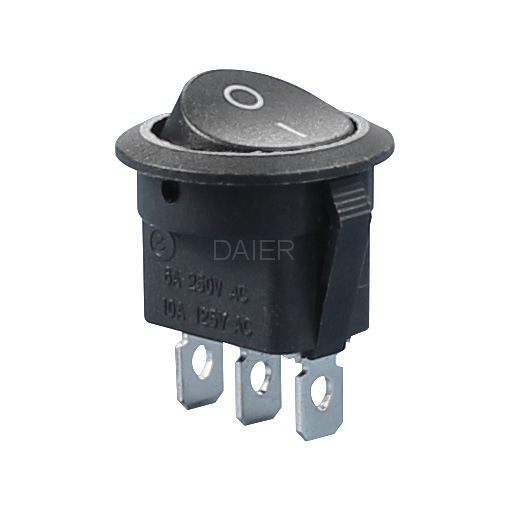

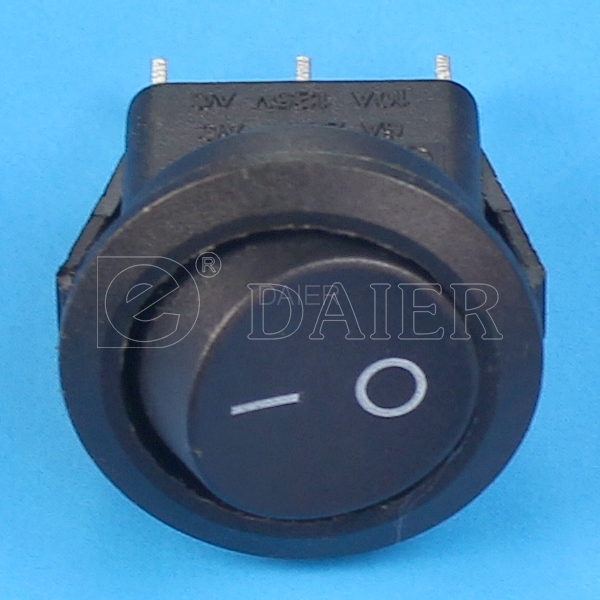

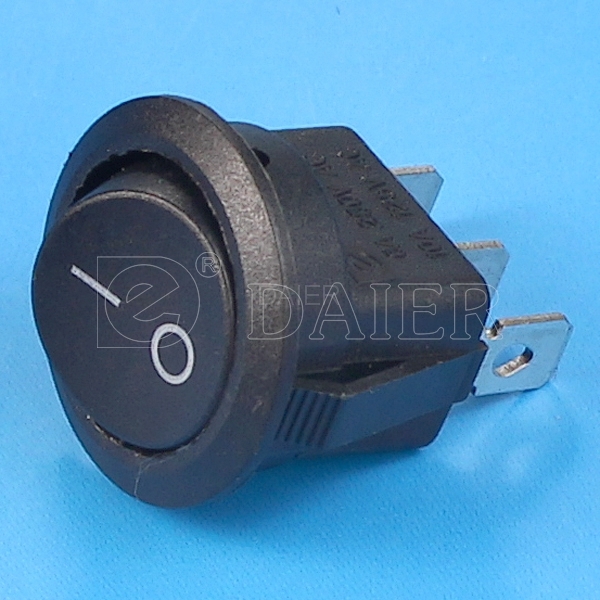

Daier KCD1-8-102 on on miniature round rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
Easy installation, High quality switches
If you want to know more about the Two Way Rocker Switch, please contact us, I will check and reply to you.

KCD1-8-102 Two Way Rocker Switch related product,pls check the detailed information as below

KCD1-8-102 It is 2P,ON-OFF rocker switch without lamp
KCD1-8-103 It is 3P,ON-OFF-ON rocker switch without lamp

Pls check the datasheet below



Housing: Nylon 66 Button: Nylon 66
Terminal Brass with sliver plated Button color: Satandard black,red
Rating: 10A 125VAC/6A 250VAC Housing color: Standard black
Contact Configuration: SPDT Switch Operation: ON-ON
Contact Resistance: 35mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, SGS OEM or ODM: Available

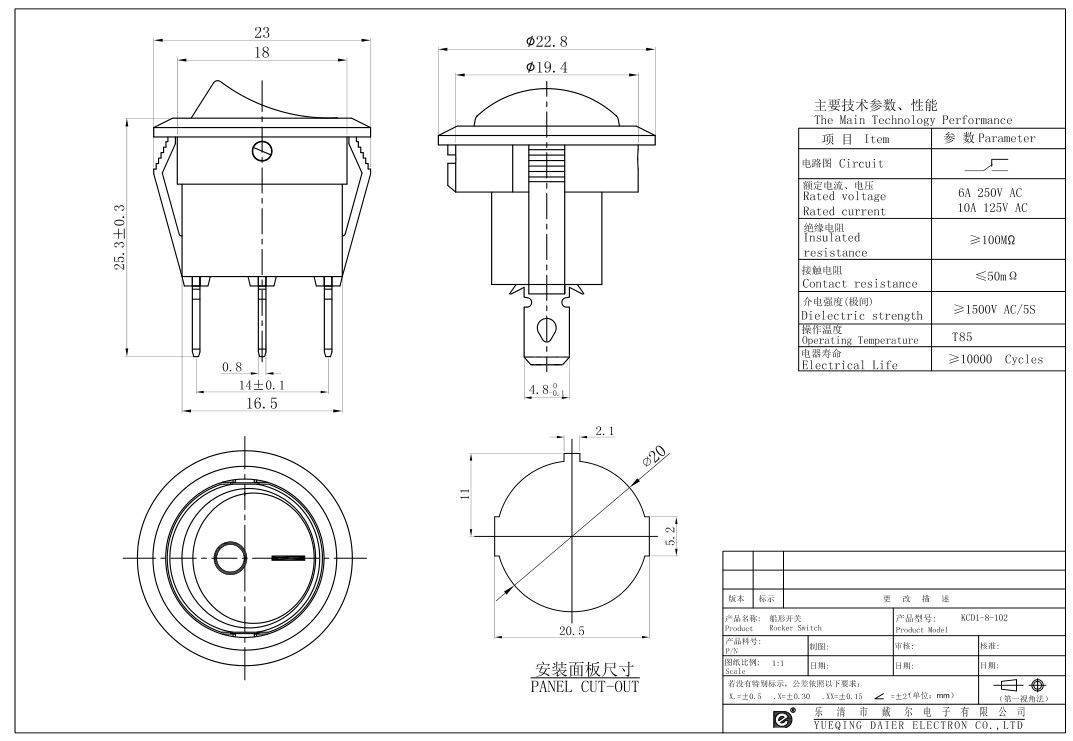

Pls check the datasheet
