KCD1-6-2101

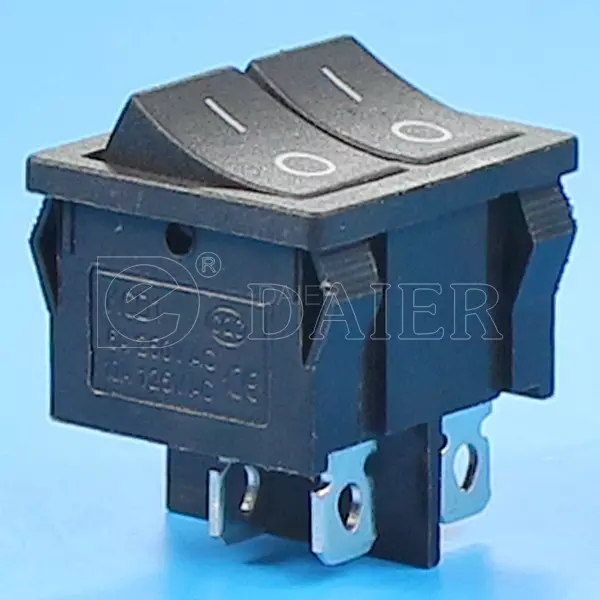

KCD1-6-2101 Micro Rocker Switch:

Daier KCD1-6-2101 on off micro rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.

The rocker switch KCD1-6-2101 have two related products,pls check the detailed information as below:

KCD1-6-2101It is 4P,ON-OFF,DPST without lamp
KCD1-6-2101NIt is 6P,ON-OFF,DPST with lamp
KCD1-6-2102It is 6P,ON-ON,DPDT without lamp

Pls check the datasheet below:



Housing:Nylon 66Button:Nylon 66
TerminalBrass with sliver platedButton color:Standard black,transparent red and green and blue
Rating:10A 125VAC/6A 250VACHousing color:Standard black
Function:DPSTSwitch Operation:ON-OFF
Contact Resistance:35mΩ maxOperating Temperature:-25℃~+85℃
Insulation Resistance:100mΩ min (500VDC)Electrical Life:≥ 10,000 Cycles
Dielectric strength:1500VAC 1 minuteMechanical Life:≥ 100,000 Cycles
Certification:CE, CQC, SGSOEM or ODM:Available
