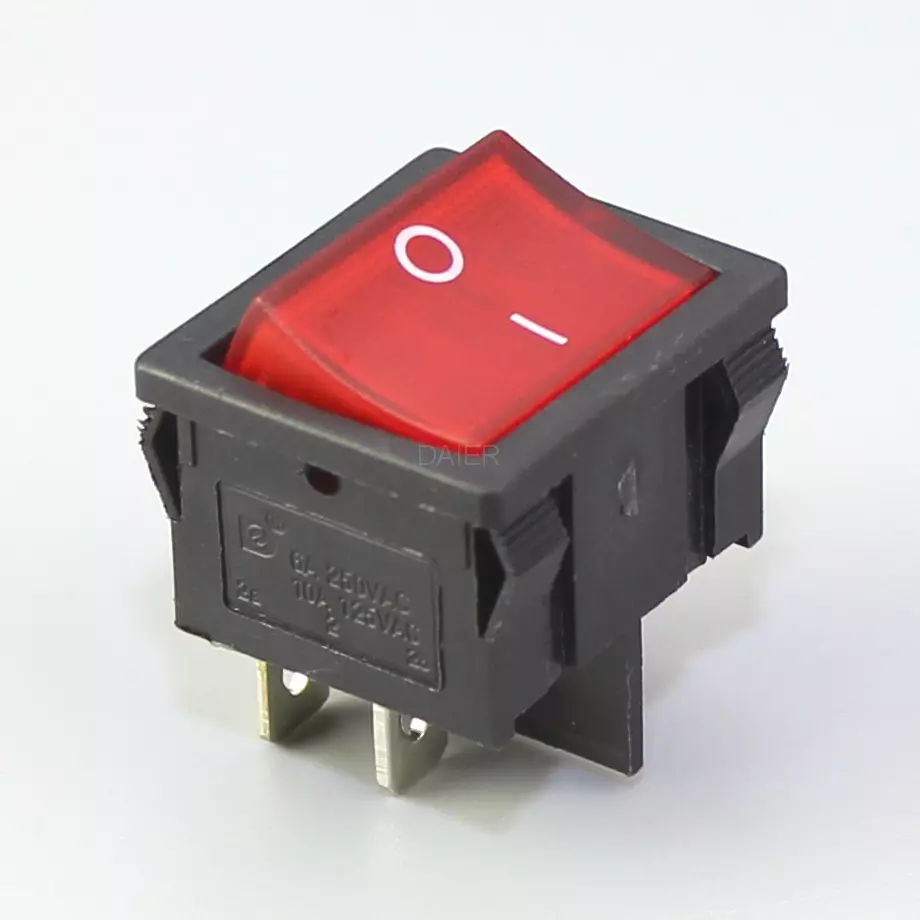

KCD1-6-201N 2 Pole Illuminated Rocker Switch
KCD1-6-201N 2 Pole Illuminated Rocker Switch
Category :
Miniature Rocker SwitchKCD1-6-201N 2 Pole Illuminated Rocker Switch
Daier KCD1-6-201N on off 2 pole rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
High quality double pole illuminated rocker switch from leading manufacturer Daier
If you want to know more information , please contact us, I will check and reply to you.
KCD1-6-201N 2 Pole Illuminated Rocker Switch datasheet below
Housing: | Nylon 66 | Button: | Nylon 66 |
Terminal | Brass with sliver plated | Button color: | Transparent red/green |
Rating: | 10A 125VAC/6A 250VAC | Housing color: | Standard black |
Lamp: | 220V/110V/12V/24V | Switch Operation: | SPST,ON-OFF |
Contact Resistance: | 35mΩ max | Operating Temperature: | -25℃~+85℃ |
Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
Certification: | CE, CQC, SGS | OEM or ODM: | Available |
