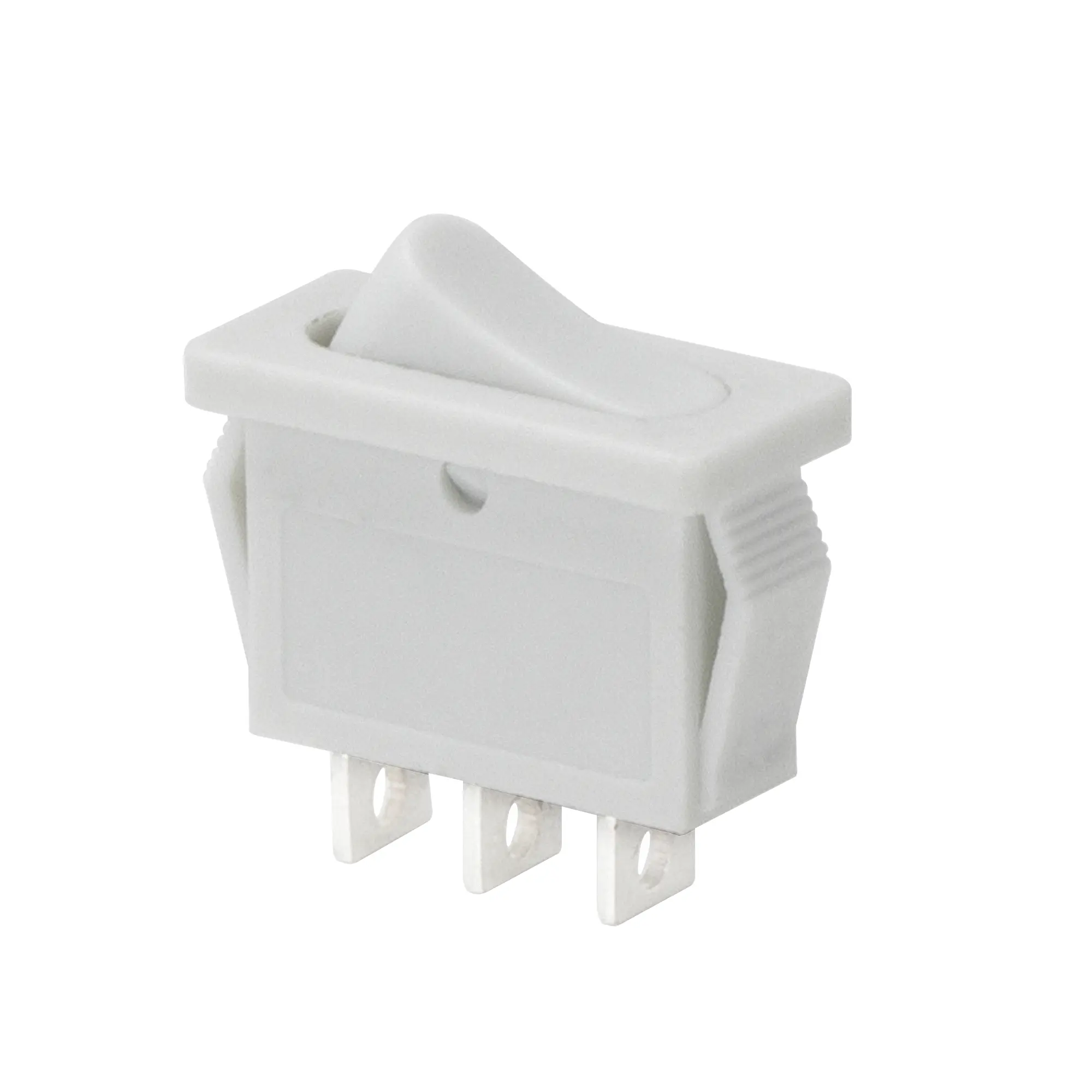

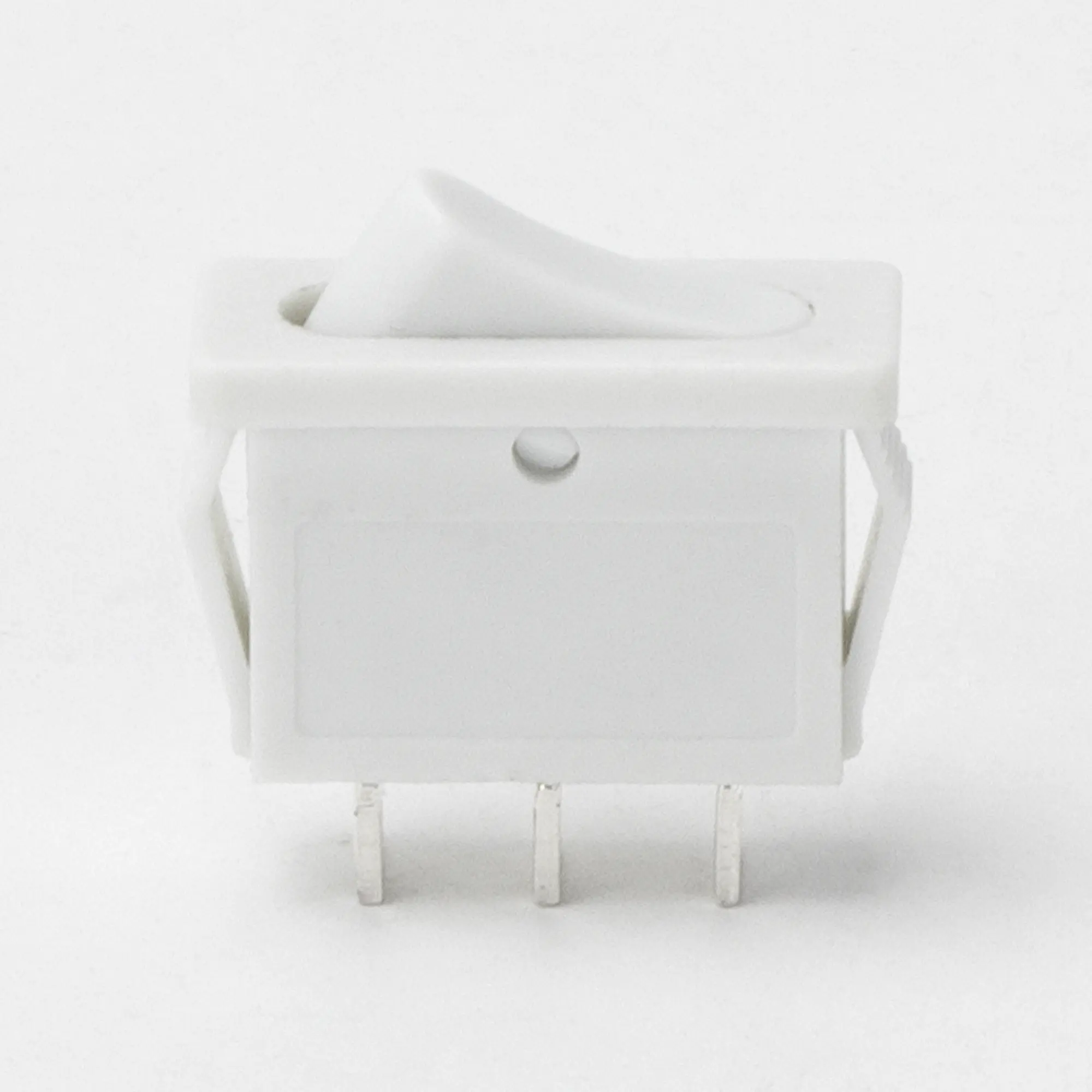

KCD1-17-102/KCD1-17-103 10A/125V 6A/250VAC 3-Pin Miniature Rocker Switch
Part#KCD1-18-102/KCD1-18-103
The miniature rocker switch (6A/250V, 10A/125VAC) is a durable 3pin ON-ON / ON-OFF-ON switch with an electrical working life of over 10,000.
It is widely used in industrial operations, vehicle and ship modifications, electronic refitting, and household appliances.
Category :
Miniature Rocker SwitchKCD1-17-102/KCD1-17-103 Miniature Rocker Switch Details
- Durability
The 6A/250V 10A/125VAC miniature rocker switch is built to last, with a mechanical working life of over 50,000 cycles and an electrical working life of over 10,000 cycles.
- ON-ON/ON-OFF-ON Rocker Switch
This rocker toggle switch boasts a 3-pin ON-ON/ON-OFF-ON configuration, providing dependable and versatile single pole double throw functionality.
- Applicability
This switch is widely used in various industrial operations and is suitable for retrofitting vehicles, ships, and other transportation equipment. It is also ideal for electronic modifications in household appliances and treadmills.
- Wide Range of Use
With its high compatibility, our rocker switch is a perfect choice for a variety of applications, offering reliable performance and ease of use in industries, vehicles, ships, electronic devices, and more.
KCD1-17-102/KCD1-17-103 Datasheet
| Product | KCD1-17-102 / KCD1-17-103 |
|
Rating
|
10A 125VAC; 6A 250VAC |
| Function | ON-ON / ON-OFF-ON |
|
Terminal Number
|
3 Pin
|
| Contact Resistance | 35mΩ max |
| Insulation Resistance | 500VDC 100MΩ min |
| Dielectric Strength | 1500VAC, 1 Minute |
| Operating Temperature | -25℃ – +85℃ |
| Electrical Life | ≥10,000 Cycles |
|
OEM
|
Button and body colors are available! |
Still, have a question about the KCD1-17-102 / KCD1-17-103 that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com or live chat!
