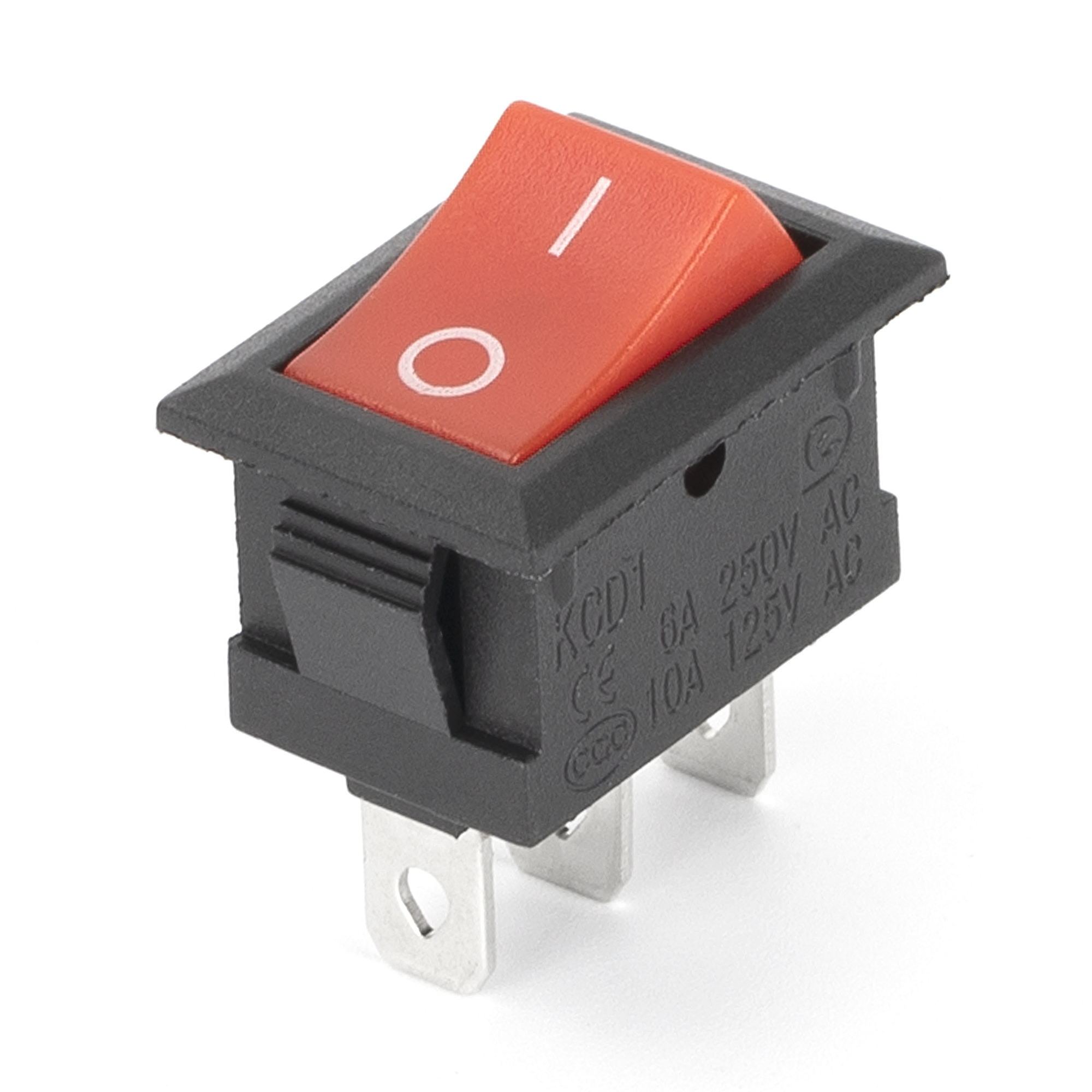

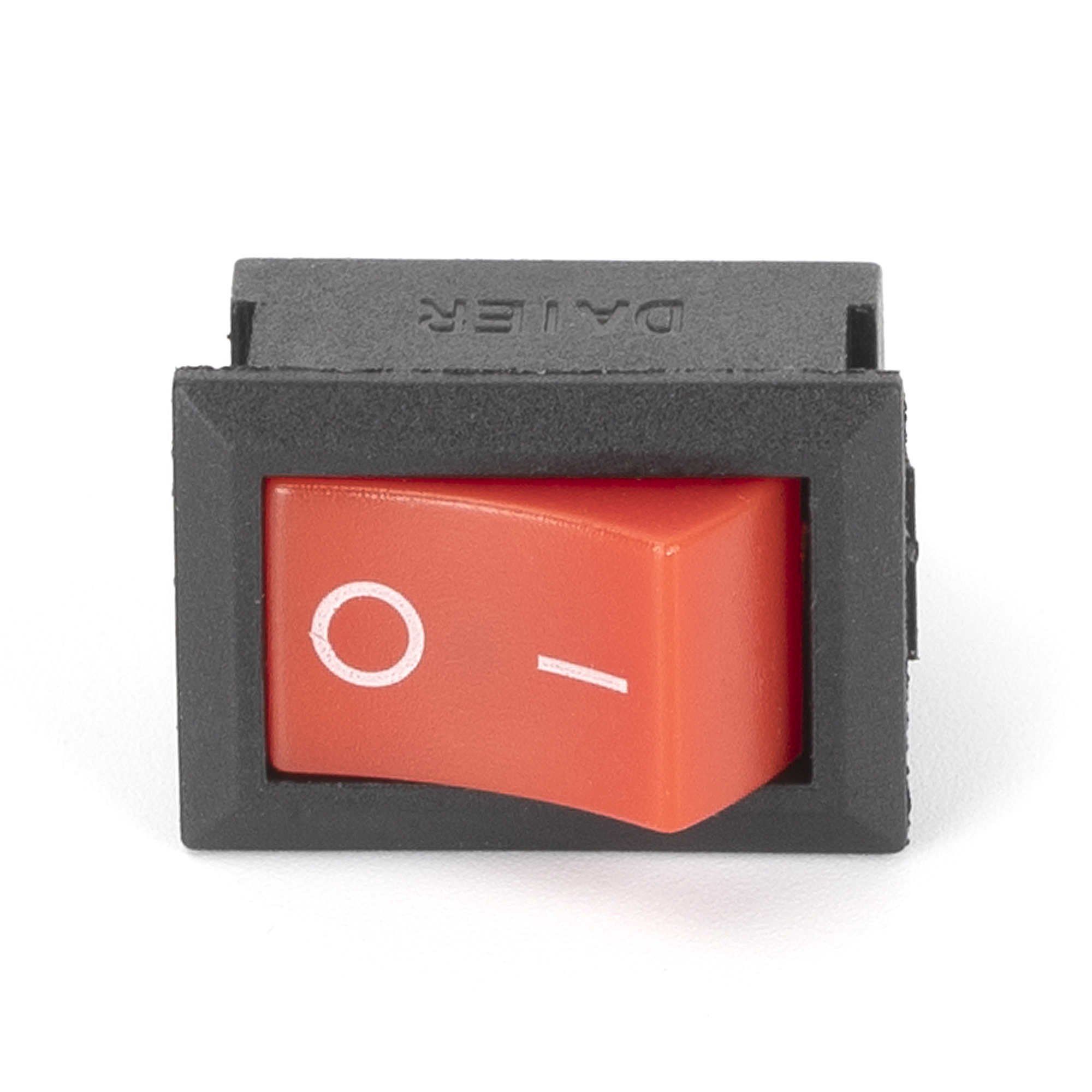

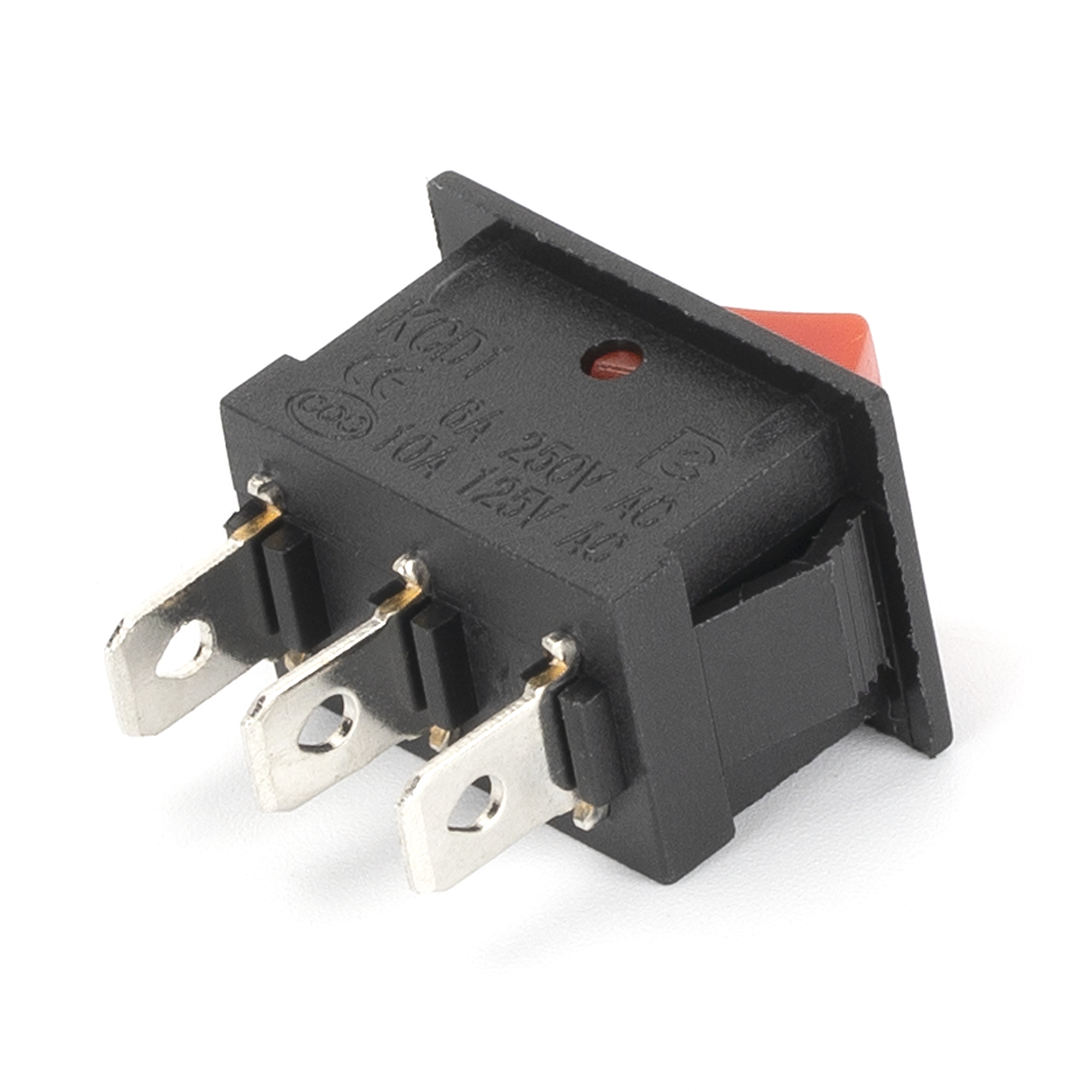

KCD1-102 6A/250VAC 10A/125VAC 3Pin SPDT 2 Position ON-ON Rocker Switch
Part#KCD1-102
This compact SPDT ON-ON rocker switch features a durable nylon 66 housing and offers reliable switching between two circuits, rated for 6A at 250VAC and 10A at 125VAC.
Its snap-in mounting design ensures easy installation, making it ideal for a wide range of applications, from consumer electronics and instrumentation to industrial control systems.
Category :
Miniature Rocker Switch
KCD1-102 6A/250VAC 10A/125VAC 3Pin SPDT 2 Position ON-ON Rocker Switch Features
- Reliable ON-ON Switching Functionality
This rocker switch features a double-throw (SPDT) configuration providing reliable ON-ON switching between two circuits. This makes it ideal for applications requiring a selection between two different operating modes or power sources.
- Robust Electrical Ratings for Diverse Applications
With a current rating of 6A at 250VAC and 10A at 125VAC, this switch accommodates a wide range of applications in both AC and DC circuits. This versatility makes it suitable for various industries, including consumer electronics, instrumentation, and industrial control systems.
- Durable Nylon 66 Construction for Demanding Environments
Built with a rugged nylon 66 housing, this switch offers excellent impact resistance and dielectric strength, withstanding vibrations, impacts, and electrical surges. This ensures reliable performance in demanding industrial and commercial environments.
- Snap-In Mounting for Efficient Assembly
Designed for quick and easy snap-in mounting, this rocker switch simplifies installation and reduces assembly time, contributing to efficient production processes for OEMs and system integrators.
- Compact Design for Space-Constrained Applications
Its compact design and industry-standard mounting dimensions make it ideal for integration into a wide range of applications where space is limited, such as control panels, instruments, and portable devices.
KCD1-102 3Pin SPDT 2 Position ON-ON Rocker Switch Datasheet
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal | Brass with sliver plated | Button color: | Black ,Red |
| Rating: | 10A 125VAC/6A 250VAC | Housing color: | Black |
| Contact Configuration: | SPDT | Switch Operation: | ON-ON |
| Contact Resistance: | <=50mΩ | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | >=1500VAC/5S/0.5mA | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, SGS | OEM or ODM: | Available |
