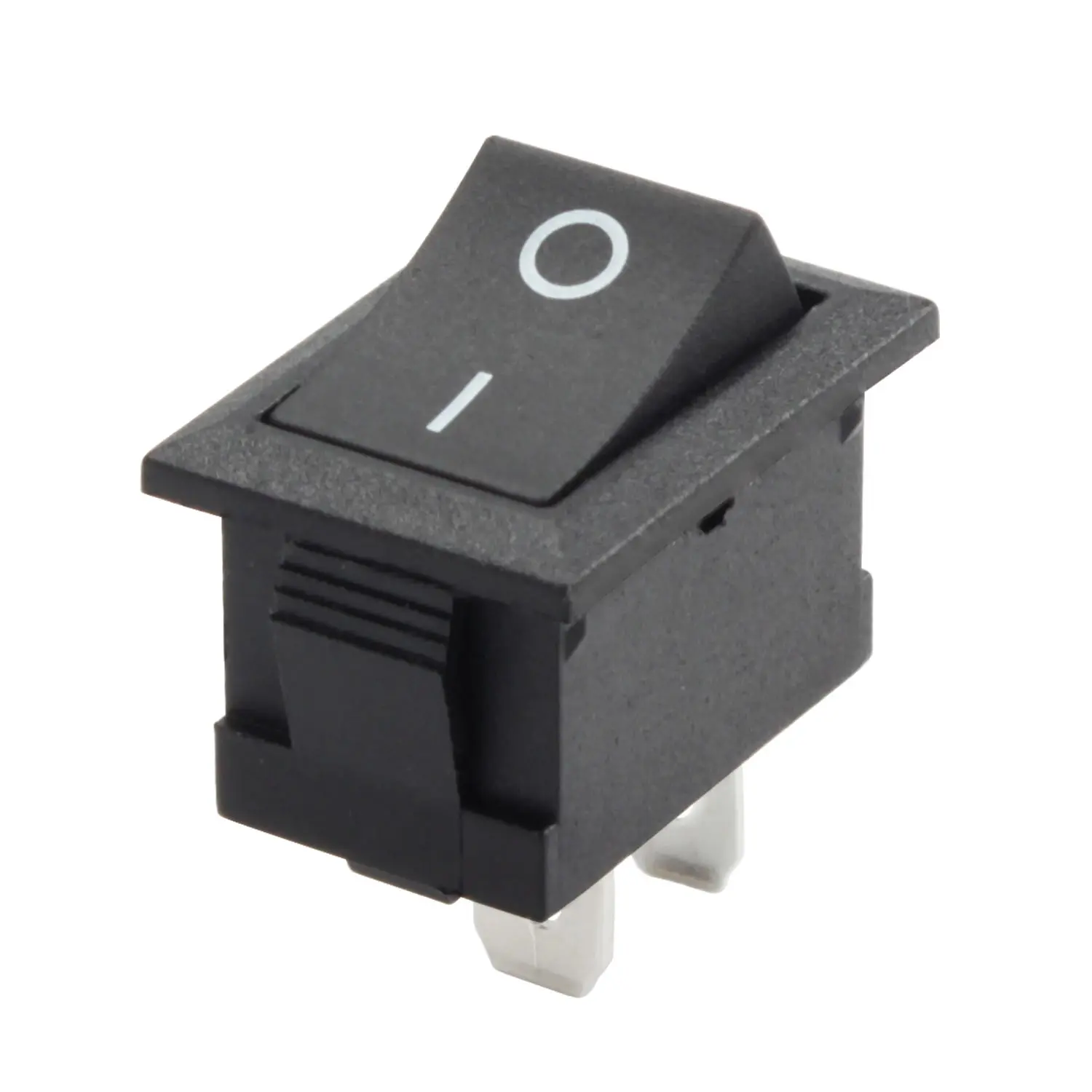

KCD1-101 Mini Rocker Switch 10A 125V / 6A 250V AC SPST ON-OFF T125 Rated Panel Mount
P/N: KCD1-101
The mini rocker switch is a high-performance SPST ON-OFF rocker switch engineered for superior reliability in high-temperature environments, featuring an exceptional T125 (125°C) operating temperature rating and a robust 10A 125VAC electrical capacity.
Designed for efficient snap-in panel mounting, this certified component provides a durable and safe switching solution for demanding industrial, commercial kitchen, and power supply applications.
Category :
Miniature Rocker Switch
KCD1-101 12V DC 20Amp SPST ON-OFF Mini Rocker Switch Features
-
Exceptional High-Temperature Performance (T125)
Its T125 rating signifies that this switch is engineered for superior reliability in extreme thermal conditions. This high-temperature design operates consistently in ambient temperatures up to 125°C without performance degradation. This capability makes the component the definitive choice for high-heat applications like industrial equipment and commercial appliances where standard switches would fail.
-
Reliable AC Power Switching
This SPST rocker switch is purpose-built for confidently controlling line-voltage circuits. Its electrical architecture is rated to handle 10A at 125VAC and 6A at 250VAC. The silver-plated brass terminals and low contact resistance (≤50mΩ) ensure a stable, efficient connection, minimizing heat buildup and maximizing the safety of the end-product.
-
Designed for Streamlined Manufacturing
An integrated snap-in housing enables rapid, tool-free installation directly into a product chassis. This panel mount design fits securely into a standard 19.2mm x 13.2mm cutout, significantly reducing assembly time and labor costs. The result is a firm, vibration-resistant fit that enhances the durability of the final assembly.
-
Guaranteed Electrical Integrity and Longevity
A proven electrical endurance of over 10,000 cycles guarantees long-term operational integrity. Its robust insulation provides a dielectric strength capable of withstanding ≥1500VAC, preventing electrical leakage between terminals. These specifications ensure the power switch maintains its safety and performance characteristics throughout its entire service life.
-
Precision Engineering for Consistent Integration
Precision engineering to tight dimensional tolerances (±0.20mm) ensures every switch is identical. This commitment to quality control means each unit provides a consistent fit, feel, and function. This uniformity eliminates production line variability and guarantees that the electrical component will integrate seamlessly into your manufacturing process every time.
KCD1-101 12V DC 20Amp SPST ON-OFF Mini Rocker Switch Datasheet
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal | Brass with sliver plated | Button color: | Black and Red, white and beige color |
| Rating: | 10A 125VAC / 6A 250VAC | Housing color: | Standard black and red, white and beige color |
| Contact Configuration: | SPST | Switch Operation: | ON-OFF |
| Contact Resistance: | 35mΩ max | Operating Temperature: | up to 125°C |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, SGS | OEM or ODM: | Available |
