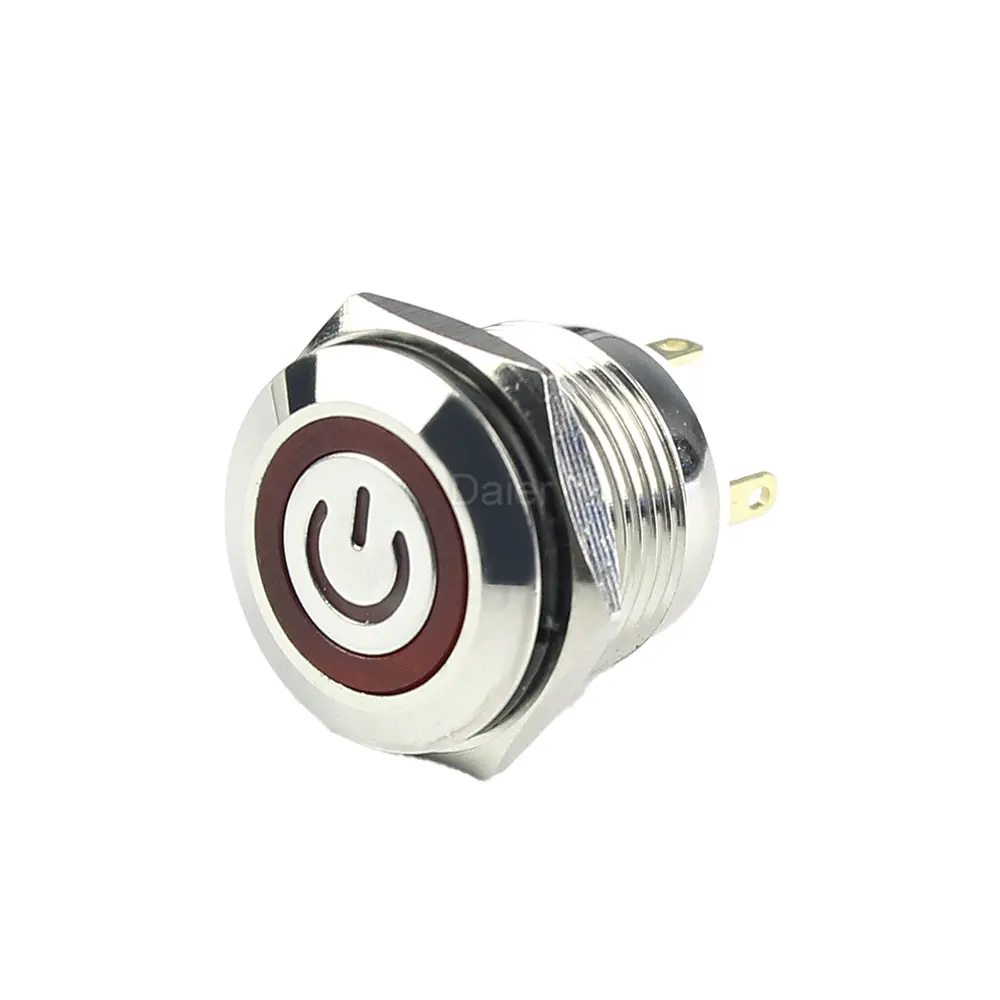

GQ16F-10EP LED Push Button Latching Switch
Part#GQ16F-10EP
The push button latching switch with RoHS standard, Function: IP65, latching/momentary; Contact Rating: 3A 250VAC.
The GQ16F-10EPM is a momentary type and GQ16F-10EPL is a push button latching switch both with ring and power logo LED.
GQ16F-10EP LED Push Button Latching Switch Details
- Easy Installation
Anti-vandal switches with screw clamp-type terminals make the switch installation simple and convenient.
- Visual Feedback
The illuminated metal switch works when the circuit is turned on and illuminates to provide visual feedback of circuit operation.
- Strong Durability
Anti-vandal switches located on devices that are outdoors must be able to withstand extreme temperatures, dust, rain, snow, and ice.
- Sturdy Construction
Vandal-resistant switches are usually protected by the use of robust materials, such as thick stainless steel and heavy-duty plastics.
- Wide Application
It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.
GQ16F-10EP Series Datasheet
| Rating: | 3A 250VAC | Contact Resistance: | 50mΩ max |
| Electrical Life: | 50,000 Cycles | Function: | momentary/latching |
| Dielectric strength: | 2,000VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 1,000mΩ min | Panel cutout: | 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc. |
| LED voltage: | 3V, 6V, 12V, 24V, 48V, 110V, 220V | Waterproof Grade: | IP40-IP67 |
| Contact Configuration: | Single Pole | OEM or ODM: | Available |
GQ-16F-10EP Series Switches
| GQ16F-10EPM | Momentary, with ring and power logo LED |
| GQ16F-10EPL | Latching, with ring and power logo LED |
Daier announces the anti-vandal switch series, it is most popular item in our push button switch series.
The elevator push button is RoHs certified, offering a rating of 3A 250VAC. The switch has even more features: it is IP67 rated and has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching).
It offers multiple color ring illumination options, and multiple voltage options. For LED, it offers one color, bi-color, tri-color options.
It comes with 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc. panel cutout size and SPDT or DPDT function.
For the switch body shell, plastic and metal are available, it offers multiple color options including black, white, yellow, blue, green, red, nickel and stainless steel.
