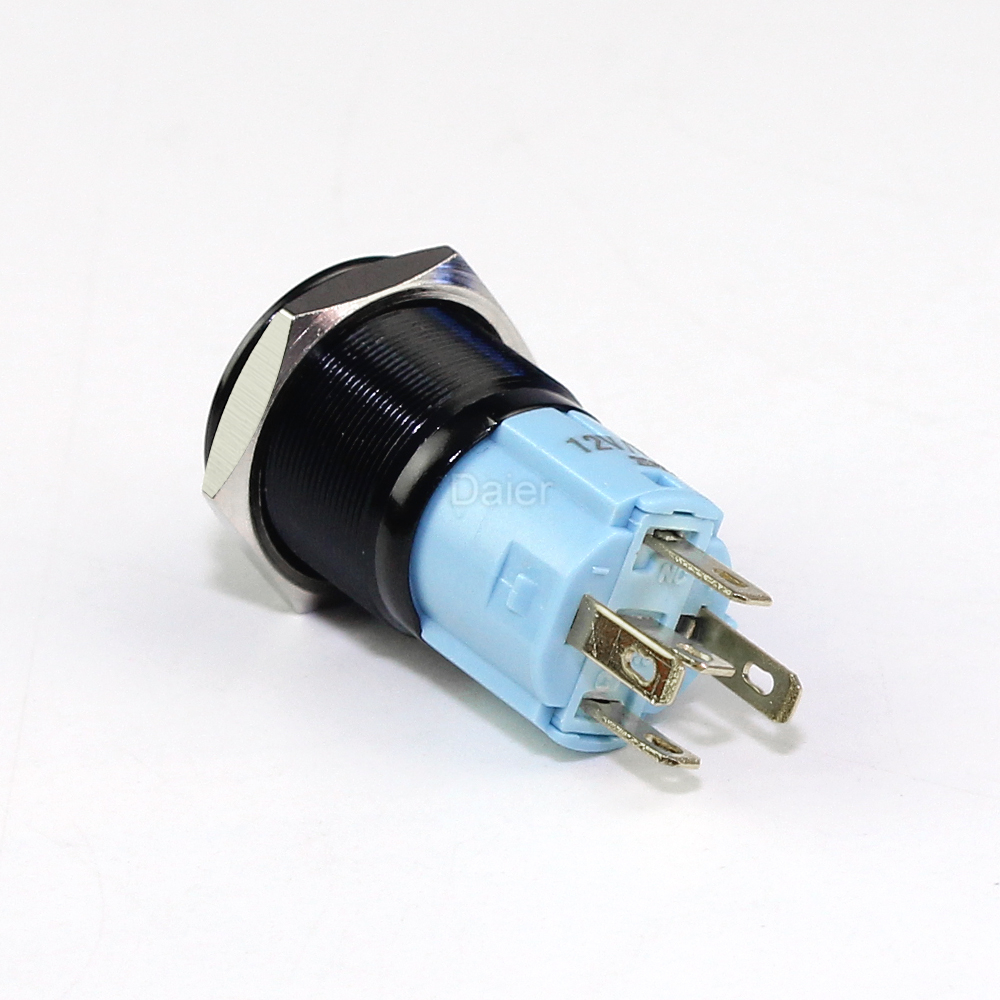

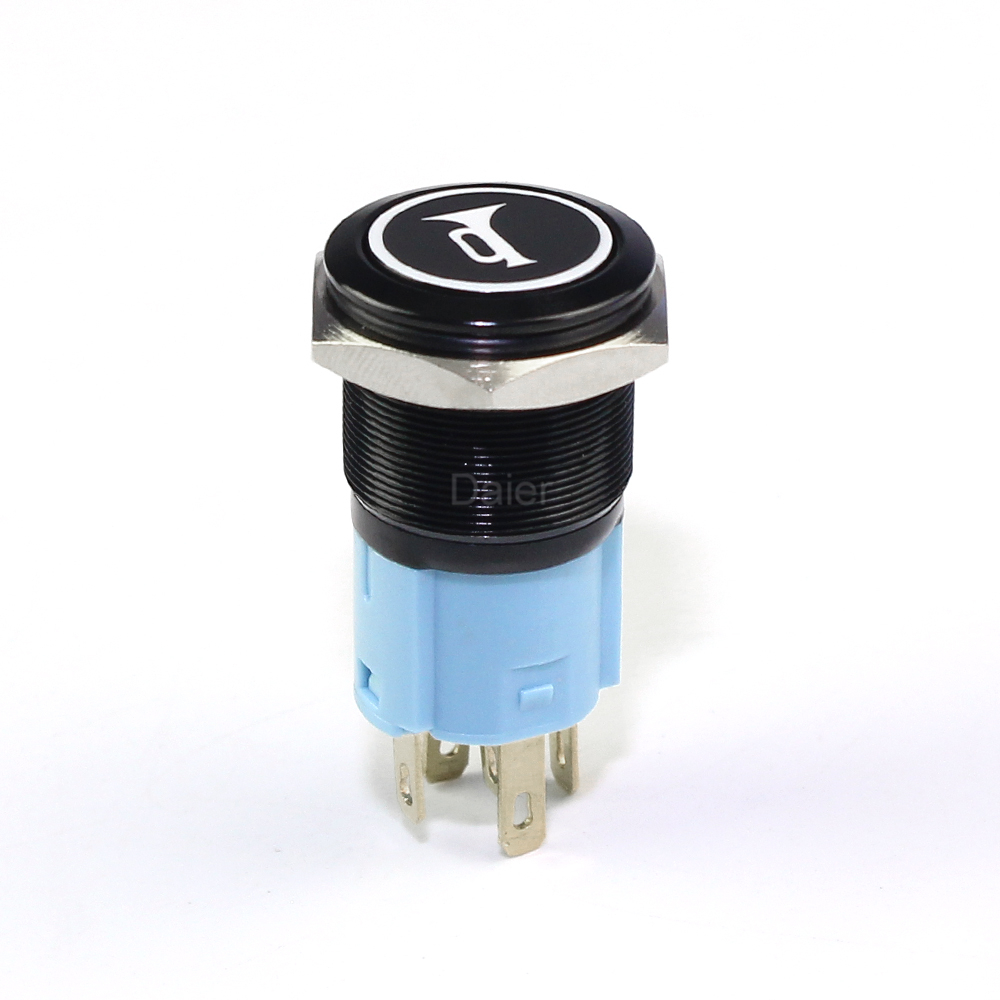

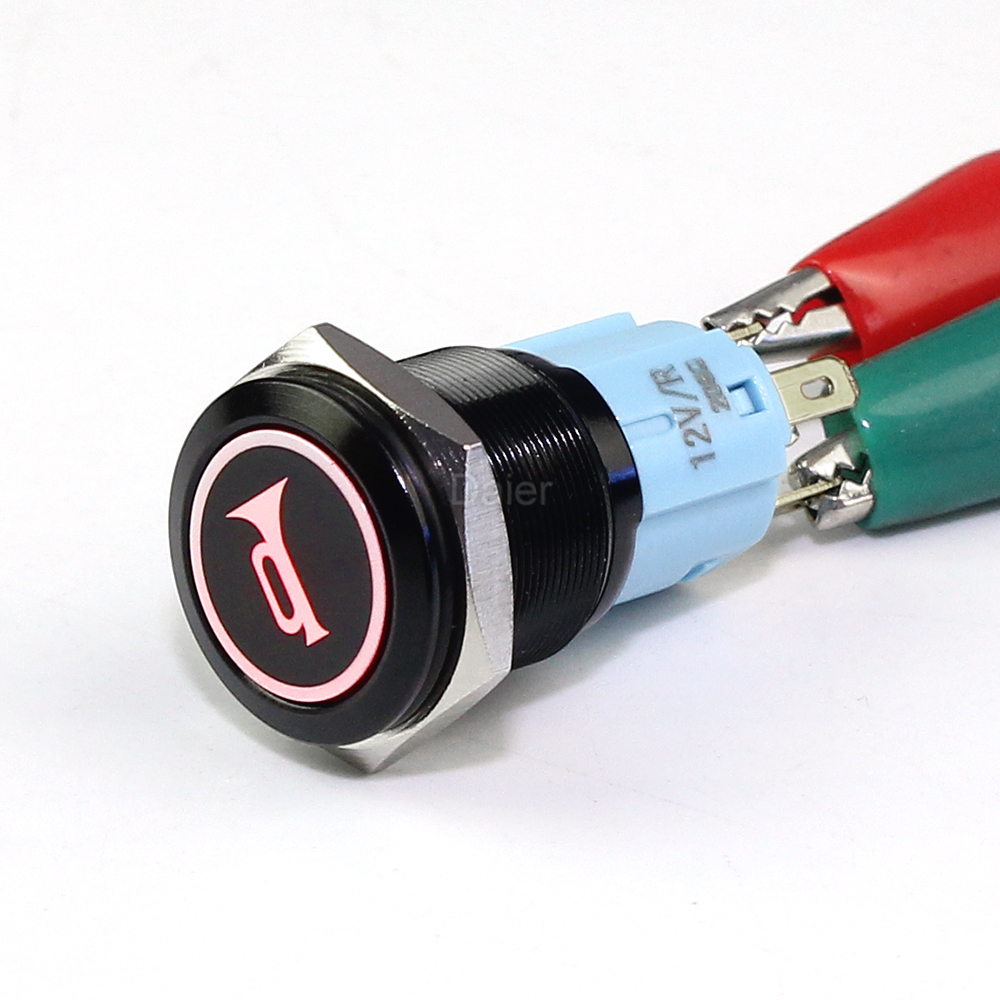

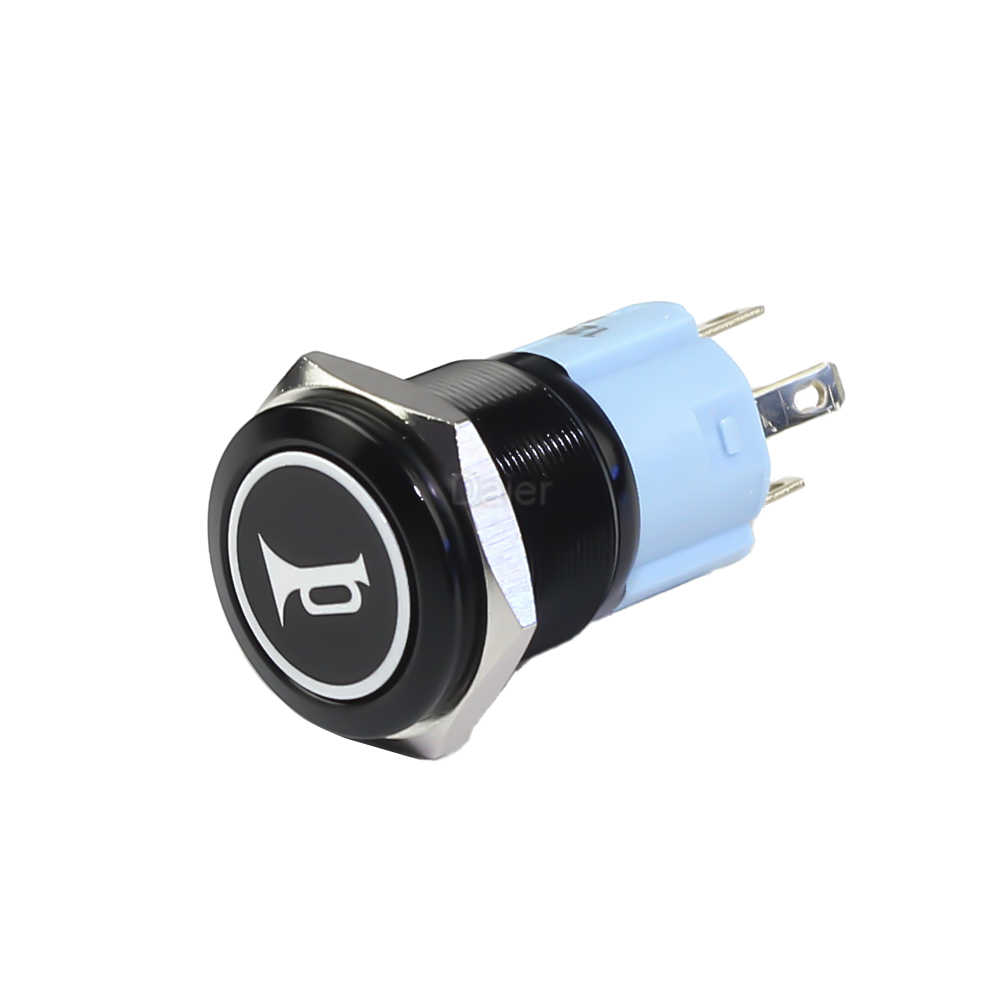

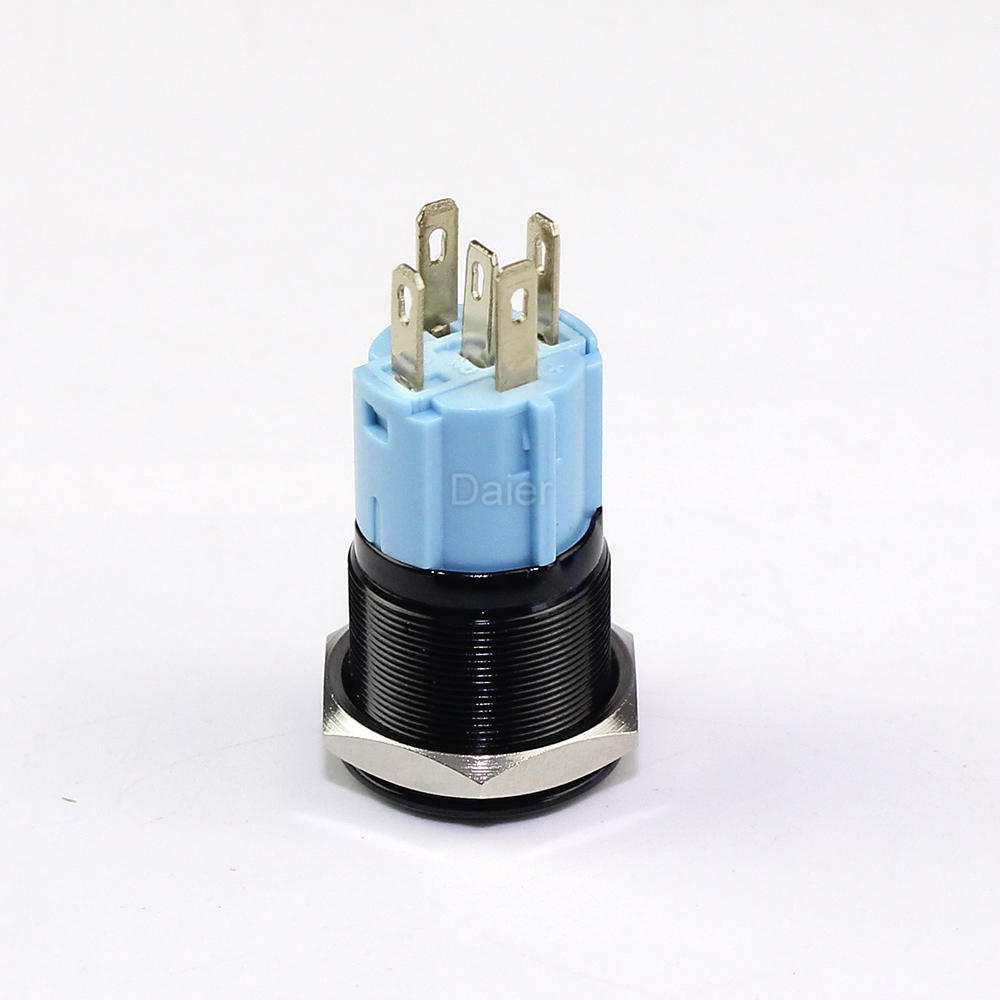

LAS3-16F-11N 16MM Speaker Horn Push Button

Part#LAS3-16F-W11E-A

The black 16mm speaker horn push button with LED, Function: IP65, 1NO1NC, SPDT momentary/latching; Rating: 5A 250VAC, 10A 12VDC.

The automotive horn push button switch with black metal housing, 100% brand new and high quality, mechanical life of 500,000 cycles.

LAS3-16F-11N 16MM Speaker Horn Push Button Details

  • Easy Installation

Anti-vandal switches with screw or solder clamp-type terminals make the switch installation simple and convenient.

  • Visual Feedback

The illuminated metal switch works when the circuit is turned on and illuminates to provide visual feedback of circuit operation.

  • Strong Durability

Anti-vandal switches located on outdoor devices must withstand extreme temperatures, dust, rain, snow, and ice.

  • Sturdy Construction

Vandal-resistant switches are usually protected by robust materials, such as thick stainless steel and heavy-duty plastics.

  • Wide Application

It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.

LAS3-16F-11N Series Switches

LAS3-16F-11NL Latching, ON-(ON), SPDT, 1NO1NC, Ring LED, Laser Available
LAS3-16F-11NM Momentary, ON-(ON), SPDT, 1NO1NC, Ring LED, Laser Available

LAS3-16F-11N Series Datasheet

LAS3-16F-W11EM Dimensioned DrawingStill, have a question about the LAS3-16F-11N series that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com or submit form!
