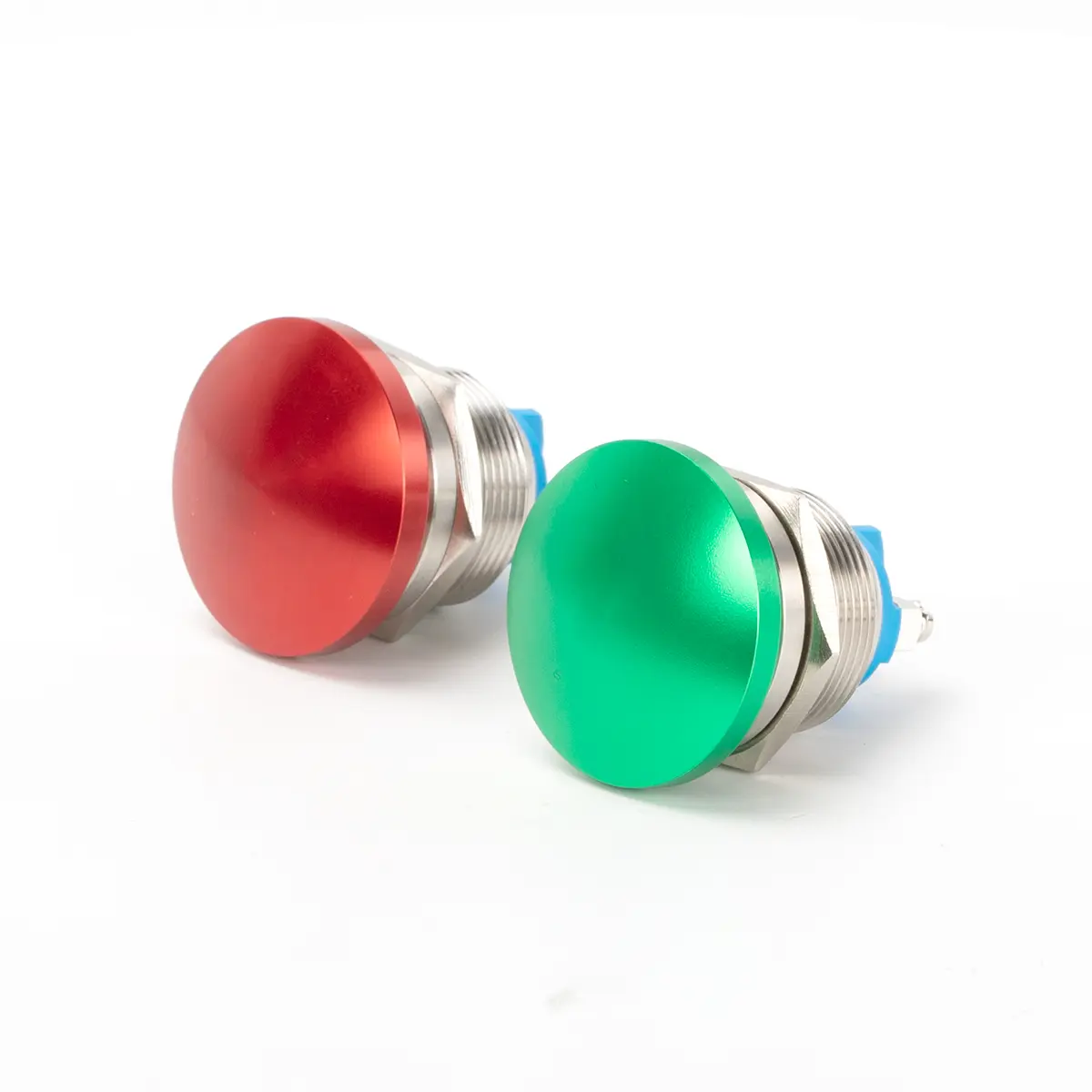

GQ-22D 22mm Metal Mushroom Head Pushbutton
Part#GQ-22D
The 22mm metal mushroom head pushbutton with stainless steel, function: SPST, Normal Open, 2 Pin, momentary; contact rating: 3A 250VAC.
It is suitable for all 12V cars, trucks, transfer vans, RVs, large motor starters, relays, horn button switches, computer power switches or any circuit control.
Category :
22MM Anti-Vandal
GQ-22D Mushroom Head Pushbutton Details
- Easy Installation
Anti-vandal switches with screw clamp type terminal make the switch installation simpler and more convenient.
- Strong Durability
Anti-vandal switches located on devices that are outdoors must be able to withstand extreme temperatures, dust, rain, snow, and ice.
- Sturdy Construction
Vandal-resistant switches are usually protected by the use of robust materials, such as thick stainless steel and heavy-duty plastics.
- Wide Application
It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.
GQ-22D Datasheet
| Function | Normal Open 2Pin Momentary |
| Contact Rating | 3A, 250V AC |
| Contact Resistance | 50mΩ Max |
| Enclosure | Metal |
| Finish Type | Aluminium alloy |
| Operating Temperature | -25℃~+55℃ |
| Electrical Life | 50,000 Cycles |
| Mechanical Life |
1,000,000 Cycles |
| IP Class | IP65 |
