FL17 & L18 Series Heavy Duty 3/0 AWG – 4/0 AWG Silicone Terminal Boots Fits M12+ Studs
P/N: FL17 & L18 Series
The FL17 & L18 Series fit extra-large wire diameters up to 17mm-18mm (approx. 3/0 AWG – 4/0 AWG) and accommodate massive battery lugs and mounting hardware.
Available in Rectangular (Square) and Extra-Large Round designs. Engineered for heavy industrial machinery, commercial trucks, and megawatt-scale power distribution.
Model Selection Specifications
| Model No. | Shape | Wire Entry | Cap Inner Dia. | Total Length | Features |

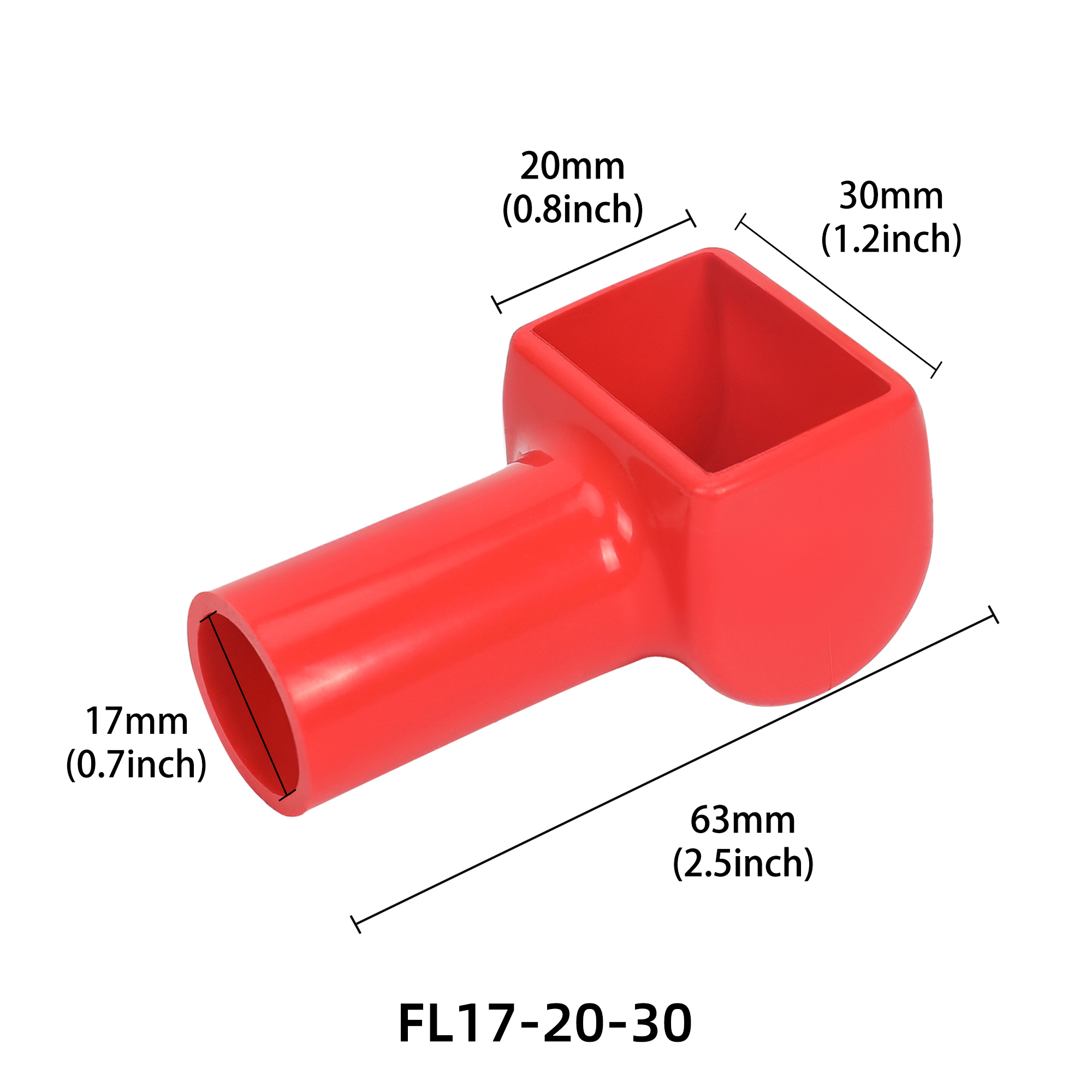

| FL17-20-30 | Rectangular / Square | 17mm (3/0-4/0 AWG) | 20mm x 30mm | 63 mm | Fits Flag Terminals |

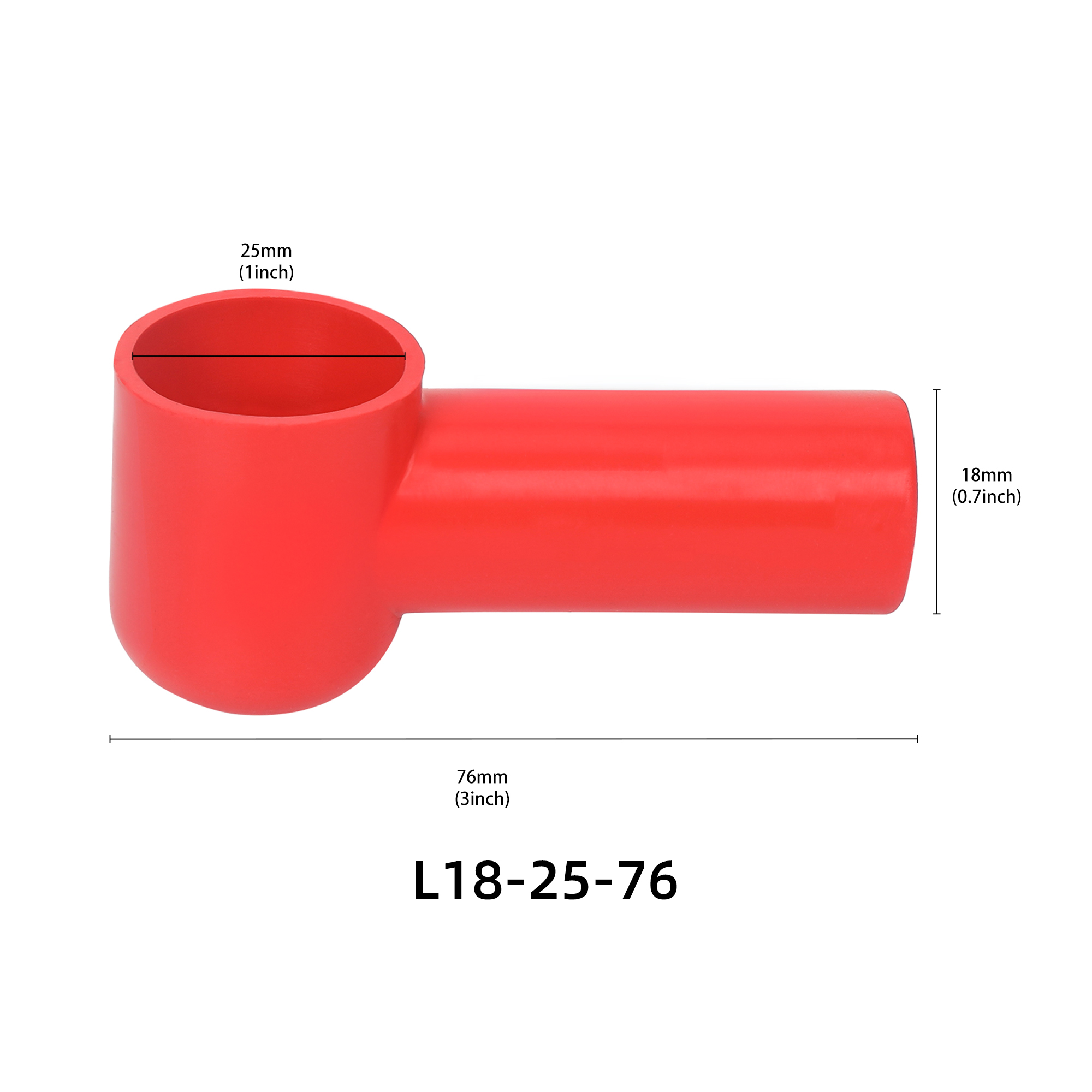

| L18-25-76 | Standard Round | 18mm (3/0-4/0 AWG) | 25 mm | 76 mm | Large Cap (1 inch) |

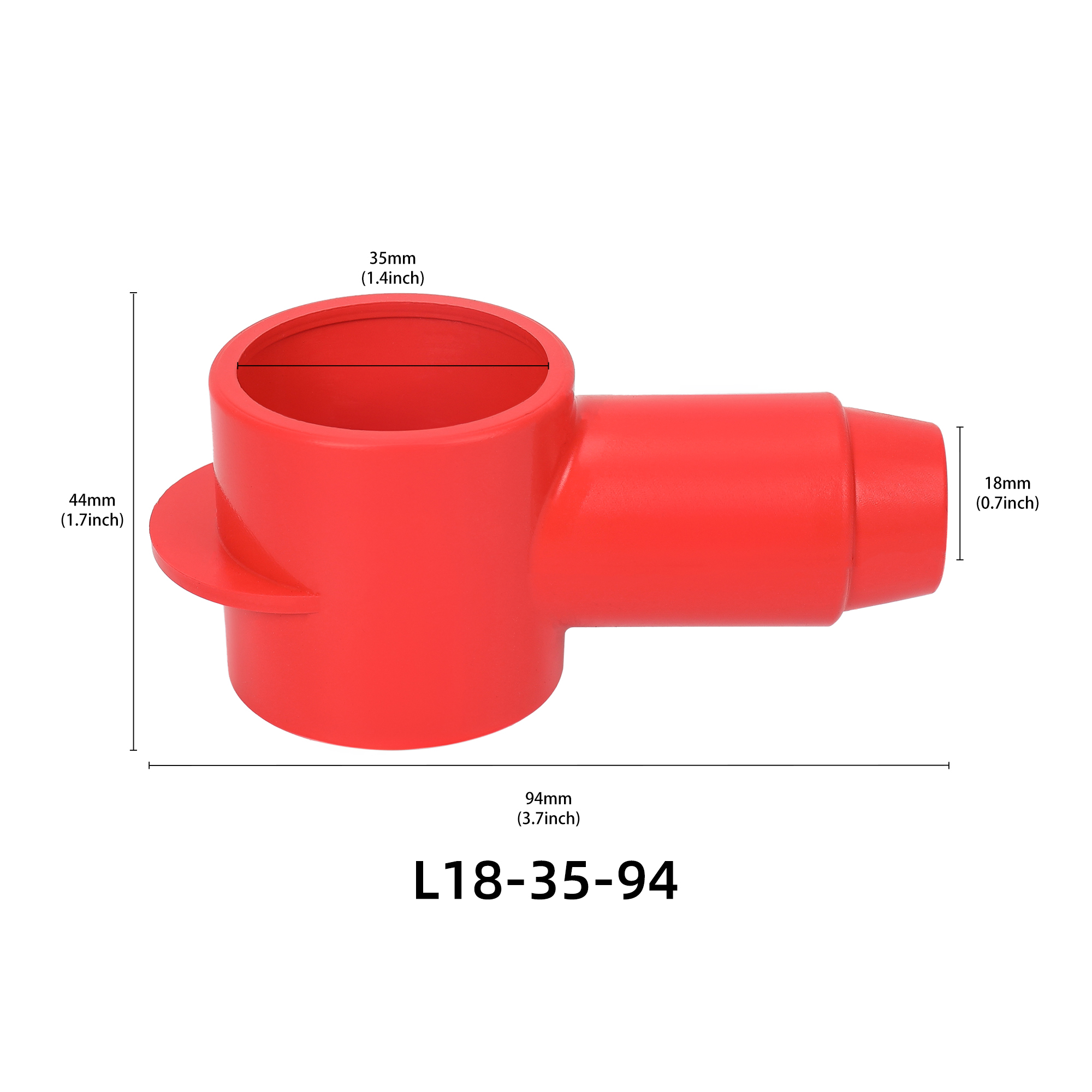

| L18-35-94 | Extra Large Round | 18mm (3/0-4/0 AWG) | 35 mm | 94 mm | Huge Cap / Long Body |
Key Features & Benefits
- Heavy Duty Fit for 3/0 AWG – 4/0 AWG Cables
The 17mm-18mm wire entry is engineered for maximum current applications, creating a robust seal around thick gauge cables ranging from 3/0 AWG to 4/0 AWG. This heavy-duty sizing is essential for preventing shorts on main alternator feeds, starter motors, and industrial battery banks.
- Versatile Rectangular & Round Cap Designs

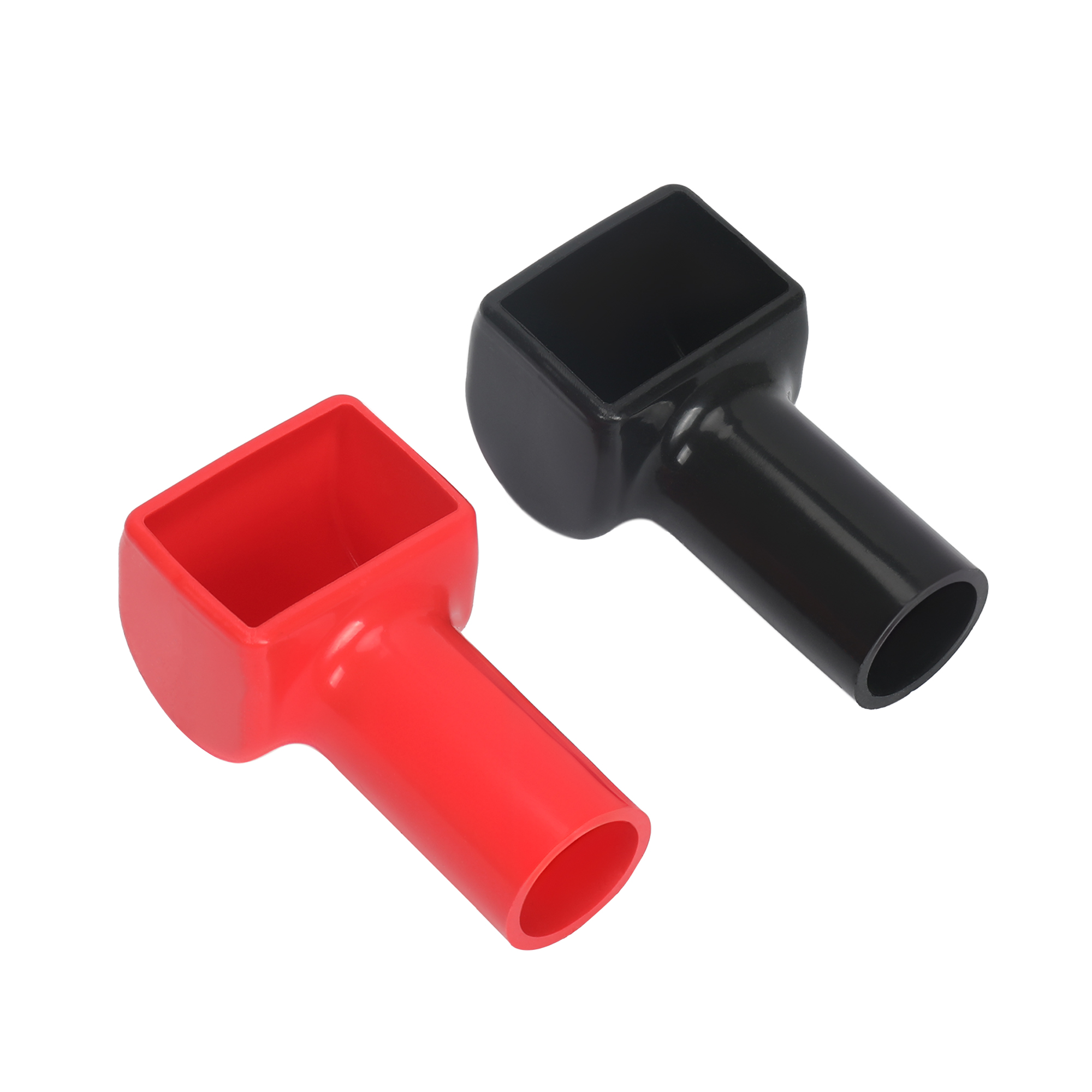

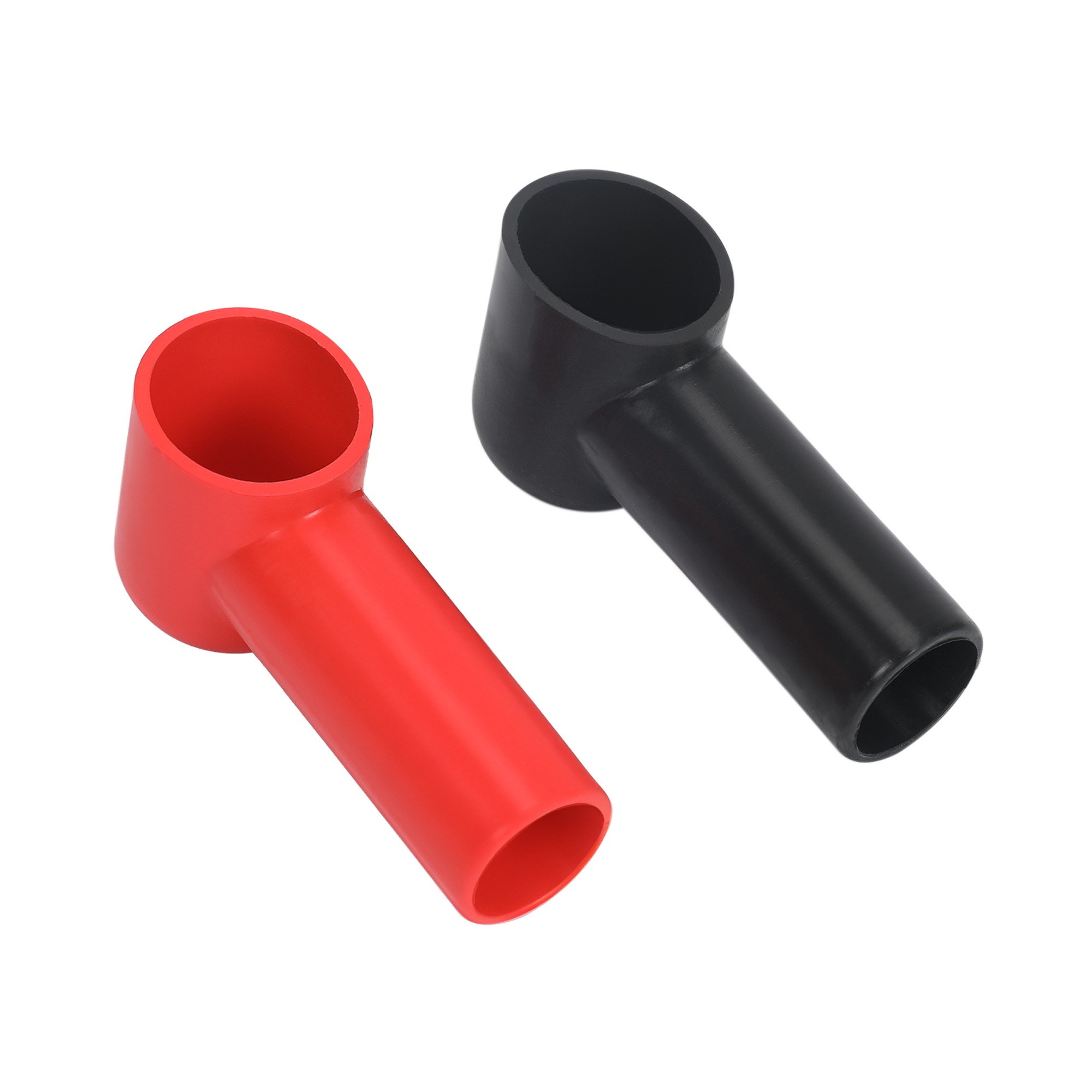

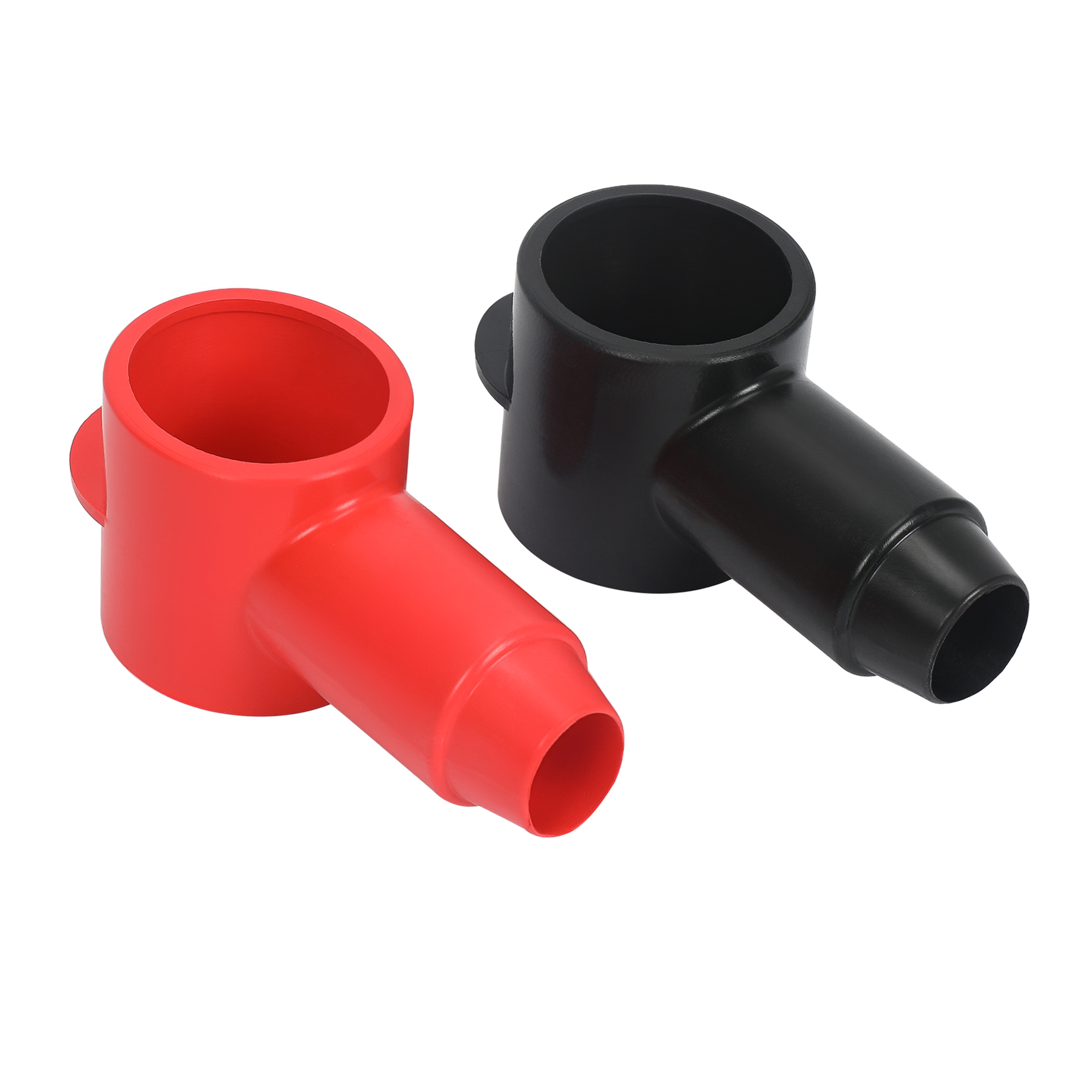

The rectangular cap of Model L17-20-30 (20x30mm) is specifically designed to fit “Flag” type terminals or rectangular busbar connections. The round models (L18-25-76 and L18-35-94) feature massive internal clearances (up to 35mm), perfect for covering large clamp-style terminals or multiple stacked lugs.
- High-Temp Flame Retardant Silicone Material

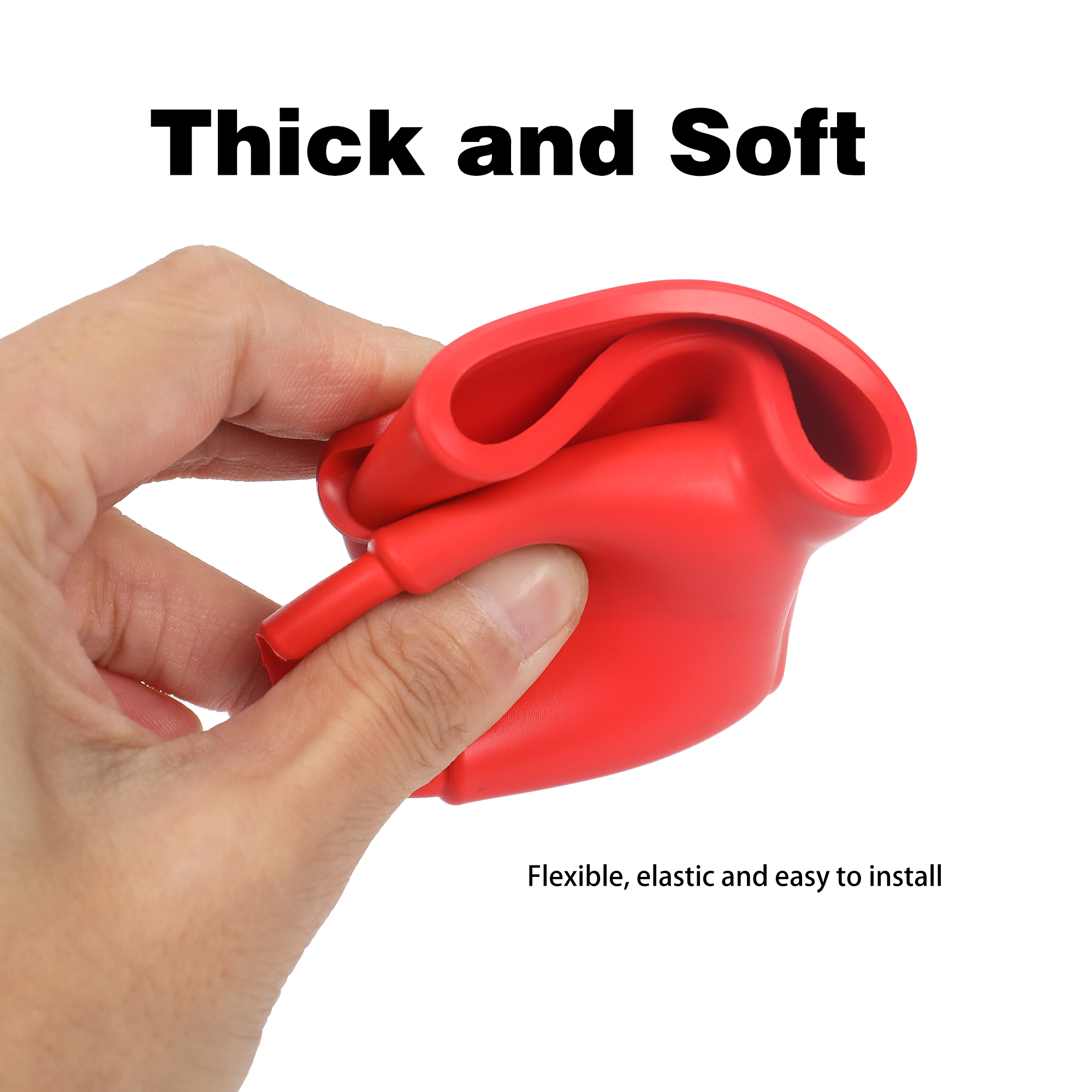

The flame-retardant silicone construction provides excellent thermal stability with a working temperature range of -40°C to +230°C. This durable material resists melting or cracking in high-heat engine bays and meets strict safety standards for commercial vehicles and heavy equipment.
- Extra Large Capacity for Industrial Hardware
The massive cap dimensions (up to 35mm ID) allow these boots to cover oversized mounting hardware, including M12 (1/2″) and M16 (5/8″) studs. This spacious design ensures complete insulation even for bulky, custom-made battery interconnects.
-
Color-Coded for Safety & Identification
The Red and Black color options allow for clear visual identification of Positive (+) and Negative (-) polarity. This color coding is critical for safety in high-voltage industrial systems to prevent catastrophic reverse polarity accidents.
Application Gallery
Typical installation on industrial machinery and marine battery banks.
