DR-A11L25B Horn Button Rocker Switch

DR-A11L25B Horn Button Rocker Switch Blue LED 12 Volt, Auto Train ATV Boat Marine Toggle Switch Momentary Waterproof 12V



Category :

Marine Switch

DR-A11L25B Horn Button Rocker Switch

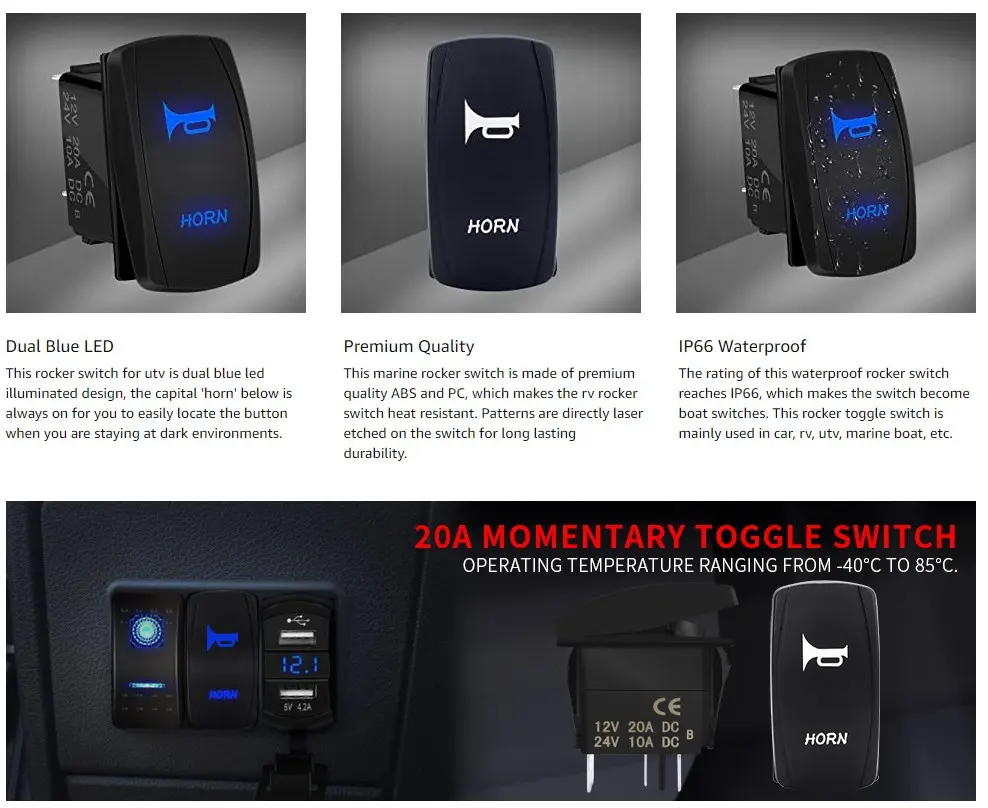

Horn Switch built-in two LED work lights, one of which is always ON. The light beam penetrates the surface cover and illuminates the pattern for better recognition at night.

DR-A11L25B Horn Button Rocker Switch details:

  • Appearance: The surface of the upper cover is curved. The pattern is etched on the surface by laser engraving to ensure long-lasting durability.
  • Function: Horn Switch with 5 pins, SPST design (single pole single throw), with a set of jumpers, easy to install, easy to turn ON/ OFF. Adopting waterproof and environmentally friendly materials.
  • Application: The rated current is 20 Amps 12/24 Volts. It is mainly used to control LED lamps for automobiles, ships and yachts, such as led strips, headlights, taillights, work lights, fog lights, auxiliary lights, etc.

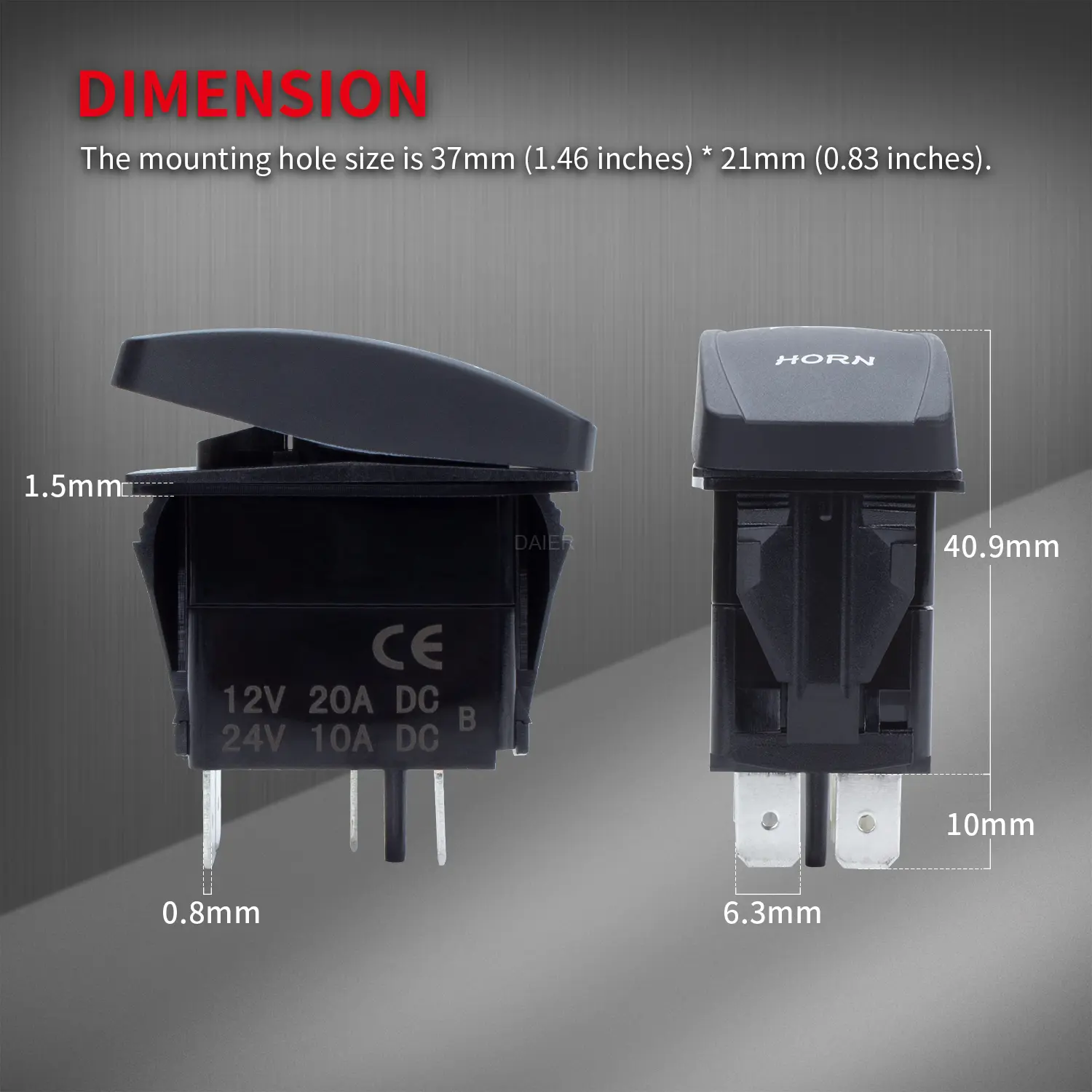

  • Size: Mounting hole size is 1.46 inches (37.2 mm) x 0.83 inches (21.2 mm). This is the standard size for most in modern vehicles.

view more

DR-A11L25B Horn Button Rocker Switch datasheet below:



Rating: 20A 12VDC Waterproof Grade: IP67
Contact Resistance: 35mΩ max Operating Temperature: -40℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
