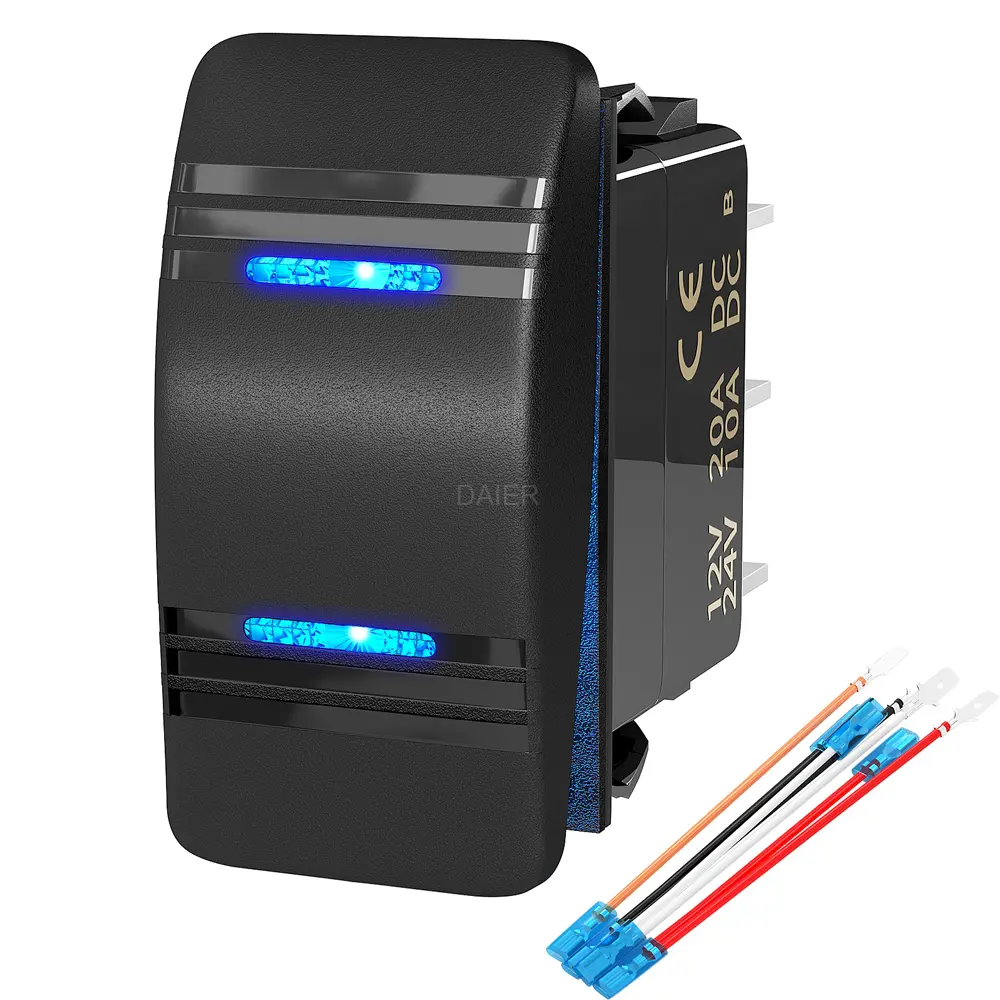

DR-A12927EBL Waterproof ON OFF ON Rocker Switch
Part#DR-A12927EBL
DR-A12927EBL waterproof on off on rocker switch is used in 20A at 12VDC and 10A at 24VDC systems, 7-pin, double led, IP65, self-locking.
It has built-in two premium LEDs Emits soft light to illuminate the patterns, easy for you to find the switch in the dark.
Category :
Marine Switch
DR-A12927EBL Waterproof ON OFF ON Rocker Switch Details
-
Simple Operation
Different functions can be selected according to the position when the switch is toggled.
-
Sturdy Construction
The switch is made of plastic and metal, which is safe, durable, anti-corrosion, and rust-proof.
-
Great Compatibility
The switch controls the on-off of the AC and DC power supply circuit, which can be used alone or locked together with other switches.
-
Visual Feedback
The illuminated toggle switch works when the circuit is turned on and illuminates to provide visual feedback of circuit operation
-
Wide Application
It is suitable for all cars, RVs, Cans, Motorcycles, buses, boats, trailers, jeeps, etc.
DR-A12927EBL Datasheet
| Rating | 12V 20A/24V 10A |
| Function | DPDT 7PIN ON-OFF-ON |
| Installation | Pre-wired |
| Material | ABS, PC |
| Waterproof grade | IP65 |
| Operating Temperature | -40℃~+85℃ |
| LED Color | Green/Red/Blue |
Still, have a question about the DR-A12927EBL that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!
