DR-A11L25ABL-STARLINK Starlink Symbol Rocker Switch – 5Pin Laser ON OFF with Jumper Wire Set
Part#DR-A11L25ABL-STARLINK
Engineered for professional and custom installations, this Starlink symbol 5-pin SPST rocker switch offers robust ON/OFF control (20A@12V, 10A@24V) with clear dual LED illumination for status indication.
Its IP65 waterproof, dustproof, and rugged design ensures reliable performance in demanding automotive, marine, or powersport environments, while the included jumper wire set and standard mounting size simplify integration into dashboards and control panels.
DR-A11L25ABL-STARLINK Starlink Symbol Rocker Switch – 5Pin Laser ON OFF Features
- Dual LED Illumination
This interior light rocker switch features a dual LED illuminated design for enhanced visibility and functionality. The word markings illuminate when the dash lights are on, while the laser-etched pattern illuminates when the switch is activated, providing clear status indication in all lighting conditions.
- Versatile Circuit Control
This 5-pin rocker switch utilizes an SPST (Single Pole Single Throw) design for simple ON/OFF control of your interior light or other 12V/24V accessories. It is rated for 20A at 12V DC and 10A at 24V DC, making it suitable for a variety of applications.
- Easy Installation

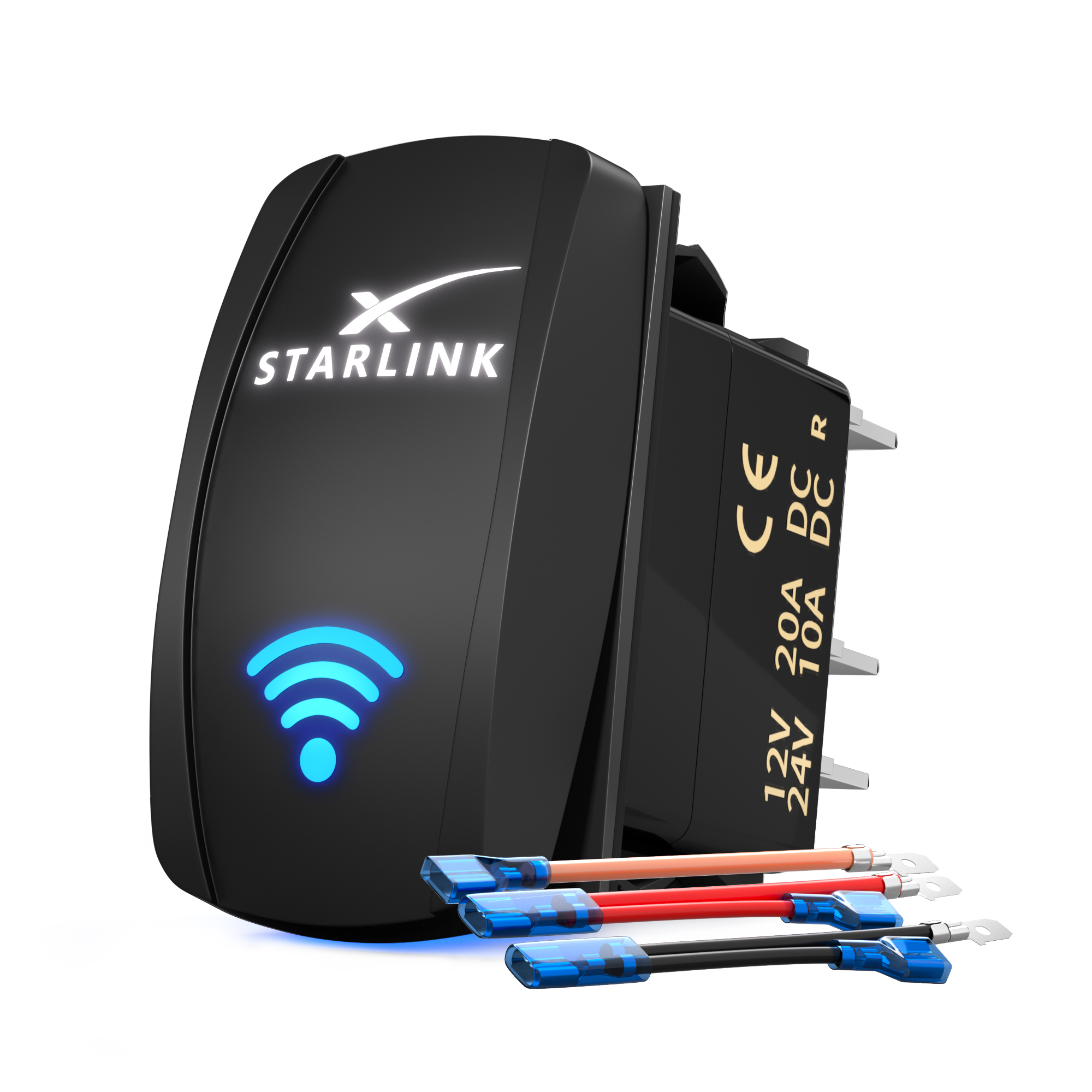

This interior light switch comes with a set of jumper wires and quick disconnect terminals, simplifying the installation process. The included wiring kit allows for quick and easy connection to your vehicle’s electrical system.
- Flexible Wiring Options

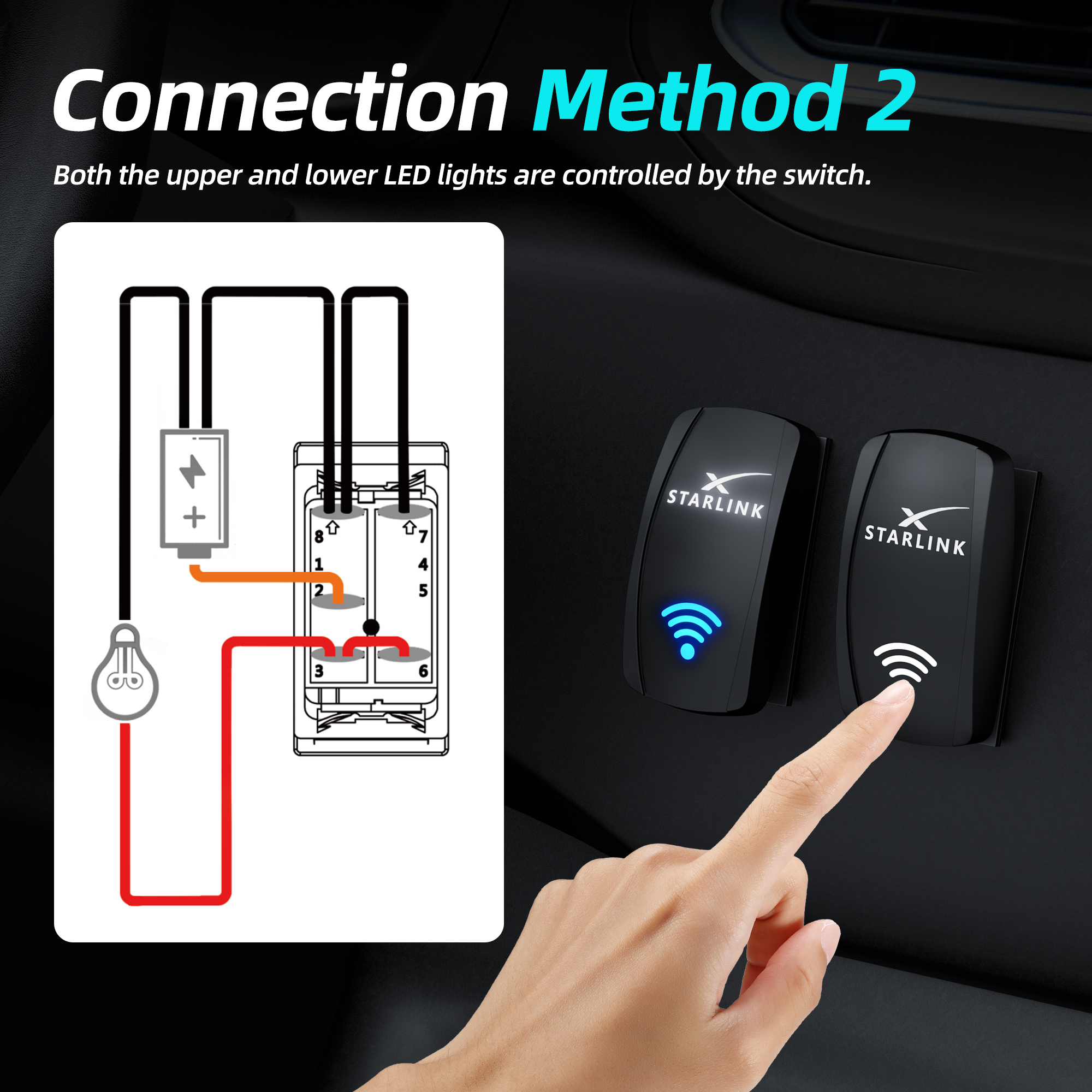

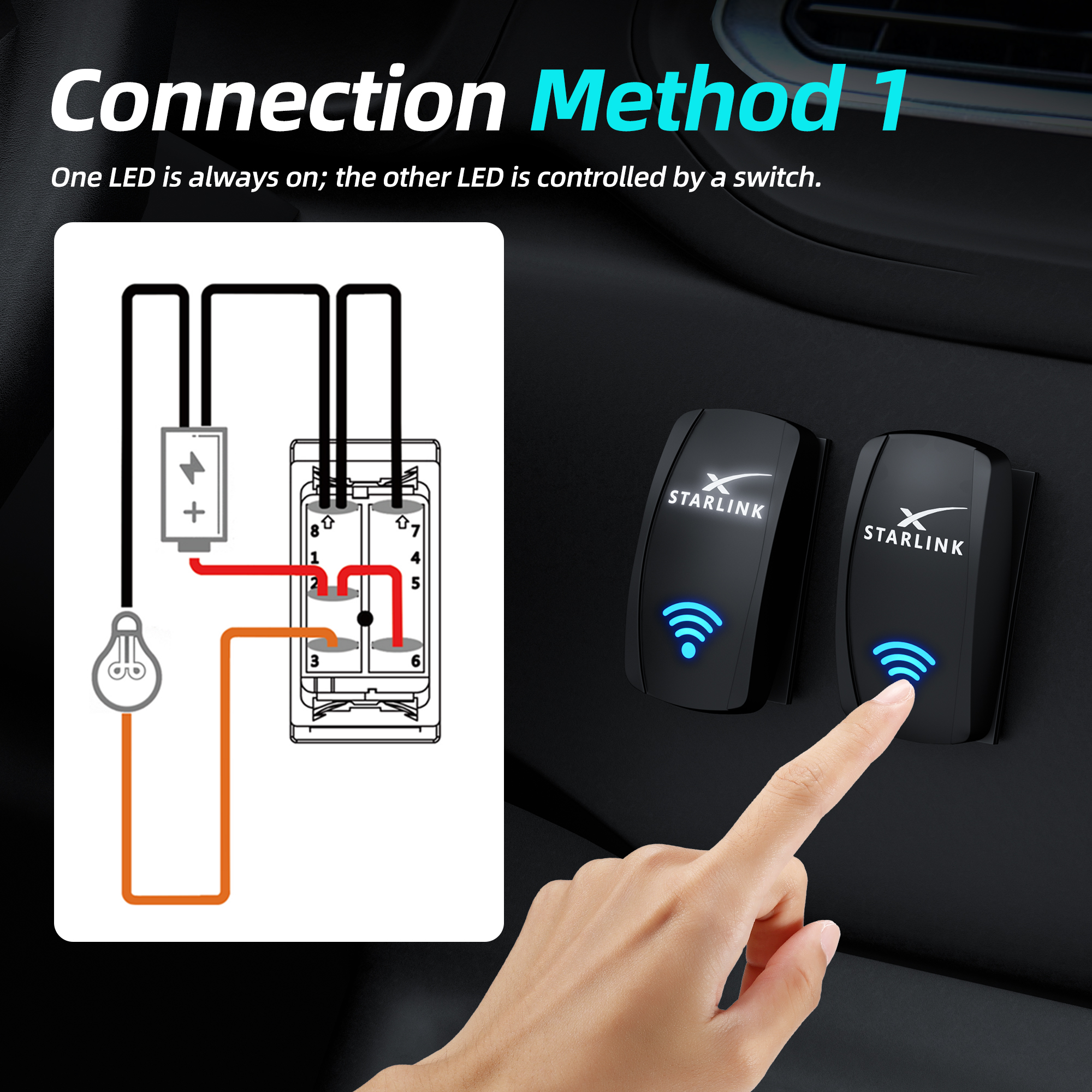

Users can choose between two wiring methods (A and B), allowing them to customize how the 5-pin switch illuminates. This allows for either the word markings to light up with the dash lights or for both the word markings and the pattern to illuminate only when the switch is turned on.
- Durable and Weather-Resistant
This rocker switch is built with a rugged, IP65 waterproof, weatherproof, and dustproof design. This ensures reliable performance in harsh environments, making it suitable for automotive, marine, powersports, and other demanding applications.
- Convenient Standard Mounting Size

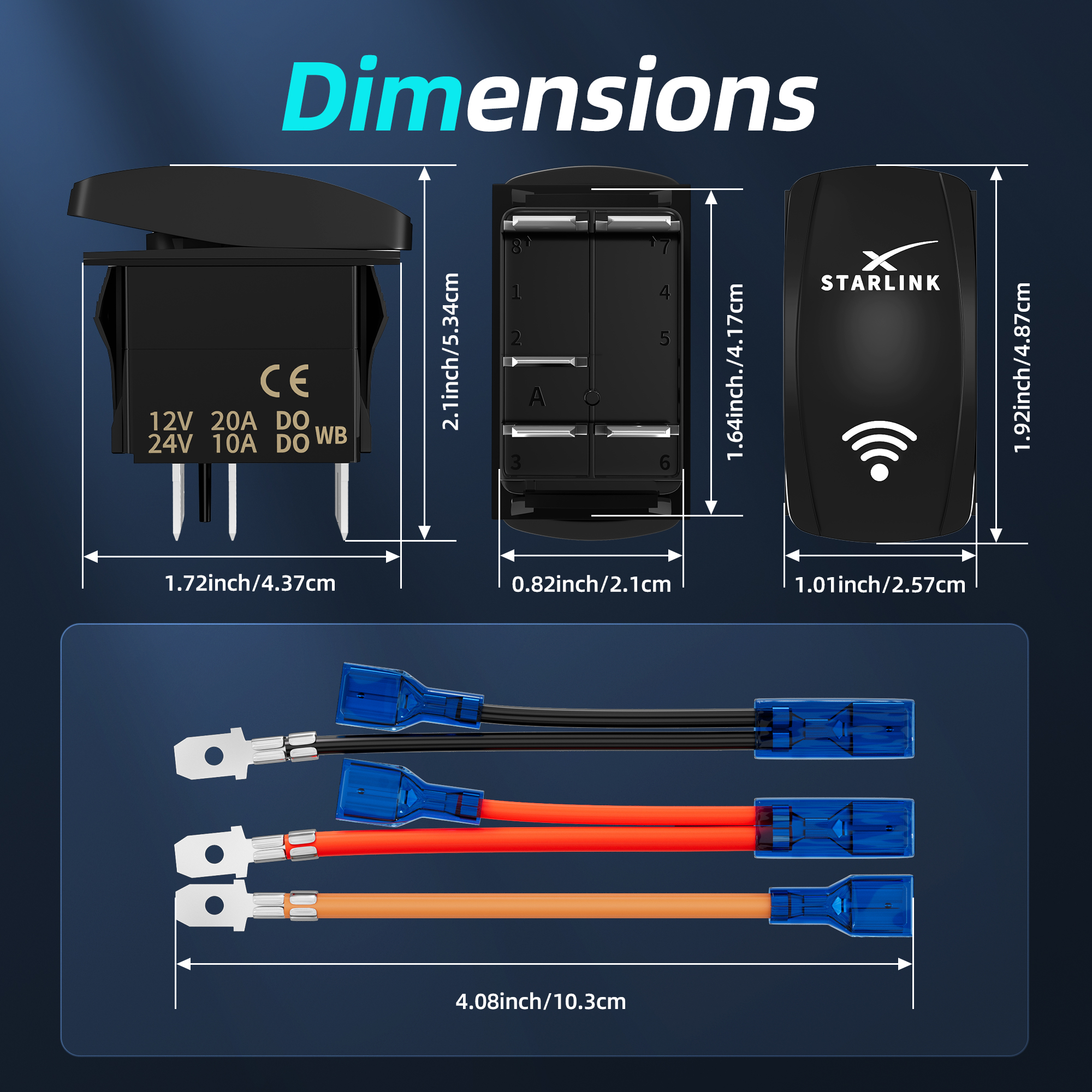

The switch features a standard mounting hole size of 37mm x 21mm (approximately 1.46″ x 0.83″), making it compatible with most standard rocker switch panels and mounts. Its compact size allows for easy integration into various dashboards and control panels.
DR-A11L25ABL-STARLINK Starlink Symbol Rocker Switch Datasheet
| Part NO | DR-A11L25A-STARLINK |
| Actuator Symbol | STARLINK |
| Material | ABS+PC |
| IP Rating | IP65 |
| Rating | 20A 12VDC; 10A 24VDC |
| Function | ON-OFF SPST |
| Terminal | 5 Pins |
| LED Quantity | Dual LED |
| LED Color | Blue |
| Housing Color | Black |
| Connector Type | Quick Connect (6.3mm×0.8mm) |
| Mounting Size | 1.46″×0.83″/37mm×21mm |
| Wire Length | 134mm |
| Wire Size | 2×14AWG and 1×18AWG |
