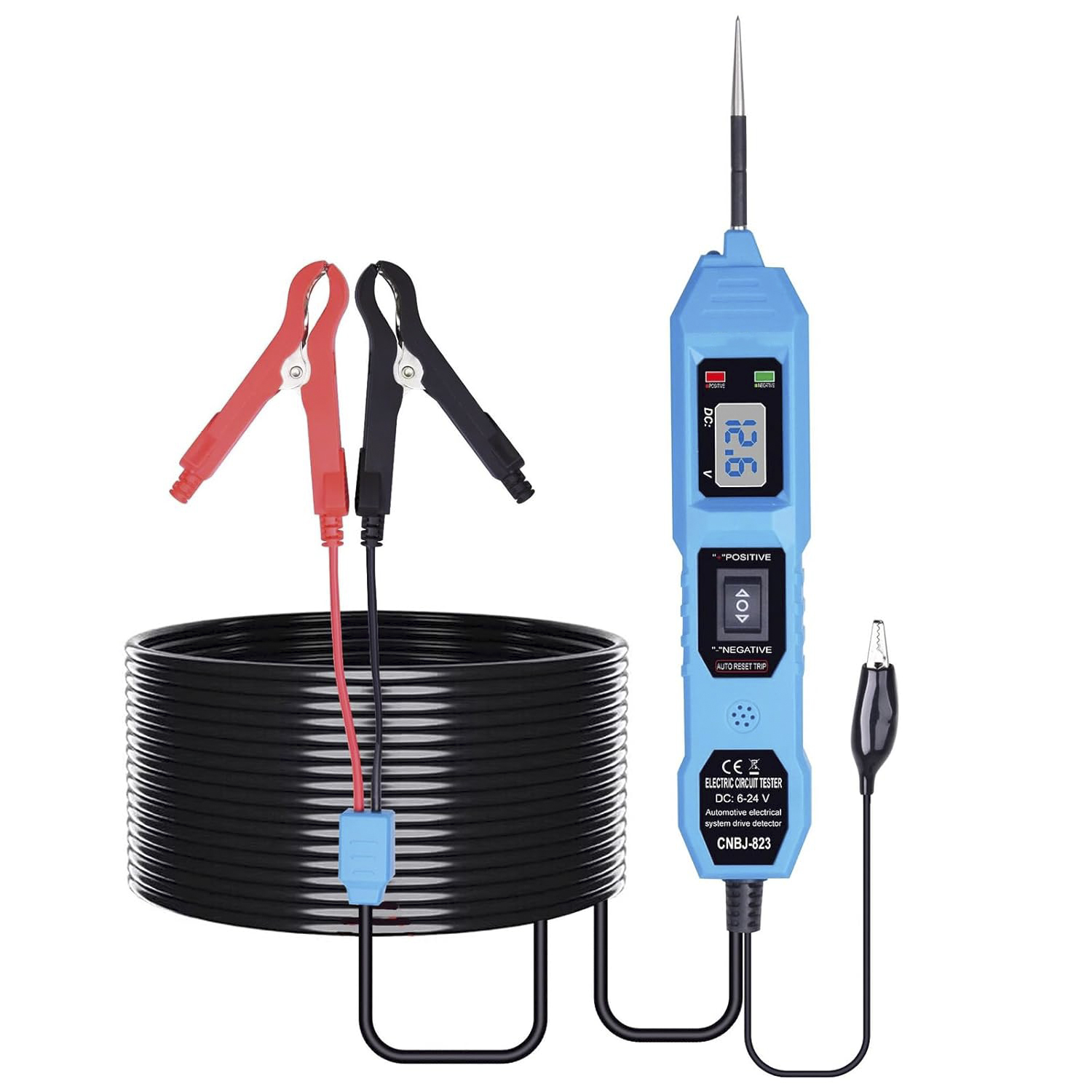

CNBJ-823 6V-24V DC Automotive Power Probe Circuit Tester All-in-One Diagnostic Tool with Component Activation & LCD Display
Part#CNBJ-823
This 6-24V DC automotive power probe circuit tester features a digital LCD display, component activation capabilities, and an extra-long 14.7ft cable for comprehensive electrical system diagnostics.
It is the essential all-in-one tool for automotive technicians to rapidly trace, test, and troubleshoot circuits, significantly boosting workshop efficiency and diagnostic accuracy across a wide variety of vehicles.

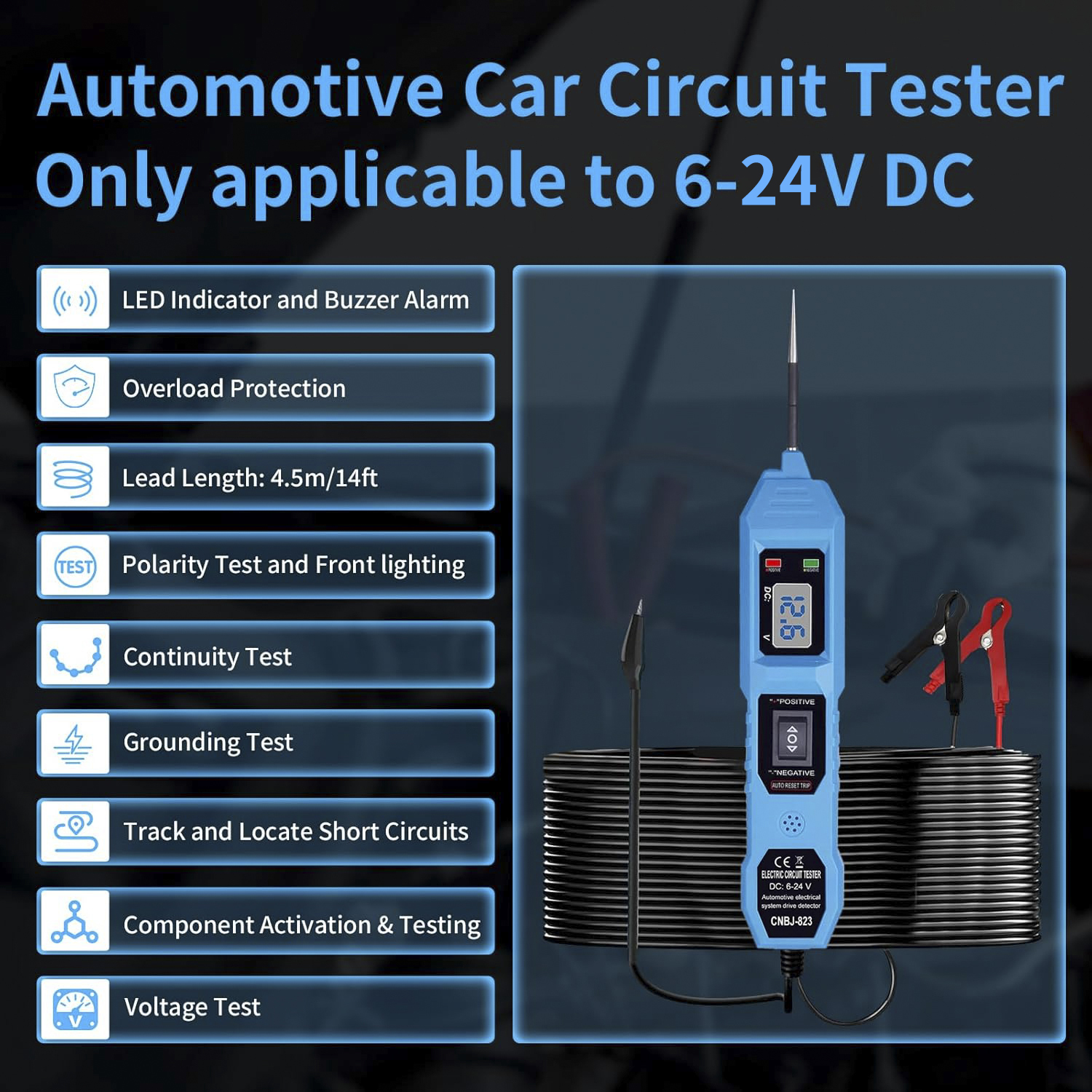

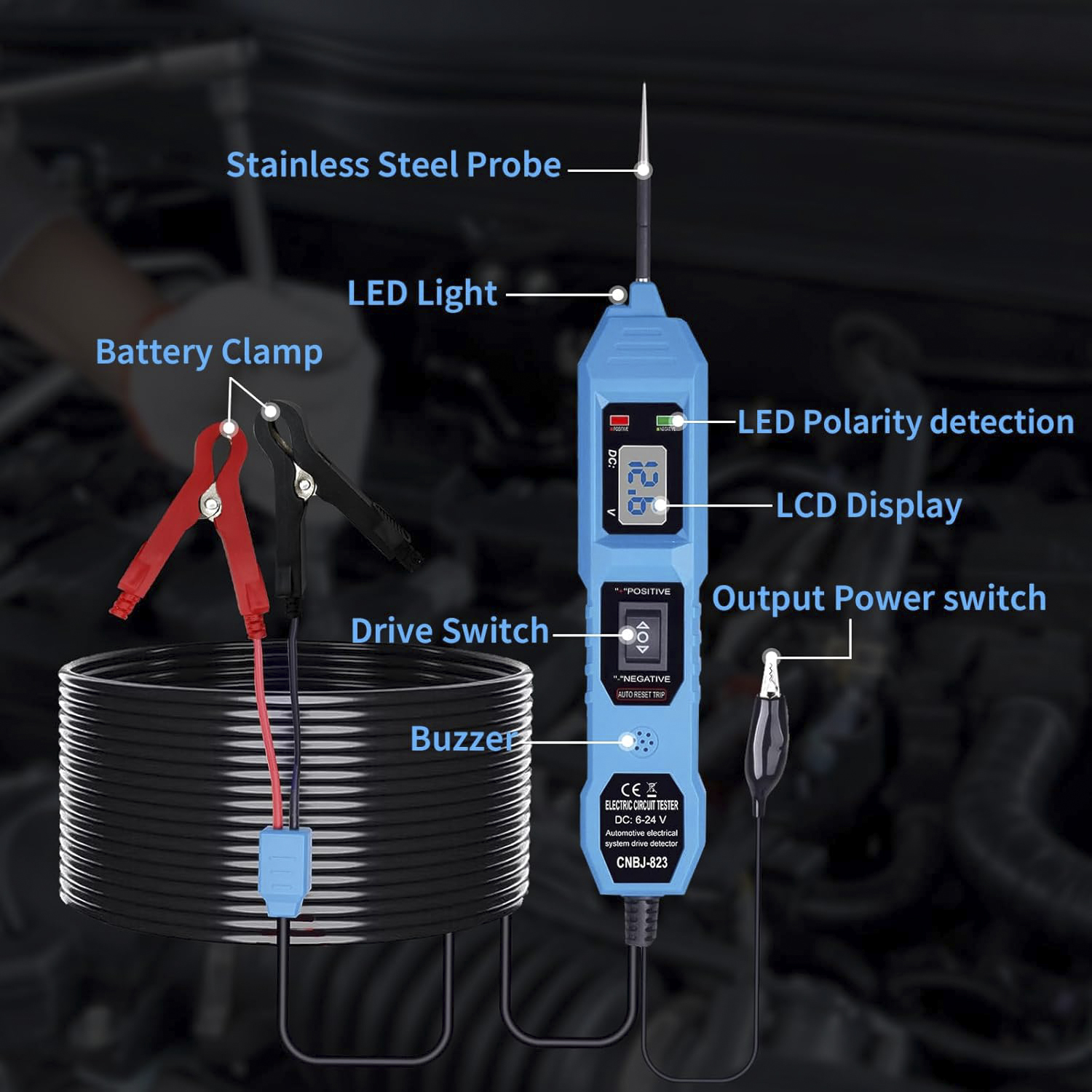

CNBJ-823 6V-24V DC Automotive Power Probe Circuit Tester Features
- All-in-One Electrical System Diagnostics
This power probe is a complete diagnostic solution, consolidating multiple tools into one efficient device. It performs voltage and polarity tests, continuity checks, signal circuit tracing, and grounding tests. Most importantly, it can activate electrical components in-situ by supplying battery power or ground, drastically reducing diagnostic time.
- Instant & Unmistakable Feedback

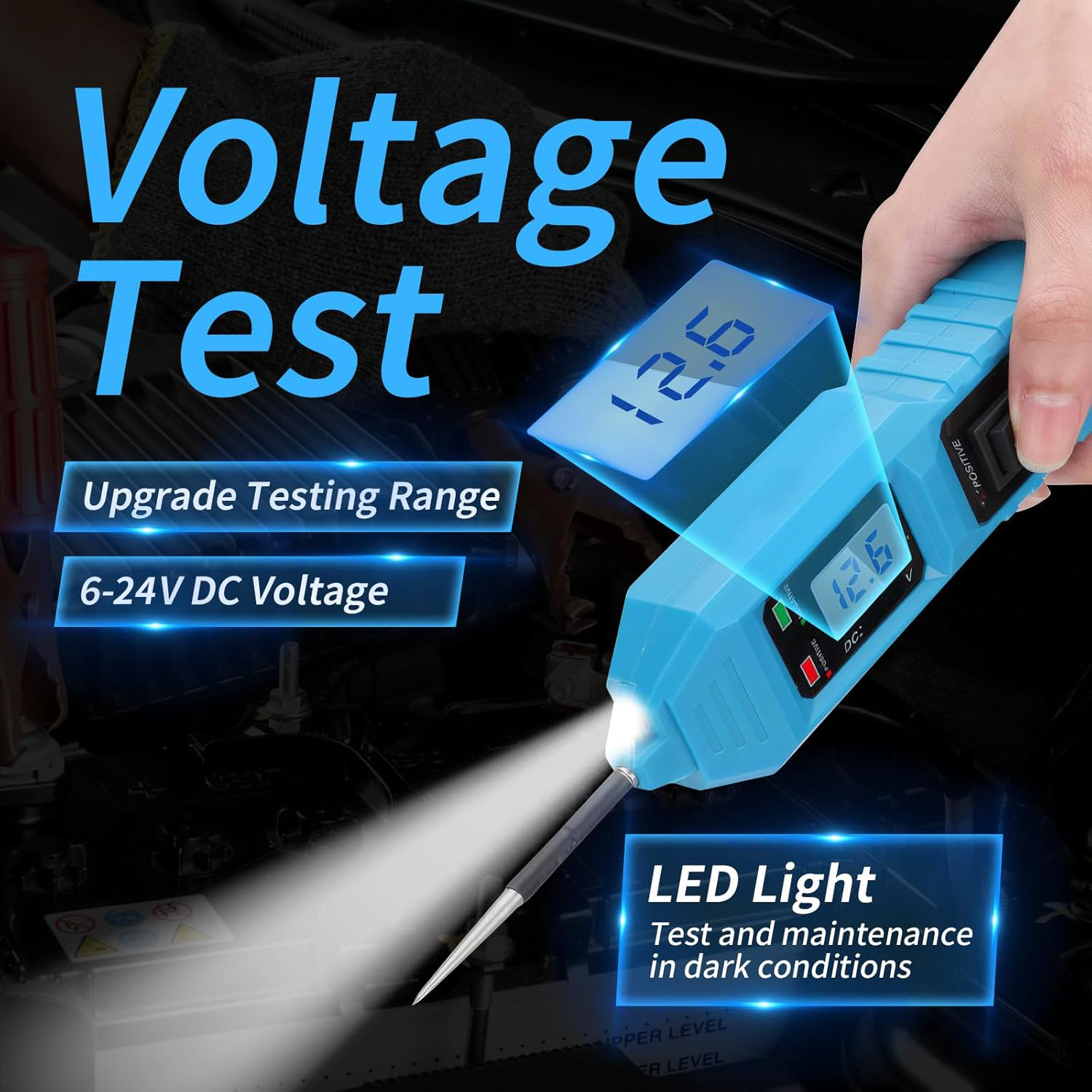

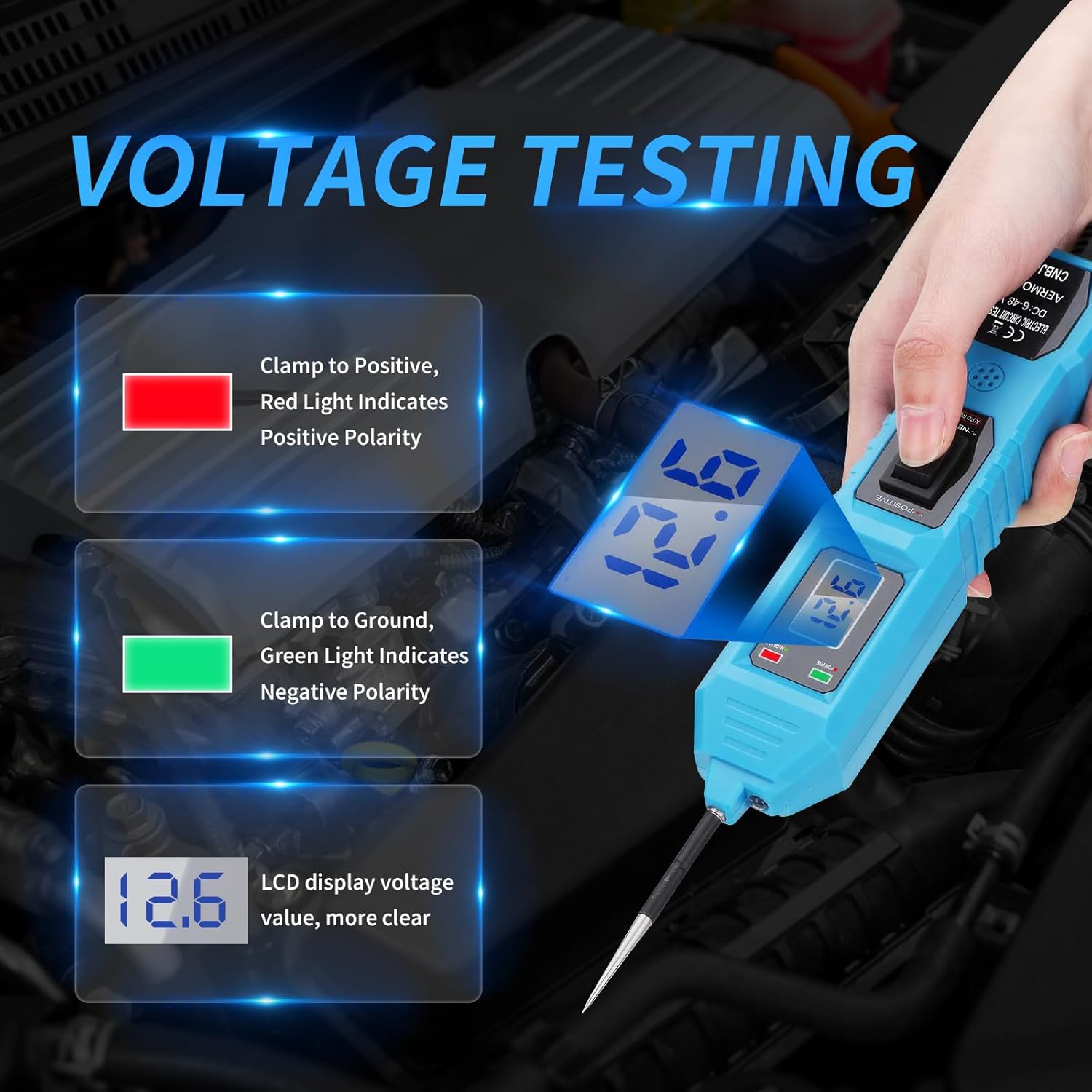

Achieve faster, error-free diagnostics with a multi-notification system. The backlit digital LCD screen provides precise, at-a-glance voltage readings. It is supplemented by color-coded LEDs (red for positive, green for negative) and an audible buzzer for immediate continuity confirmation, allowing technicians to test without looking away from the work area.
- Unrestricted Access with 14.7ft Extended Cable
The heavy-gauge 14.7ft (4.5m) cable provides exceptional reach, allowing technicians to comfortably test any electrical system from the front to the rear of the vehicle without constantly repositioning the clamps. This superior flexibility is essential for working on larger vehicles like trucks, trailers, and boats.
- Built-in Safety with Overload Protection
Work with confidence knowing both the tool and the vehicle’s sensitive electronics are protected. The tester features an internal, self-resetting circuit breaker. It will instantly trip if the tool is overloaded, preventing damage to the vehicle’s ECU and the device itself, making it a safe and reliable choice for any professional workshop.
- Universal Compatibility for All 6-24V DC Systems
Engineered for maximum versatility, this power probe is compatible with all 6-24V DC electrical systems. This makes it an indispensable tool for a wide range of applications, including cars, heavy-duty trucks, motorcycles, marine vessels, and construction equipment. One tool covers virtually every vehicle that enters your workshop.
CNBJ-823 6V-24V DC Automotive Power Probe Circuit Tester Datasheet
| Part NO | CNBJ-823 |
| Type | Inline Spark Tester |
| Rated Current | 1-8A |
| Overload Protection Current | 8A |
| Voltage Range | DC 6-24V |
| Precision | ±2% |
| Operating Temperature | -10°C to 60°C |
| Relative Humidity | ≤80% |
