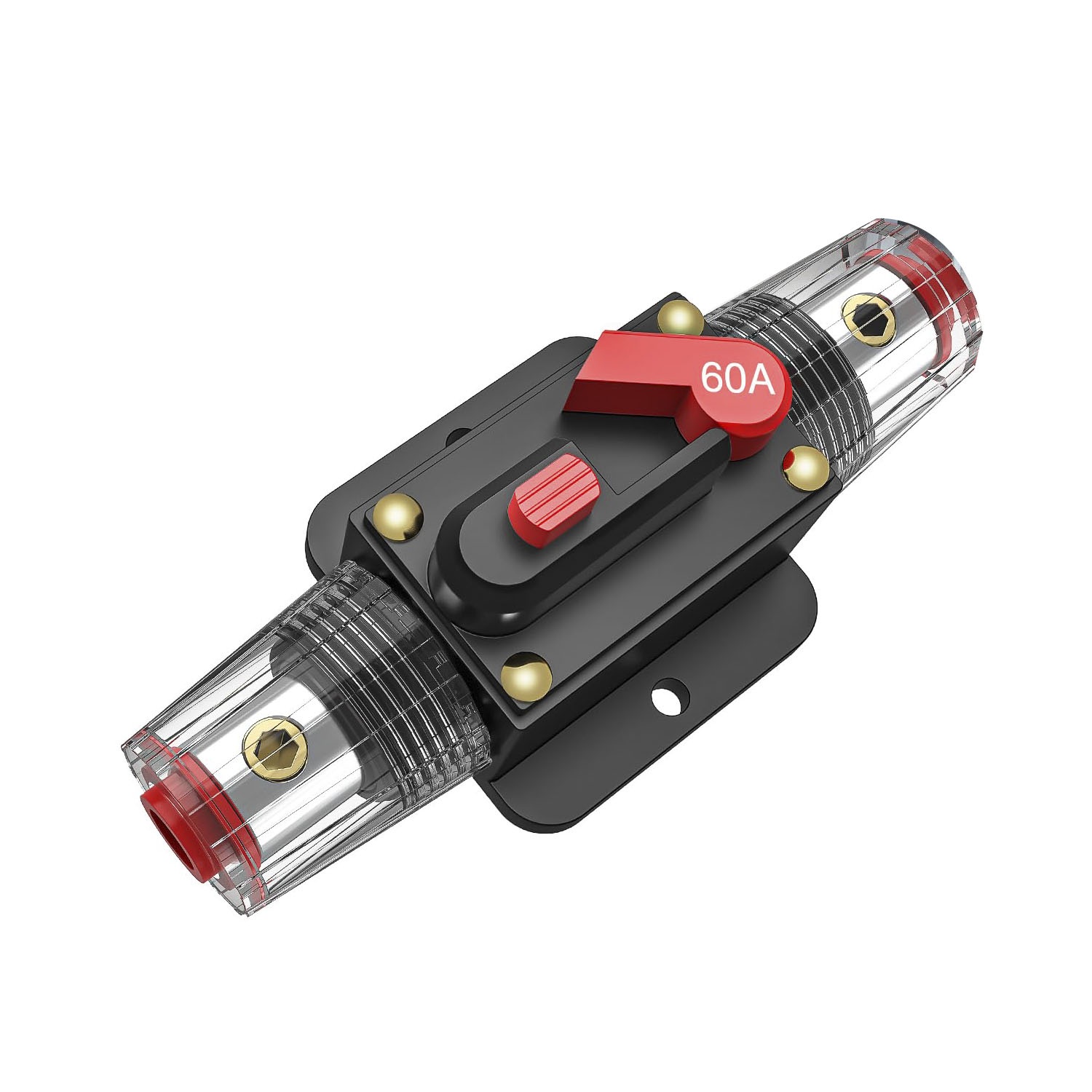

CB-01 20A-150A 12V-24V DC Automotive Inline Circuit Breaker with Manual Reset Fits 3-15 AWG & 0-10 AWG Wires
Part#CB-01
This 12V/24V inline circuit breaker series offers a robust range of protection from 20A to 150A, featuring tailored connectivity for 3-15 AWG and 0-10 AWG wires.
Its phenolic plastic housing and PC protective cover ensure reliability in temperatures from -10°C to 50°C, with an intuitive manual reset button for easy circuit control.
CB-01 20A-150A 12V-24V DC Automotive Inline Circuit Breaker with Manual Reset Features
- Tailored Wire Gauge Connectivity

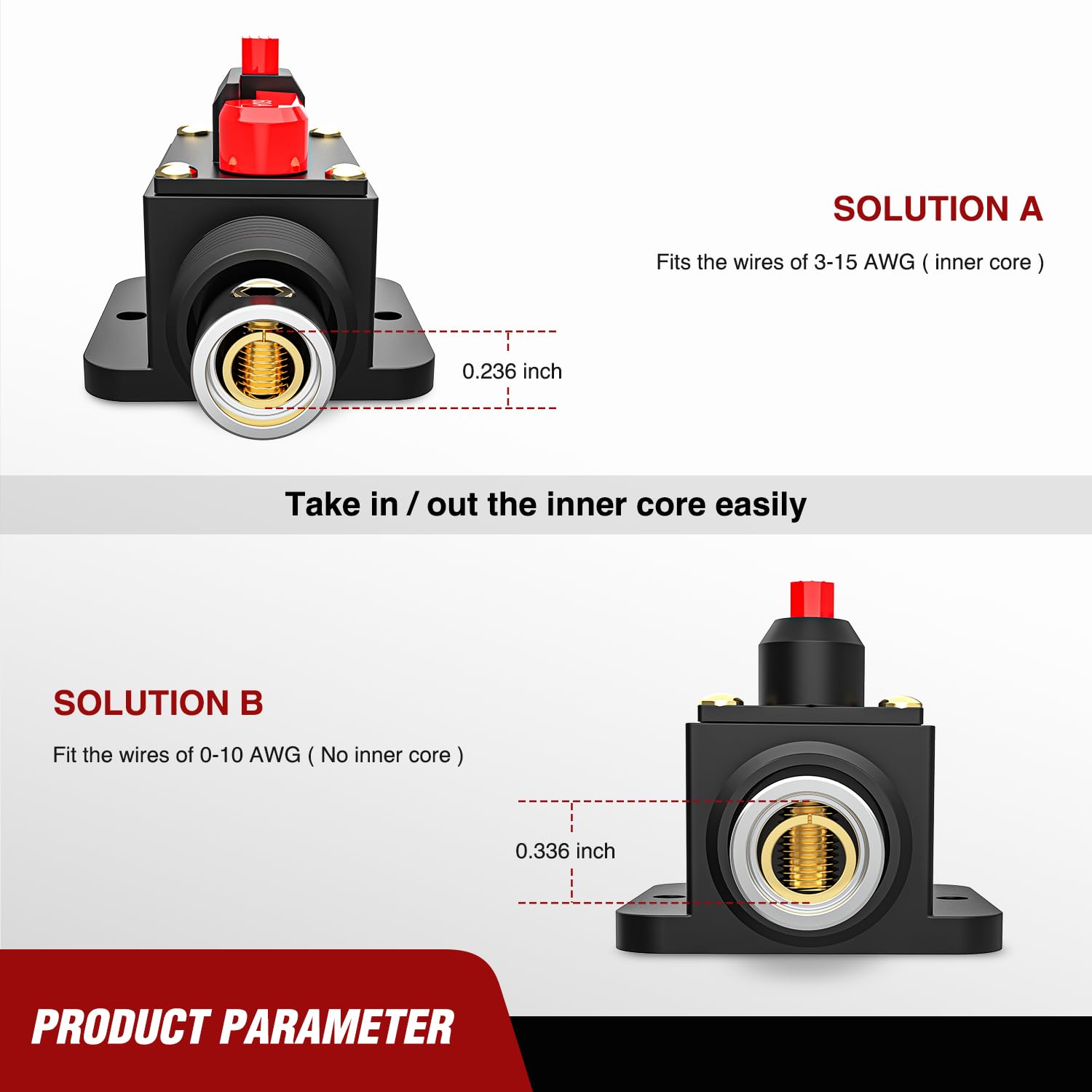

This inline fuse holder offers precise connectivity for specific wire gauges. Solution A accommodates inner core wires from 3 AWG to 15 AWG, ensuring optimal electrical contact. Meanwhile, Solution B is engineered for 0-10 AWG wires lacking an inner core, maximizing application flexibility.
- Broad Amperage Selection for Diverse Power Needs

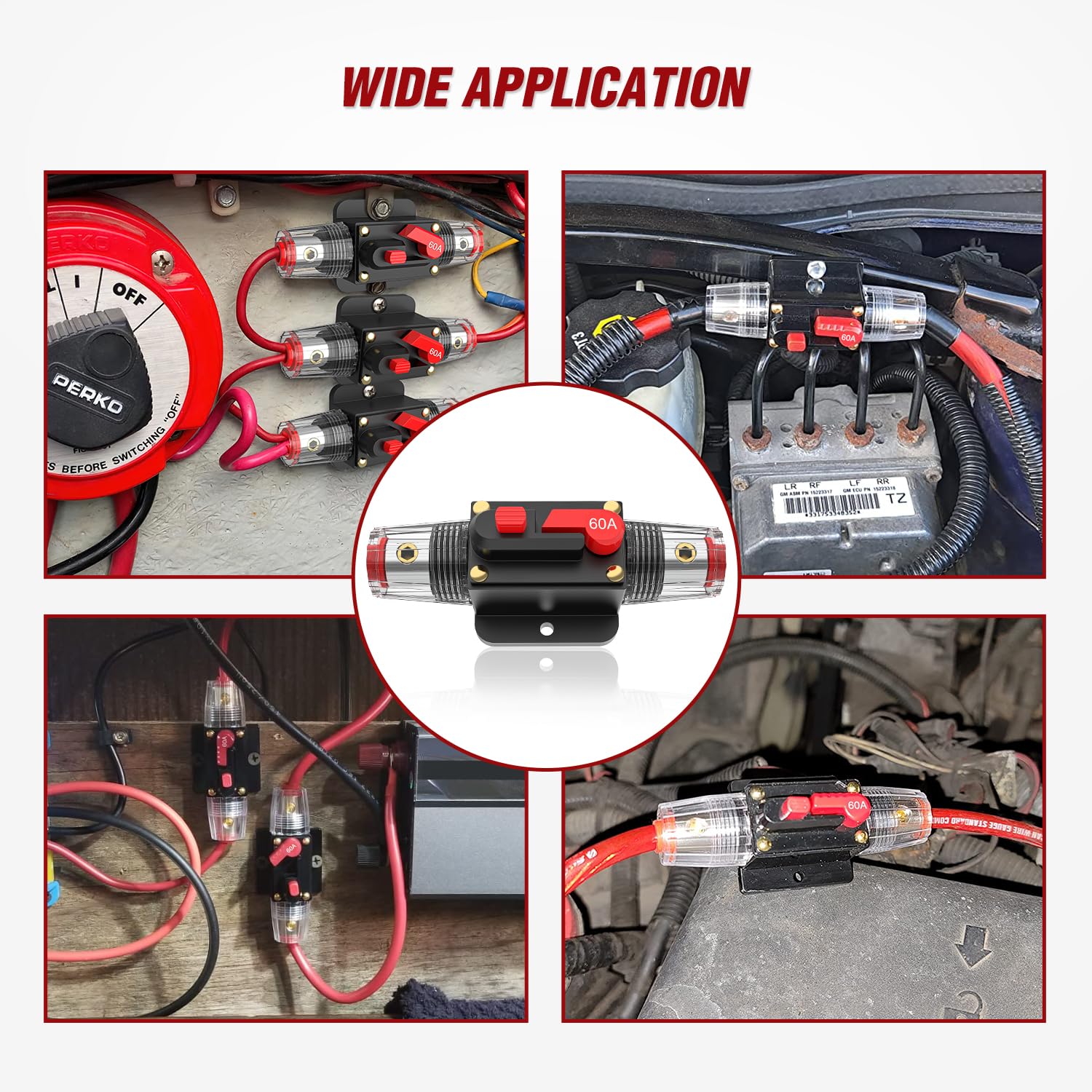

The resetable circuit breaker line provides a comprehensive range of amperages, from 20A up to 150A, allowing for precise system matching. This extensive ampere selection ensures users can select the exact protection level required for their automotive, marine, or RV electrical systems.
- Reliable Operation in Variable Temperatures
Engineered to perform, these DC circuit breakers function effectively within a working temperature range of -10°C to 50°C (-14°F to 122°F). This capability means the automatic circuit breaker will maintain its protective function across a variety of ambient conditions.
-
Intuitive Manual Disconnect and Reset

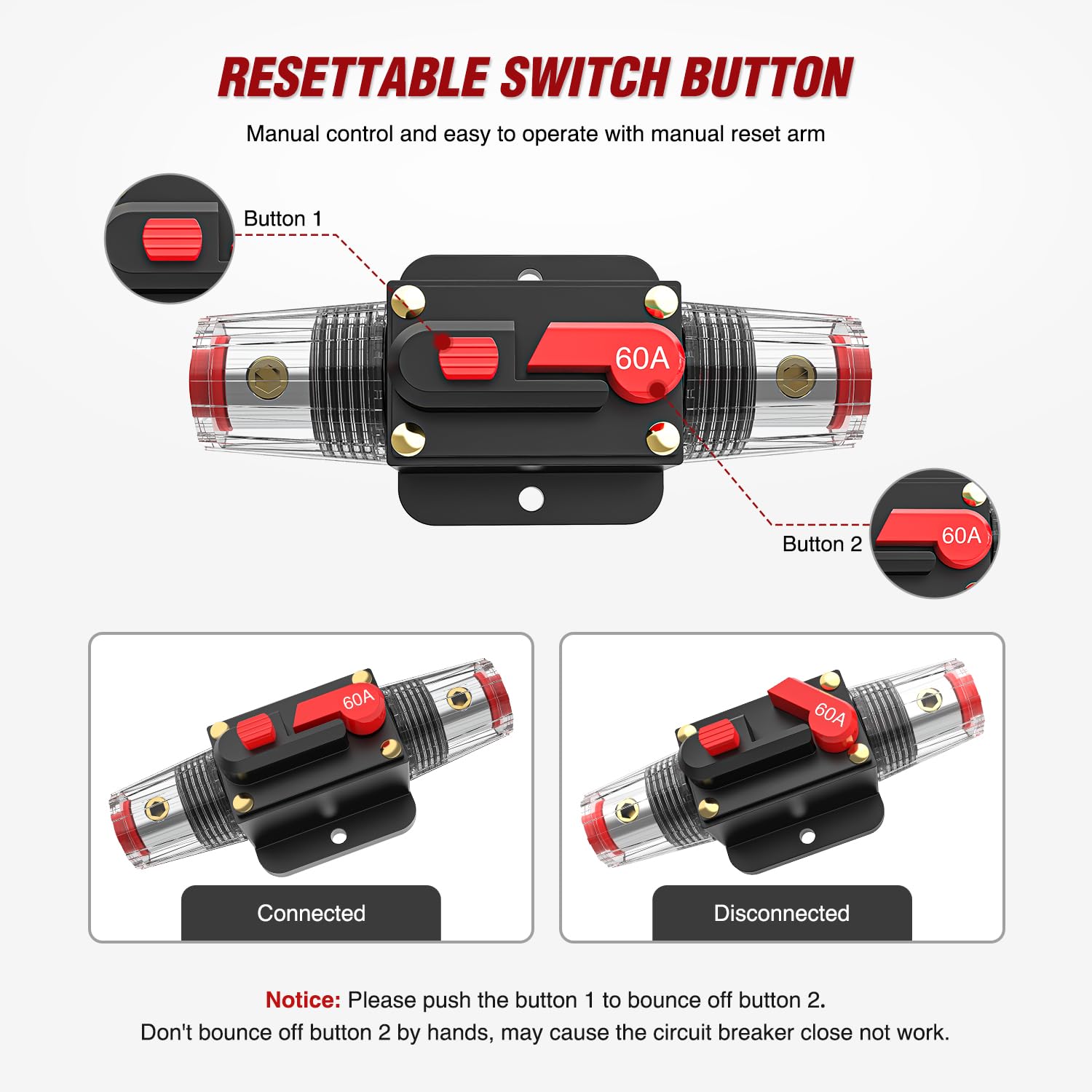

The master disconnect switch design features an easily accessible red button for circuit control. A simple press of this manual reset button allows for straightforward ON/OFF operation, providing a convenient way to manage power flow and restore protection after an overload.
- Wide Compatibility and Amperage Selection
Compatible with all 12V/24V Systems, this DC circuit breaker is available in multiple amperage ratings: 20A, 30A, 40A, 50A, 60A, 70A, 80A, 100A, and 150A. This broad amperage selection allows you to precisely match the breaker to your specific circuit needs, ensuring optimal safety and performance.
CB-01 Automotive Inline Circuit Breaker with Manual Reset Datasheet
| Part | CB-01 |
| Ampere Range | 20/30/40/50/60/80/100/150A |
| Working Voltage | 12V-24V DC |
| Weight | 80g / 2.39 ounces |

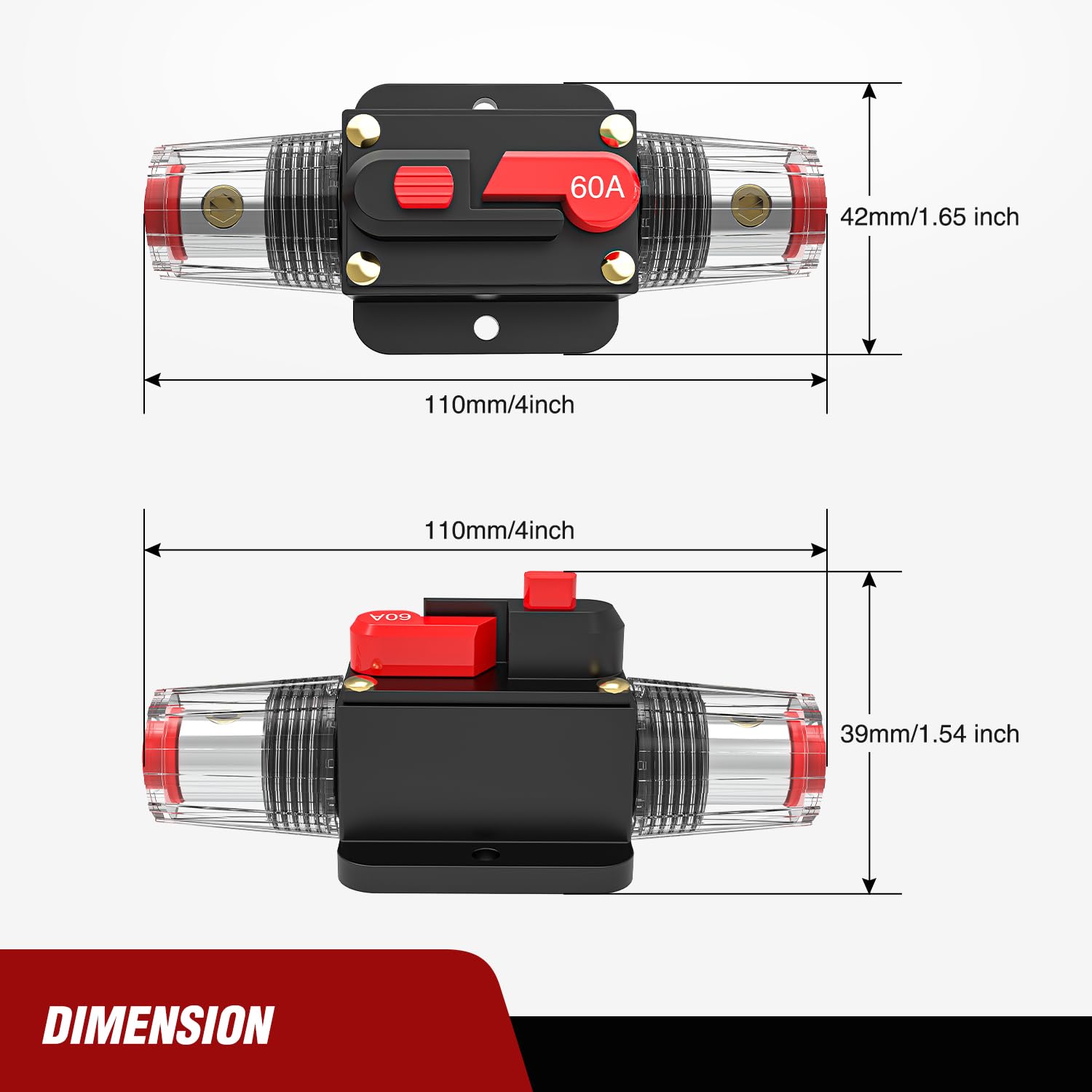

| Size | 3.86 x 1.68 x 1.38 inches/98mm (L) x 43mm (W) x 35mm (H) |
| Circuit Breaker Type | Standard |
| Mounting Type | Panel Mount |
| Work Temperature | -10℃ to 50℃ (-14F to 122F) |
If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
