SMTS-103-2A1 Single Pole Toggle Switch
SMTS-103-2A1 Single Pole Toggle Switch:
The SMTS sub-miniature toggle switches are offered in both SPDT and DPDT. These brass toggle switch come with a variety of switching functions and bushing options. Eight different termination options are available.
Applications include telecommunications, instrumentation, networking, and medical equipment devices.

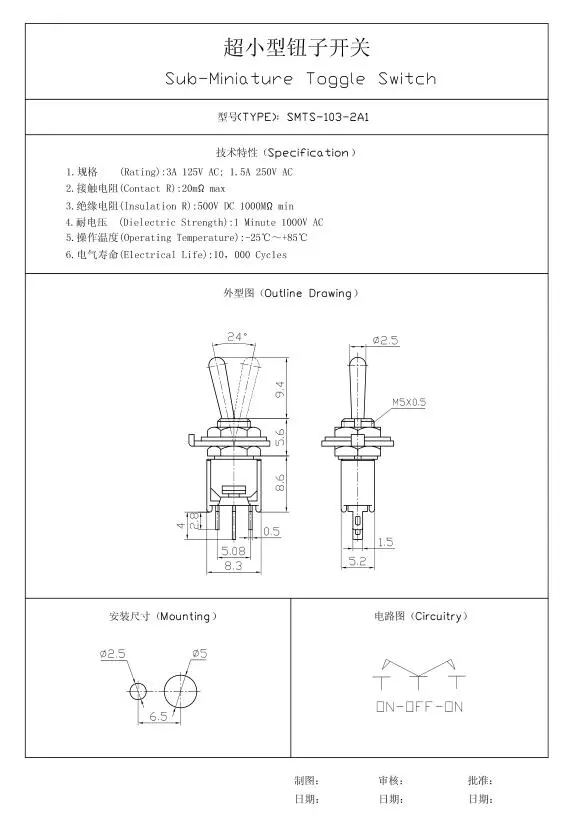

SMTS-103-2A1 Single Pole Toggle Switch datasheet below:
| Housing: | PA66 | Lever: | Brass with Nickel plated |
| Terminal: | Brass with sliver plated | Torque: | Max. 5kg·cm (70 ounce·inch) |
| Rating: | 3A 125VAC/1.5A 250VAC | Contact Resistance: | 20mΩ max |
| Electrical Life: | ≥ 10,000 Cycles | Mechanical Life: | ≥ 100,000 Cycles |
| Dielectric strength: | 1000VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 1000mΩ min (500VDC) | OEM or ODM: | Available |
