SMTS-102-2C3 PC-H Terminal Toggle Switch

SMTS-102-2C3  Toggle Switch, SPDT 3 pins

SMTS-102-2C3 PC-H Terminal Toggle Switch:

The SMTS sub-miniature toggle switches are offered in both SPDT and DPDT. These switches come with a variety of switching functions and bushing options. Eight different termination options are available.

Applications include telecommunications, instrumentation, networking, and medical equipment devices.

SMTS-102-2C3 PC-H Terminal Toggle Switch related product, pls check the detailed information as below:

SMTS-102-2C3 3Pin, ON-ON
SMTS-103-2C3 3Pin, ON-OFF-ON

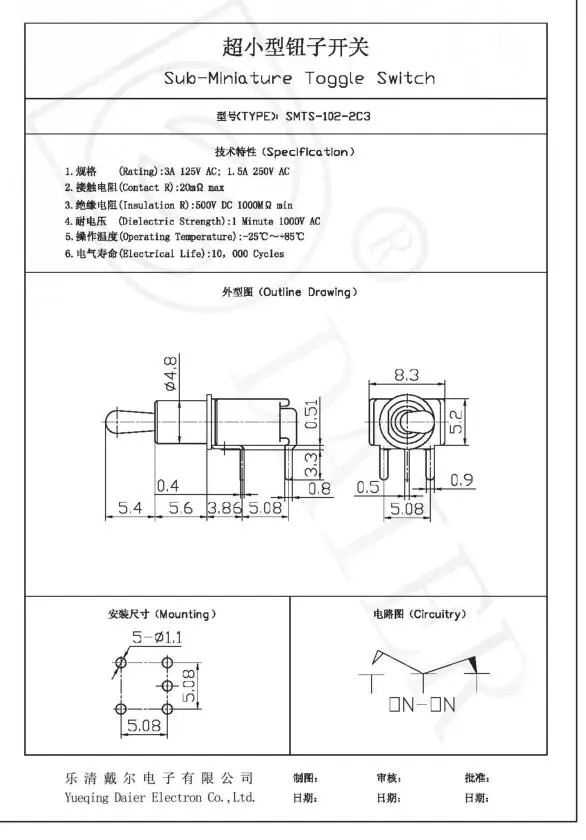

SMTS-102-2C3 Toggle Switch datasheet below:


Housing: PA66 Lever: Brass with Nickel plated
Terminal: Brass with sliver plated Torque: Max. 5kg·cm (70 ounce·inch)
Rating: 3A 125VAC/1.5A 250VAC Contact Resistance: 20mΩ max
Electrical Life: ≥ 10,000 Cycles Mechanical Life: ≥ 100,000 Cycles
Dielectric strength: 1000VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 1000mΩ min (500VDC) OEM or ODM: Available
SMTS toggle switch
